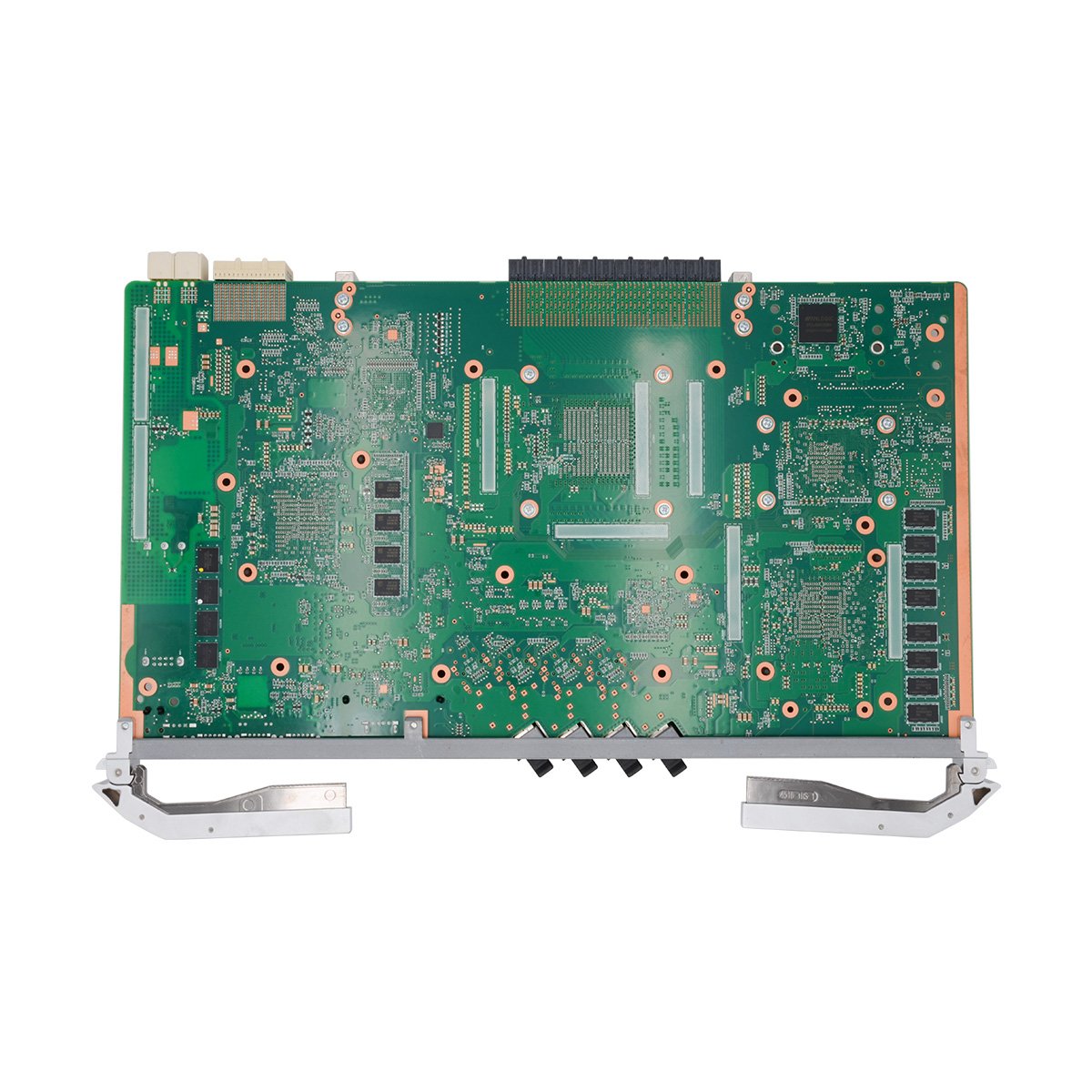

H903MPLA
Main control board apply to Huawei MA5800-X7/X15/X17 integrated with 4-port 10GE/GE optical uplink port
- Description
- DATASHEET
- Packing info
- Reviews (1)
Description
H903MPLA Overview
H903MPLA is a main control card apply to Huawei SmartAX MA5800 NG OLT, and It is the core of system control and service switching and aggregation.
MAX access 17408 subscribers
supports 131072 ARP table.
Supports active/standby switchover
Supports load sharing mode, doubling processing performance
Supports ISSU, saving the upgarde interruption time
Supports synchronization Ethernet
Supports 1588v2 and 1588ACR
Supports interfaces CON (RJ-45), ETH (RJ-45), ESC (RJ-45).
Supports Communication Interfaces TX0 RX0 to TX3 RX3 (4 x SFP+/SFP 10GE/GE ports).
H903MPLA Datasheet
| Function | |
| Bandwidth per slot | 100Gbit/s (load sharing mode) |
| MAC address table | 262143 |
| Access ONT | 17408 |
| Multicast user | 17408 |
| IPv4 routing table | 65536 |
| IPv6 routing table | 16384 |
| Service port | 139264 |
| ARP table | 131072 |
| Maximum Frame Size | 2052 bytes. After the jumbo frame function is enabled, a maximum of 9216 bytes can be supported. |
| Environment | |
| Operating temperature | -40°C to +65°C |
| Power consumption (W) | Static: 53 Maximum: 87 |
| Mechanical Specification | |
| Dimensions(mm) | 31 (W)x 258.9 (D) x 399.1 (H) |
| Weight(kg) | 1.24 |
Additional information
| Weight | 3.0000 kg |
|---|---|
| Dimensions | 49.0000 × 32.5000 × 7.5000 cm |
Charolette –
All brand-new and sealed. Main control board apply to Huawei MA5800-X7/X15/X17 integrated with 4-port 10GE/GE optical uplink port.
