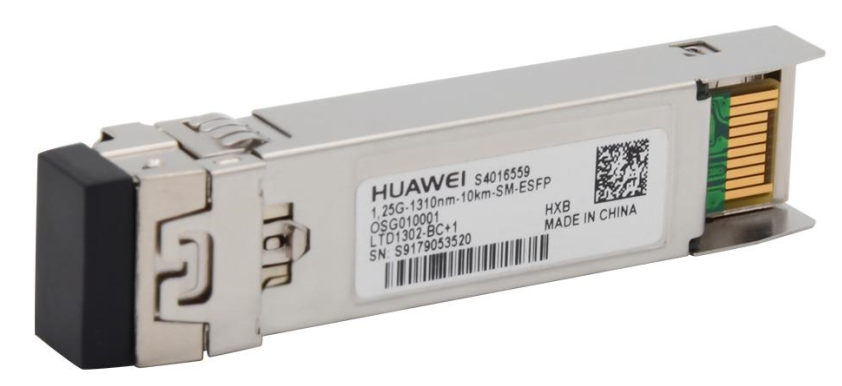

How Do I View the Transmit and Receive Optical Power of an Optical Module
Issue Description
How Do I View the Transmit and Receive Optical Power of an Optical Module?
In V100R006C03 or V100R006C05 of fixed or modular switches
The RX Power(dBM) field in the command output indicates the receive power of the optical module, and the TX Power(dBM) field indicates the transmit power.
<Quidway> display transceiver interface gigabitethernet 0/0/1 verboseGigabitEthernet0/0/1 transceiver information:
————————————————————-
Common information:
Transceiver Type :1000_BASE_SX_SFP
Connector Type :LC
Wavelength(nm) :850
Transfer Distance(m) :300(50um),150(62.5um)
Digital Diagnostic Monitoring :YES
Vendor Name :SumitomoElectric
Vendor Part Number :HFBR-5710L
Ordering Name :
————————————————————-
Manufacture information:
Manu. Serial Number :88K056C10353
Manufacturing Date :2008-08-08
Vendor Name :SumitomoElectric
————————————————————-
Diagnostic information: //The diagnoistic information is displayed only in V100R006C03.
Temperature(°C) :26.00
Temp High Threshold(°C) :85.00
Temp Low Threshold(°C) :-40.00
Voltage(V) :3.29
Volt High Threshold(V) :3.64
Volt Low Threshold(V) :2.95
Bias Current(mA) :4.57
Bias High Threshold(mA) :9.00
Bias Low Threshold(mA) :2.00
RX Power(dBM) :-40.00
RX Power High Threshold(dBM) :0.00
RX Power Low Threshold(dBM) :-16.99
TX Power(dBM) :-5.03
TX Power High Threshold(dBM) :-2.22
TX Power Low Threshold(dBM) :-6.99
————————————————————-
User information:
THIS_IS_A_TEST
————————————————————-
Diagnostic information:
Temperature(°C) :40.21
Temp High Warning Threshold(°C) :93.00
Temp Low Warning Threshold(°C) :-30.00
Temp High Alarm Threshold(°C) :110.00
Temp Low Alarm Threshold(°C) :-40.00
Voltage(V) :3.26
Volt High Warning Threshold(V) :3.70
Volt Low Warning Threshold(V) :2.90
Volt High Alarm Threshold(V) :3.90
Volt Low Alarm Threshold(V) :2.70
Bias Current(mA) :23.78
Bias High Warning Threshold(mA) :70.00
Bias Low Warning Threshold(mA) :4.00
Bias High Alarm Threshold(mA) :80.00
Bias Low Alarm Threshold(mA) :2.00
RX Power(dBM) :-31.10
RX Power High Warning Threshold(dBM) :-1.00
RX Power Low Warning Threshold(dBM) :-20.00
RX Power High Alarm Threshold(dBM) :0.75
RX Power Low Alarm Threshold(dBM) :-23.97
TX Power(dBM) :-5.78
TX Power High Warning Threshold(dBM) :-1.00
TX Power Low Warning Threshold(dBM) :-11.50
TX Power High Alarm Threshold(dBM) :0.99
TX Power Low Alarm Threshold(dBM) :-13.50
————————————————————-
In V200R001 of fixed switches
The RX Power(dBM) field in the command output indicates the receive power of the optical module, and the TX Power(dBM) field indicates the transmit power.
<Quidway> display transceiver interface gigabitethernet 0/0/1 verboseGigabitethernet0/0/1 transceiver information:
————————————————————-
Common information:
Transceiver Type :OC3_INTER_REACH_SFP
Connector Type :LC
Wavelength(nm) :1310
Transfer Distance(m) :15000(9um)
Digital Diagnostic Monitoring :YES
Vendor Name :HUAWEI
Vendor Part Number :34060358
Ordering Name :
————————————————————-
Manufacture information:
Manu. Serial Number :EH1048220807
Manufacturing Date :2010-12-06
Vendor Name :HUAWEI
————————————————————-
Alarm information:
RX loss of signal
RX power low
————————————————————-
Diagnostic information:
Temperature(°C) :26.00
Temp High Threshold(°C) :85.00
Temp Low Threshold(°C) :-40.00
Voltage(V) :3.29
Volt High Threshold(V) :3.64
Volt Low Threshold(V) :2.95
Bias Current(mA) :4.57
Bias High Threshold(mA) :9.00
Bias Low Threshold(mA) :2.00
RX Power(dBM) :-40.00
RX Power High Threshold(dBM) :0.00
RX Power Low Threshold(dBM) :-16.99
TX Power(dBM) :-5.03
TX Power High Threshold(dBM) :-2.22
TX Power Low Threshold(dBM) :-6.99
————————————————————-
Modular Switch V200R001
The Current Rx Power(dBM) field in the command output indicates the current receive power of the optical module, and the Current Tx Power(dBM) field indicates the current transmit power.
<Quidway> display transceiver interface gigabitethernet 3/1/4 verboseGigabitEthernet3/1/4 transceiver information:
————————————————————-
Common information:
Transceiver Type :OC3_INTER_REACH_SFP
Connector Type :LC
Wavelength(nm) :1310
Transfer Distance(m) :15000(9um)
Digital Diagnostic Monitoring :YES
Vendor Name :HUAWEI
Vendor Part Number :34060358
Ordering Name :
————————————————————-
Manufacture information:
Manu. Serial Number :EH1048220807
Manufacturing Date :2010-12-06
Vendor Name :HUAWEI
————————————————————-
Alarm information:
RX loss of signal
RX power low
————————————————————-
Diagnostic information:
Temperature(°C) :18
Voltage(V) :3.32
Bias Current(mA) :8.12
Bias High Threshold(mA) :27.34
Bias Low Threshold(mA) :2.17
Current Rx Power(dBM) :-30.00
Default Rx Power High Threshold(dBM) :0.00
Default Rx Power Low Threshold(dBM) :-16.99
Current Tx Power(dBM) :-4.42
Default Tx Power High Threshold(dBM) :0.00
Default Tx Power Low Threshold(dBM) :-9.50
User Set Rx Power High Threshold(dBM) :0.00
User Set Rx Power Low Threshold(dBM) :-16.99
User Set Tx Power High Threshold(dBM) :0.00
User Set Tx Power Low Threshold(dBM) :-9.50
————————————————————-
Fixed Switch V200R002&V200R003
The RX Power(dBM) field in the command output indicates the receive power of the optical module, and the TX Power(dBM) field indicates the transmit power.
<Quidway> display transceiver interface gigabitethernet 0/0/1 verboseGigabitethernet0/0/1 transceiver information:
————————————————————-
Common information:
Transceiver Type :1000_BASE_SX_SFP
Connector Type :LC
Wavelength(nm) :850
Transfer Distance(m) :300(50um),150(62.5um)
Digital Diagnostic Monitoring :YES
Vendor Name :SumitomoElectric
Vendor Part Number :HFBR-5710L
Ordering Name :
————————————————————-
Manufacture information:
Manu. Serial Number :88K056C10353
Manufacturing Date :2008-08-08
Vendor Name :SumitomoElectric
————————————————————-
Diagnostic information:
Temperature(°C) :26.00
Temp High Threshold(°C) :85.00
Temp Low Threshold(°C) :-40.00
Voltage(V) :3.29
Volt High Threshold(V) :3.64
Volt Low Threshold(V) :2.95
Bias Current(mA) :4.57
Bias High Threshold(mA) :9.00
Bias Low Threshold(mA) :2.00
RX Power(dBM) :-40.00
RX Power High Threshold(dBM) :0.00
RX Power Low Threshold(dBM) :-16.99
TX Power(dBM) :-5.03
TX Power High Threshold(dBM) :-2.22
TX Power Low Threshold(dBM) :-6.99
————————————————————-
Modular Switch V200R002&V200R003
The Current Rx Power(dBM) field in the command output indicates the current receive power of the optical module, and the Current Tx Power(dBM) field indicates the current transmit power.
<Quidway> display transceiver interface gigabitethernet 3/0/0 verboseGigabitEthernet3/0/0 transceiver information:
————————————————————-
Common information:
Transceiver Type :1000_BASE_SX_SFP
Connector Type :LC
Wavelength(nm) :850
Transfer Distance(m) :500(50um),300(62.5um)
Digital Diagnostic Monitoring :YES
Vendor Name :FINISAR CORP.
Vendor Part Number :FTLF8519P2BNL-HW
Ordering Name :
————————————————————-
Manufacture information:
Manu. Serial Number :PEP3L5D
Manufacturing Date :2008-12-05
Vendor Name :FINISAR CORP.
————————————————————-
Alarm information:
TX power low
————————————————————-
Diagnostic information:
Temperature(°C) :39
Voltage(V) :3.31
Bias Current(mA) :6.59
Bias High Threshold(mA) :10.50
Bias Low Threshold(mA) :2.50
Current Rx Power(dBM) :-2.23
Default Rx Power High Threshold(dBM) :3.01
Default Rx Power Low Threshold(dBM) :-15.02
Current Tx Power(dBM) :-2.45
Default Tx Power High Threshold(dBM) :3.01
Default Tx Power Low Threshold(dBM) :-9.00
User Set Rx Power High Threshold(dBM) :3.01
User Set Rx Power Low Threshold(dBM) :-15.02
User Set Tx Power High Threshold(dBM) :3.01
User Set Tx Power Low Threshold(dBM) :-9.00
————————————————————-
