ETP4830-A1

Huawei ETP4830-A1(R4815G) with Rectifier Module R4815N R4815G Monitoring Module SMU01A SMU01B SMU01C

SKU: 02310KGE-1 Category:

Description

ETP4830-A1 (R4815G) Overview

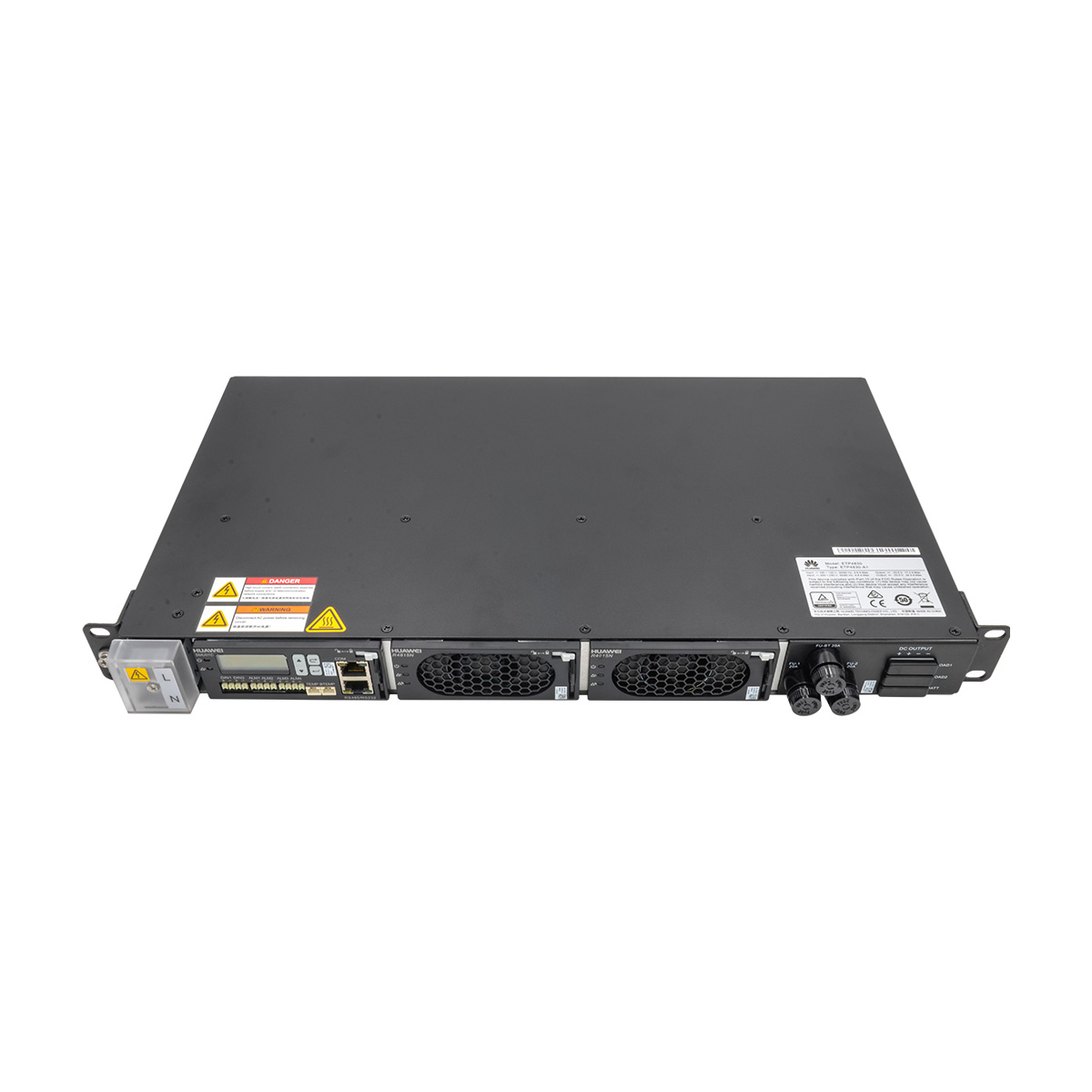

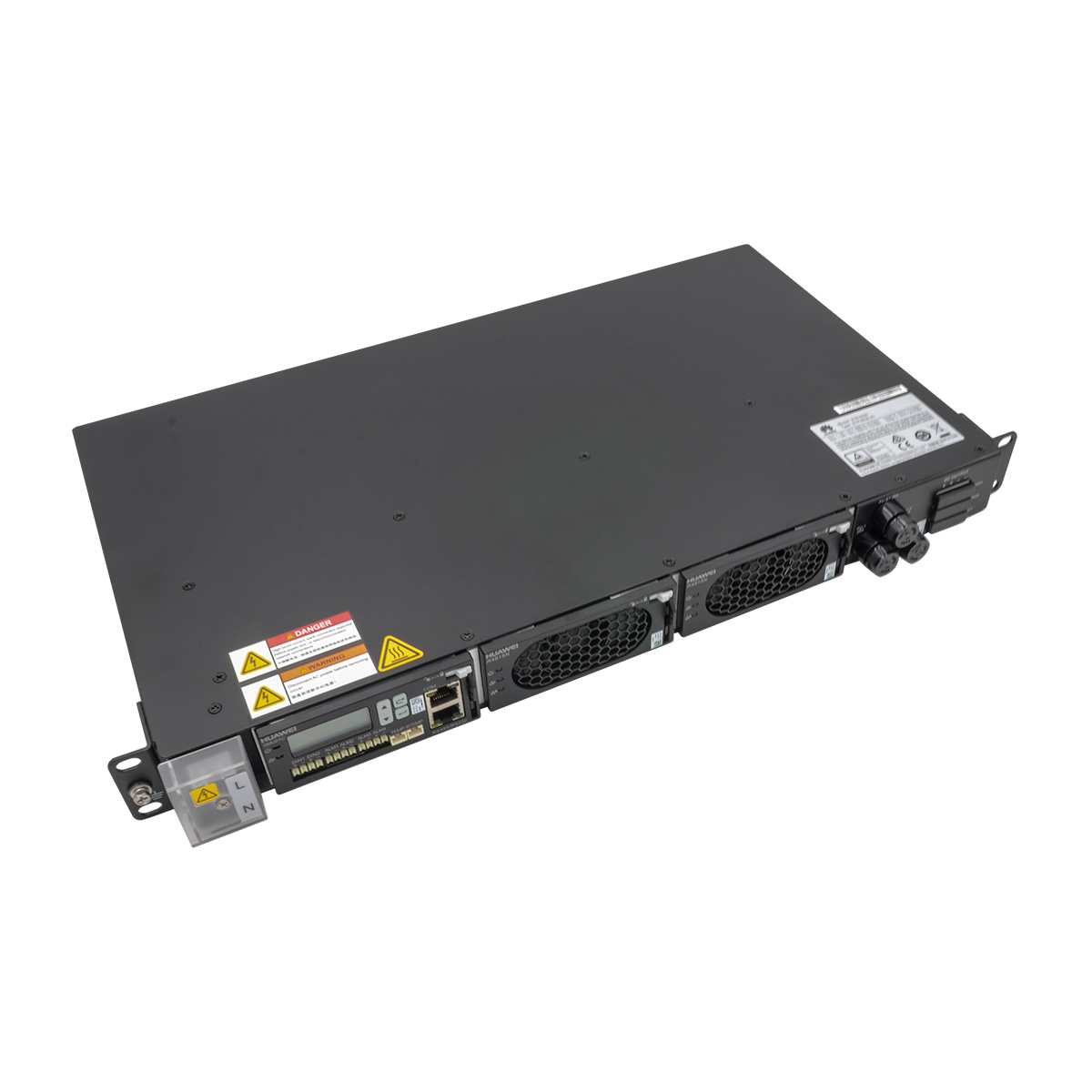

The ETP4830-A1 is a box-type power system that supplies power for -48 V DC communications equipment. It uses 15 A rectifiers and provides a maximum output current of 30 A.
Huawei ETP4830-A1 with Rectifier Module R4815N R4815G Monitoring Module SMU01A SMU01B SMU01C
  • Supports a wide voltage range of 85 V AC to 300 V AC.
  • Provides comprehensive battery management.
  • The SMU01A communicates with Huawei Network Ecosystem (NetEco) and third-party element management systems (EMSs) over various security protocols, such as the Simple Network Management Protocol (SNMP) and Hypertext Transfer Protocol Secure (HTTPS), featuring flexible networking. It provides WebUI and implements remote unattended management.
  • The SMU01B connects to the U2000 over Huawei master/slave protocols.
  • Displays information on a liquid crystal display (LCD) and provides buttons for operations.
  • Supports electronic labels.
  • Rectifiers and the site monitoring unit (SMU) are hot-swappable.
  • Allows high-efficiency and standard-efficiency rectifiers with the same capacity to coexist.
  • The rectifier power factor is 0.99.
Item ETP4830-A1(R4815G)
PDU AC input 230 V AC single-phase three-wire (L, N), compatible with 230 V AC dual-live-wire (L, L)

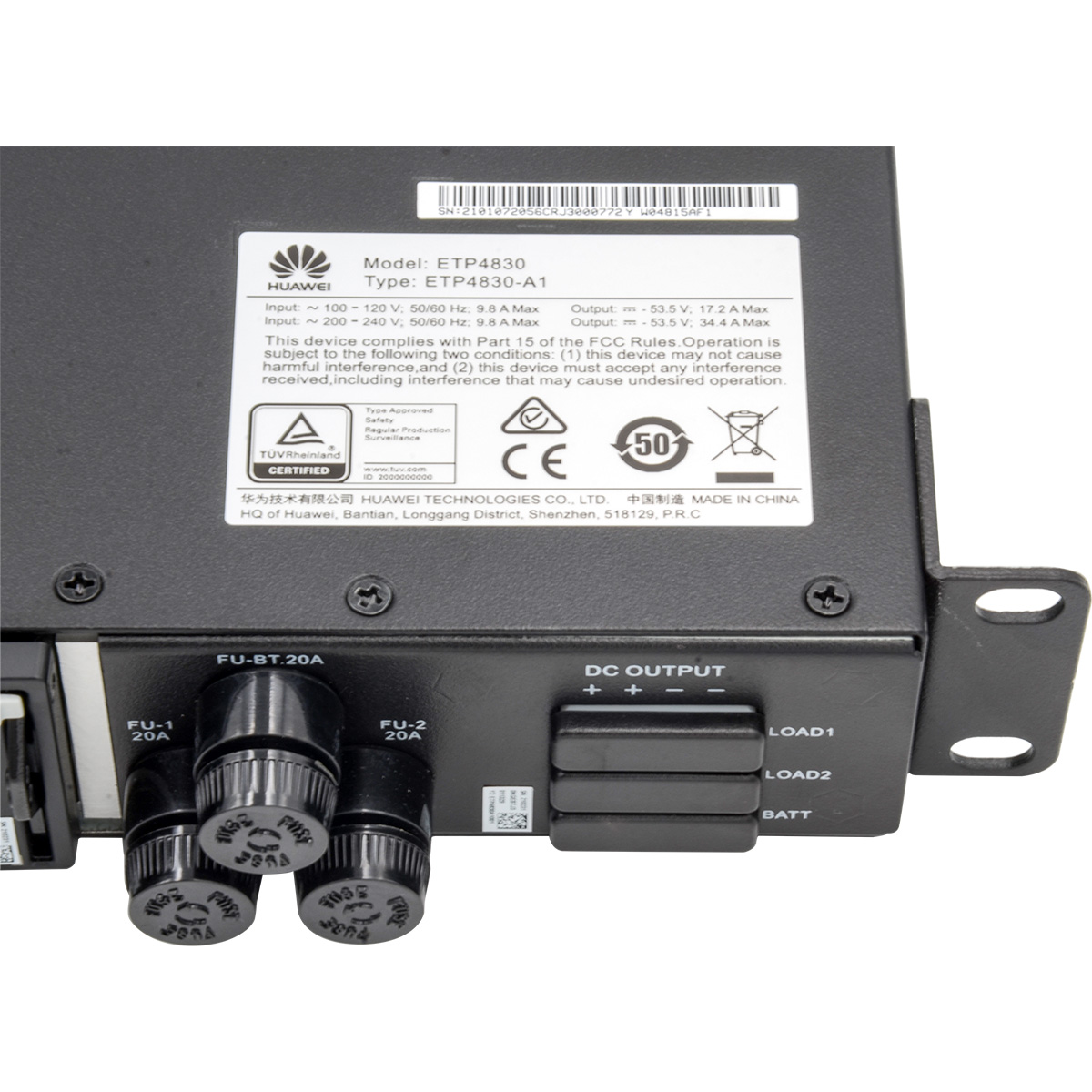

DC power distribution Battery fuse One 20 A
Load fuse Two 20 A

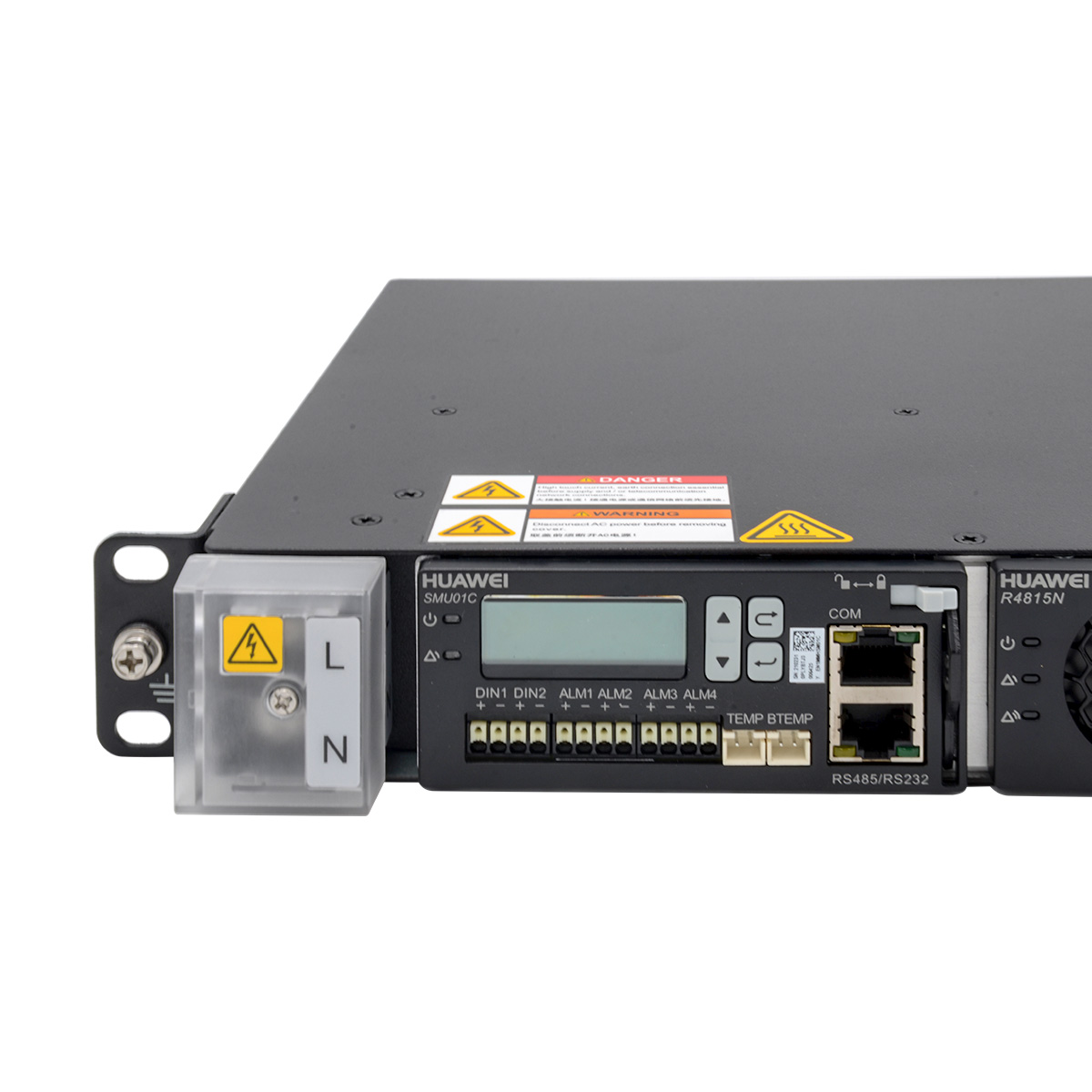

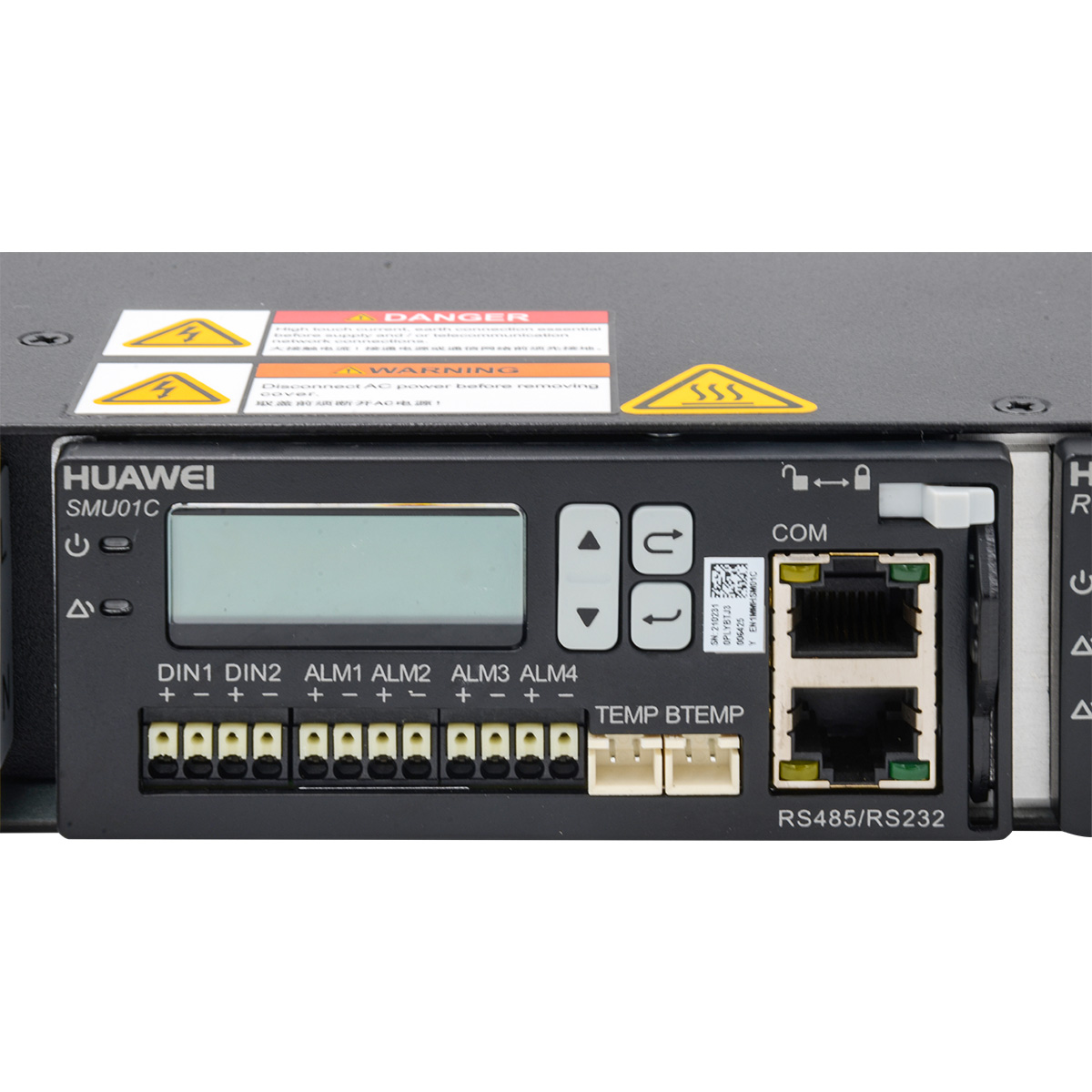

SMU The following SMUs are supported:

  • One SMU01A
  • One SMU01B
  • One SMU01C
Rectifier The following rectifiers are supported:

  • One to two R4815G1s
  • One to two R4815N1s

NOTE:

  • The R4815G1 and R4815N1 can be installed together.
ETP4830-A1 Datasheet
Item ETP4830-A1(R4815G)
AC Input mode 230 V AC single-phase three-wire (L, N), compatible with 230 V AC dual-live-wire (L,L)
AC Input frequency 45–66 Hz (rated frequency: 50/60 Hz)
Power factor ≥ 0.99 (100% load)
Input voltage frequency 45 Hz to 65 Hz
DC Output voltage range -42 V DC- -58 V DC
Maximum output power (W) 1740
Surge protection capability 2 kV in differential mode
4 kV in common mode
Dimension (mm) 442(W)×255(D)×43.6(1U,H)
Weight (kg) ≤8 (fully loaded)
Operating temperature -40ºC to +70ºC
Operating humidity 5%–95% RH (non-condensing)
Storage humidity 5%–95% RH (non-condensing)

Additional information

Weight 8.0000 kg
Dimensions 59.5000 × 39.0000 × 15.0000 cm
