Description

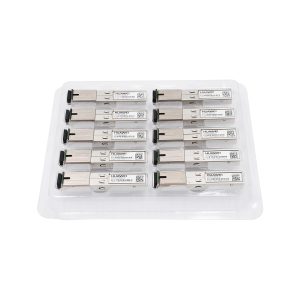

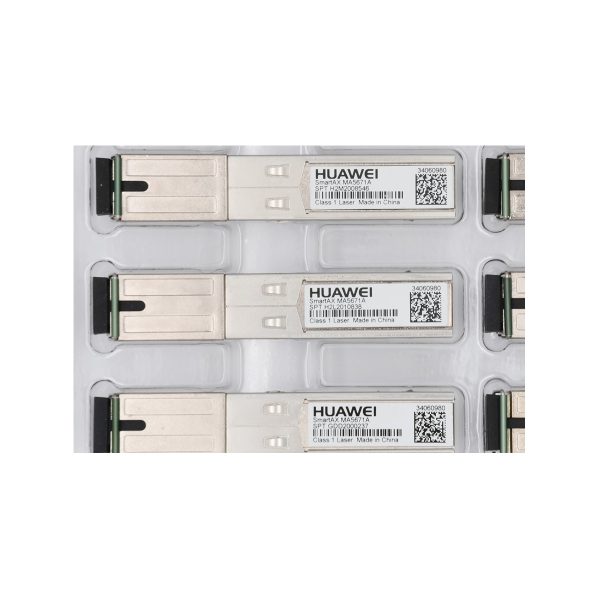

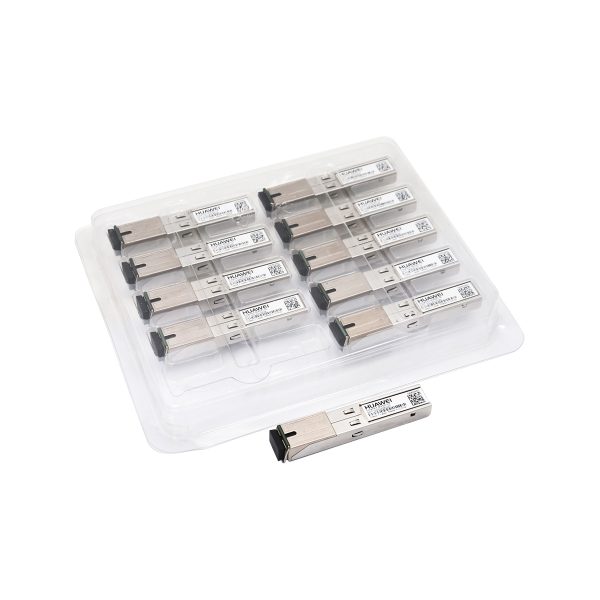

Huawei MA5671A SFP module is a mini-PON access device developed by Huawei dedicated for the radio bearer solution. It applies to PON network reconstruction for switches and routers and wireless base station backhaul.
It supports one-stop deployment, even achievable offline when using Gigabit-capable Passive Optical Network (GPON) upstream transmission. Once deployed, the MA5671A automatically obtains configurations from eSight — Huawei’s unified software suite for enterprise Information and Communications Technology (ICT) infrastructure — implementing them automatically. Similarly, when the device goes online, it automatically reports its online status to eSight.
Product Features
- Featuring small size and simple installation
- Connects to a base station through a GE port to provide the integrated access service in the downstream direction
- Connects to an optical line terminal (OLT) through a GPON port and then to the upper-layer IP network in the upstream direction
- Connects to an OLT through a GPON port in the upstream direction
- Connects to a switch or router through a GE port to provide the high-speed Internet (HSI) and VoIP services in the downstream direction
- Supports various installation scenarios
- Supports convenient remote management functions.
- Supports one-stop deployment
- Provides comprehensive QoS assurance for each service, meeting users’ differentiated service requirements.
Product Highlights
Enables Fast Deployment
- Plugs into any standard GigE SFP slot – complies with SFP
MSA(SFF 8074i), SFF 8431 - Plug & Play – allows pre-configuration and automatic
loading of configuration for turn-up
Requires Zero Site and Power
- Plugs into existing equipment
- No power, no space requirement
Zero Touch Management
- Centralized management – same as a GPON ONT;
- Standards Compliant GPON Interface – complies with ITU
G.984 series and support OMCI - Remote software upgrade, and operational inquiries
- Ethernet OAM (802.11ag) functions
Item | MA5671A | |
Parameter | Value | |
Transmission rate | TX: 1.244 Gbit/s
RX: 2.488 Gbit/s |
|
Standard compliance | ITU-T G.984 | |

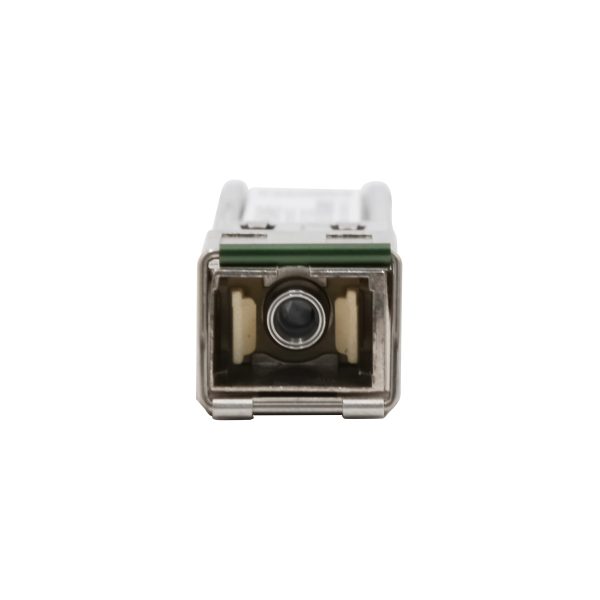

Connector type | SC/APC | |
Maximum transmission distance | 20 km
|
|
RX sensitivity | ≤ – 27 dBm | |
Overload optical power | ≥ – 8 dBm | |
TX optical power | 0.5 dBm to 5.0 dBm | |
Extinction ratio (ER) | ≥ 10 dB | |
Tburst_on duration | ≤12.8 ns | |
Tburst_off duration | ≤12.8 ns | |
Average shutdown optical power | ≤ -45 dBm | |
-20 dB spectral width | ≤ 1 nm | |
SMSR | ≥30 dB | |
TX wavelength range | 1290 nm to 1330 nm | |
TX laser type | DFB | |
RX wavelength rage | 1480 nm to 1500 nm | |
RX PD type | APD | |
Electrical Port Indicators | ||
Parameter | Value | |
Interface type | SGMII | |
Interface bandwidth | 1 GE/2.5 GE | |
TX-end input level standard | CML | |
TX-end electrical port coupling mode | DC | |
TX-end differentiated input signal swing | 200 mV to 1600 mV | |
TX enabling voltage | 2-3.3 V (disabled)
≤ 0.8 (enabled) |
|
Ttxdisable_on duration of the TX_Disable module | ≤ 2 ms | |
Ttxdisable_off duration of the TX_Disable module | ≤ 100 us | |
RX+/- output level standard | CML | |
RX+/- output coupling mode | AC | |
RX+/- output signal swing | 300 mV to 1200 mV | |
IIC interface rate | ≤ 90 kHz | |
LOS Assert | ≥ -45 dBm | |
LOS De assert | ≤ -29 dBm | |
Power Consumption | ||
Power Consumption | ≤ 2. 0 W | |
Power Supply Voltage | +3.3 V DC
(ripple and noise ≤ 100mV) |
|
Power Supply Current | ≤ 610 mA
TX VCC ≤ 500 mA RX VCC ≤ 500 mA |
|
Mechanical Specifications | ||
Dimensions | 12.5 mm72 mm14.1 mm | |
Weight | (With fiber caps): 19 g
(Without fiber caps): 18 g |
