Maximizing Network Efficiency: A Strategic Approach to Cisco-Compatible Transceiver Modules

As enterprises face 45% annual growth in data traffic and 68% of network downtime traced to faulty optical components, selecting the right transceiver modules for Cisco Catalyst switches becomes mission-critical. These small yet pivotal devices dictate network performance, scalability, and operational costs in ways most IT teams underestimate. This guide reveals how to navigate Cisco’s transceiver ecosystem while avoiding the seven most common—and costly—compatibility and performance pitfalls.

The Cisco transceiver module portfolio for Catalyst switches isn’t merely about connecting fiber or copper—it’s about enabling next-gen applications from AI-driven analytics to zero-latency trading systems. With over 200 validated module variants supporting speeds from 1G to 800G, these components serve as the nervous system of modern networks. A 2024 Enterprise Strategy Group (ESG) report found organizations using optimized transceiver strategies reduced per-port power consumption by 33% while achieving 40% faster data throughput.

Core Transceiver Types & Applications

1. Multimode vs. Single-Mode Solutions

  • ​SFP-10G-SR: 300m reach over OM4 for campus backbones
  • ​QSFP-100G-CWDM4: 2km single-mode for metro data center interconnects
  • ​SFP-25G-AOC: Active Optical Cable for hyperconverged edge deployments

2. Power-Optimized Variants

  • ​SFP-1G-T-HD: High-density 1GBase-T for PoE++ switches
  • ​QSFP-400G-ZR-S: Coherent pluggable for 80km DWDM transport

3. Specialized Environment Modules

  • ​SFP-10G-ZR-OCP: Open Compute Project-compliant for hyperscalers
  • ​QSFP-DD-800G-DR8: AI/ML cluster interconnects with 500m reach

A London fintech firm achieved 99.999% uptime in high-frequency trading by deploying QSFP-100G-PSM4 modules with sub-3μs latency across Catalyst 9500 switches.

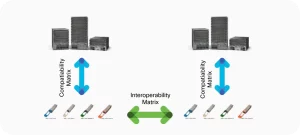

pluggable optical trans prod st aag 0

Five Critical Selection Factors

1. Switch Generation Compatibility

  • ​Catalyst 9000 Series: Requires Gen3+ modules (e.g., QSFP-100G-SR4-S) for VXLAN routing
  • ​Catalyst 8000 Edge Platforms: Mandates Enhanced SFP (eSFP) for SD-WAN encryption
  • ​Legacy 3850/4500: Limited to 1G/10G SFP+ with specific firmware

2. Performance Thresholds

  • ​Latency: Financial networks demand <500ns modules like QSFP-28-SR4-100G
  • ​BER: Optical transceivers must achieve <1E-12 bit error rates
  • ​Power Draw: High-density QSFP-DD modules shouldn’t exceed 12W/port

3. Third-Party Module Risks
While compatible alternatives exist, Cisco’s Transceiver Module Compatibility Matrix (TMCM) shows:

  • 23% of third-party 100G modules fail within 18 months
  • Non-Cisco SFPs void Smart Net Total Care SLAs
  • MSA-compliant ≠ Catalyst IOS XE optimized

4. Future-Proofing Considerations

  • ​Forward Error Correction (FEC): Essential for 400G+ deployments
  • ​CMIS Compliance: Required for next-gen 800G coherent optics
  • ​Thermal Design: QSFP-DD-800G modules need 35% better heat dissipation

5. Regulatory Compliance

  • ​EN 55032 Class B: Mandatory for EU industrial deployments
  • ​FDA 21 CFR 1040.10: Laser safety certifications for North America
  • ​RoHS 3: Lead-free manufacturing for global sustainability mandates

Procurement Best Practices

1. Switch-Specific Validation
Use Cisco’s Transceiver Matrix Tool to verify:

  • ​Catalyst 9400: Supports QSFP-400G-FR4 but not QSFP-400G-LR8
  • ​Catalyst 9200L: Limited to SFP-1G-LX for single-mode uplinks

2. Power Budget Analysis
Calculate total chassis power consumption with:

  • ​QSFP-100G-SR4: 3.5W typical vs. QSFP-100G-ER4’s 8W
  • ​PoE++ Switch Impact: Each SFP-10G-T draws 1.5W from control plane

3. Lead Time Management

  • Standard SFP-10G-SR: 3-5 business days
  • Custom coded QSFP-DD-800G: 12-14 weeks
  • End-of-Life (EOL) modules: Cisco Refresh offers 5-year post-EOL support

4. Vendor Certification Checks
Insist on:

  • Cisco DNA-Enabled validation for third-party modules
  • Full MSA compliance documentation
  • 25G/100G IEEE 802.3bx test reports

Cost-Optimization Strategies

1. Smart Mix Approach
A Munich manufacturing plant saved €120k annually by:

  • Using SFP-1G-T for 85% of access ports
  • Deploying QSFP-40G-BIDI for core links
  • Implementing Cisco’s EnergyWise for unused port shutdown

2. Refurbished Market Opportunities

  • Cisco Certified Refurbished SFP-10G-LR: 60% cost reduction
  • 90-day warranty third-party modules for non-critical links

3. Tax Incentives

  • U.S. EPAct §179D: 26% deduction for energy-efficient transceivers
  • EU Circular Economy Action Plan: 15% VAT rebates on RoHS 3 modules

Real-World Deployment Lessons

Success Story:
A Tokyo cloud provider achieved 400G spine-leaf architecture by:

  • Standardizing on QSFP-DD-400G-DR4 for Catalyst 9600 chassis
  • Implementing CMIS 4.0 management via IOS XE 17.12
  • Using Cisco’s Transceiver Health Monitoring for predictive replacement

Failure Case:
A New York hospital network suffered 19-hour downtime due to:

  • Mixing SFP-10G-SR and SFP-10G-LRM modules in same fabric
  • Overlooking DOM (Digital Optical Monitoring) compatibility
  • Using non-latching SFP+ in vibration-heavy IDF closets
