ME0D0E1NDB70

ME0D0E1NDB70

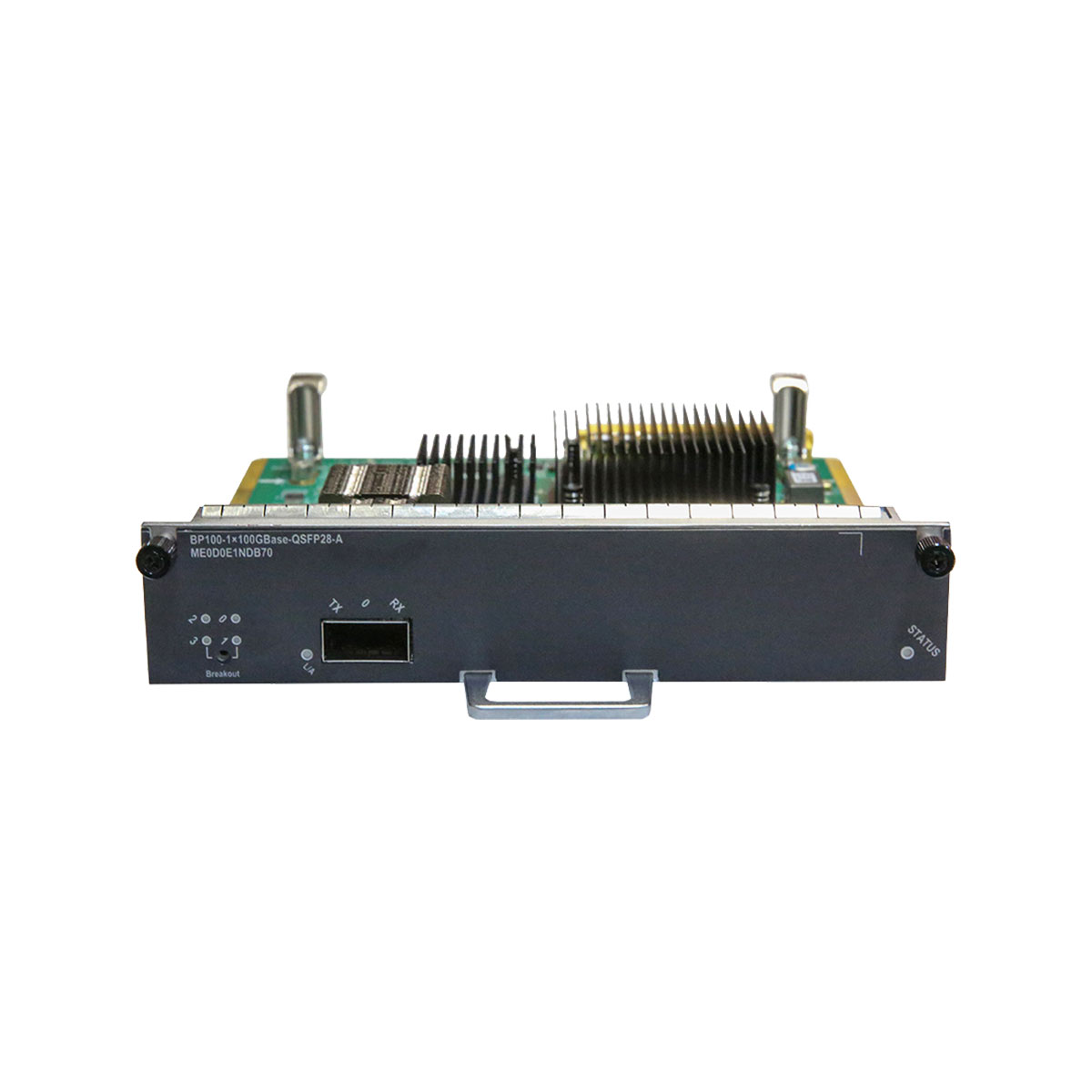

1-Port 100GBase-QSFP28 Flexible Card(BP100)

SKU: 03032HGH Category:

Description

ME0D0E1NDB70 Overview

5-Port 10GBase LAN/WAN-SFP+ Flexible Card E(BP120-E)

Mapping products and versions
Product Motherboard Minimum Version Requirement for Flexible Card
ME60X3

Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)

V800R008C10
ME60X8

Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)

V800R008C10
ME60X16

Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)

V800R008C10
ME60X8A

Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)

V800R008C10
ME60X16A

Flexible Card Broadband Service Unit(BSUF-100,2 sub-slots)

Flexible Card Multi Service Unit(MSUF-100,2 sub-slots)

V800R008C10
ME0D0E1NDB70 Datasheet
Item ME0D0E1NDB70
Line-Rate capability Provides one 100GE interface for line-rate transmitting and receiving.
Whether breakout is supported

Yes

To enable breakout interfaces, run the port split command to complete breakout configuration.

Reliability and availability Hot swappable.
Restrictions and remarks

All the four 10GE interfaces split from one interface must work in the same LAN or WAN mode(The 10G interfaces working in WAN mode can function only as master interfaces).The default transmission rate of an interface on the subcard is 100 Gbit/s. When the transmission rate of an interface on the used optical module does not match the default rate, for example, when a 40G optical module is used, run the port split command to enable the interface breakout function.

Half-width. When the 02312NCX optical module is installed on the board, the long-term operating temperature of the optical module ranges from 0°C (32°F) to 45°C (113°F).

Optical type supported

100Gbps QSFP28 optical module

40Gbps QSFP+ optical module

Working mode Full-duplex
Compliant standard IEEE 802.3
Frame format Ethernet_II, Ethernet_SAP and Ethernet_SNAP
Dimensions (H x W x D) 37.2 mm x 178.7 mm x 193.3 mm (1.46 in. x 7.04 in. x 7.61 in.)
Typical power consumption 34.0 W
Typical heat dissipation 110.3 BTU/hour
Weight 0.8 kg (1.76 lb)
Ambient temperature Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F)

Additional information

Weight 0.8000 kg
Dimensions 19.3300 × 17.8700 × 3.7200 cm
