ME0DBSUF5170

ME0DBSUF5170

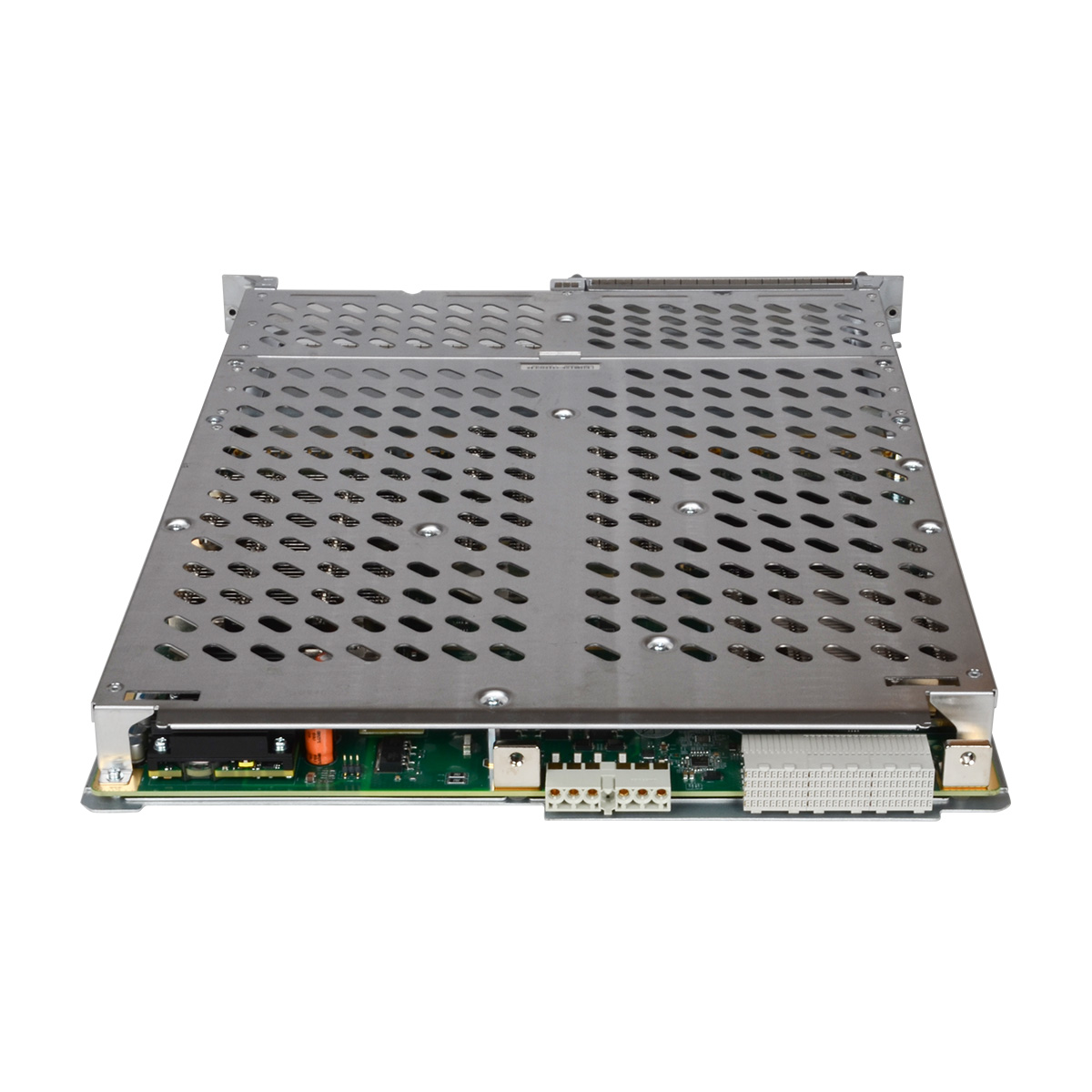

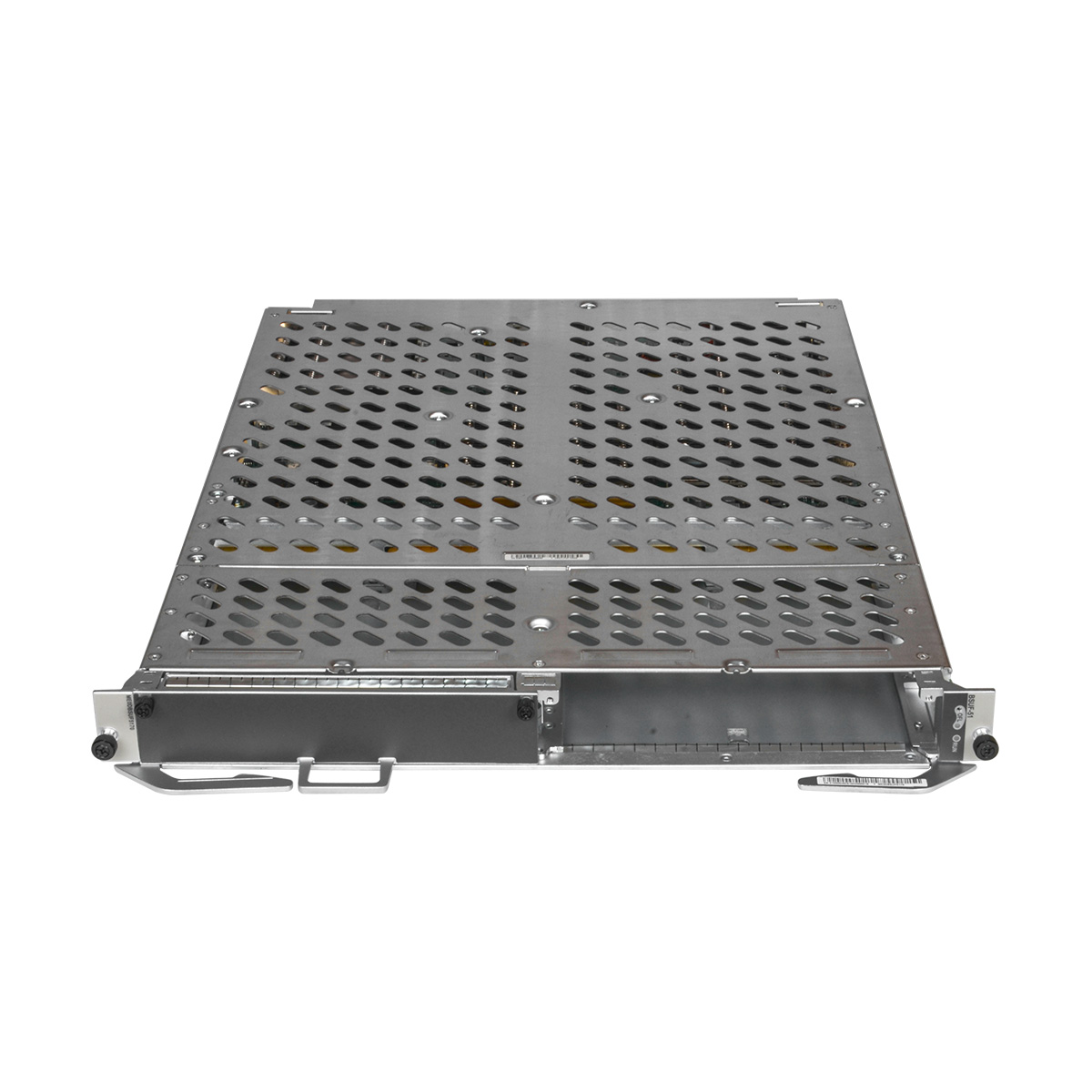

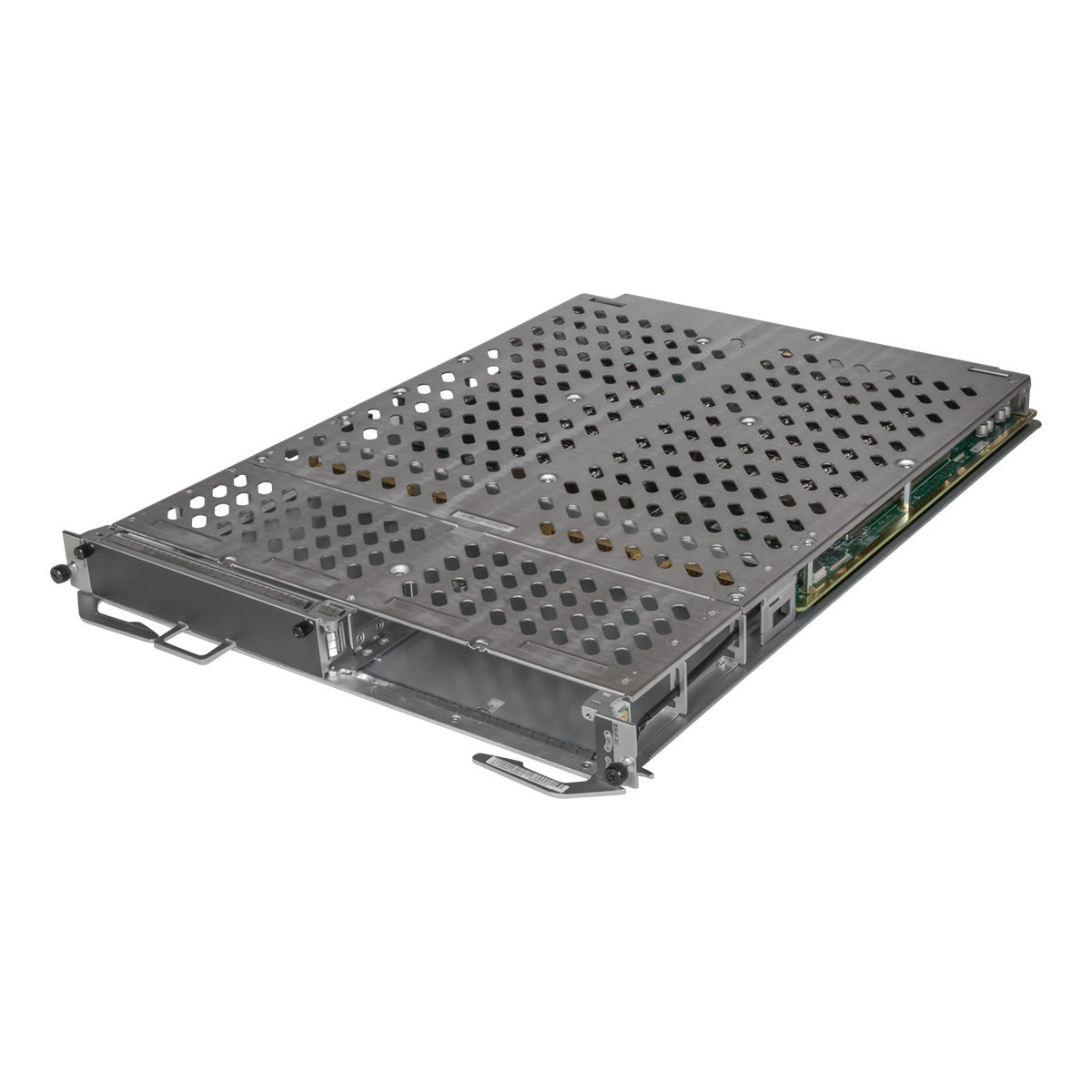

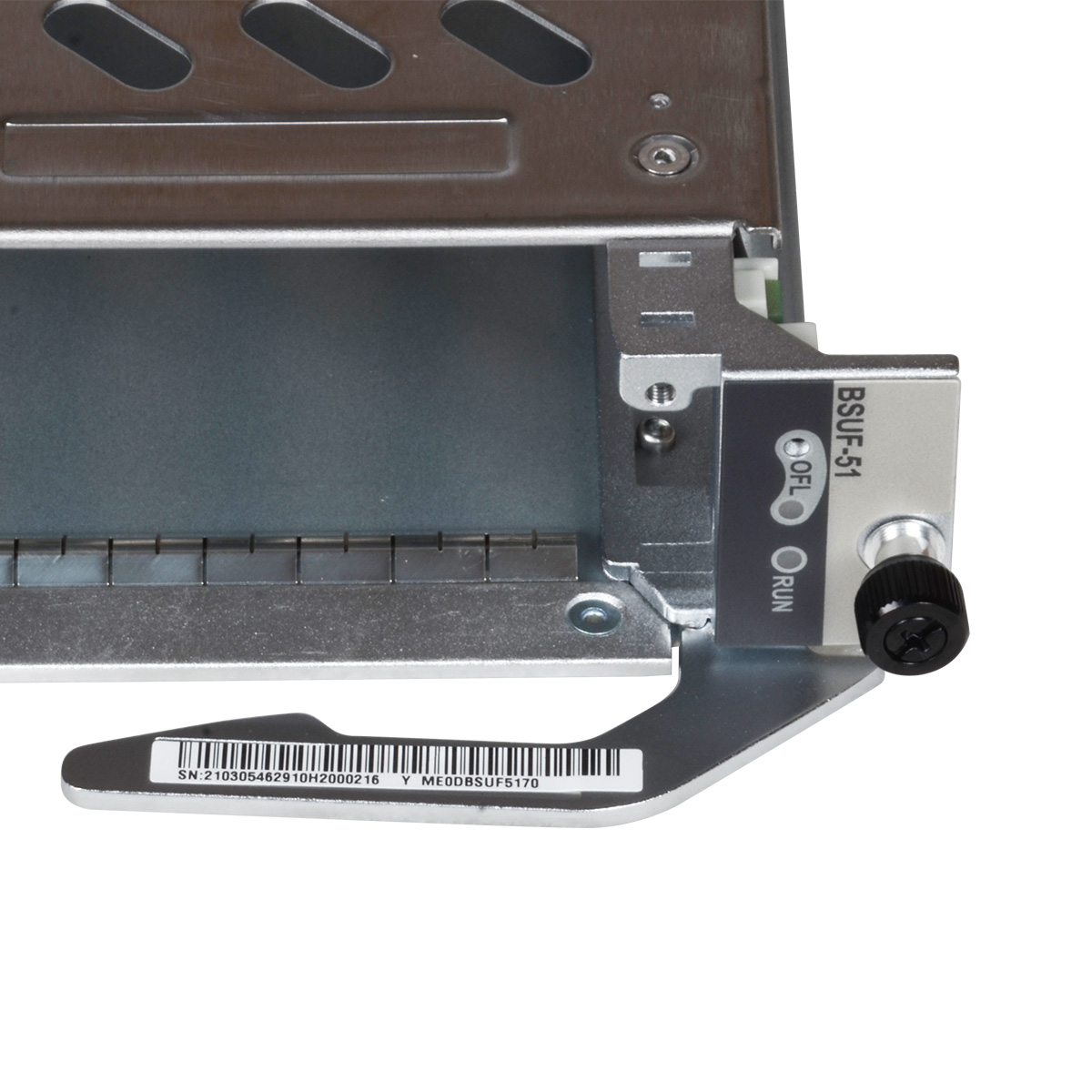

Flexible Card Broadband Service Unit(BSUF-51,2 sub-slots)

SKU: 03054629 Category:

Description

ME0DBSUF5170 Overview

Flexible Card Broadband Service Unit(BSUF-51,2 sub-slots)

Mapping products and versions
Product Minimum Version Requirement
ME60X3 V800R008C10
ME60X8 V800R008C10
ME60X16 V800R008C10
ME60X8A V800R008C10
ME60X16A V800R008C10
ME0DBSUF5170 Datasheet
Item ME0DBSUF5170
Line-Rate capability Supports 50G line-rate processing of broadband services.
Slot information The board provides a maximum of two half-width slots and each slot can hold one FPIC card.
Reliability and availability Hot swappable.
Dimensions (H x W x D) 40.1 mm x 399.2 mm x 535.6 mm (1.58 in. x 15.72 in. x 21.09 in.)
Typical power consumption 180.0 W
Typical heat dissipation 584.0 BTU/hour
Weight 6.6 kg (14.55 lb)
Ambient temperature Long terms: 0 °C to 45 °C (32°F to 113°F) ; Short terms: -5 °C to 55 °C (23°F to 131°F)

Additional information

Weight 6.6000 kg
Dimensions 53.5600 × 39.9200 × 4.0100 cm
