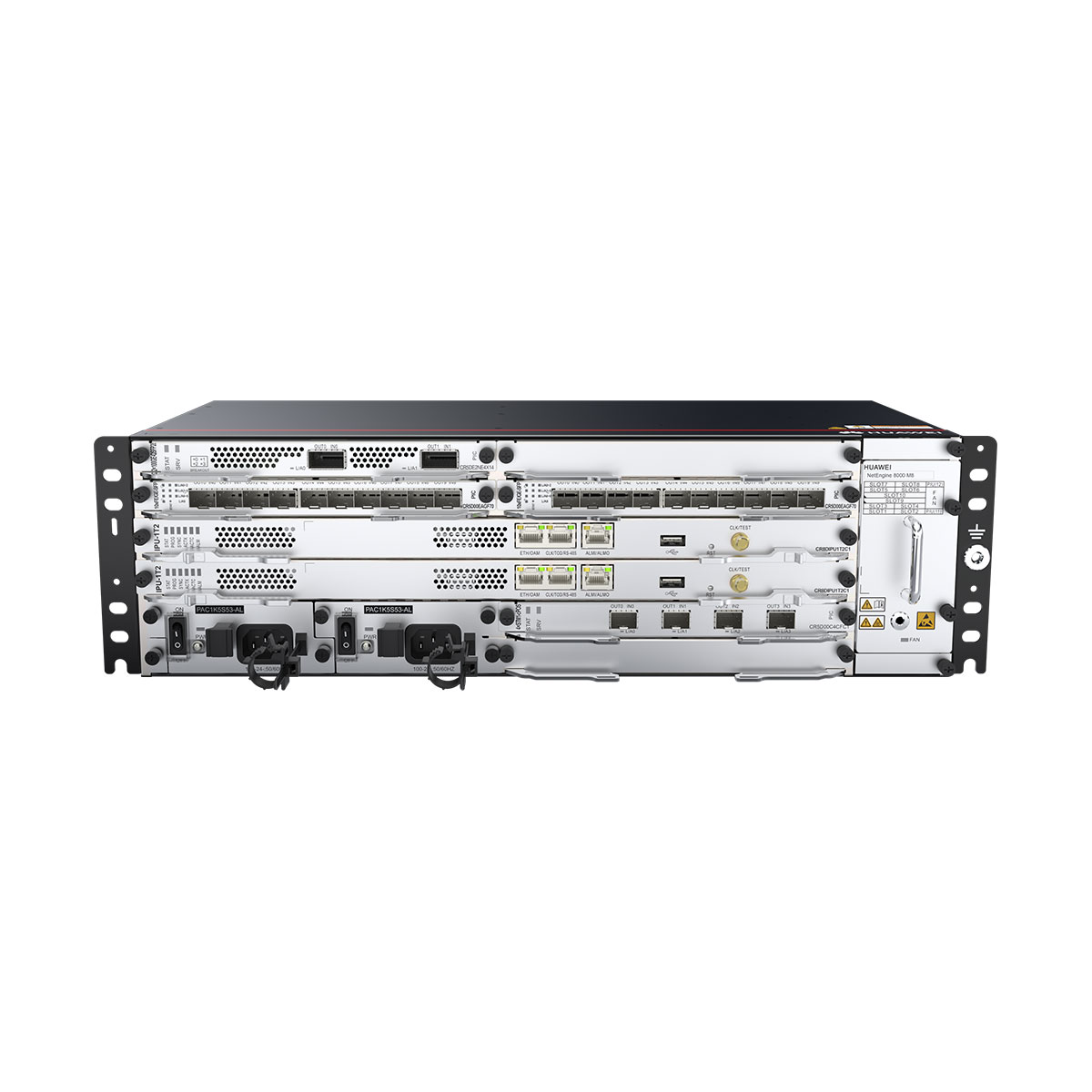

NetEngine-8000-M8
NetEngine-8000-M8
Categories:

NE8000 M8

4 Reviews Write a review
SKU2005193
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Original price was: $0.00.Current price is: $0.00.

Huawei NE8000 M8 with 2*IPU(1:1), 2*SFU(2, 1:1, integrated)

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

NetEngine 8000 M8 is a all-scenario access & aggregation router for the cloud era. It’s featured with 3U height, 220mm depth, supports up to 1.2T port capacity and 8 service slots, flexibly adapts to different services, and supports 100GE/50GE/25GE/10GE/GE/E1/POS/cPOS interfaces. The compact design saves precious resources, greatly reduces Capex. It supports features such as SRv6, EVPN, network slicing, and 1588v2 high-precision clock, which is the best choice for multi-service convergence in the cloud era.

Huawei NE8000 M8 with 2*IPU(1:1), 2*SFU(2, 1:1, integrated)

Switching Capacity: 2.4 Tbps

Forwarding Performance: 453 Mpps

Max. Capacity of a Board: 200 Gbit/s

Capacity Density (G/U): 400



Front Panel:

NE8000-M8 -Front-Panel

Notice: 2*AC PIU occupy two slots.







Show More Show Less
Item NE8000 M8
Switching Capacity 2.4 Tbps
Forwarding Performance 453 Mpps
Max. Capacity of a Board 200 Gbit/s
Capacity Density (G/U) 400
IPU 2, 1:1
SFU 2, 1:1 (integrated)
Processing Board/ Subcard 8(DC) 6(AC)
Power Supply Module/Fans 2, 1+1
Interface Types 100GE/50E/40GE/25GE/10GE/GE/FE/E1/Channelized STM-1c/OC3c/STM-1c
Layer 2 Ethernet protocols G.8032, STP/RSTP, MSTP, BPDU, and LACP Transparent transmission of Layer 2 protocols
Ethernet service VLAN, Bridge domain
Routing RIP, RIPng, OSPF, OSPFV3, IS-IS, IS-ISV6, BGP, BGPv6, Static routing, IPv4 Multicast, IPv6 Multicast, Multicast static, etc
IPv4 TCP/IP, for example, ICMP, IP, TCP, UDP, Socket (TCP/UDP/RAW IP), ARP Static DNS DNS Client FTP Server FTP Client TFTP Client DHCP Relay 和 DHCP Server Ping Tracert NQA IP policy-based routing Forwarding next hop based on traffic IP policy-based route load balancing The QinQ interface (QinQ termination and dot1q termination) supports IPv4 load balancing. Enabling and disabling the rapid ping reply function based on interface boards Forcible fragmentation for packets with length greater than MTU and DF enabled MPLS-in-UDP tunnel egress
IPv6 IPv6(ND) Path MTU (PMTU) TCP6 Ping IPv6 Tracert IPv6 Socket IPv6 DHCPv6 Relay Static IPv6 DNS TFTP IPv6 Client IP policy-based routing IPv6 ND fast reply
L2VPN PWE3/VLL、VPLS、EVPN、EVPN L3VPN、VxLAN
L3VPN CE routers can access the L3VPN through L3 interfaces. Support static routes between CE and PE, BGP, RIP, OSPF and ISIS Inter-AS VPN, including RFC2547bis option A Inter-AS VPN, including RFC2547bis option B Inter-AS VPN, including RFC2547bis option C NG-MVPN IPv6 VPN HoVPN Seamless MPLS BGP LSP entropy label Redirect to VPN L3VPN PIPE/Uniform mode L3VPN Statistics
SRv6 SRv6-BE、SRv6-TE Policy、SRv6 egress protection
Clock Physical layer synchronization and 1588v2
OAM iFIT IPFPM NQA TWAMP BFD MPLS OAM MPLS-TP OAM VRRP Ethernet OAM 802.3ah Y1731 Ethernet LPT Bit-error-triggered protection switching
QoS QPPB，Differ-Serv，HQoS，Redirection
Typical power consumption(W) 485
Dimensions(mm) 132.6 x 442 x 220 mm (3 U)
Full Configuration Weight(kg) 16.5KG

Additional information

Brand

Huawei
Lead Time

3-5 days
Ship From

Shenzhen Warehouse
Item NE8000 M8
Switching Capacity 2.4 Tbps
Forwarding Performance 453 Mpps
Max. Capacity of a Board 200 Gbit/s
Capacity Density (G/U) 400
IPU 2, 1:1
SFU 2, 1:1 (integrated)
Processing Board/ Subcard 8(DC) 6(AC)
Power Supply Module/Fans 2, 1+1
Interface Types 100GE/50E/40GE/25GE/10GE/GE/FE/E1/Channelized STM-1c/OC3c/STM-1c
Layer 2 Ethernet protocols G.8032, STP/RSTP, MSTP, BPDU, and LACP Transparent transmission of Layer 2 protocols
Ethernet service VLAN, Bridge domain
Routing RIP, RIPng, OSPF, OSPFV3, IS-IS, IS-ISV6, BGP, BGPv6, Static routing, IPv4 Multicast, IPv6 Multicast, Multicast static, etc
IPv4 TCP/IP, for example, ICMP, IP, TCP, UDP, Socket (TCP/UDP/RAW IP), ARP Static DNS DNS Client FTP Server FTP Client TFTP Client DHCP Relay 和 DHCP Server Ping Tracert NQA IP policy-based routing Forwarding next hop based on traffic IP policy-based route load balancing The QinQ interface (QinQ termination and dot1q termination) supports IPv4 load balancing. Enabling and disabling the rapid ping reply function based on interface boards Forcible fragmentation for packets with length greater than MTU and DF enabled MPLS-in-UDP tunnel egress
IPv6 IPv6(ND) Path MTU (PMTU) TCP6 Ping IPv6 Tracert IPv6 Socket IPv6 DHCPv6 Relay Static IPv6 DNS TFTP IPv6 Client IP policy-based routing IPv6 ND fast reply
L2VPN PWE3/VLL、VPLS、EVPN、EVPN L3VPN、VxLAN
L3VPN CE routers can access the L3VPN through L3 interfaces. Support static routes between CE and PE, BGP, RIP, OSPF and ISIS Inter-AS VPN, including RFC2547bis option A Inter-AS VPN, including RFC2547bis option B Inter-AS VPN, including RFC2547bis option C NG-MVPN IPv6 VPN HoVPN Seamless MPLS BGP LSP entropy label Redirect to VPN L3VPN PIPE/Uniform mode L3VPN Statistics
SRv6 SRv6-BE、SRv6-TE Policy、SRv6 egress protection
Clock Physical layer synchronization and 1588v2
OAM iFIT IPFPM NQA TWAMP BFD MPLS OAM MPLS-TP OAM VRRP Ethernet OAM 802.3ah Y1731 Ethernet LPT Bit-error-triggered protection switching
QoS QPPB，Differ-Serv，HQoS，Redirection
Typical power consumption(W) 485
Dimensions(mm) 132.6 x 442 x 220 mm (3 U)
Full Configuration Weight(kg) 16.5KG

Reviews

  1. Ilya –

    NE8000 M8 2*AC PIU occupy two slots, so NE8000 M8 AC chassis is only 6 subcard slots.

  2. Ron –

    Sales at Telecomate.com helped me configure boards what i need.

  3. Villa –

    Professional sales team, recommend me cost-effective service boards to complete my configuration requirements.

  4. Dawes –

    The website’s interface was user-friendly.
