NetEngine 8000 M14 chassis industry’s first 400G platform box router, DC power

Huawei

12 Months

SKU: 2012489 Category:

Description

NetEngine 8000 M14 overview

NetEngine 8000 M14 is a full-service converged bearer router designed for the cloud era. It’s featured with 5U height, up to 2Tbps port capacity, and 14 service slots. It is the most compact in the industry, saves precious space resources, and supports evolution to 4.8T+ capacity. It flexibly adapts to different services, supports 100GE/50GE/25GE/10GE interfaces, and supports features such as SR, EVPN, FlexE, and 1588v2 high-precision clock, which is the best choice for multi-service convergence in the cloud era.



Basic information about the NetEngine 8000 M14

Description Part Number Model First Supported Version
NetEngine 8000 M14 Integrated DC Chassis Components (Including 2*DC Power,Fan Box) 02353ABJ CR8B0BKPDCC1 V800R012C00
NetEngine 8000 M14 Integrated AC Chassis Components (Including 4*AC Power,Fan Box) 02353ABK CR8B0BKPACC2 V800R012C00
NetEngine 8000 M14 Integrated AC Chassis Components (Including 2*AC Power,Fan Box) 02353VMM CR8B0BKPACC1 V800R012C10

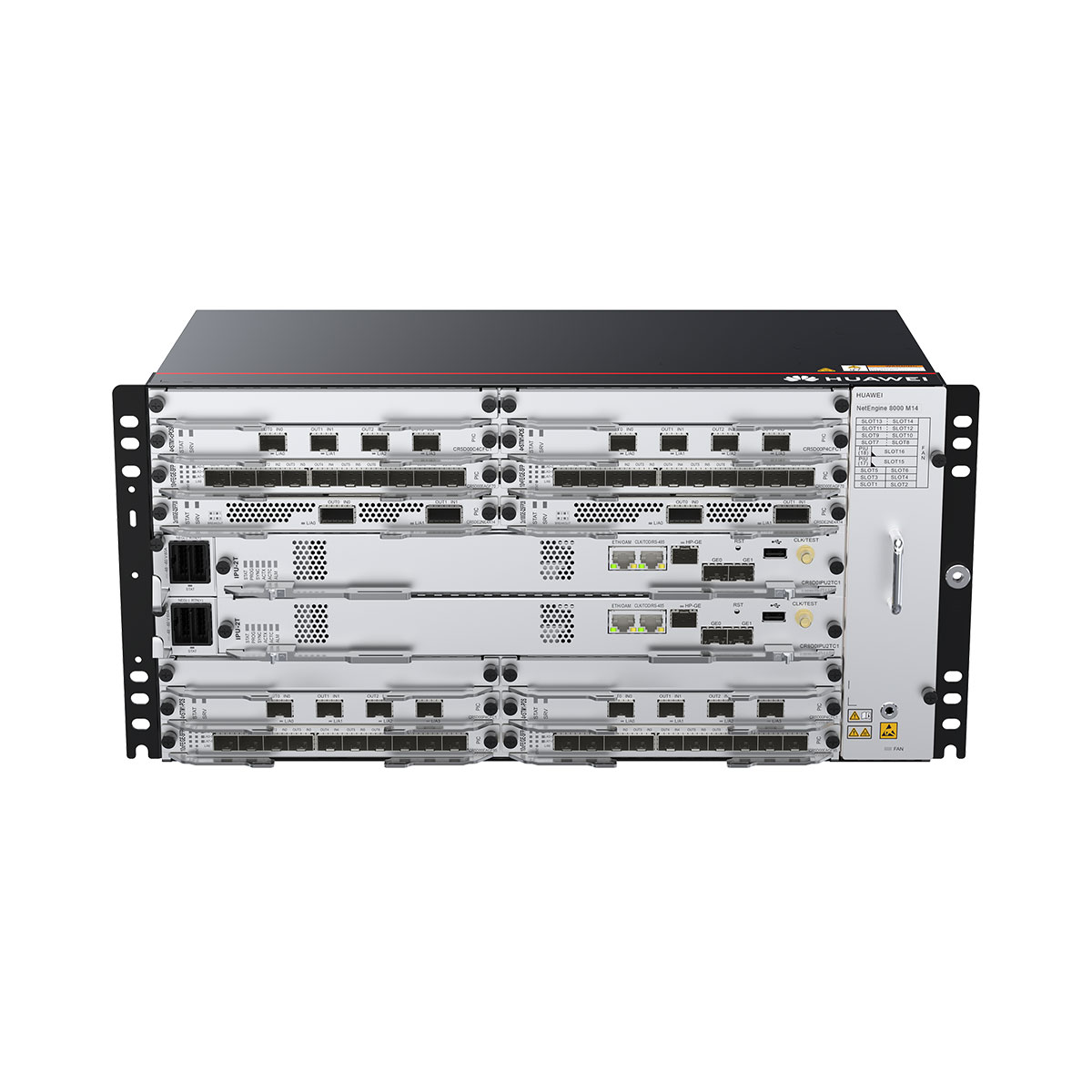

Appearance of the NetEngine 8000 M14 (DC)

en us image 0276123542 1

Appearance of the NetEngine 8000 M14 (AC Including 4*AC Power)

en us image 0276123543

Slot Layout of the NetEngine 8000 M14

EN US IMAGE 0276181837

Power supply of the NetEngine 8000 M14

DC and AC power modules cannot be used together. When AC power modules are installed, insert filler panels into the DC power module slots. In V800R012C10 and later versions, the NetEngine 8000 M14 equipped with the IPU-1T2-A requires two AC power modules, while the NetEngine 8000 M14 equipped with the IPU-2T or IPU-1T2 requires four AC power modules.

Technical specifications of the CR8B0BKPDCC1, NetEngine 8000 M14 Integrated DC Chassis Components (Including 2*DC Power, Fan Box), 02353ABJ

Item CR8B0BKPDCC1
Cabinet installation standards ETSI 21-inch; IEC 19-inch
Dimensions without packaging (H x W x D) [mm(in.)] 222 mm x 442 mm x 220 mm (8.74 in. x 17.4 in. x 8.66 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 505 mm x 590 mm x 390 mm (19.88 in. x 23.23 in. x 15.35 in.)
Chassis height [U] 5U
Weight without packaging (base configuration) [kg(lb)] 10.1 kg (22.27 lb)
Weight with packaging (base configuration) [kg(lb)] 21.1 kg (46.52 lb)
Weight without packaging (full configuration) [kg(lb)] [IPU-2T]DC:28.5kg(62.84 lb) [IPU-1T2]DC:28.5kg(62.84 lb) [IPU-1T2-A]DC:25.6kg(56.44 lb)
Weight with packaging (full configuration) [kg(lb)] [IPU-2T]DC:39.5kg(87.08 lb) [IPU-1T2]DC:39.5kg(87.08 lb) [IPU-1T2-A]DC:36.6kg(80.69lb)
Typical power consumption [W]
  • [IPU-2T]DC: 1*fan+2*DC power+2*CR8D0IPU2TC1+2*CR5DE2NE4X14+1*CR5D00E8XM25+3*CR5D00LAXF91+1*CR5D00EAGF95=905.6 W
  • [IPU-1T2]DC:1*fan+2*DC power+2*CR8DIPU1T2C3+2*CR5DE2NE4X14+3*CR5D00LAXF91+2*CR5D00EAGF95=875.15 W
  • [IPU-1T2-A]DC:1*fan+2*DC power+2*CR8DIPU1T2C5+2*CR5D0E5XMF94+2*CR5D00LAXF91+2*CR5D00EAGF70=454.12 W
Typical heat dissipation [BTU/hour]
  • [IPU-2T]DC: 1*fan+2*DC power+2*CR8D0IPU2TC1+2*CR5DE2NE4X14+1*CR5D00E8XM25+3*CR5D00LAXF91+1*CR5D00EAGF95=2859.5 BTU/hour
  • [IPU-1T2]DC:1*fan+2*DC power+2*CR8DIPU1T2C3+2*CR5DE2NE4X14+3*CR5D00LAXF91+2*CR5D00EAGF95=2761.75 BTU/hour
  • [IPU-1T2-A]DC:1*fan+2*DC power+2*CR8DIPU1T2C5+2*CR5D0E5XMF94+2*CR5D00LAXF91+2*CR5D00EAGF70=933.94 BTU/hour
MTBF [year] 147.1 year
MTtr [hour] 0.5 hour
Availability 0.999999612
Power supply mode DC
Rated input voltage [V] -48 V/-60 V
Input voltage range [V] -40 V to -72 V
Maximum input current [A] 60 A
Rated output power [W] 2400 W
Maximum input cable diameter [mm²] 16mm^2, 10mm^2 (0-14meters) recommended, 16mm^2 (15-23meters) recommended
Front-end circuit breaker/fuse [A] ≥63 A
Heat dissipation Air cooling
Airflow direction left-to-right direction
Noise at normal temperature (acoustic power) [dB(A)] < 72 dB (meeting the ETSI 72 dBA standard)
Number of slots 19
Number of service board slots 14
Switching capacity IPU-2T:4T bit/s IPU-1T2:2.4T bit/s IPU-1T2-A:2.4T bit/s
Redundant IPUs 1:1
Redundant power supply 1+1
Redundant fans 3+1. Short-term running when a single fan becomes invalid at the ambient temperature of 40°C (104°F)(one fan module contains four fans)
Long-term operating temperature [°C(°F)] -20°C to 55°C(-4°F to 131°F), start: ≥ –5°C(23°F)
Restriction on the operating temperature variation rate [°C(°F)] ≤ 30°C/hour (86°F/hour)
Storage temperature [°C(°F)] -40°C to 70°C(-40°F to 158°F)
Long-term operating relative humidity [RH] 5% to 85% RH, non-condensing
Short-term operating relative humidity [RH] 5% to 95% RH, non-condensing
Storage relative humidity [RH] 5% to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] ≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [33.8°F] for every 220 m [721.78 ft.].)
Storage altitude [m(ft.)] < 5000 m (16404.199 ft.)

Technical specifications of the CR8B0BKPACC2, NetEngine 8000 M14 Integrated AC Chassis Components (Including 4*AC Power,Fan Box), 02353ABK

Item CR8B0BKPACC2
Cabinet installation standards ETSI 21-inch; IEC 19-inch
Dimensions without packaging (H x W x D) [mm(in.)] 222 mm x 442 mm x 220 mm (8.74 in. x 17.4 in. x 8.66 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 505 mm x 590 mm x 390 mm (19.88 in. x 23.23 in. x 15.35 in.)
Chassis height [U] 5U
Weight without packaging (base configuration) [kg(lb)] 14.6 kg (32.19 lb)
Weight with packaging (base configuration) [kg(lb)] 25.6 kg (56.44 lb)
Weight without packaging (full configuration) [kg(lb)] [IPU-2T]AC:30.0kg(66.15 lb) [IPU-1T2]AC:30.0kg(66.15 lb)
Weight with packaging (full configuration) [kg(lb)] [IPU-2T]AC:41.0kg(90.39 lb) [IPU-1T2]AC:41.0kg(90.39 lb)
Typical power consumption [W]
  • [IPU-2T]AC: 1*fan+4*AC power+2*CR8D0IPU2TC1+2*CR5DE2NE4X14+1*CR5D00E8XM25+3*CR5D00LAXF91+1*CR5D00EAGF95=968.36 W
  • [IPU-1T2]AC: 1*fan+2*AC power+2*CR8DIPU1T2C3+2*CR5DE2NE4X14+3*CR5D00LAXF91+2*CR5D00EAGF95=935.81 W
Typical heat dissipation [BTU/hour]
  • [IPU-2T]AC: 1*fan+4*AC power+2*CR8D0IPU2TC1+2*CR5DE2NE4X14+1*CR5D00E8XM25+3*CR5D00LAXF91+1*CR5D00EAGF95=3057.69 BTU/hour
  • [IPU-1T2]AC: 1*fan+2*AC power+2*CR8DIPU1T2C3+2*CR5DE2NE4X14+3*CR5D00LAXF91+2*CR5D00EAGF95=2953.16 BTU/hour
MTBF [year] 147.34 year
MTtr [hour] 0.5 hour
Availability 0.999999613
Power supply mode AC
Rated input voltage [V] 200V to 240V/100V to 127V dual live wires, support 240V HVDC
Input voltage range [V] 90 V to 290 V
Maximum input current [A] 10 A
Rated output power [W] 2500 W
Maximum input cable diameter [mm²] Standard C13 cable
Front-end circuit breaker/fuse [A] ≥10 A
Heat dissipation Air cooling
Airflow direction left-to-right direction
Noise at normal temperature (acoustic power) [dB(A)] < 72 dB (meeting the ETSI 72 dBA standard)
Number of slots 17
Number of service board slots 10
Switching capacity IPU-2T:4T bit/s IPU-1T2:2.4T bit/s
Redundant IPUs 1:1
Redundant power supply 2+2
Redundant fans 3+1. Short-term running when a single fan becomes invalid at the ambient temperature of 40°C (104°F)(one fan module contains four fans)
Long-term operating temperature [°C(°F)] -20°C to 55°C(-4°F to 131°F), start: ≥ –5°C(23°F)
Restriction on the operating temperature variation rate [°C(°F)] ≤ 30°C/hour (86°F/hour)
Storage temperature [°C(°F)] -40°C to 70°C(-40°F to 158°F)
Long-term operating relative humidity [RH] 5% to 85% RH, non-condensing
Short-term operating relative humidity [RH] 5% to 95% RH, non-condensing
Storage relative humidity [RH] 5% to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] ≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [33.8°F] for every 220 m [721.78 ft.].)
Storage altitude [m(ft.)] < 5000 m (16404.199 ft.)

Technical specifications of the CR8B0BKPACC1, NetEngine 8000 M14 Integrated AC Chassis Components (Including 2*AC Power,Fan Box), 02353VMM

Item CR8B0BKPACC1
Cabinet installation standards ETSI 21-inch; IEC 19-inch
Dimensions without packaging (H x W x D) [mm(in.)] 222 mm x 442 mm x 220 mm (8.74 in. x 17.4 in. x 8.66 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 505 mm x 590 mm x 390 mm (19.88 in. x 23.23 in. x 15.35 in.)
Chassis height [U] 5U
Weight without packaging (base configuration) [kg(lb)] 12.1 kg (26.68 lb)
Weight with packaging (base configuration) [kg(lb)] 23.1 kg (50.93 lb)
Weight without packaging (full configuration) [kg(lb)] [IPU-1T2-A]AC:26.0kg(57.32 lb)
Weight with packaging (full configuration) [kg(lb)] [IPU-1T2-A]AC:37.0kg(81.57 lb)
Typical power consumption [W] [IPU-1T2-A]AC: 1*fan+2*AC power+2*CR8DIPU1T2C5+2*CR5D0E5XMF94+3*CR5D00LAXF91+2*CR5D00EAGF70=485.59 W
Typical heat dissipation [BTU/hour] [IPU-1T2-A]AC: 1*fan+2*AC power+2*CR8DIPU1T2C5+2*CR5D0E5XMF94+3*CR5D00LAXF91+2*CR5D00EAGF70=988.03 BTU/hour
MTBF [year] 147.34 year
MTtr [hour] 0.5 hour
Availability 0.999999613
Power supply mode AC
Rated input voltage [V] 200V to 240V/100V to 127V dual live wires, support 240V HVDC
Input voltage range [V] 90 V to 290 V
Maximum input current [A] 10 A
Rated output power [W] 1500 W
Maximum input cable diameter [mm²] Standard C13 cable
Front-end circuit breaker/fuse [A] ≥10 A
Heat dissipation Air cooling
Airflow direction left-to-right direction
Noise at normal temperature (acoustic power) [dB(A)] < 72 dB (meeting the ETSI 72 dBA standard)
Number of slots 17
Number of service board slots 10
Switching capacity IPU-1T2-A:2.4T bit/s
Redundant IPUs 1:1
Redundant power supply 1+1
Redundant fans 3+1. Short-term running when a single fan becomes invalid at the ambient temperature of 40°C (104°F)(one fan module contains four fans)
Long-term operating temperature [°C(°F)] -20°C to 55°C(-4°F to 131°F), start: ≥ –5°C(23°F)
Restriction on the operating temperature variation rate [°C(°F)] ≤ 30°C/hour (86°F/hour)
Storage temperature [°C(°F)] -40°C to 70°C(-40°F to 158°F)
Long-term operating relative humidity [RH] 5% to 85% RH, non-condensing
Short-term operating relative humidity [RH] 5% to 95% RH, non-condensing
Storage relative humidity [RH] 5% to 95% RH, non-condensing
Long-term operating altitude [m(ft.)] ≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [33.8°F] for every 220 m [721.78 ft.].)
Storage altitude [m(ft.)] < 5000 m (16404.199 ft.)
