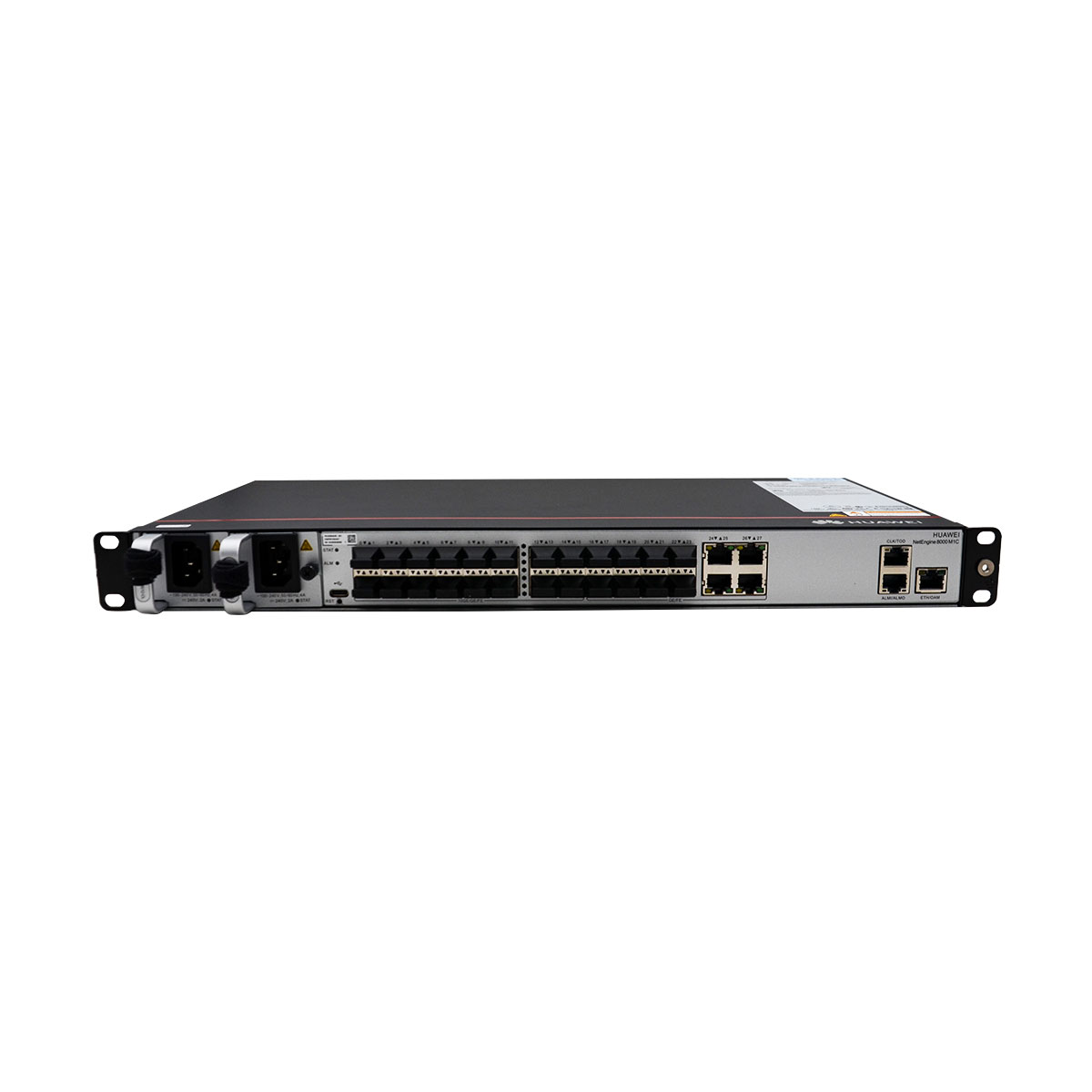

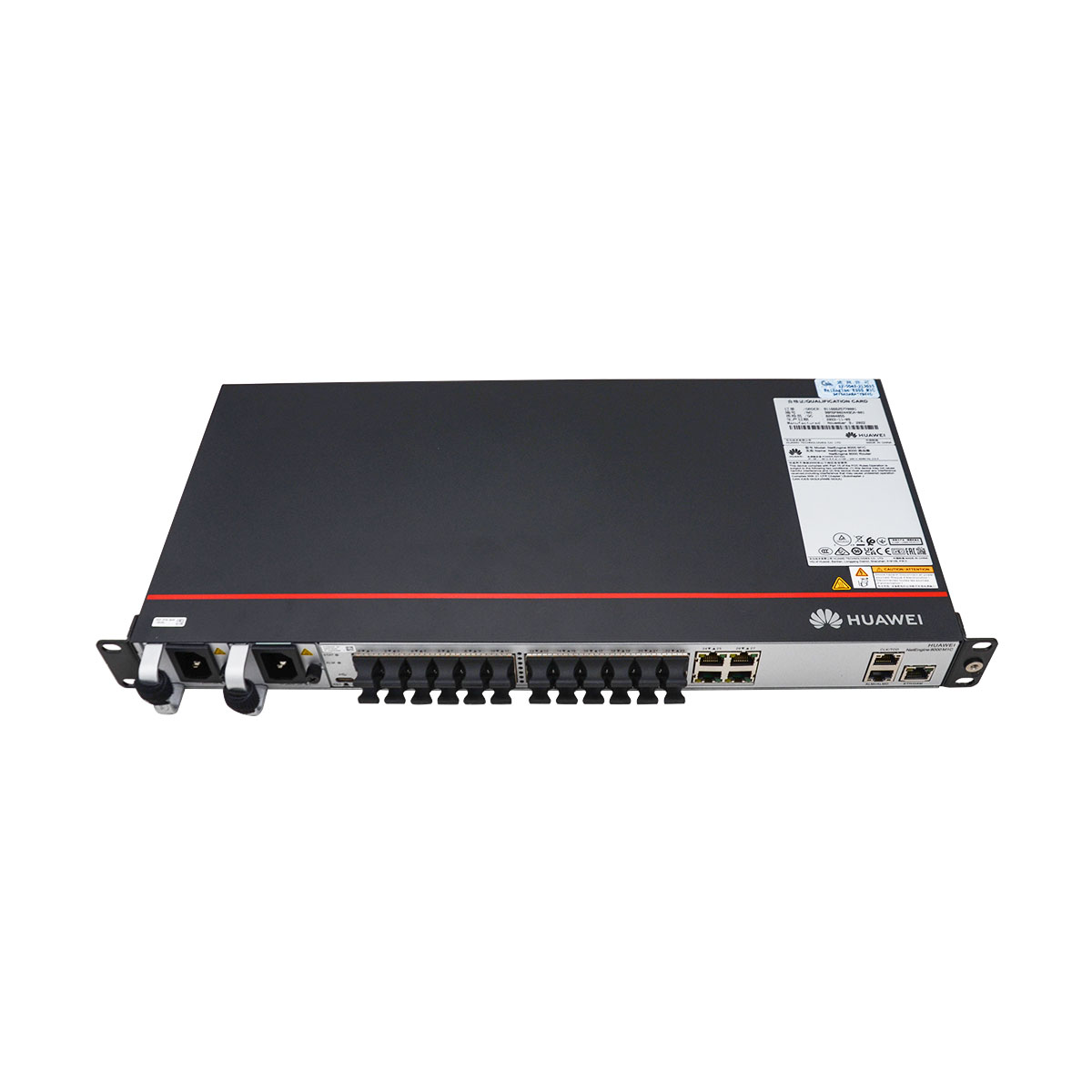

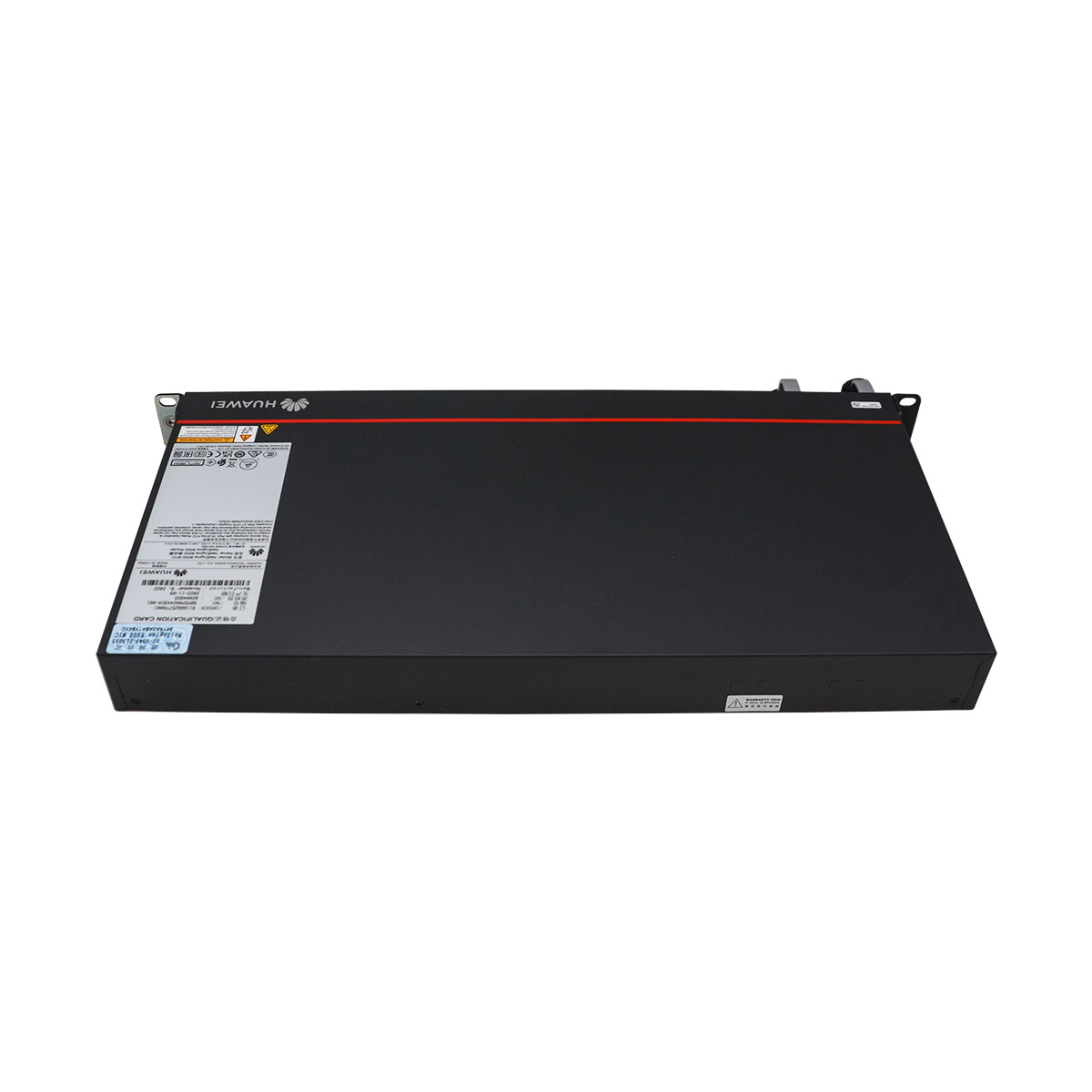

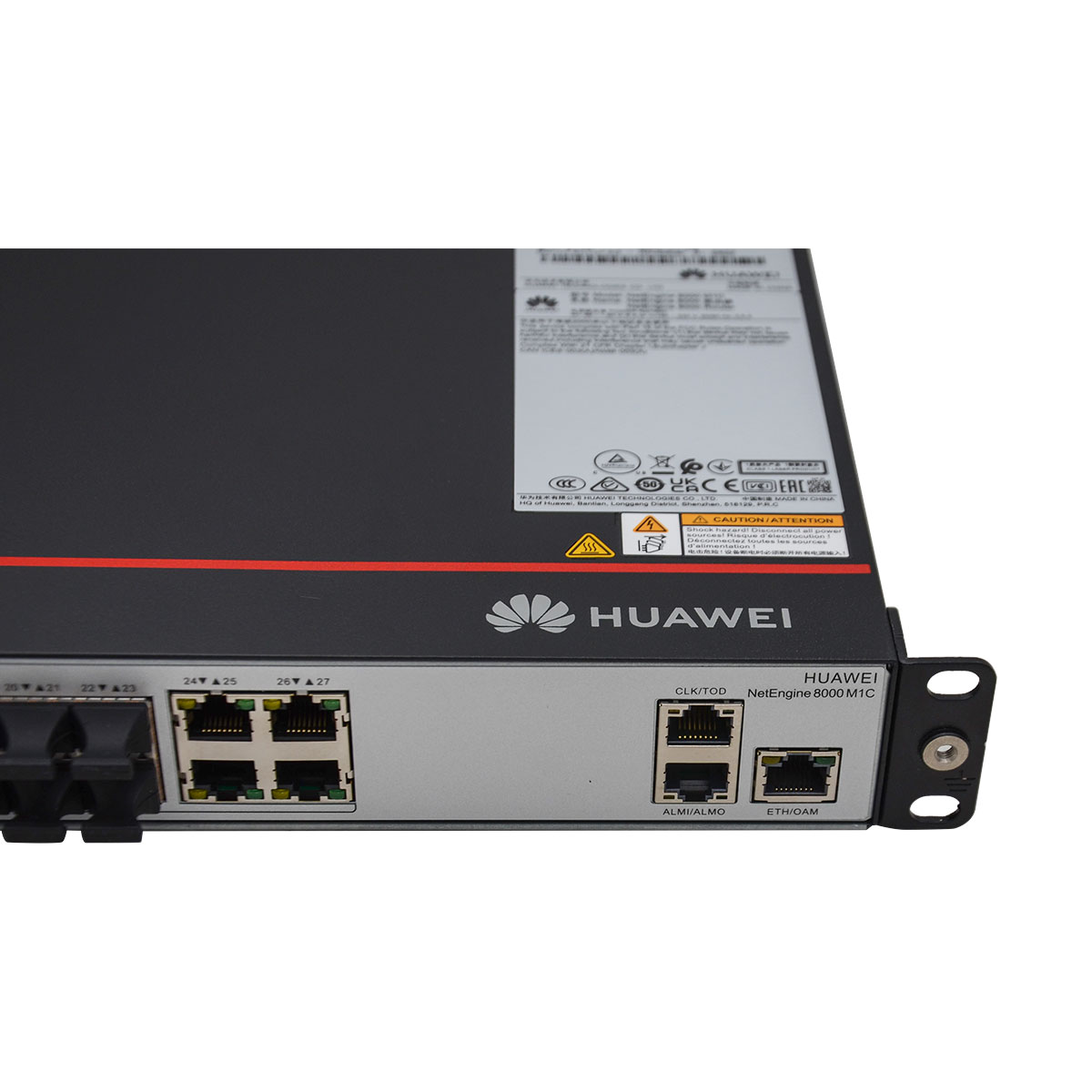

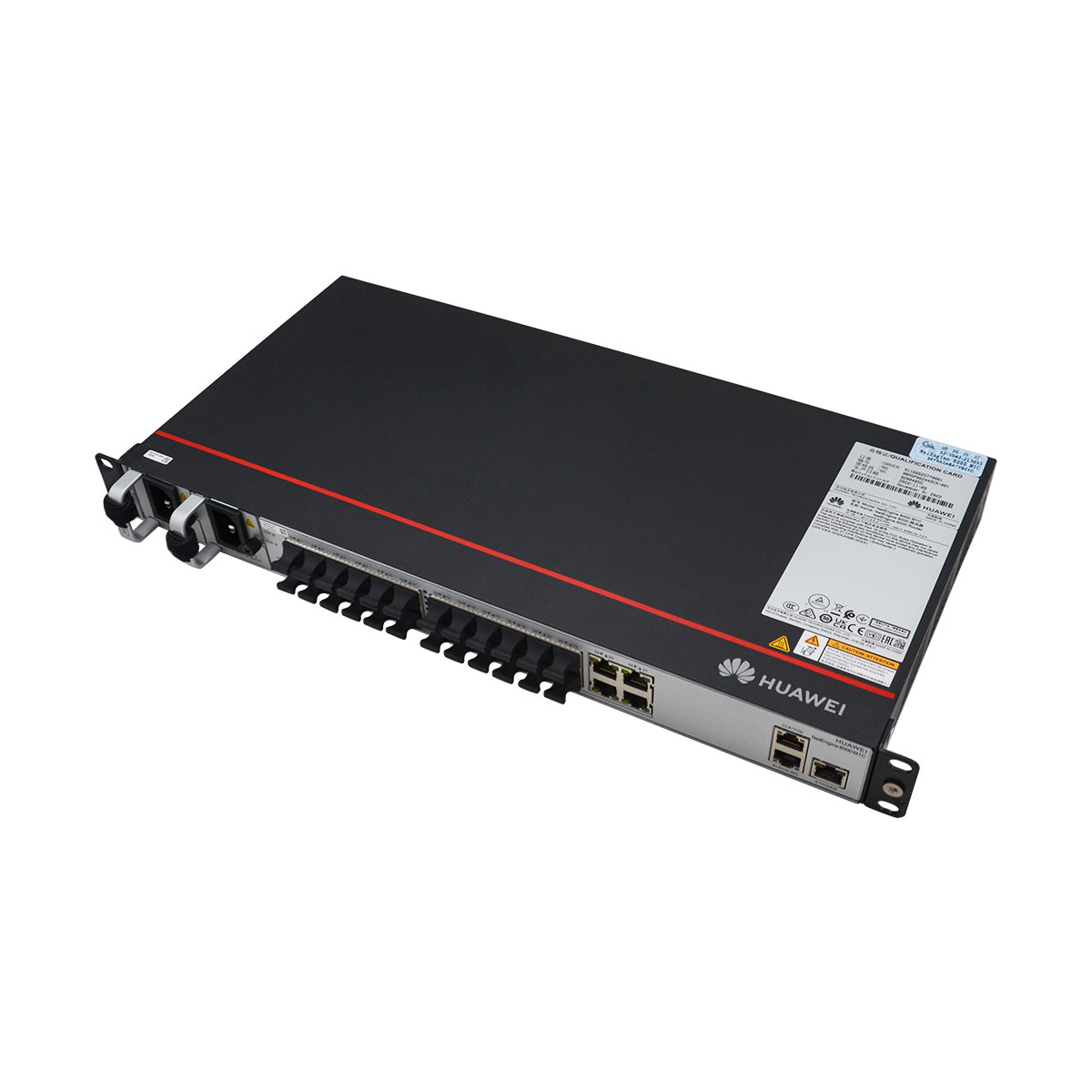

NetEngine 8000 M1C
NetEngine 8000 M1C Basic Configuration (Includes M1C Chassis, Fixed Interface(4*10GE + 12*GE), 2*AC Power
Huawei
12 Months
- Description
- DATASHEET
- Download
- Reviews (4)
Description
NetEngine 8000 M1C is ahigh-density compact router designed forthe cloud era. It’s featured forits 1Ucompact size, 220 mm depth, and supports up to 172G port capacity. The compact design saves precious space resources. Su pports flexible service access of 10GE and GE (optical and electrical ports) and supports features such as SRv6, EVPN, Port Slicing, Telemetry, and 15 88v2 high-preci sion clock, which is the best choice for multi-service high-density bearer in the future cloud era.
Basic information about the NetEngine 8000 M1C
| Description | Part Number | Model | First Supported Version | Remarks |
|---|---|---|---|---|
| NetEngine 8000 M1C Basic Configuration (Includes M1C Chassis, Fixed Interface(4*10GE + 12*GE),2*DC Power,without Software and Document) | 02354ARK | CR8PM1CBASC0 | V800R013C00SPC100 | Integrated equipment, including auxiliary material packages. |
| NetEngine 8000 M1C Basic Configuration (Includes M1C Chassis, Fixed Interface(4*10GE + 12*GE),2*AC Power,without Software and Document) | 02354ARL | CR8PM1CBASC1 | V800R013C00SPC100 | Integrated equipment, including auxiliary material packages. |
| NetEngine 8000 M1C Basic Configuration (Includes M1C Chassis, Fixed Interface(6*10GE + 22*GE),2*DC Power,without Software and Document) | 02354ARP | CR8PM1CBASC2 | V800R013C00SPC100 | Integrated equipment, including auxiliary material packages. |
| NetEngine 8000 M1C Basic Configuration (Includes M1C Chassis, Fixed Interface(6*10GE + 22*GE),2*AC Power,without Software and Document) | 02354ARQ | CR8PM1CBASC3 | V800R013C00SPC100 | Integrated equipment, including auxiliary material packages. |
| NetEngine 8000 M1C Basic Configuration (Includes M1C Chassis, Fixed Interface(16*10GE + 12*GE),2*DC Power,without Software and Document) | 02354ART | CR8PM1CBASC4 | V800R013C00SPC100 | Integrated equipment, including auxiliary material packages. |
| NetEngine 8000 M1C Basic Configuration (Includes M1C Chassis, Fixed Interface(16*10GE + 12*GE),2*AC Power,without Software and Document) | 02354ARU | CR8PM1CBASC5 | V800R013C00SPC100 | Integrated equipment, including auxiliary material packages. |
| NetEngine 8000 M1C, 2*DC Power, Port Capacity 16*10GE+8*GE(o)+4*GE(e), Default 2*10GE+8*GE | 02354ARX | CR8PM1CBASC6 | V800R013C00SPC100 | Integrated equipment, excluding auxiliary material packages. |
| NetEngine 8000 M1C, 2*AC Power, Port Capacity 16*10GE+8*GE(o)+4*GE(e), Default 2*10GE+8*GE | 02354ARY | CR8PM1CBASC7 | V800R013C00SPC100 | Integrated equipment, excluding auxiliary material packages. |
| NetEngine 8000 M1C Basic Configuration (Includes M1C Chassis, Fixed Interface(2*10GE+20*GE), 2*DC Power,without Software and Document) | 02354JEM | CR8PM1CBASC8 | V800R013C00SPC100 | Integrated equipment, including auxiliary material packages. |
| NetEngine 8000 M1C Basic Configuration (Includes M1C Chassis, Fixed Interface(2*10GE+20*GE), 2*AC Power,without Software and Document) | 02354JEN | CR8PM1CBASC9 | V800R013C00SPC100 | Integrated equipment, including auxiliary material packages. |
| Item | NetEngine 8000 M1C |
|---|---|
| Cabinet installation standards | ETSI (21-inch); IEC (19-inch); IMB (3U) |
| Dimensions without packaging (H x W x D) [mm(in.)] | 44.5 mm x 442 mm x 220 mm (1.75 in. x 17.4 in. x 8.66 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 255 mm x 585 mm x 390 mm (10.04 in. x 23.03 in. x 15.35 in.) |
| Chassis height [U] | 1 U |
| Weight without packaging (base configuration) [kg(lb)] | 3.9 kg (8.60 lb) |
| Weight with packaging (base configuration) [kg(lb)] | 6.1 kg (13.45 lb) |
| Typical power consumption [W] | 89.21 W |
| Typical heat dissipation [BTU/hour] | 289.43 BTU/hour |
| MTBF [year] | 45.43 year |
| MTTR [hour] | 2 hour |
| Availability | 0.99999 |
| CPU | 8-core 1.5GHz |
| SDRAM | 8 GB |
| Flash memory | 64 MB |
| Storage | 8 GB |
| Power supply mode | AC |
| Rated input voltage [V] | 200 V to 240 V/100 V to 127 V dual live wires, support 240V HVDC |
| Input voltage range [V] | 100 V to 240 V |
| Maximum input current [A] | 4 A |
| Maximum input cable size [mm²] | Standard C13 cable |
| Front-end circuit breaker/fuse [A] | ≥2A |
| Heat dissipation | Air cooling |
| Airflow direction | From left to right |
| Noise at normal temperature (acoustic power) [dB(A)] | 55 dB(A) |
| Switching capacity | 344G bit/s(Bidirectional). The maximum allowed error is 0.01%. To be specific, 99.99% of the line rate is guaranteed. |
| Redundant power supply | 1+1 |
| Redundant fans | If a single fan fails, the system can still work for a short period of time at an ambient temperature of 50°C (122°F). |
| Long-term operating temperature [°C(°F)] | -40°C to 65°C (-40°F to 149°F) |
| Restriction on the operating temperature variation rate [°C(°F)] | ≤ 30°C/hour (54°F/hour) |
| Storage temperature [°C(°F)] | -40°C to 70°C (-40°F to 158 °F) |
| Long-term operating relative humidity [RH] | 5% to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% to 100% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | ≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device must decrease by 1°C [1.8°F] for every 220 m [721.78 ft.].) |
| Storage altitude [m(ft.)] | < 5000 m (16404 ft.) |
| RTU supported | Yes
For details about how to use the RTU, see “Installation – License Usage Guide”. |
