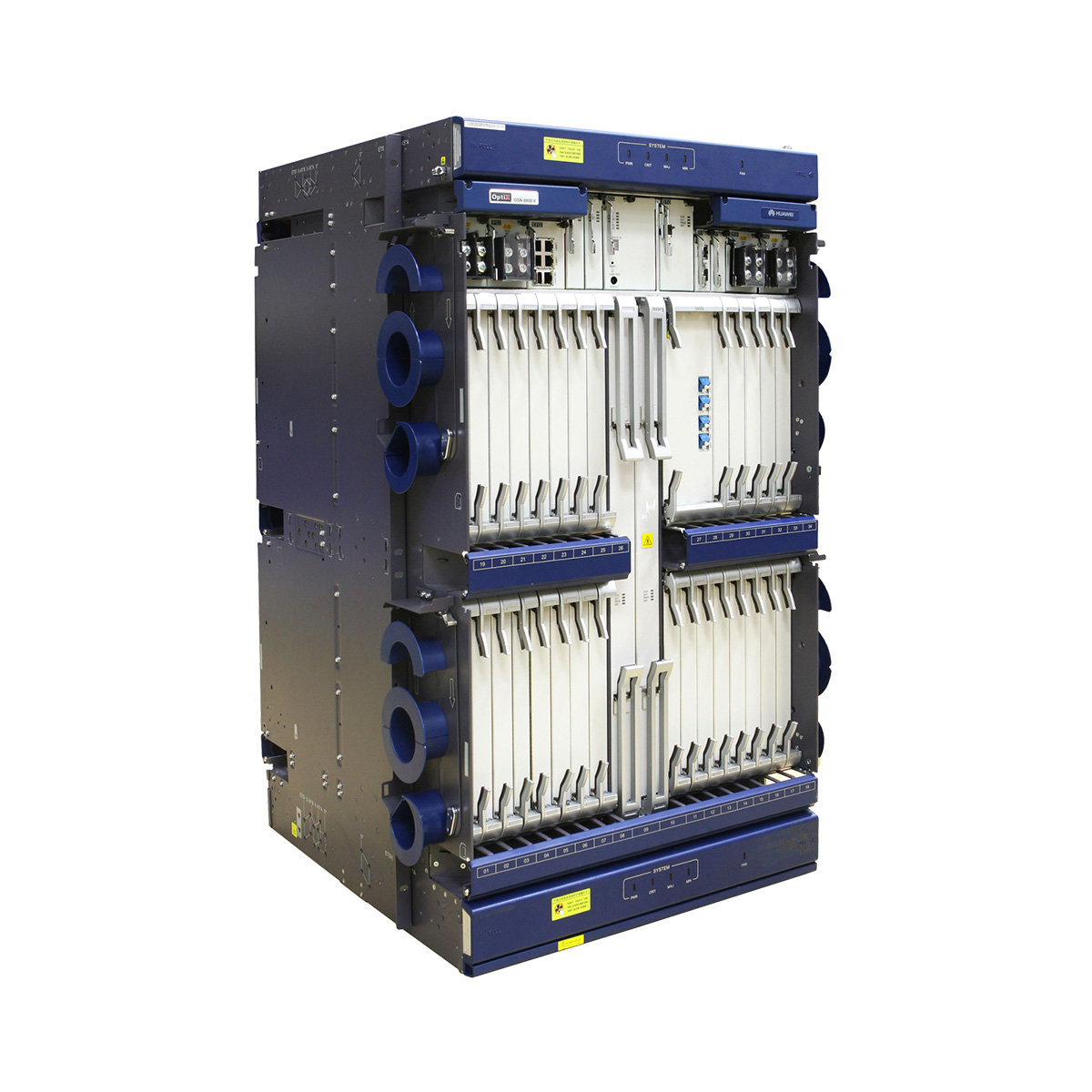

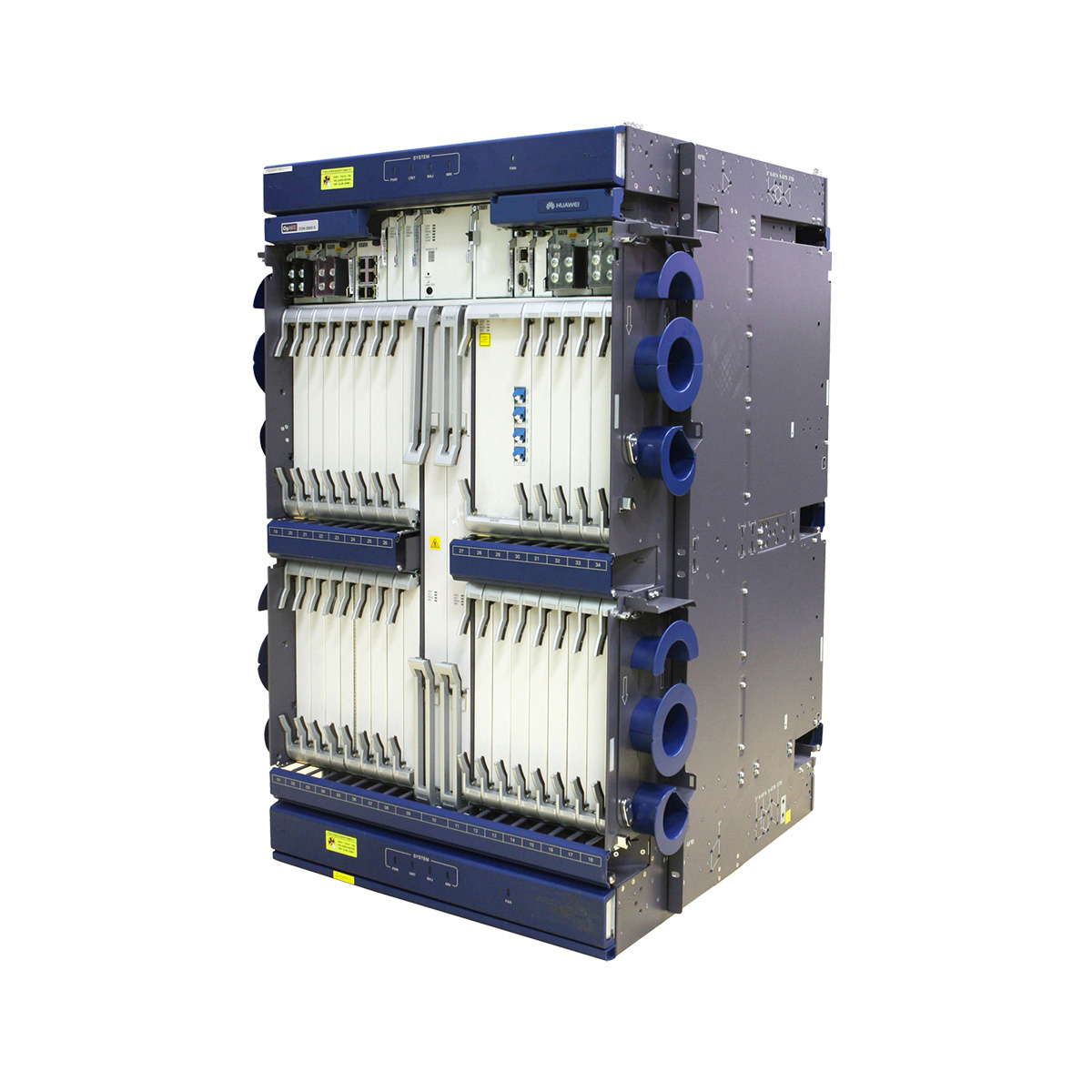

OSN8800 T64

OSN8800 T64 Enhanced Subrack with 8xTN51PIU 2xTN51AUX 1xTN51EFI1 1xTN51EFI2 1xTN51ATE 2xTN52STG 1xTN52STI


3-5 days

Shenzhen Warehouse

SKU: 4648 Category:


Huawei 40G/100G Level 6.4T Cross-Connect Capacity DWDM Enhanced OSN8800 T64

Equippped with 8xTN51PIU 2xTN51AUX 1xTN51EFI1 1xTN51EFI2 1xTN51ATE 2xTN52STG 1xTN52STI, without Service Board

64 Service Slots

Number of card slots 64
Switch Optical 2/4/9-degree ROADM
Electrical 6.4T ODUK(K=0, 1, 2, 3, 4, flex), 1.28 T VC4 & 80G
VC3 & VC12
Number of Wavelengths 40/80
Wavelength Range 192.1 THz to 196.05 THz (Band-C, ITU-T G.694.1)
Max Rate per Channel 100 G (OTU4)
Reach Maximum 350 km (81dB)
Client Interface Type STM-1/4/16/64/256
Any service at rates ranging from 100 Mbit/s to 100 Gbit/s
FE/GE/10 GE/40 GE/100 GE
Fiber G.652, G.653, G.654, G.655
Connector SFP/XFP, LC/PC
Line Interface Type OTU1/OTU2/OTU3/OTU4
Fiber G.652
Connector SFP/XFP
Topology Point-to-Point Chain
SyncE Synchronization 2 Mbit/s
Protection Mechanisms Protocol Hardware Cross-connect 1+1 backup, control board 1+1 backup and power 1+1 backup, clock 1+1 backup
Protocol OTN network level protection: optical line protect, optical channel protect, ODUk (k=0, 1, 2, 2e, 3, 4) SNCP protection,ODUk (k=0, 1, 2, 2e, 3, 4) SPRing protection, Optical Wavelength Shared Protection (OWSP),ASON
SDH network level protection: linear 1+1/1:N/ring MSP, SNCP, TOA, DNI, DLAG & LAG and Fiber Shared-Virtual Path Protection, ASON
ASON Optical intelligent platform
Electrical intelligent platform (ODUk & VCx)
End to end service configuration
MESH networking protection and restoration
Multiple classes of service for different client SLA QoS, including diamond, golden, silver and copper services
Services optimization, migration, and restoration
Service equilibrium and Shared-Risk Link Group (SRLG)
Mount Method ETSI 300/600 cabinet, 23-inch rack
Operating Temperature -5°C to 45°C
Cooling Fan Cooling
Humidity 10 to 90%
Power Input DC: –48/–60V
Mechanical Specification
Dimensions(mm) 900(H) x 498(W) x 580(D)
