Description

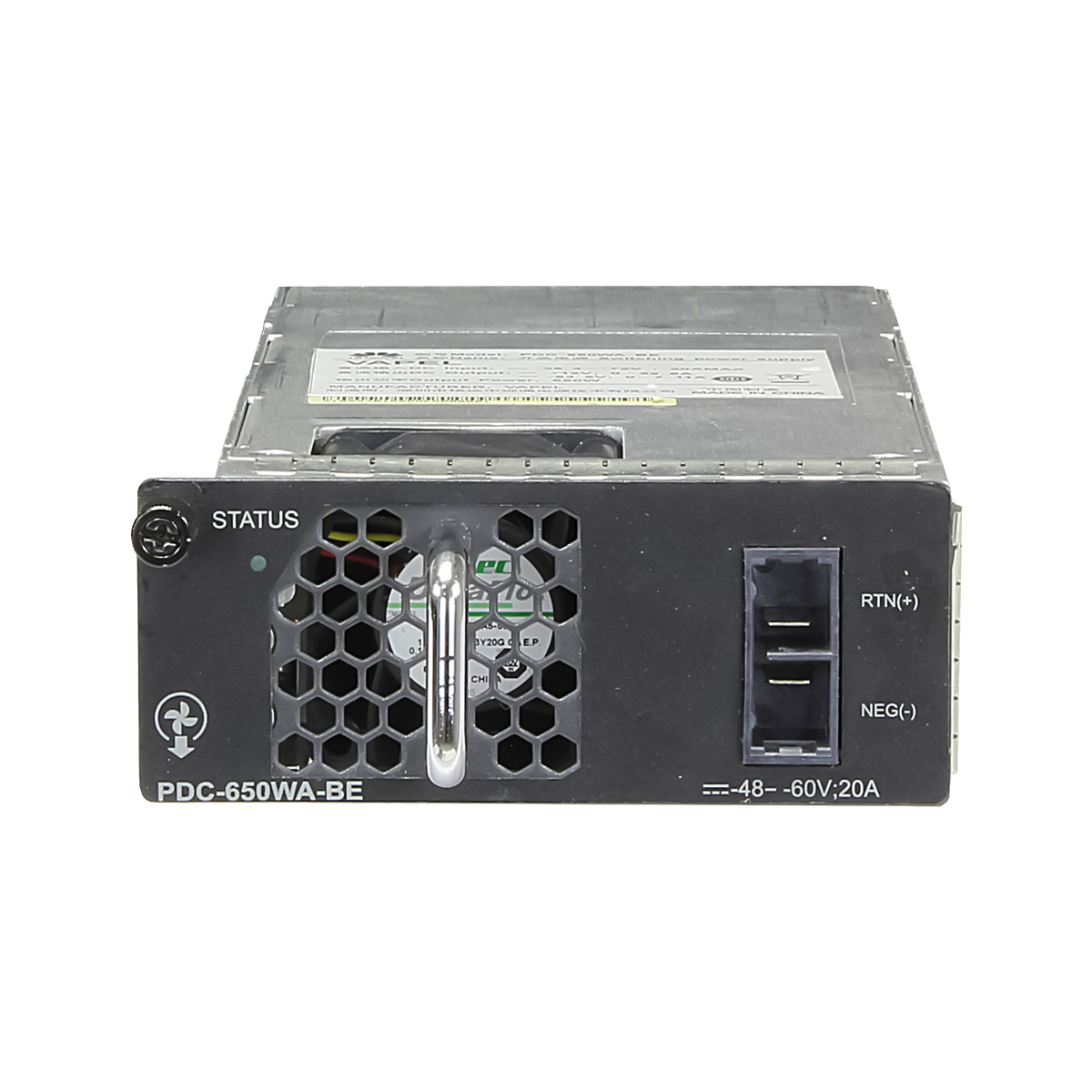

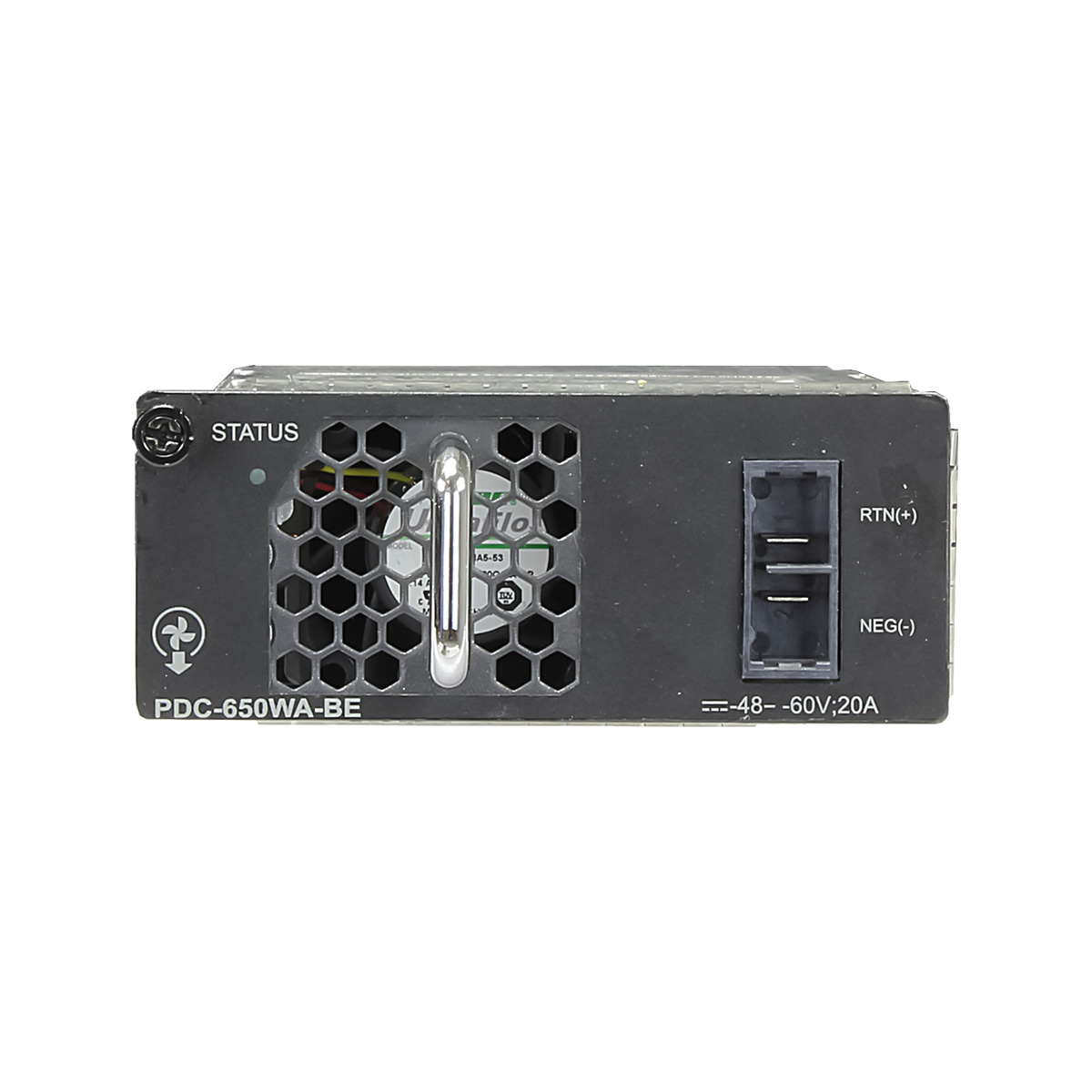

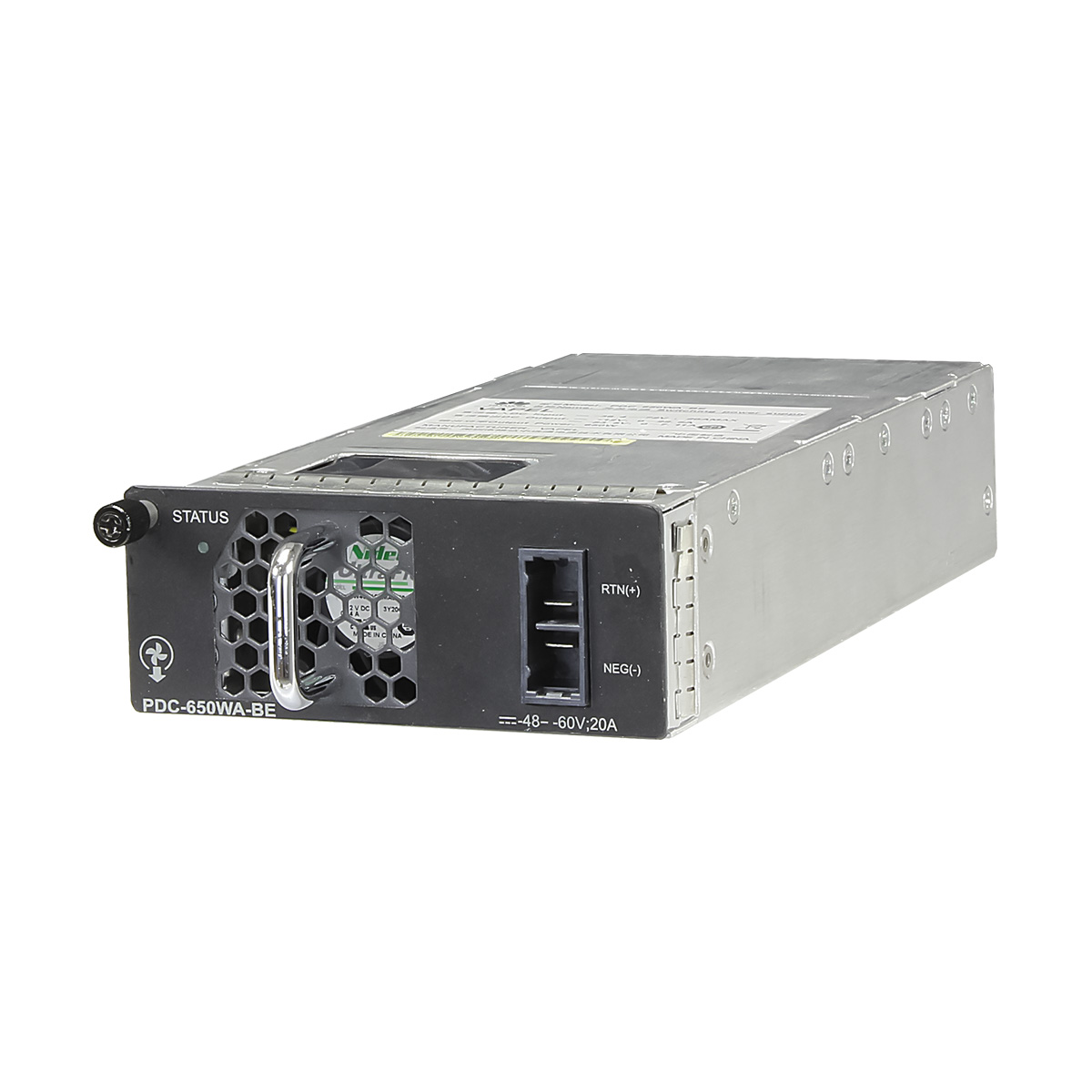

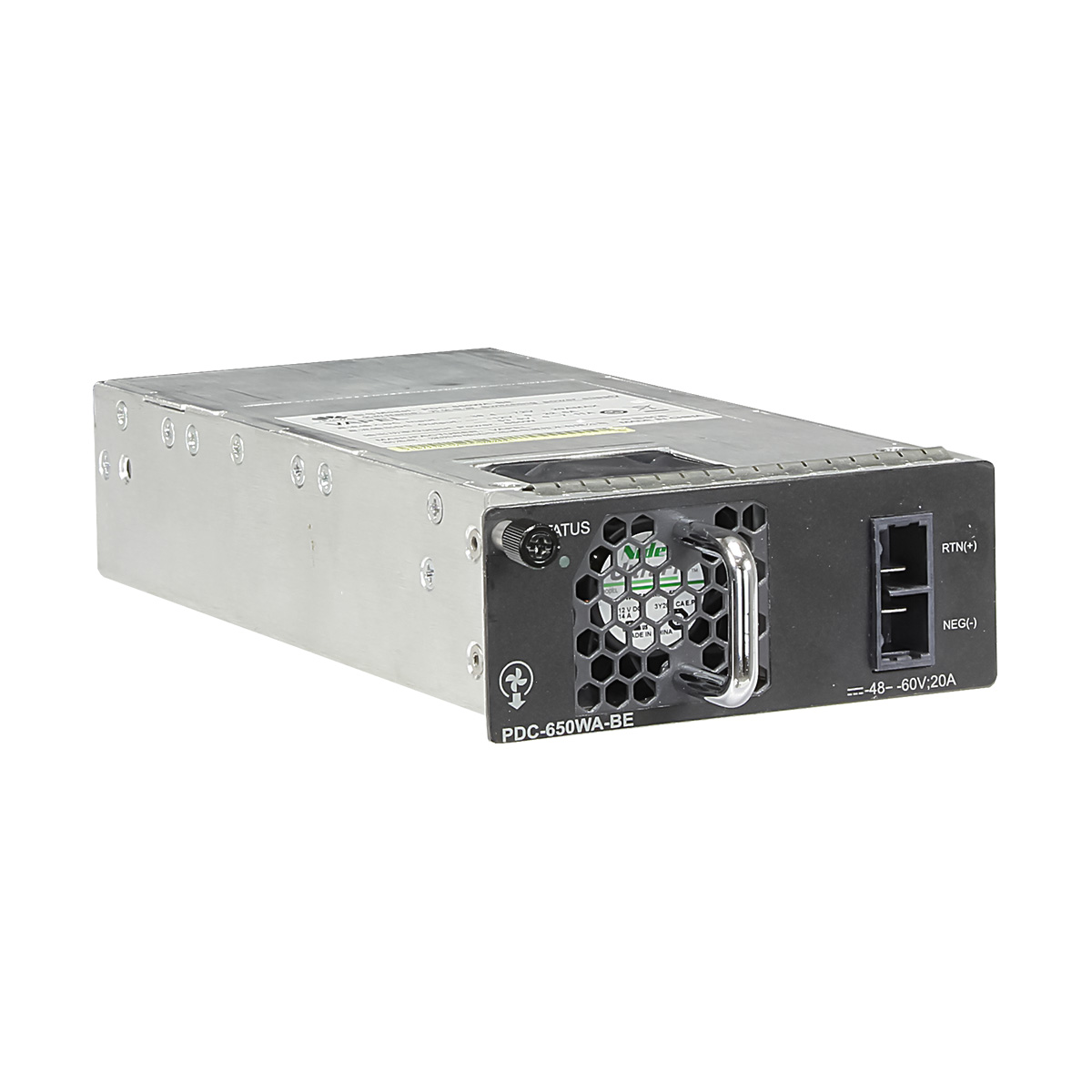

PDC-650WA-BE overview
Huawei PDC-650WA-BE supports 650 W DC PoE Power Module apply to S5700/5710 series switch.
Product support for a 650 W DC PoE power module
| Power Module Name | Product Support |
|---|---|
| PDC-650WA-BE | S5720-28X-PWR-SI-AC, S5720-28X-PWR-SI-DC, S5720-52X-PWR-SI-AC, S5720-52X-PWR-SI-DC, S5720-36C-PWR-EI-AC, S5720-36C-PWR-EI-DC, S5720-56C-PWR-EI-AC, S5720-56C-PWR-EI-DC, S5730-48C-PWR-SI-AC, S5730S-48C-PWR-EI, S5730-68C-PWR-SI-AC, S5730-68C-PWR-SI, S5730S-68C-PWR-EI, S5730-36C-PWH-HI, S5730-44C-PWH-HI, S5730-60C-PWH-HI, S5730-68C-PWH-HI |
Technical specifications of a 650 W DC PoE power module
| Item | Description |
|---|---|
| Dimensions (H x W x D) | 40 mm x 100 mm x 205 mm (1.6 in. x 3.9 in. x 8.1 in.) |
| Weight | 0.83 kg (1.83 lb) |
| Rated input voltage range | -48 V DC to -60 V DC |
| Maximum input voltage | -38.4 V DC to -72 V DC |
| Maximum input current | 20 A |
| Maximum output current |
|
| Rated output power |
|
| Part number | 02270152 |
