PN 98010642

Huawei S1700-52GR-4X-AC switch supports 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, fixed AC power

Shenzhen Warehouse
lead time 3-5 days
- +

Huawei S1700-52GR-4X-AC with 48 10/100/1000BASE-T ports, is one of the Huawei S1700 series switches. The S1700 is deployed at the access layer of an enterprise network to deliver cost-effective packet switching capability. In addition, the S1700 provides multi-service access capabilities, excellent extensibility, Quality of Service (QoS) guarantee, powerful multicast replication, and carrier-class security, and can be used to build ring topologies of high reliability. The S1700 series switches are applicable to various scenarios, for example, GE access to enterprise networks and GE-todesktop, building future-oriented IT networks for enterprises.

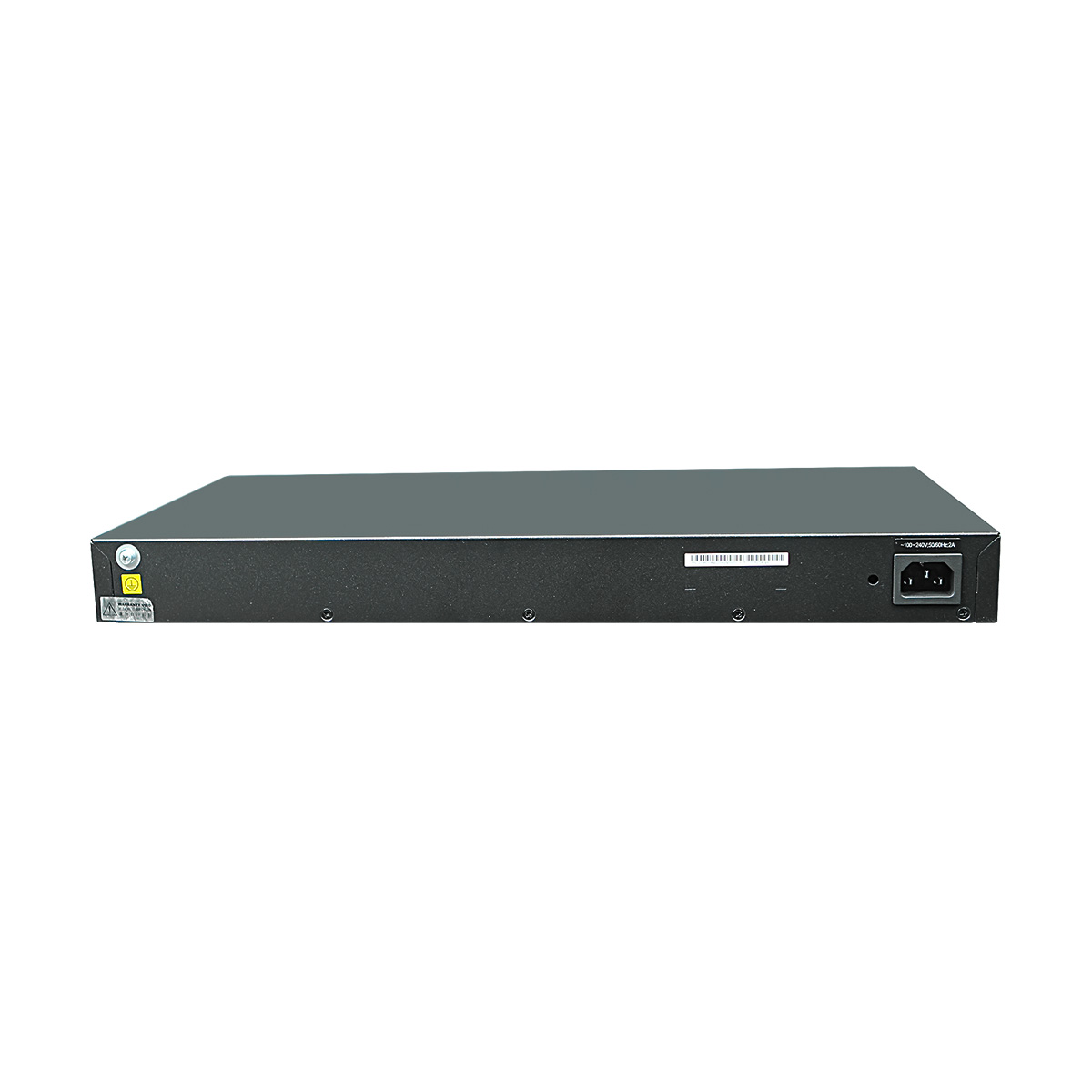

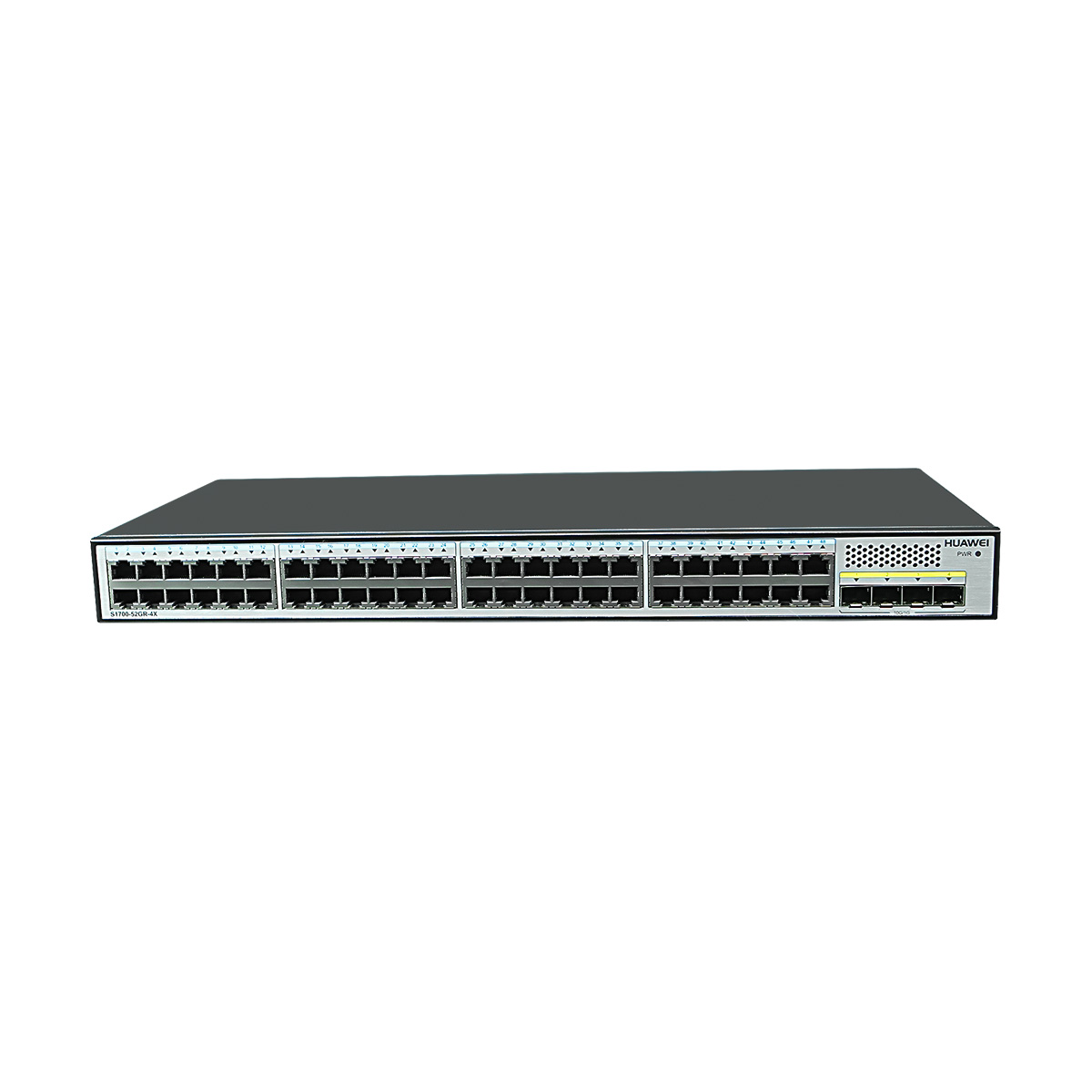

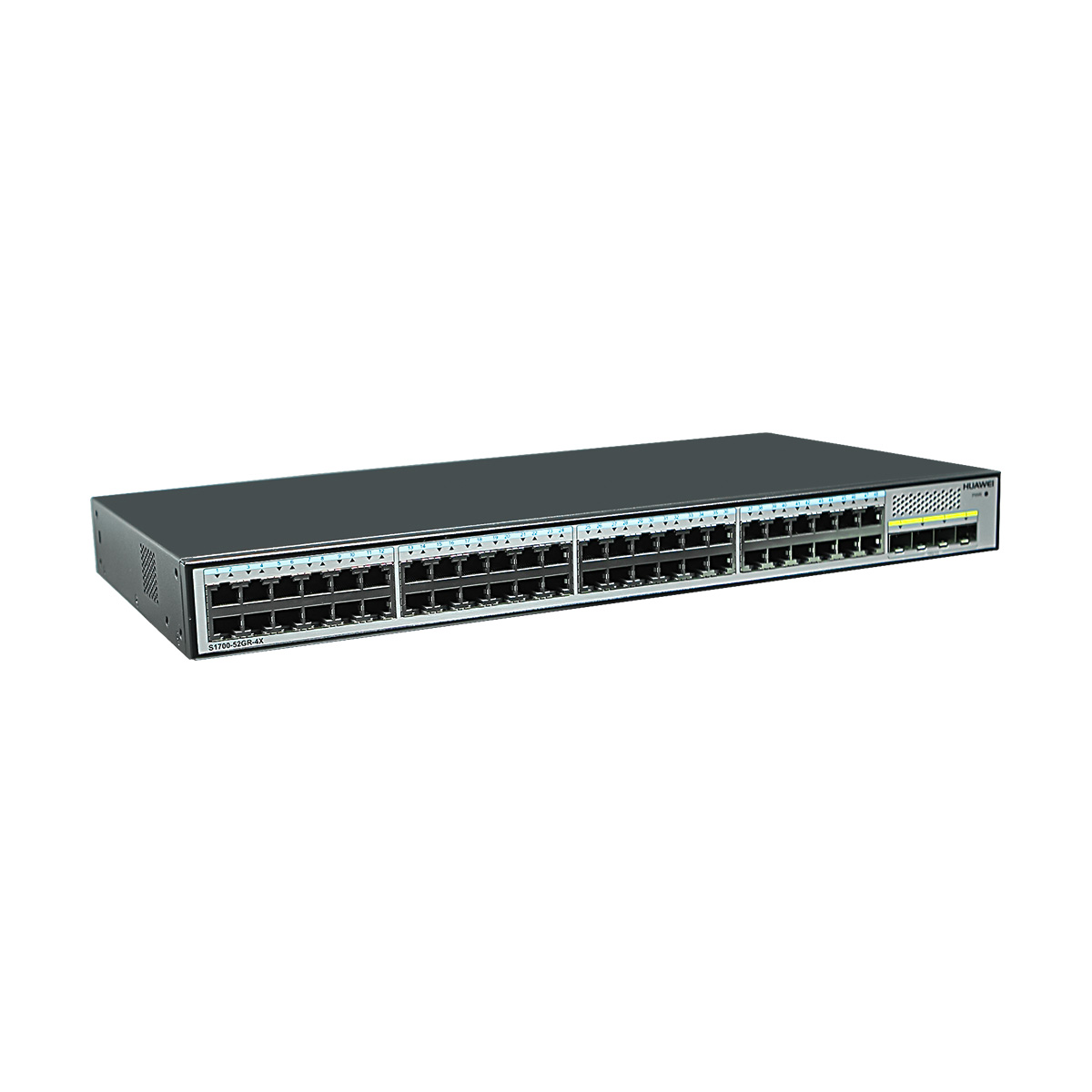

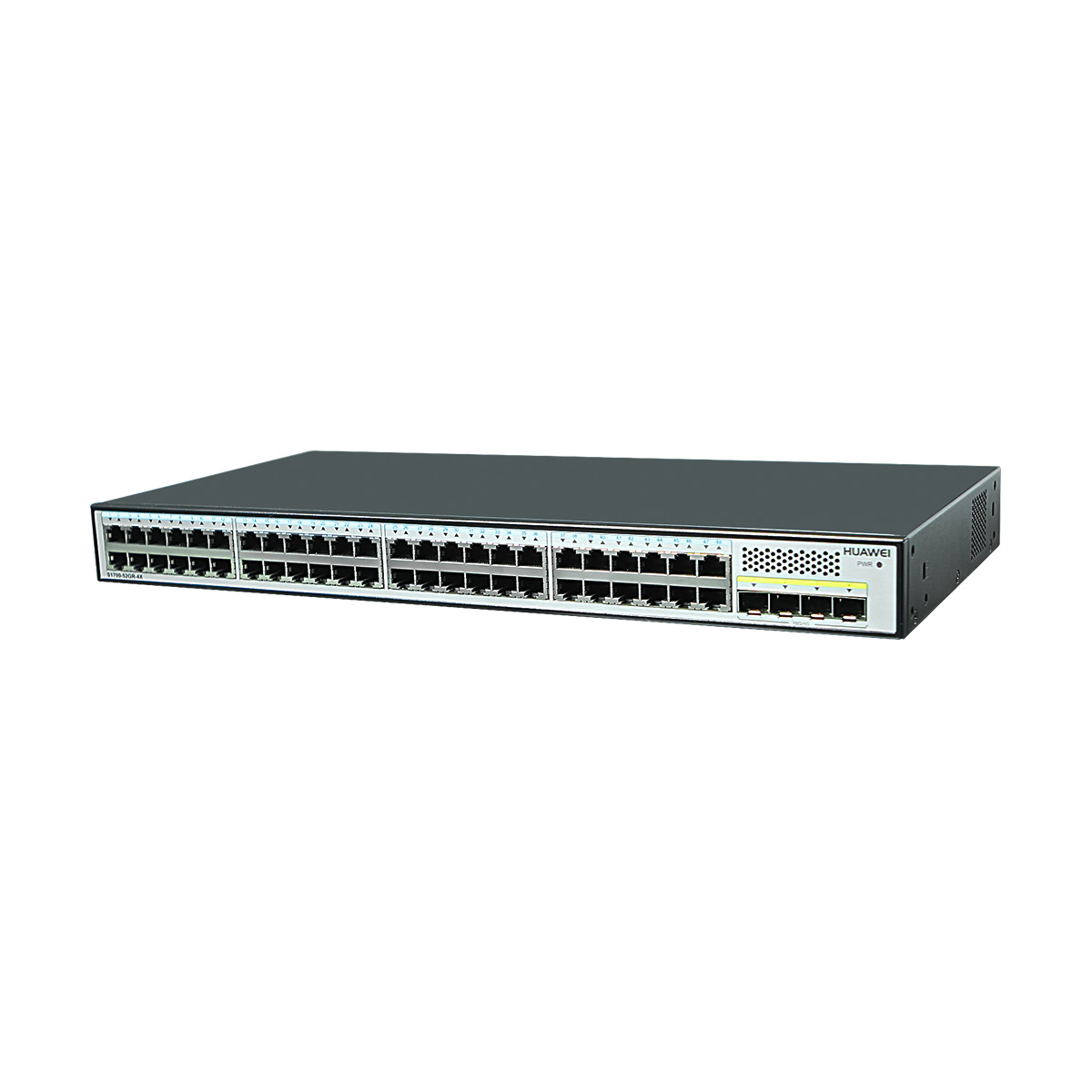

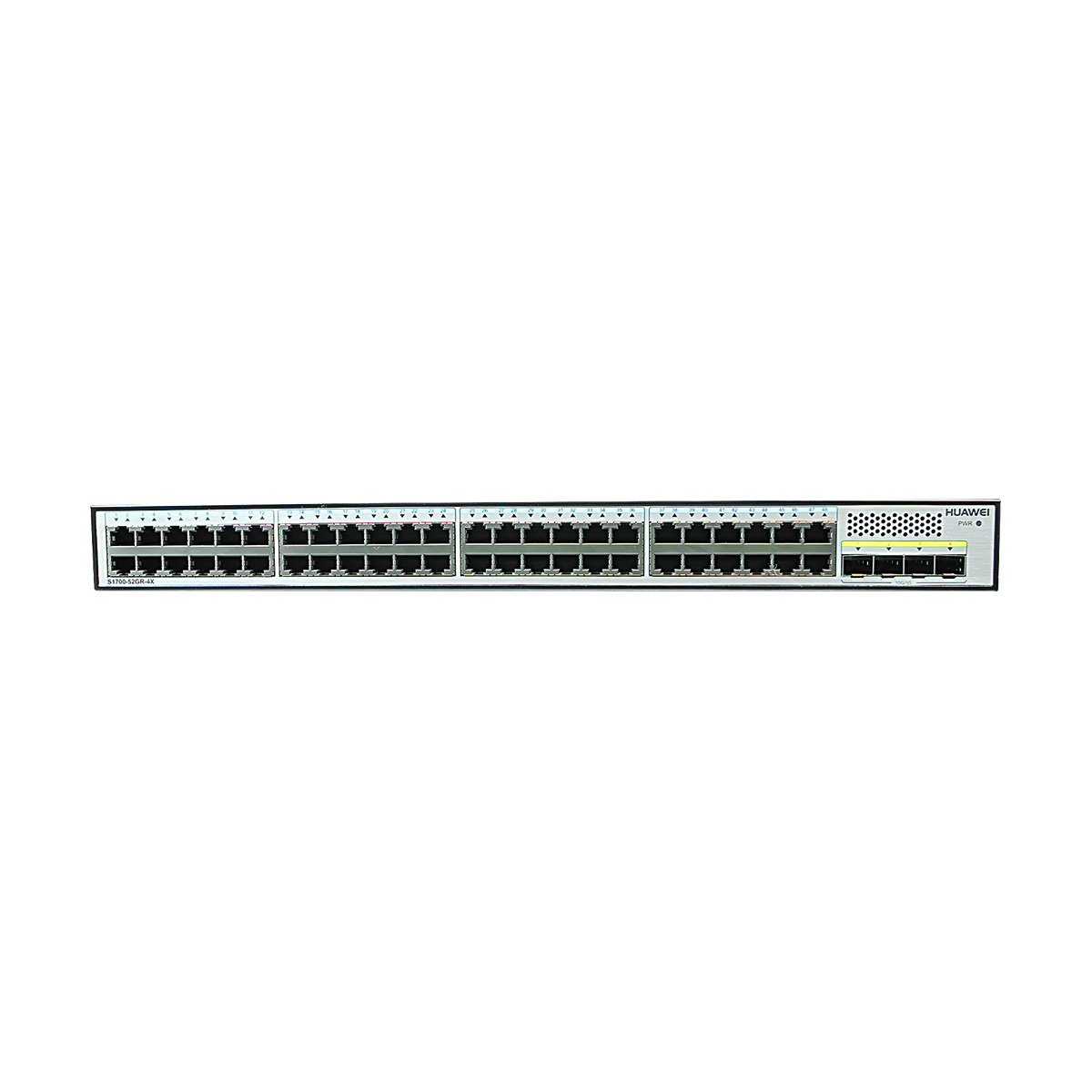

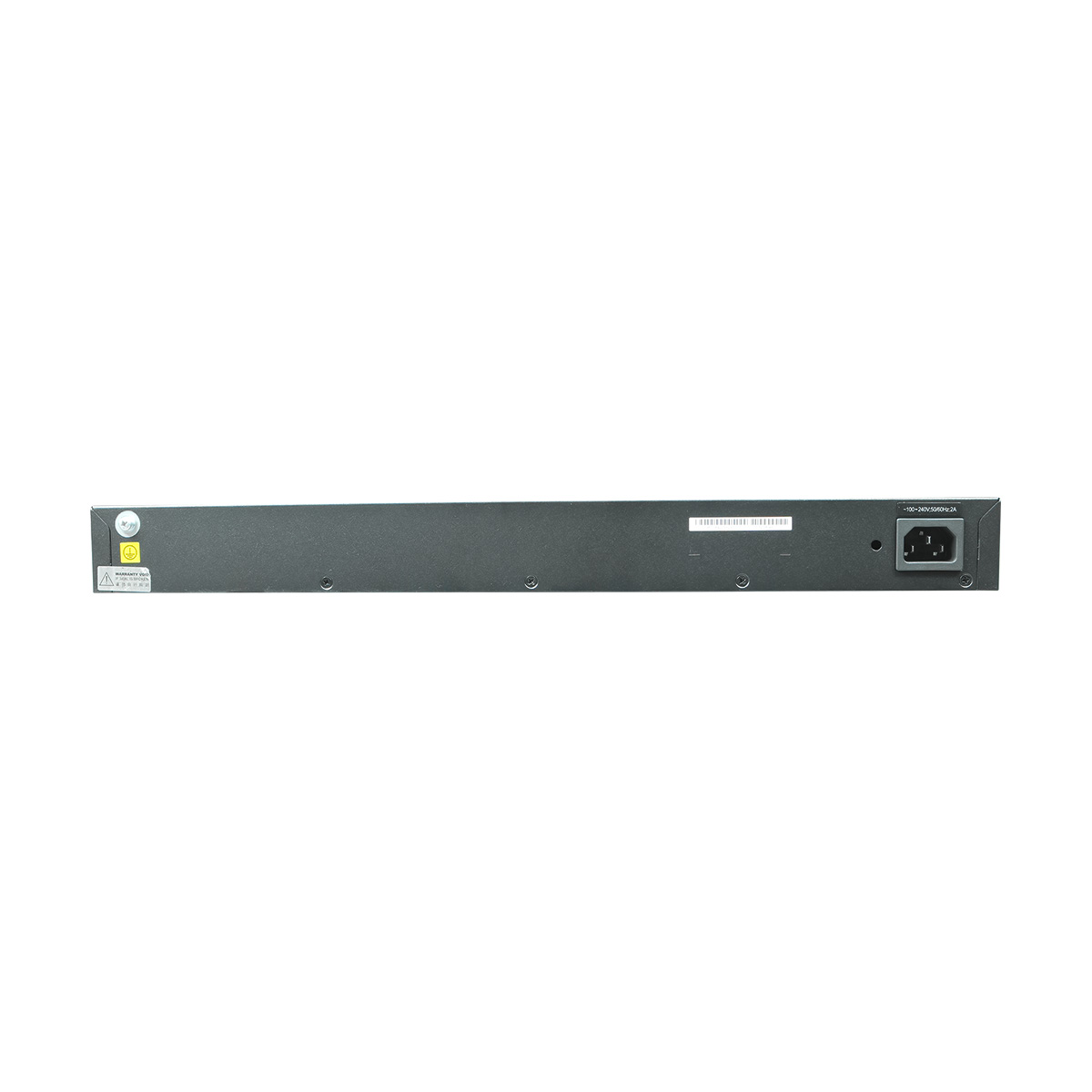

S1700-52GR-4X-AC appearance and structure



S1700-52GR-4X-AC Datasheet


Item S1700-52GR-4X-AC
Fixed port 48 Ethernet 10/100/1000 ports and 4 10GE SFP+
Forwarding Performance 132 Mpps
Switching Capacity 336 Gbit/s
Mean-Time-Between- Failures (MTBF), years 50
Mean-Time-To-Repair (MTTR), hours 2
AC Input Voltage Rated voltage range: 100 V to 240 V AC; 50/60 Hz
Maximum voltage range: 90 V to 264 V AC; 47 Hz to 63 Hz
Maximum Power Consumption (100% throughput, full speed of fans) 44.6 W
Operating Temperature 0-1800m: 0°C-45°C
1800-5000m: decrease 1℃ when the altitude increases every 220m
Noise (under normal temperature-sound power) 44.5 dBA
Relative Humidity (RH) 5% RH to 95% RH
Operating Altitude 0 m to 5, 000 m
Dimensions (W x D x H) 442.0 mm x 220.0 mm x 43.6 mm
Weight (without optical modules) 4.217 kg
