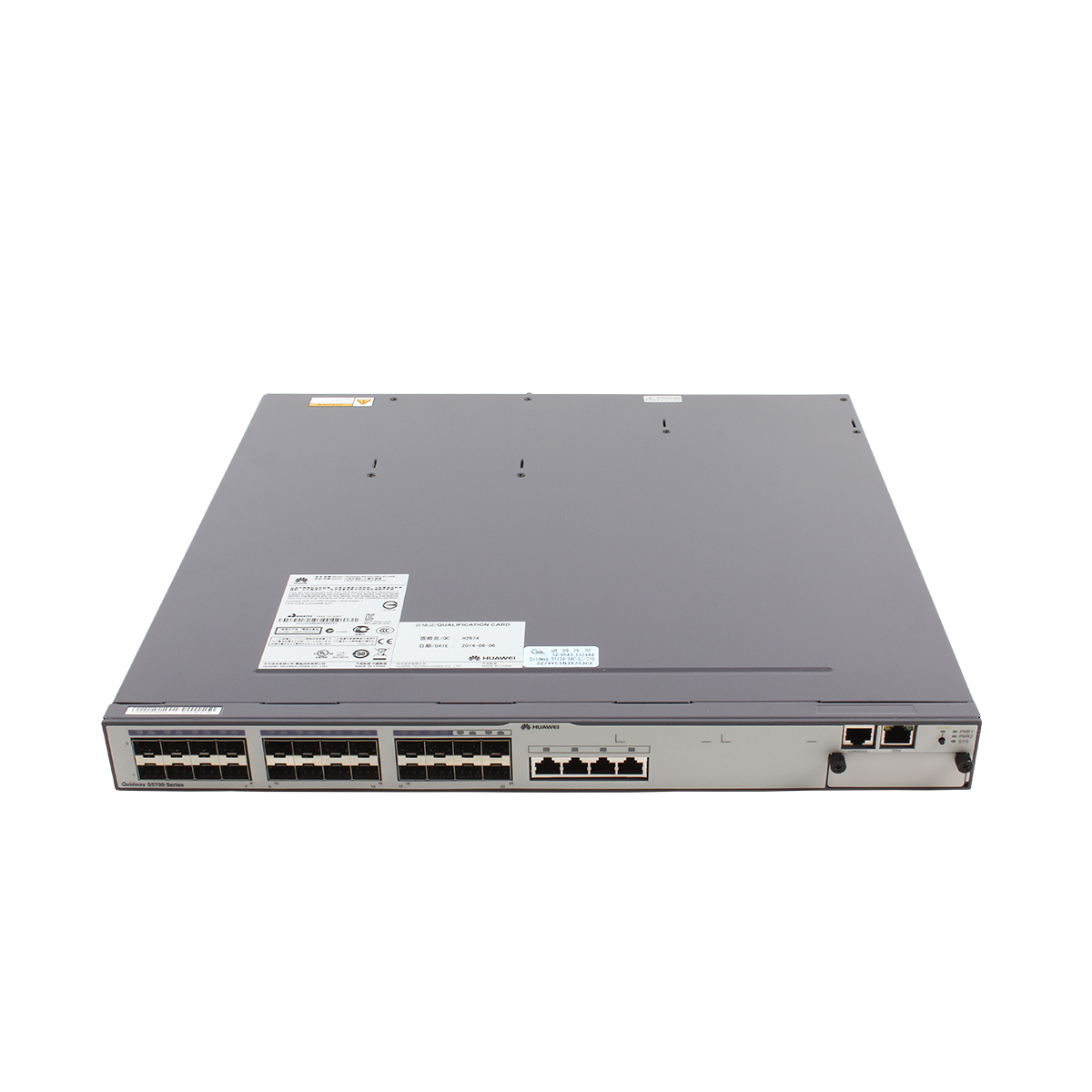

S5700-28C-EI-24S-AC

PN 02358312-AC

Huawei S5700-28C-EI-24S-AC switch supports 24 GE SFP ports, 4 of which are dual-purpose 10/100/1000BASE-T or 100/1000BASE-X ports, 2 hot swappable AC/DC power supplies, 1 AC equipped

Shenzhen Warehouse
lead time 3-5 days
- +
Overview

Huawei S5700-28C-EI-24S-AC with 24 GE SFP ports, 4 of which are dual-purpose 10/100/1000BASE-T or 100/1000BASE-X ports, is one of the Huawei S5700 series switches. The S5700 gigabit enterprise switch is next-generation energy-saving switch developed by Huawei to meet the demand for highbandwidth access and Ethernet multi-service aggregation. With 24 GE ports and 2 extended slots, it provides a large switching capacity and highdensity GE ports to implement 10 Gbit/s upstream transmissions, widely used in various application scenarios like enterprise park access, convergence, gigabit access of data center application scenarios.

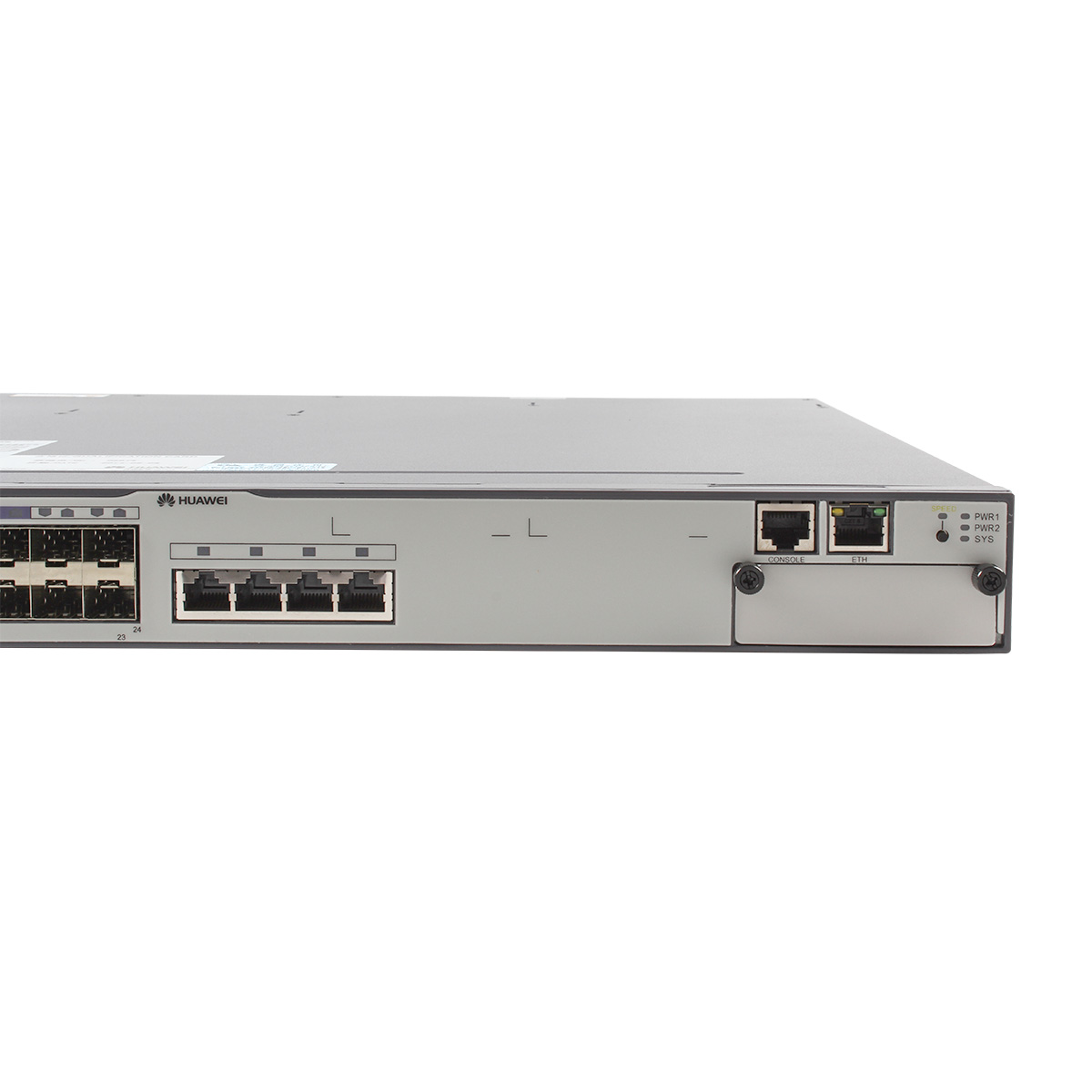

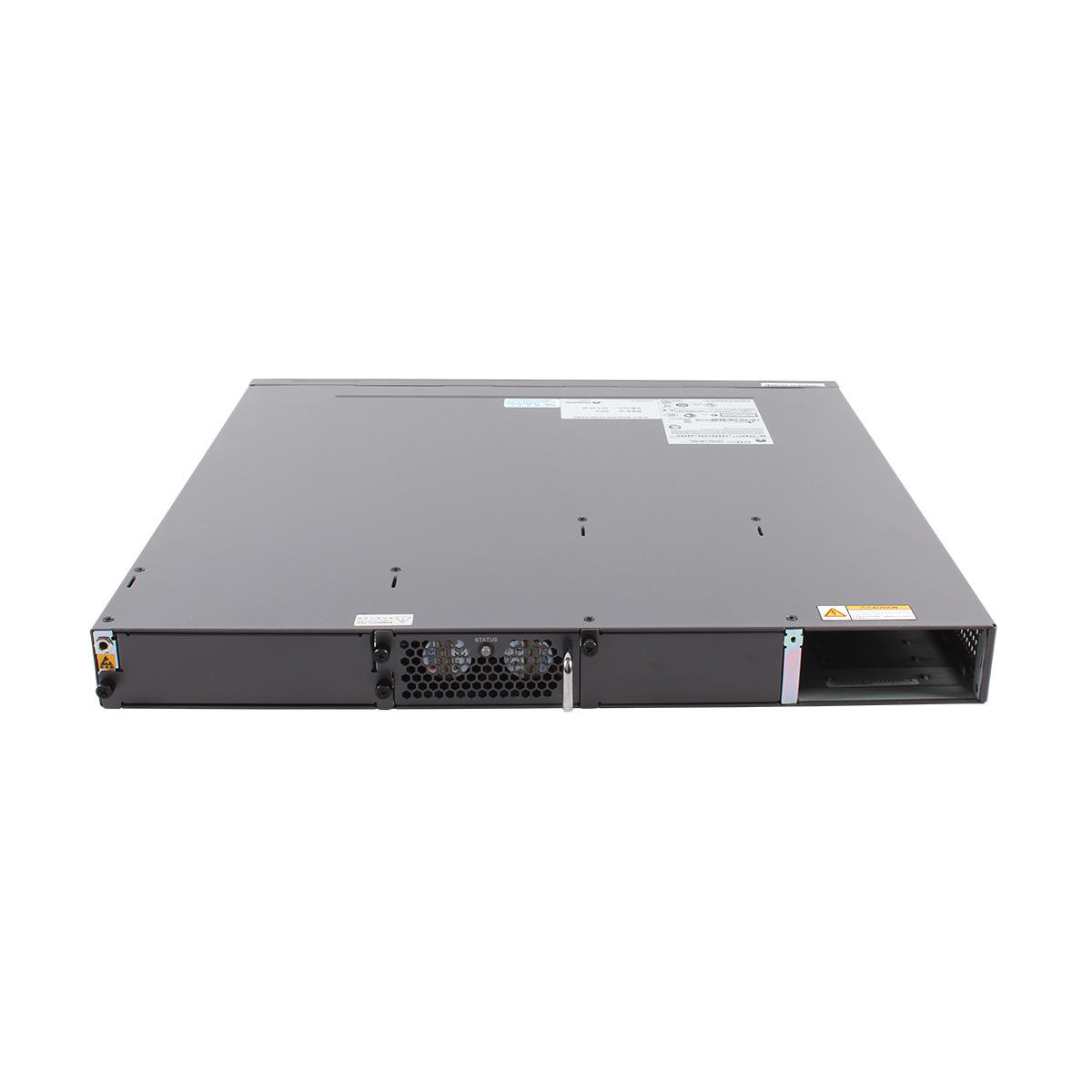

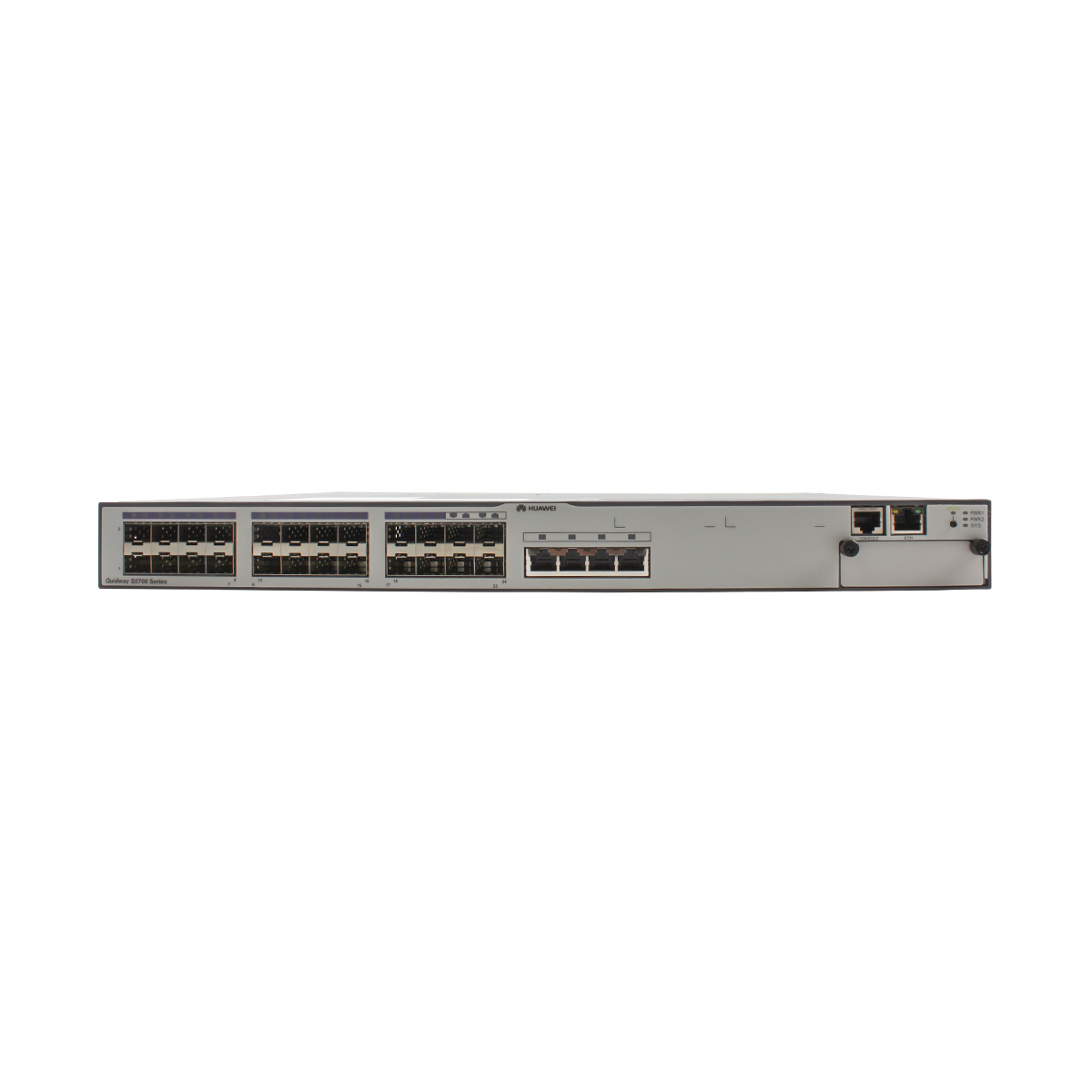

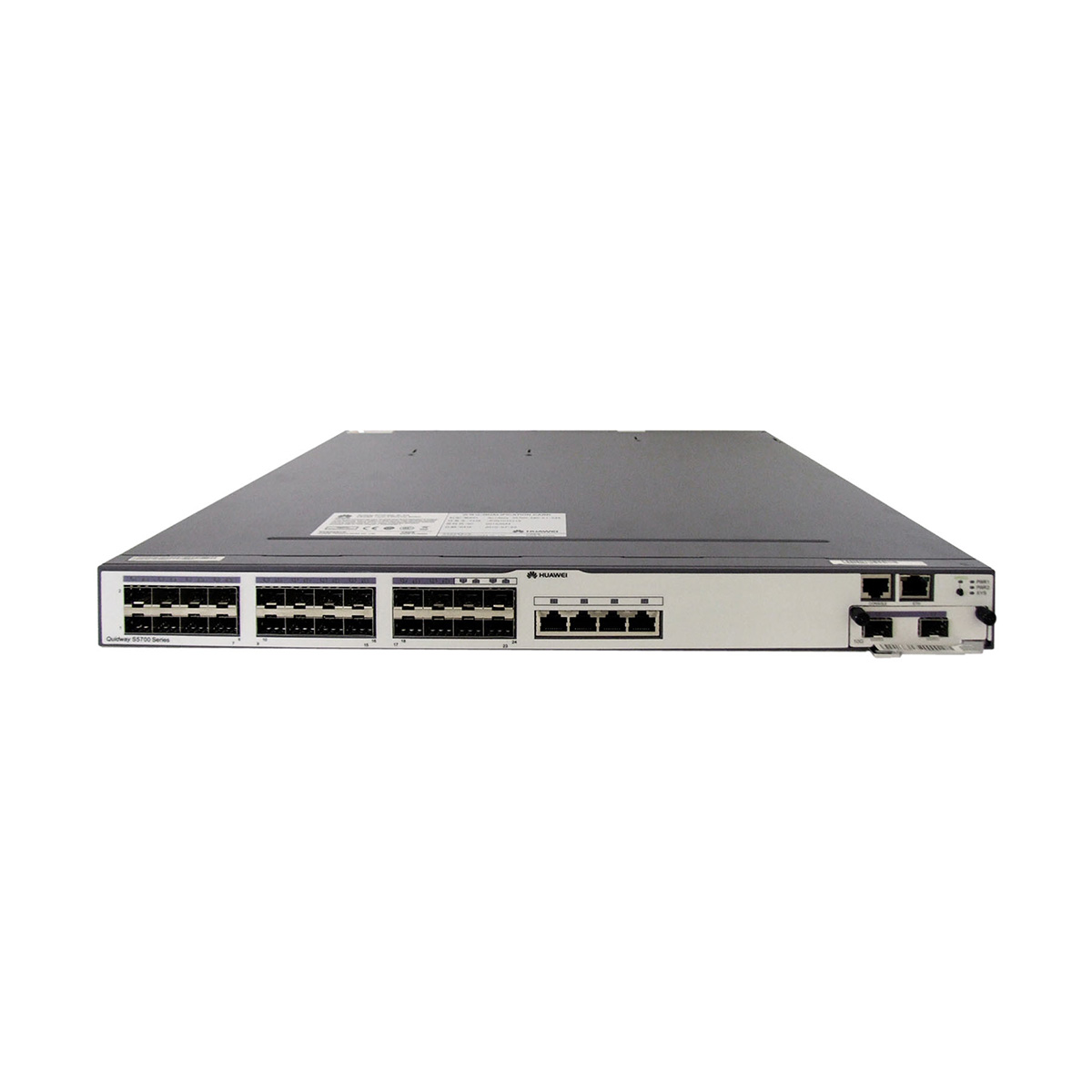

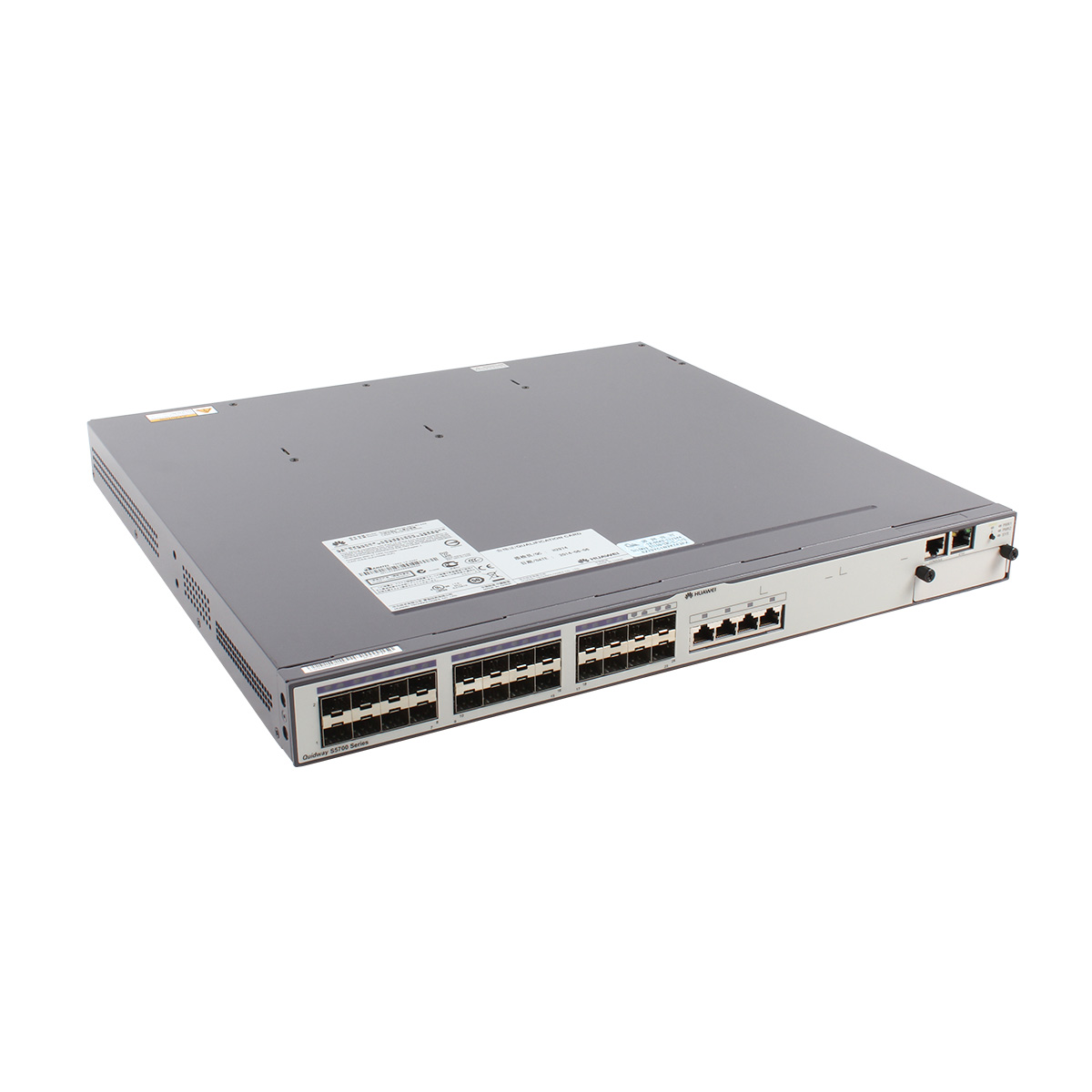

S5700-28C-EI-24S-AC appearance and structure



S5700-28C-EI-24S-AC appearance and structure

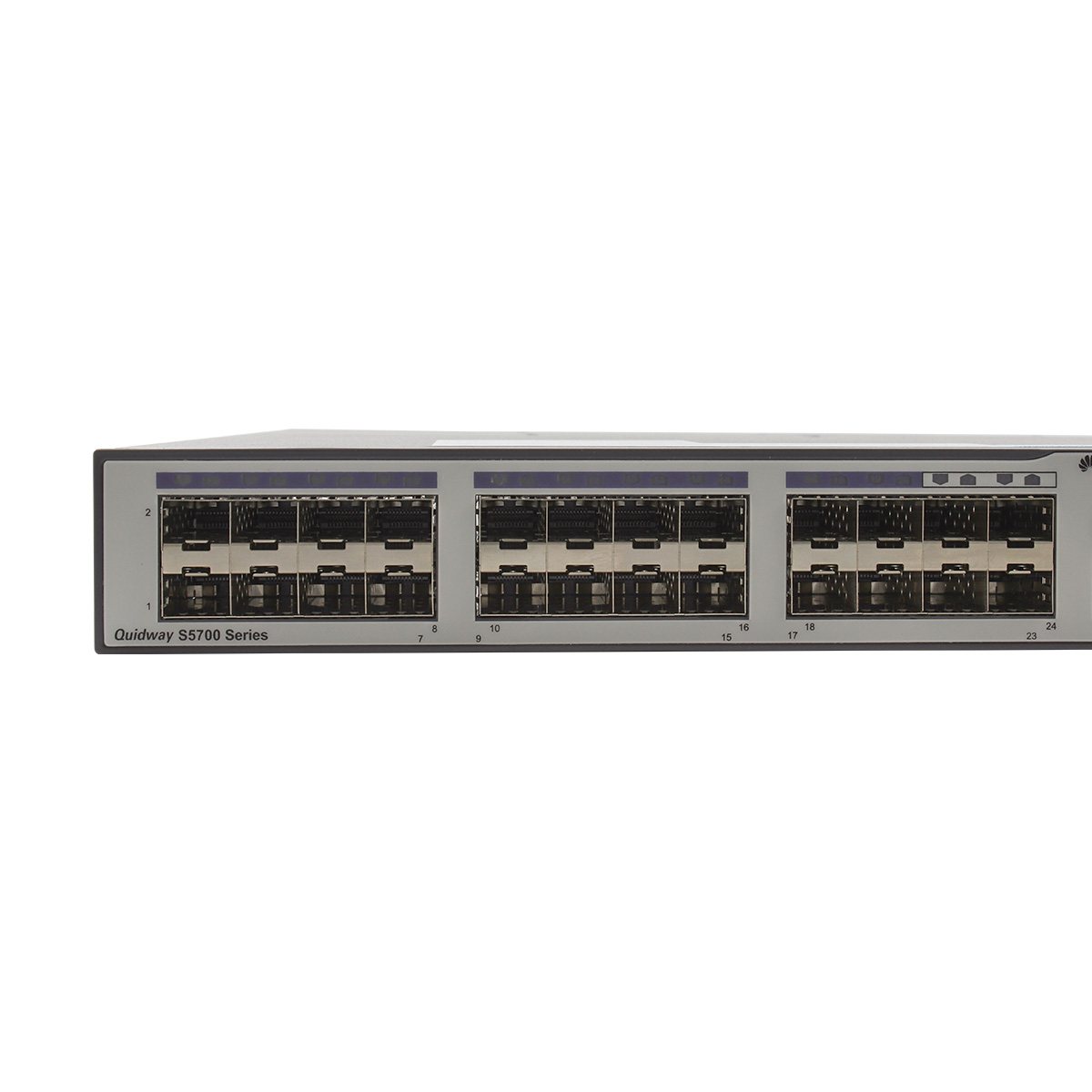

1. Twenty 100/1000BASE-X ports 6. ESD jack
2. Four combo ports (10/100/1000BASE-T + 100/1000BASE-X) 7. Rear card slot
3. One console port 8. Fan slot
4. One ETH management port 9. Power module slot 2
5. Front card slot 10. Power module slot 1



S5700-28C-EI-24S-AC Datasheet



Item S5700-28C-EI-24S-AC
Fixed port 24 GE SFP ports, 4 GE SFP combo ports
Extended slot Provide two extended slots, one for an uplink subcard and the other for a stack card.
Forwarding performance 96 Mpps
VLAN 4K VLANs
Guest VLAN and voice VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN Mapping
SuperVLAN(supported by the S5700-SI/S5700-EI/S5700-HI series)
Reliability RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
SEP
ERPS(G.8032)(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series)
STP, RSTP, and MSTP
BPDU protection, root protection, and loop protection
E-Trunk
BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM
IP routing Static routing
RIPv1, RIPv2 and RIPng,ECMP(supported by the S5700-SI/S5700-EI/S5700-HI series)
OSPF, OSPFv3, IS-IS, IS-ISv6, BGP and BGP4+ (supported by the S5700-EI/S5700-HI series)
IPv6 features Neighbor Discovery (ND)
Path MTU (PMTU)
IPv6 ping, IPv6 tracert, and IPv6 Telnet
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
MLD v1/v2 snooping
6to4 tunnel, ISATAP tunnel, and manually configured tunnel
Multicast IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast
Port-based multicast traffic statistics
IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series)
QoS/ACL Rate limiting on packets sent and received by an interface
Packet redirection
Port-based traffic policing and two-rate three-color CAR
Eight queues on each port
WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
WRED (supported by the S5710-EI and S5700-HI)
Re-marking of the 802.1p priority and DSCP priority
Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID
Rate limiting in each queue and traffic shaping on ports
Security User privilege management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface, and VLAN
Port isolation, port security, and sticky MAC
MFF
Blackhole MAC address entries
Limit on the number of learned MAC addresses
802.1x authentication and limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense
Blacklist and whitelist
OAM Supports
Access Security DHCP Relay, DHCP Server, DHCP Snooping, DHCP Security
Management and maintenance Virtual cable test
Stacking
MAC Forced Forwarding (MFF)
Port mirroring and RSPAN (remote port mirroring)
Remote configuration and maintenance using Telnet
SNMP v1/v2/v3
RMON
Web NMS
HGMP
System logs and alarms of different levels
802.3az EEE (supported by the S5700(S)-LI, S5710-EI, S5700-HI and S5710-HI)
GVRP
MUX VLAN
NetStream (supported by the S5710-EI, S5700-HI and S5710-HI)
sFlow(supported by the S5700(S)-LI/S5700-EI/S5700-HI series)
Interoperability Supports VBST (Compatible with PVST/PVST+/RPVST)
Supports LNP (Similar to DTP)
Supports VCMP (Similar to VTP)
DDR memory 256 MB
Flash memory 32 MB
Mean time between failures (MTBF) S5700-28C-EI-24S: 52.80 years when no card is configured; 41.33 years when a 2x10GE card is configured; 50.00 years when a 4xGE front card is configured; 26.52 years when a 4x10GE front card is configured
Mean time to repair (MTTR) 2 hours
Availability > 0.99999
Surge protection: Service port protection Non-PoE switch: ±2 kV in common mode
Surge protection: Power supply protection

Non-PoE switch:

AC: ±6 kV in differential mode; ±6 kV in common mode
DC: ±1 kV in differential mode; ±2 kV in common mode
Stack port Two stack ports available on each stack card
Maximum stack bandwidth (bidirectional) 48 Gbit/s
RPS Not supported
PoE The PWR series support PoE.
Input DC voltage: Rated input voltage range -48 V DC to -60 V DC
Input DC voltage: Maximum voltage range -36 V DC to -72 V DC
Input AC voltage: Rated input voltage range 100 V AC to 240 V AC, 50/60 Hz
Input AC voltage: Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum system power consumption (100% throughput, 100% PoE loads, full speed of fans) S5700-28C-EI-24S: 63 W
Operating temperature 0°C to 50°C
Storage temperature -40°C to +70°C
Noise under normal temperature (27°C, sound power) S5700-28C-EI: less than 41 dBA
Relative humidity 5% RH to 95% RH, noncondensing
Operating altitude Non-PoE switch:
AC: 0 m to 5000 m
DC: 0 m to 2000 m
PoE switch: 0 m to 5000 m
EMC CISPR22 Class A
CISPR24
EN55022 Class A
EN50024
ETSI EN 300 386 Class A
CFR 47 FCC Part 15 Class A
ICES 003 Class A
AS/NZS CISPR22 Class A
IEC61000-4-2
ITU-T K 20
ITU-T K 44
Environmental standards RoHS
REACH
WEEE
Security IEC 60950-1
EN 60950-1/A11/A12
UL 60950-1
CSA C22.2 No 60950-1
AS/NZS 60950.1
Laser safety IEC60825-1
IEC60825-2
EN60825-1
EN60825-2
Dimensions (W x D x H) 442.0 mm x 420.0 mm x 43.6 mm
Fully loaded ≤ 8.5 kg
Empty loaded ≤ 5 kg

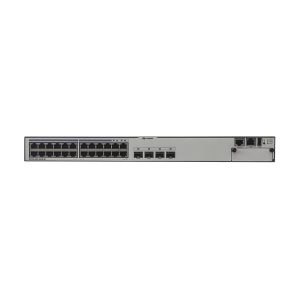

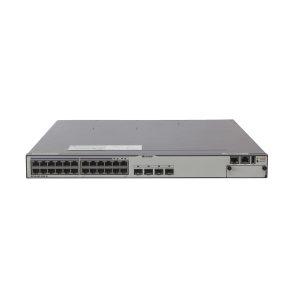

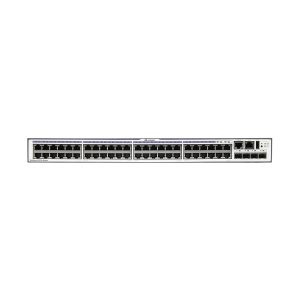

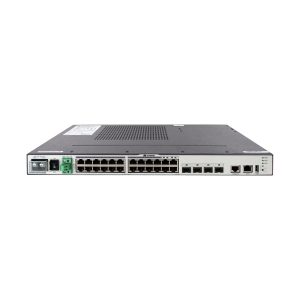

Matching Products
