2587

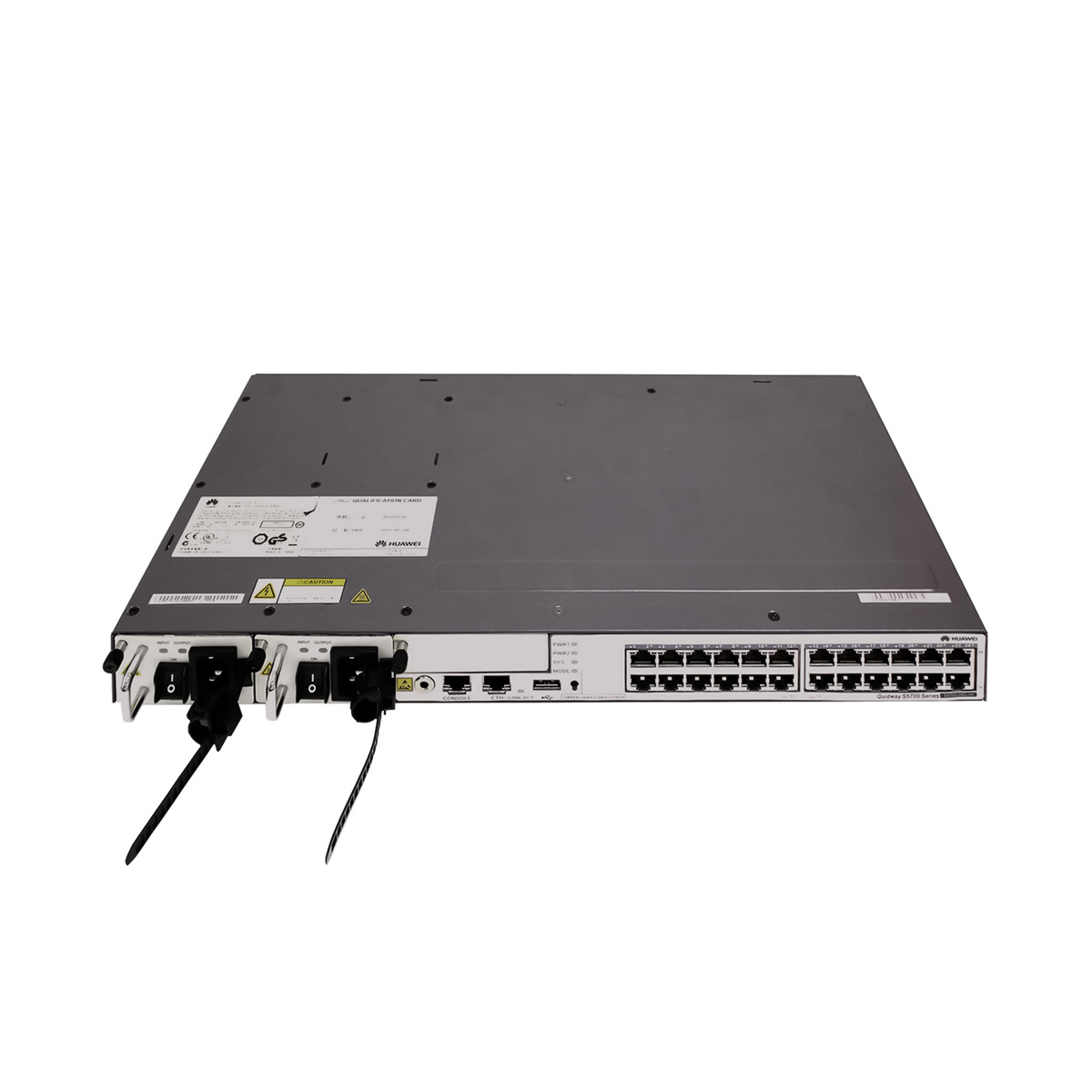

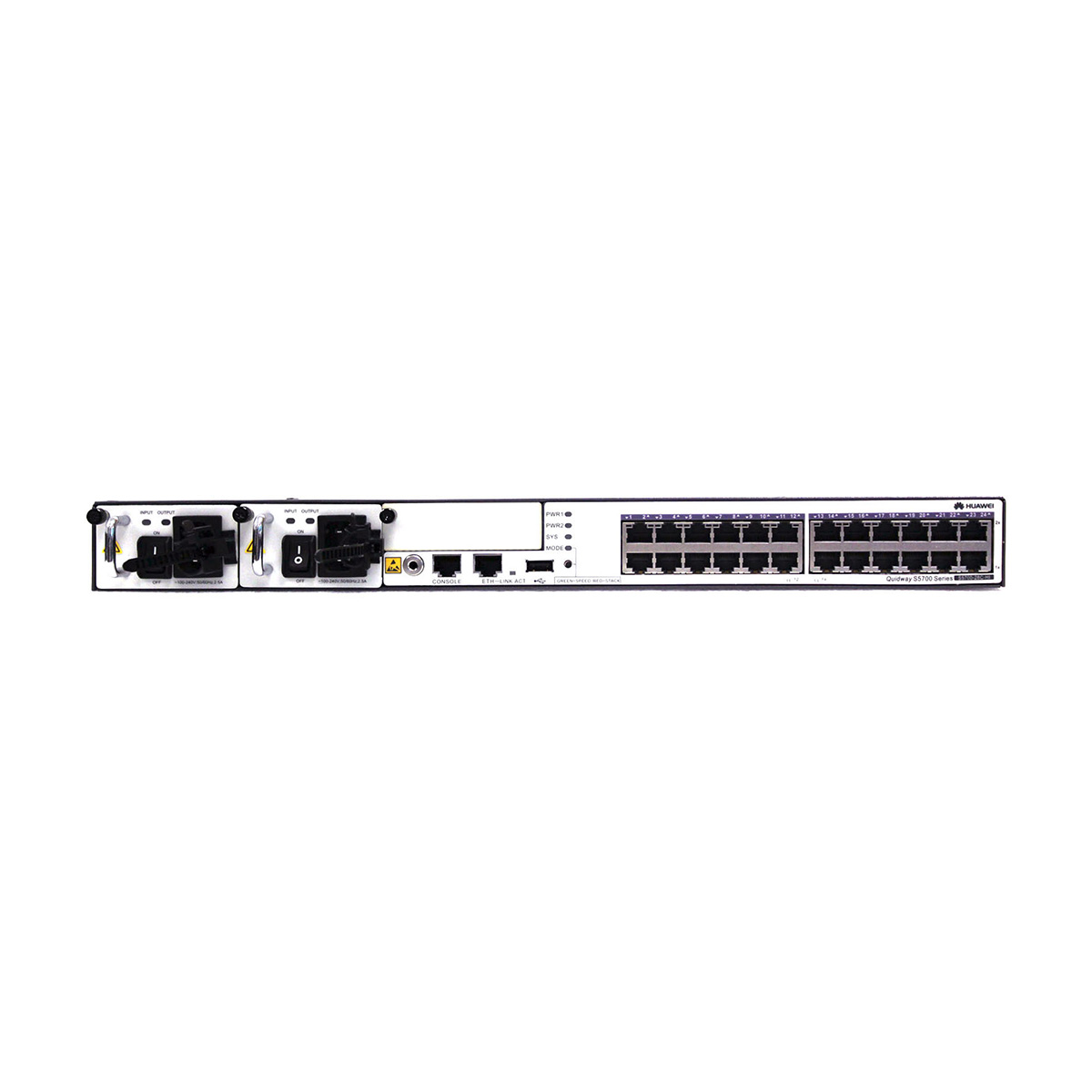

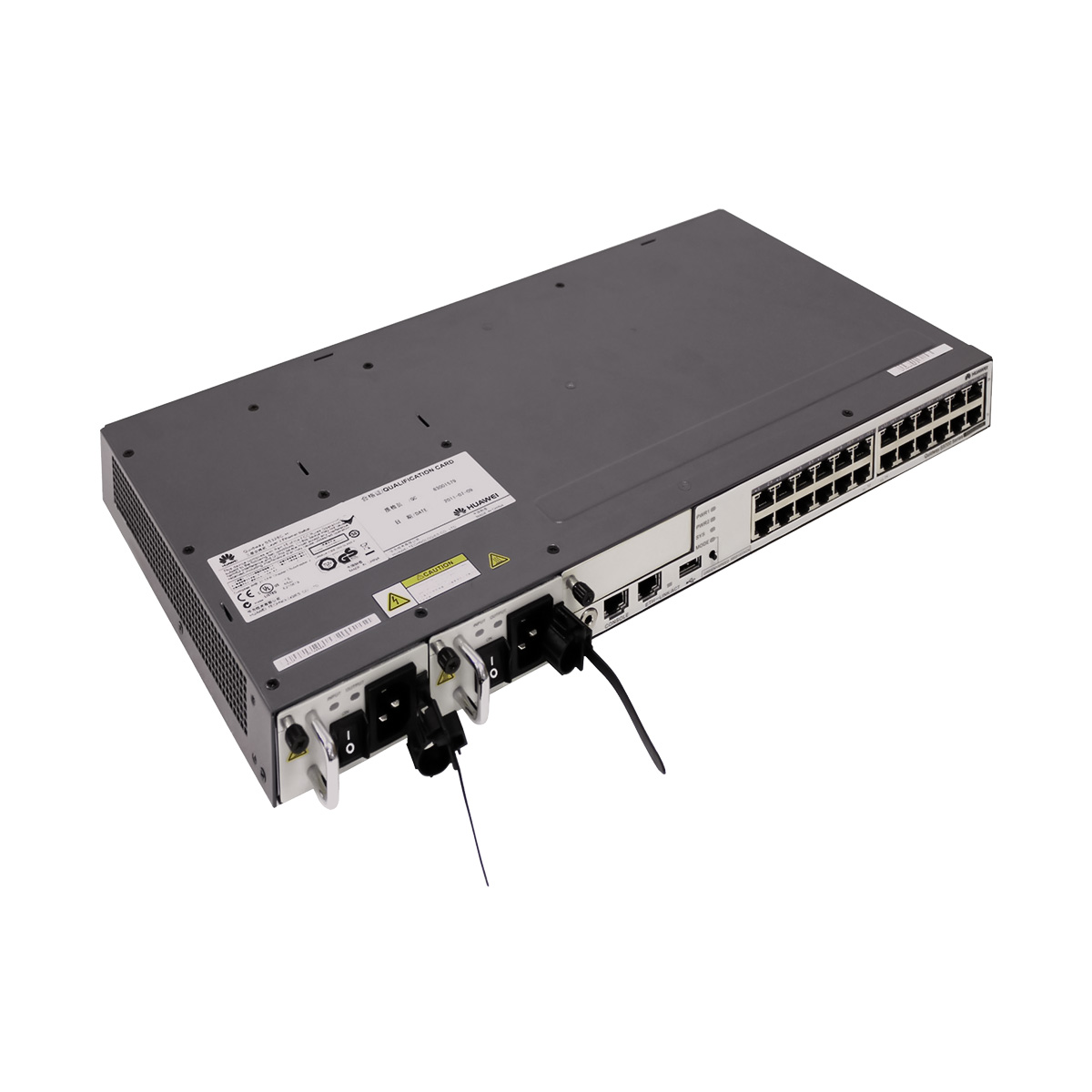

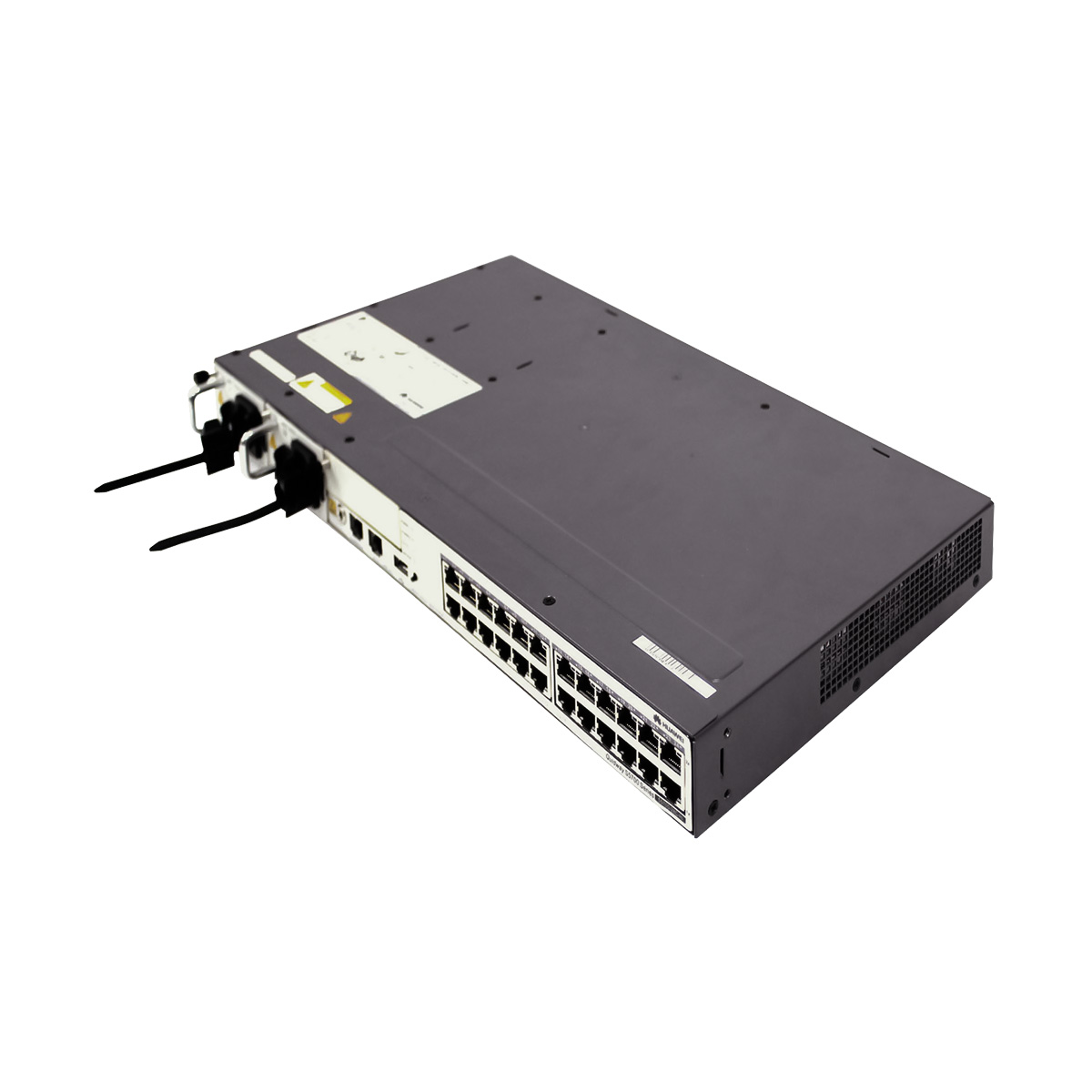

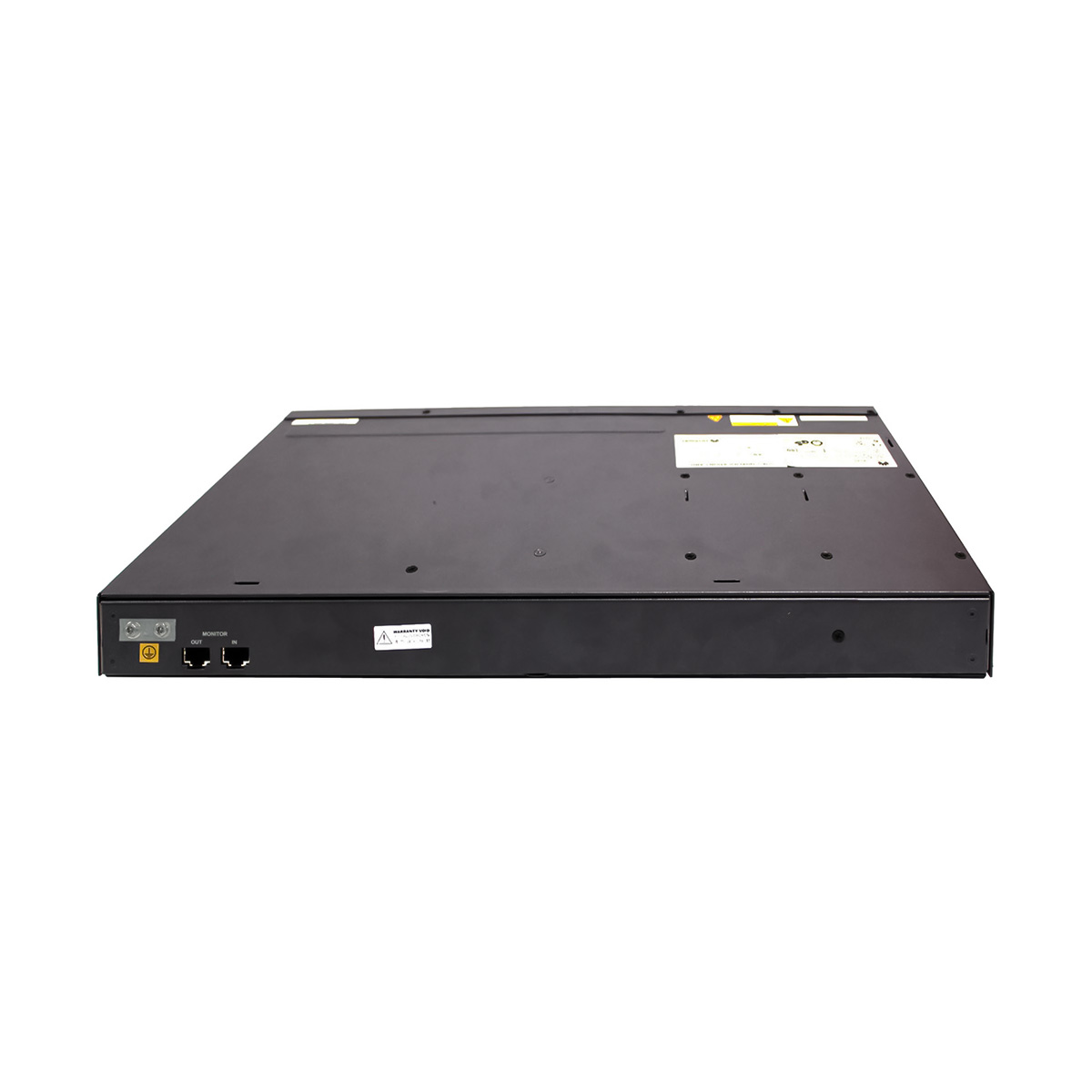

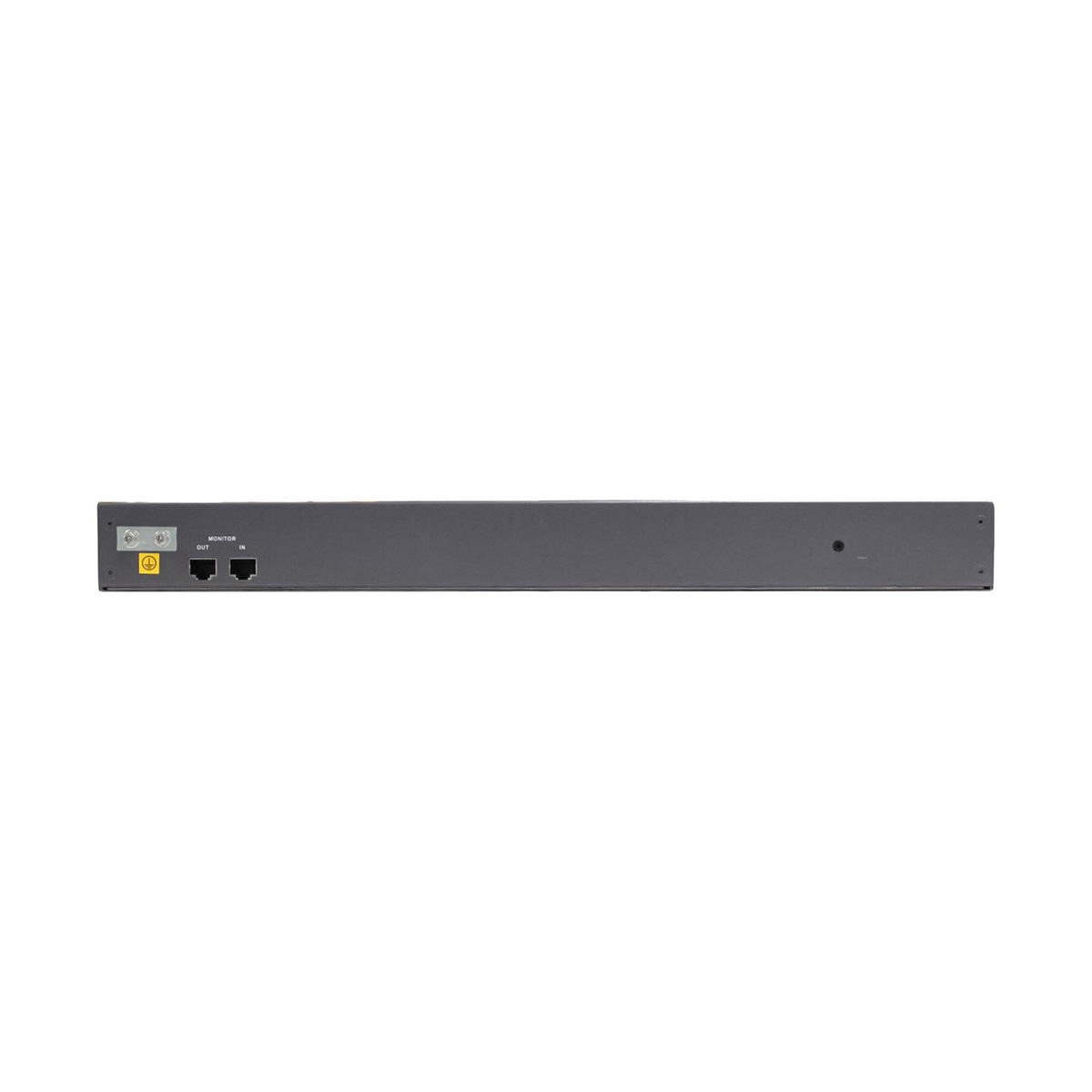

S5700-28C-HI

PN 02353630
$2,587.00 Bulk Purchase

24 10/100/1000BASE-T ports, 4 1000BASE-X subcards, 2 10GE SFP+ subcards, 4 10GE SFP+ subcards, 2 hot swappable AC/DC power supplies, without power supply equipped

Shenzhen Warehouse
lead time 3-5 days
- +
Overview
Item S5700-28C-HI
Fixed port 24 10/100/1000Base-T ports
Extended slot Provide one extended slot.
Forwarding performance 96 Mpps
Switching capacity 256Gbps
VLAN 4K VLANs
Guest VLAN and voice VLAN
VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports
1:1 and N:1 VLAN Mapping
GVRP, MUX VLAN
Reliability RRPP ring topology and RRPP multi-instance
Smart Link tree topology and Smart Link multi-instance, providing the millisecond-level protection switchover
SEP
ERPS(G.8032)(supported by the S5700-LI/S5700-SI/S5700-EI/S5700-HI series)
STP, RSTP, and MSTP
BPDU protection, root protection, and loop protection
BFD for OSPF, BFD for IS-IS, BFD for VRRP, and BFD for PIM
IP routing Static routing, RIPv1, RIPv2, OSPF, IS-IS, BGP, and ECMP
IPv6 features Neighbor Discovery (ND)
Path MTU (PMTU)
IPv6 ping, IPv6 tracert, and IPv6 Telnet
ACLs based on the source IPv6 address, destination IPv6 address, Layer 4 ports, or protocol type
MLD v1/v2 snooping
6to4 tunnel, ISATAP tunnel, and manually configured tunnel
Multicast IGMP v1/v2/v3 snooping and IGMP fast leave
Multicast forwarding in a VLAN and multicast replication between VLANs
Multicast load balancing among member ports of a trunk
Controllable multicast, MLD v1/v2 snooping
Port-based multicast traffic statistics
IGMP v1/v2/v3, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by the S5700-EI/S5700-HI series)
QoS/ACL Rate limiting on packets sent and received by an interface
Packet redirection
Port-based traffic policing and two-rate three-color CAR
Eight queues on each port
WRR, DRR, SP, WRR+SP, and DRR+SP queue scheduling algorithms
WRED (supported by the S5710-EI and S5700-HI)
Re-marking of the 802.1p priority and DSCP priority
Packet filtering at Layers 2 through 4, filtering out invalid frames based on the source MAC address, destination MAC address, source IP address, destination IP address, port number, protocol type, and VLAN ID
Rate limiting in each queue and traffic shaping on ports
Security User privilege management and password protection
DoS attack defense, ARP attack defense, and ICMP attack defense
Binding of the IP address, MAC address, interface, and VLAN
   Port isolation, port security, and sticky MAC
Blackhole MAC address entries
Limit on the number of learned MAC addresses
802.1x authentication and limit on the number of users on an interface
AAA authentication, RADIUS authentication, HWTACACS authentication, and NAC
SSH v2.0
Hypertext Transfer Protocol Secure (HTTPS)
CPU defense
Blacklist and whitelist
OAM Hardware OAM:
EFM OAM
CFM OAM
Y.1731 performance test (hardware-level delay and jitter detection)
Management and maintenance          MAC Forced Forwarding (MFF)
Virtual cable test
SNMP v1/v2c/v3
RMON
Web-based NMS
System logs and alarms of different levels
802.3az EEE
sFlow
NetStream
   Dying Gasp
Interoperability Supports VBST (Compatible with PVST/PVST+/RPVST)
Supports LNP (Similar to DTP)
Supports VCMP (Similar to VTP)
Input DC voltage: Rated input voltage range -48 V DC to -60 V DC
Input DC voltage: Maximum voltage range -36 V DC to -72 V DC
Input AC voltage: Rated input voltage range 100 V AC to 240 V AC, 50/60 Hz
Input AC voltage: Maximum voltage range 90 V AC to 264 V AC, 47 Hz to 63 Hz
Operating temperature 0°C to 50°C
Relative humidity 5% RH to 95% RH, noncondensing
Dimensions (W x D x H) 442.0 mm x 420.0 mm x 43.6 mm
Power consumption < 76 W
