S5730-60C-PWH-HI

PN 02351MQV
$2,312.00 Bulk Purchase

Huawei S5730-60C-PWH- HI switch supports 48 10/100/1000BASE-T ports, 4 10GE SFP+ ports, 2 hot swappable AC/DC power supplies, without power supply equipped, PoE++

Shenzhen Warehouse
lead time 3-5 days
- +
Overview
S5730-60C-PWH- HI Overview



S5730-60C-PWH-HI is a Huawei S5730-HI switch, providing 48 x 10/100/1,000 BASE-T ports, 4 x 10 GE SFP+ ports, 1 expansion slot, PoE++, without power module. Huawei S5730-HI gigabit Ethernet switches are Huawei-developed next-generation agile switches that provide fixed full gigabit access and 10 GE uplink interfaces as well as one or two slots for uplink interface extension. The switches are developed based on Huawei Versatile Routing Platform (VRP) to implement software definition and service change on demand. With services and network convergence as the core, the switches provide the free mobility function to ensure consistent user experience. The Super Virtual Fabric (SVF) function virtualizes the entire network into one device. In addition, the switches support flexible Ethernet networking, comprehensive VPN tunnel solutions, various security control methods, intelligent deployment, and simple Operations and Maintenance (O&M). The S5730-HI series switches are the best choices for the access or aggregation layers of medium and large-sized campus networks, and the core layer of branch or small campus networks.

Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: [email protected]


S5730-60C-PWH- HI Quick Spec



48 10/100/1,000 BASE-T ports, 4 10 GE SFP+ ports

Switching capacity is 758 Gbps

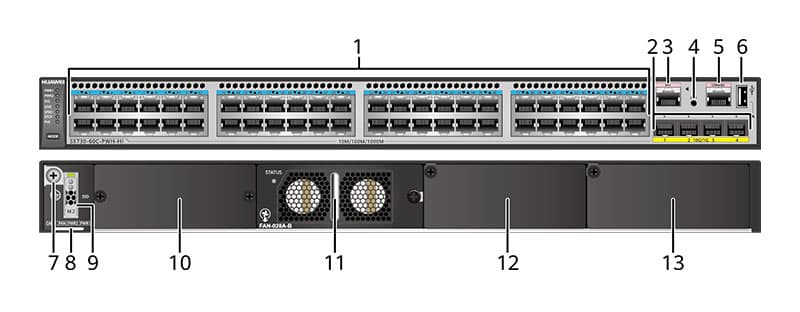

S5730-60C-PWH- HI appearance and structure

 S5730-60C-PWH-HI

1

Forty-eight PoE++ 10/100/1000BASE-T ports

8

ESN label

2

Four 10GE SFP+ ports

9

SSD card slot

3

One ETH management port

10

Rear card slot

4

One PNP button

11

Fan slot

5

One console port

12

Power module slot 2

6

One USB port

13

Power module slot 1

7

Ground screw











Datasheet

S5730-60C-PWH-HI Datasheet



Item S5730-60C-PWH- HI
Fixed port PoE++ 10/100/1000BASE-T port 48
10GE port 4
Extended slot One extended slot,supporting 8x10GE Base-T, 8x10GE SFP+ or 2x40G QSFP+ interface cards
Switching capacity 758 Gbit/s
Flexible card Card slot 1
Card type 8-port Ethernet 10GBASE-T interface card (non-GE-capable)
2-port 40GE QSFP+ interface card
8-port 10GE SFP+ interface card (the last four ports are GE- capable.)
Management port ETH port Supported
Console port (RJ45) Supported
USB port USB 2.0
CPU Frequency 1.5 GHz
Cores 8
Storage Memory (RAM) 4 GB
Flash memory Hardware: 1 GB, of which 624 MB is available for users
NOTE
The S5730-36C-
PWH-HI and S5730-60C-PWH-
HI support SSD cards (240 GB).
Power supply system  Power supply type 1150 W AC
(pluggable)
1000 W AC
(pluggable)
500 W AC
(pluggable)
650 W DC
(pluggable)
Rated voltage range AC: 100 V AC to 240 V AC; 50/60 Hz
DC: -48 V DC to - 60 V DC
Maximum voltage range AC: 90 V AC to 264 V AC; 47-63 Hz
DC: -36 V DC to - 72 V DC
Maximum input current 500 W AC: 7 A
650 W DC: 20 A
1150 W: 10 A
1000 W: 12 A
Maximum power consumption of the device  500 W AC/650 W DC:
Without cards and PDs: 106 W
With PDs: 830 W (PDs: 739.2 W)
1150 W AC/1000 W AC:
Without cards and PDs:
119.7 W
  With PDs: 1610 W (PDs: 1440 W)
Power consumption in the case of 30% traffic load1 500 W AC
(without cards and PDs): 80 W
1150 W AC/1000
W AC (without cards and PDs): 83 W
Power consumption in the case of 100% traffic load1 500 W AC
(without cards and PDs): 85 W
1150 W AC/1000
W AC (without cards and PDs): 88 W
Heat dissipation system Heat dissipation mode Air-cooled heat dissipation and intelligent fan speed adjustment
Number of fan modules Pluggable dual fans
Airflow Air flows in from the left and right sides as well as the front panel, and exhausts from the rear panel
Maximum heat dissipation of the device (BTU/hour) 500 W AC/650 W
DC (without cards and PDs): 362
1150 W AC/1000
W AC (without cards and PDs): 410
Environment parameters   Long-term operating temperature 0-1800 m: 0°C to 45°C
1800-5000 m:
The operating temperature decreases 1°C every time the altitude increases 220 m.
Short-term operating temperature 0-1800 m: -5°C to
+50°C
1800-5000 m:
The operating temperature decreases 1°C
  every time the altitude increases 220 m.
NOTE
Short term indicates that the successive operating time is no more than 96 hours, the total operating time is no more than 360 hours, or the number of times the operating temperature is over 45°C is no more than 15 in a year.
Storage temperature -40°C to +70°C
Relative humidity 5%–95% (non-
condensing)
Operating altitude AC: 5000 m
DC: 2000 m
Noise under normal temperature (sound power) 1150 W: 69 dB(A)
650 W/500 W: 55 dB(A)
Noise under high temperature (sound power) 1150 W: 75.4 dB(A)
650 W/500 W:
74.3 dB(A)
Noise under normal temperature (sound pressure) 1150 W: 66 dB(A)
650 W/500 W: 52 dB(A)
Surge protection specification (RJ45
service port)
±7kV
Surge protection specification (power port)  500 W AC/1000
W AC power port:
Differential mode: ±6 kV
Common mode: ±6 kV
DC power port:
Differential mode: ±2 kV
Common mode: ±4 kV
1150 W AC power port:
Differential mode: ± 4 kV
Common mode: ±2 kV
Reliability MTBF
(year)2
46.09
MTTR (hour) 2
Availability > 0.99999
Physical specifications Chassis dimensions (W x D x H,
mm)
442 x 420 x 44.4
Chassis height 1 U
Chassis weight (full configuration weight, including weight of packaging materials) 9 kg (19.84 lb)
