S5735-L24T4X-IA1
Huawei S5735-L24T4X-IA1 switch supports 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, AC power
- Description
- DATASHEET
- Download
- Reviews (0)
Description
S5735-L24T4X-IA1 overview
This Huawei switch comes with 24 10/100/1000BASE-T ports, 4 10GE SFP+ ports, AC power
Huawei Cloud Engine S5735-L series are simplified gigabit Ethernet switches that provide all GE downlink ports and GE or 10GE uplink ports.
Telecomate.com provides a full range of Huawei switch series, if you have any demands, please contact: [email protected]
S5735-L24T4X-IA1quick spec
24 10/100/1000BASE-T ports
4 10GE SFP+ ports
AC power

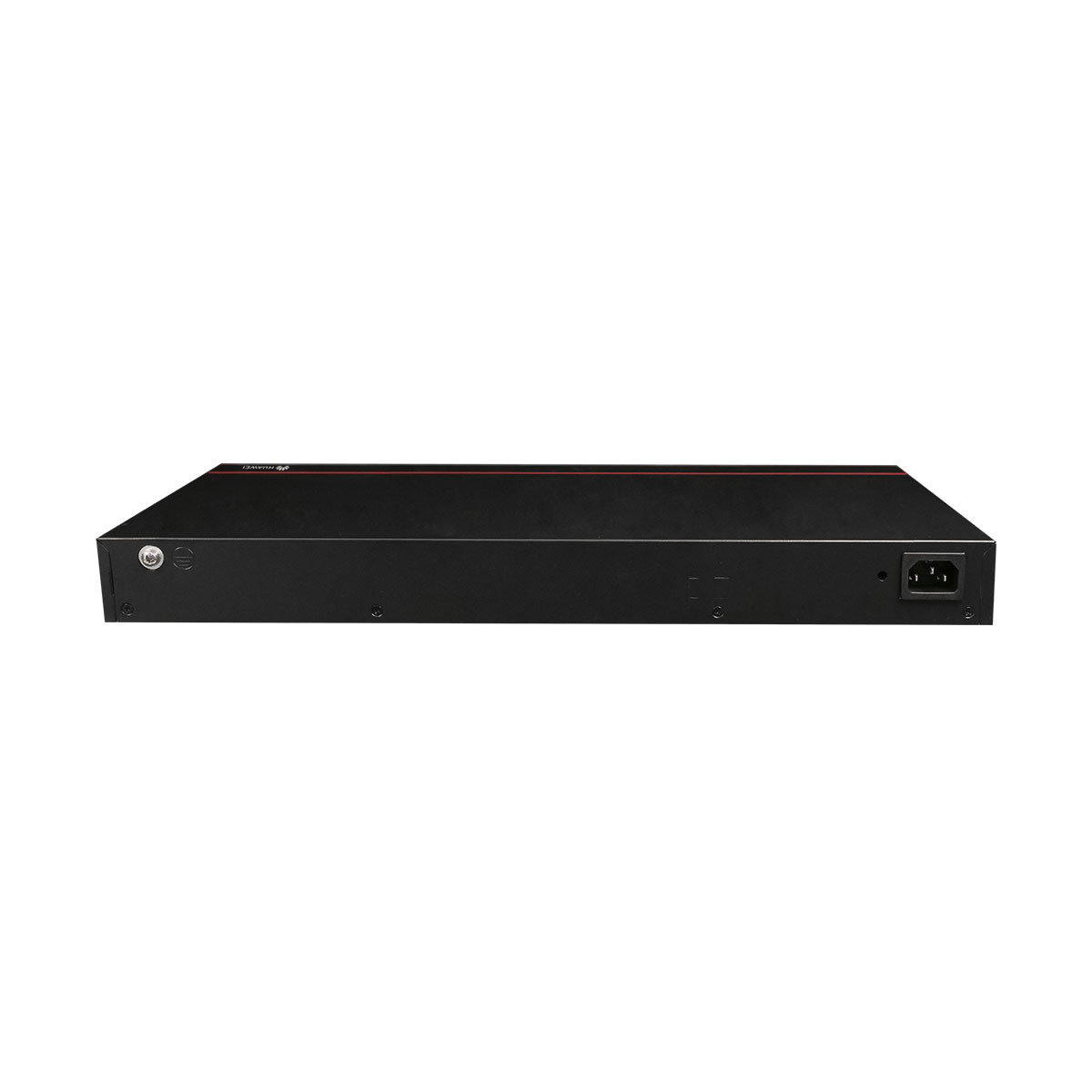

S5735-L24T4X-IA1 appearance and structure
| 1 | Twenty-four 10/100/1000BASE-T ports |
| 2 | Four 10GE SFP+ ports |
| 3 | One console port |
| 4 | One USB port |
| 5 | One PNP button |
| 6 | Ground screw |
| 7 | Jack for AC power cable locking strap |
| 8 | AC socket |
| Item | S5735-L24T4X-IA1 |
| Memory | 512 MB |
| Flash memory | 512 MB |
| Console port | RJ45 |
| Eth Management port | Not supported |
| USB | Supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] | ±6 kV in differential mode, ±6 kV in common mode |
| Types of fans | Built-in |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left and front, air exhaustion from right |
| PoE | Not supported |
| Certification | EMC certification |
| Safety certification | |
| Manufacturing certification |
