S5735-L8T4X-IA1

S5735-L8T4X-IA1

This Huawei S5735-L8T4X-IA1 switch supports 8 10/100/1000BASE-T ports, 4 10GE SFP+ ports, AC power

Huawei

3-5 days

Shenzhen Warehouse

Description

S5735-L8T4X-IA1 overview

This Huawei switch comes with 8 10/100/1000BASE-T ports, 4 10GE SFP+ ports, AC power

Cloud Engine S5735-L series switches are ideal for scenarios such as enterprise campus network access and gigabit to the desktop. Built on next-generation, high-performance hardware and the Huawei Versatile Routing Platform (VRP), Cloud Engine S5735-L switches stand out with compelling features such as intelligent stack (iStack), flexible Ethernet networking, and diversified security control. They support multiple Layer 3 routing protocols and provide high performance and service processing capabilities.

S5735-L8T4X-IA1 quick specs

8 x 10/100/1000Base-T ports,

4 x 10 GE SFP+ ports

AC power supply

Forwarding performance: 72 Mpps

Switching capacity: 96 Gbps/336 Gbps

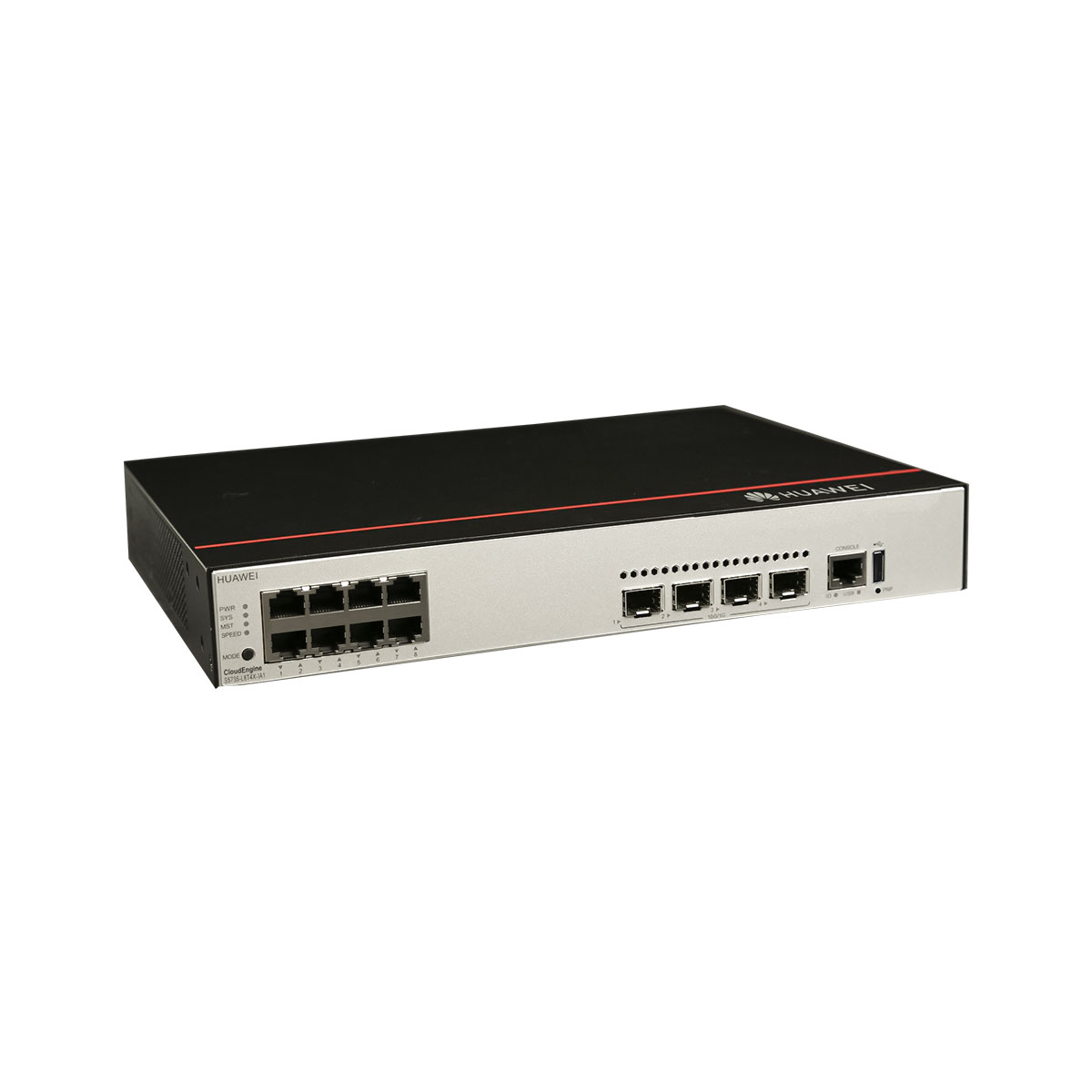

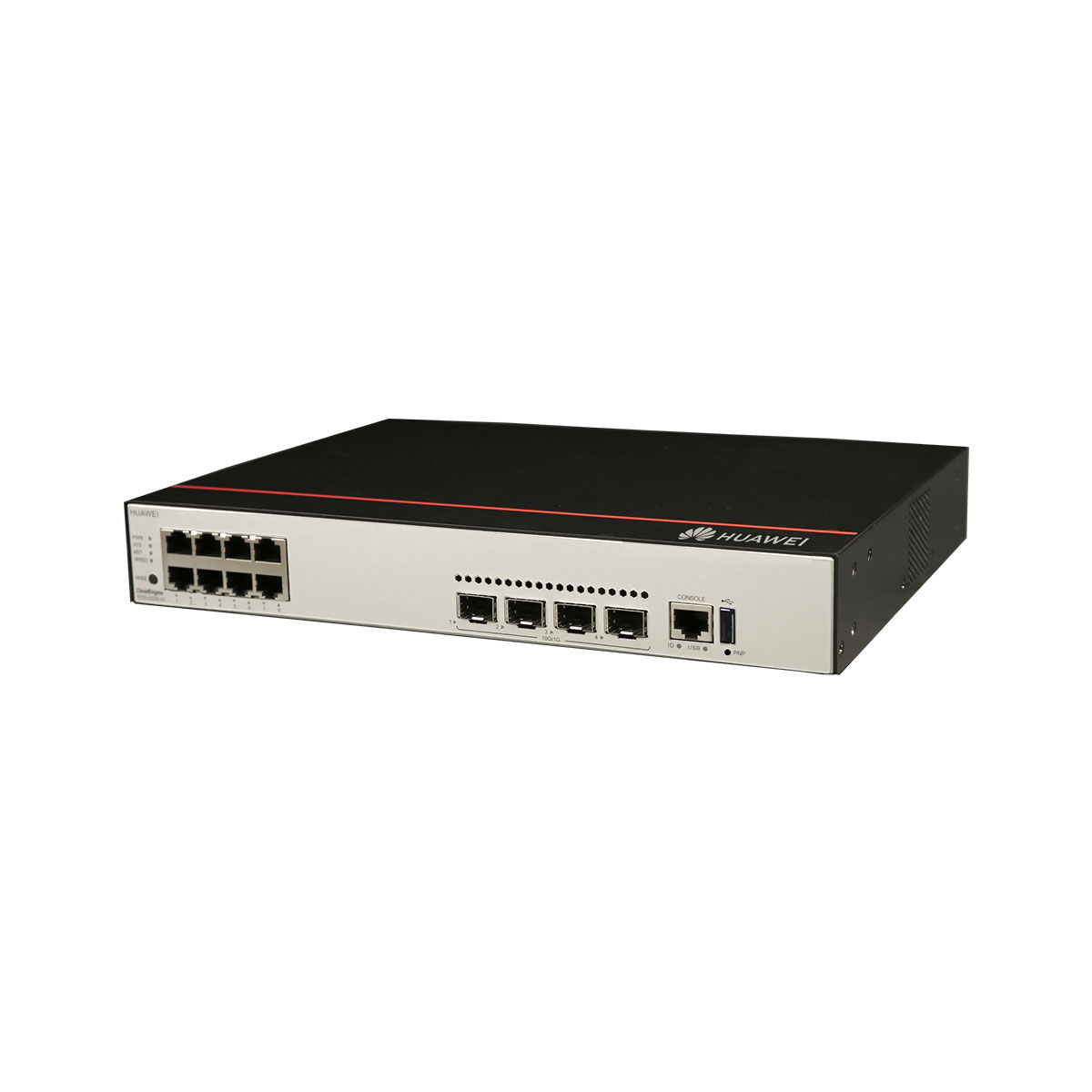

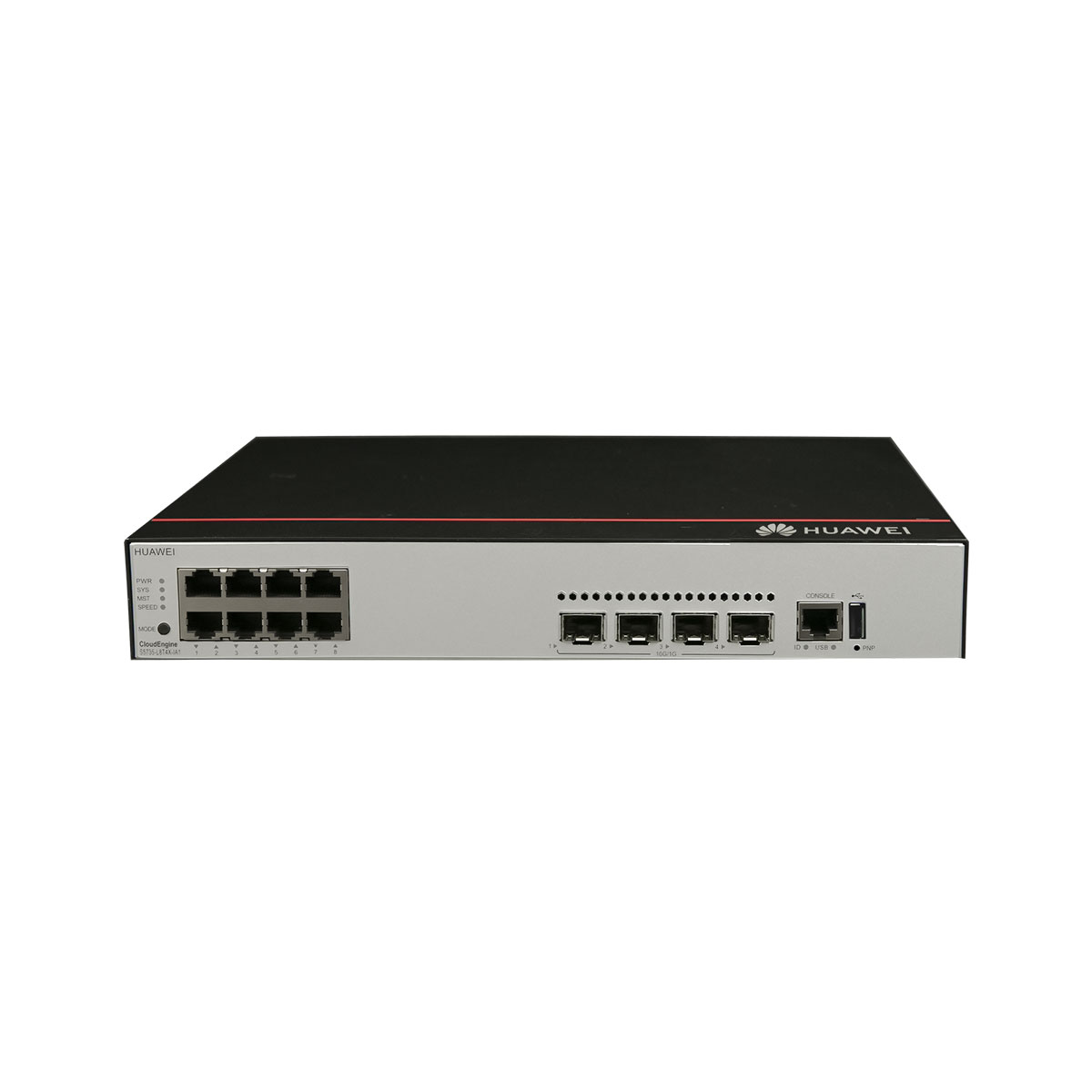

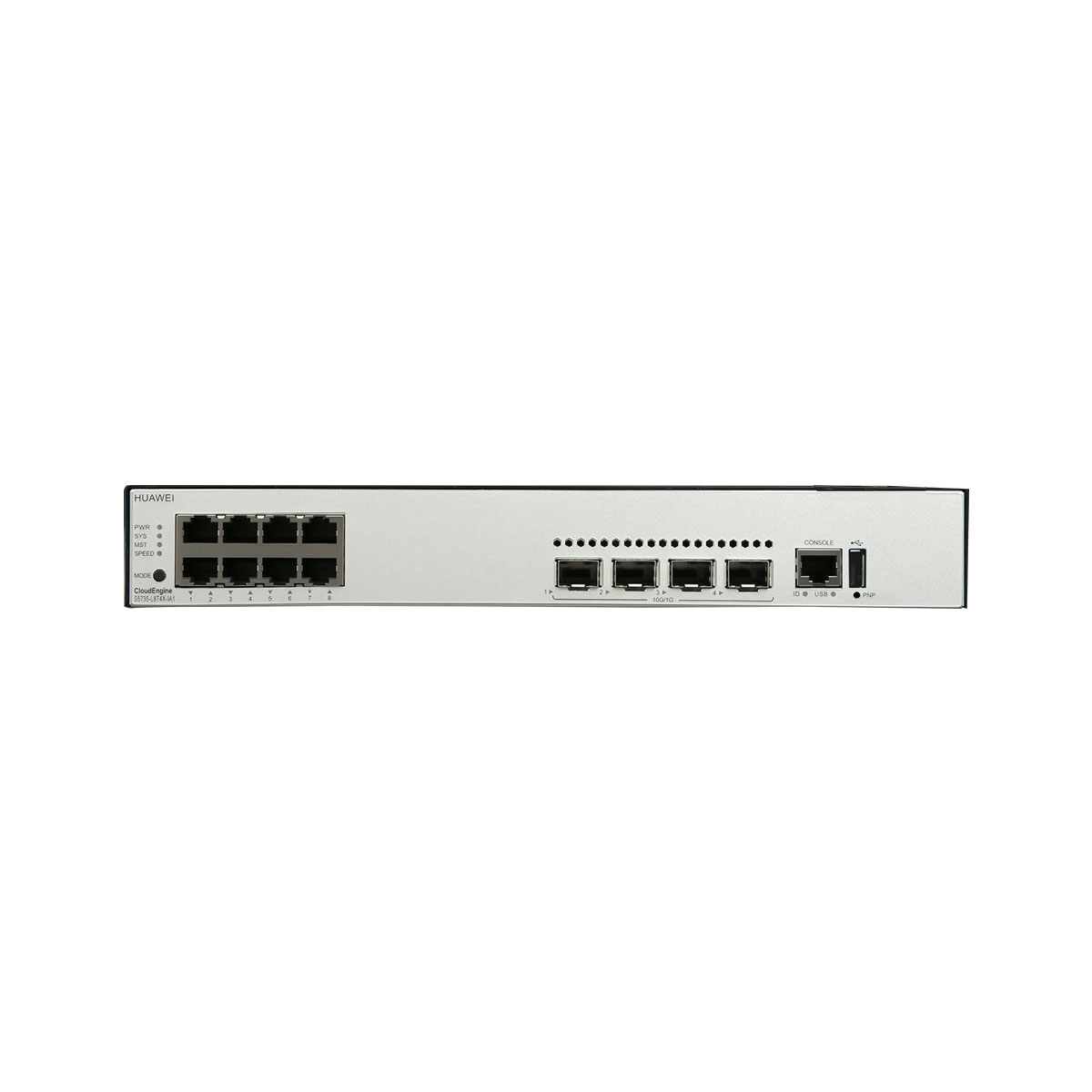

S5735-L8T4X-IA1 appearance and structure



1 Eight 10/100/1000BASE-T ports
2 Four 10GE SFP+ ports
3 One console port
4 One USB port
5 One PNP button

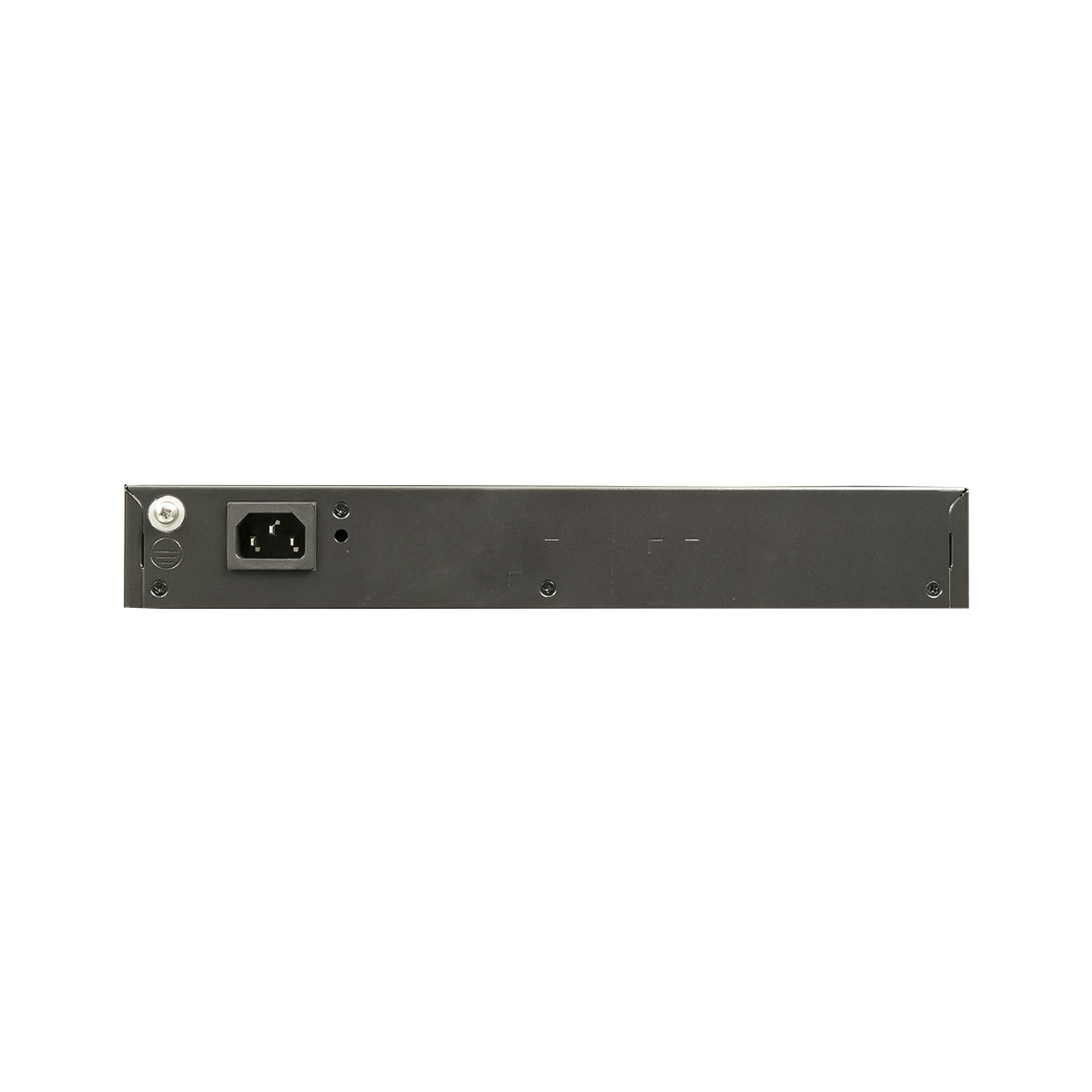

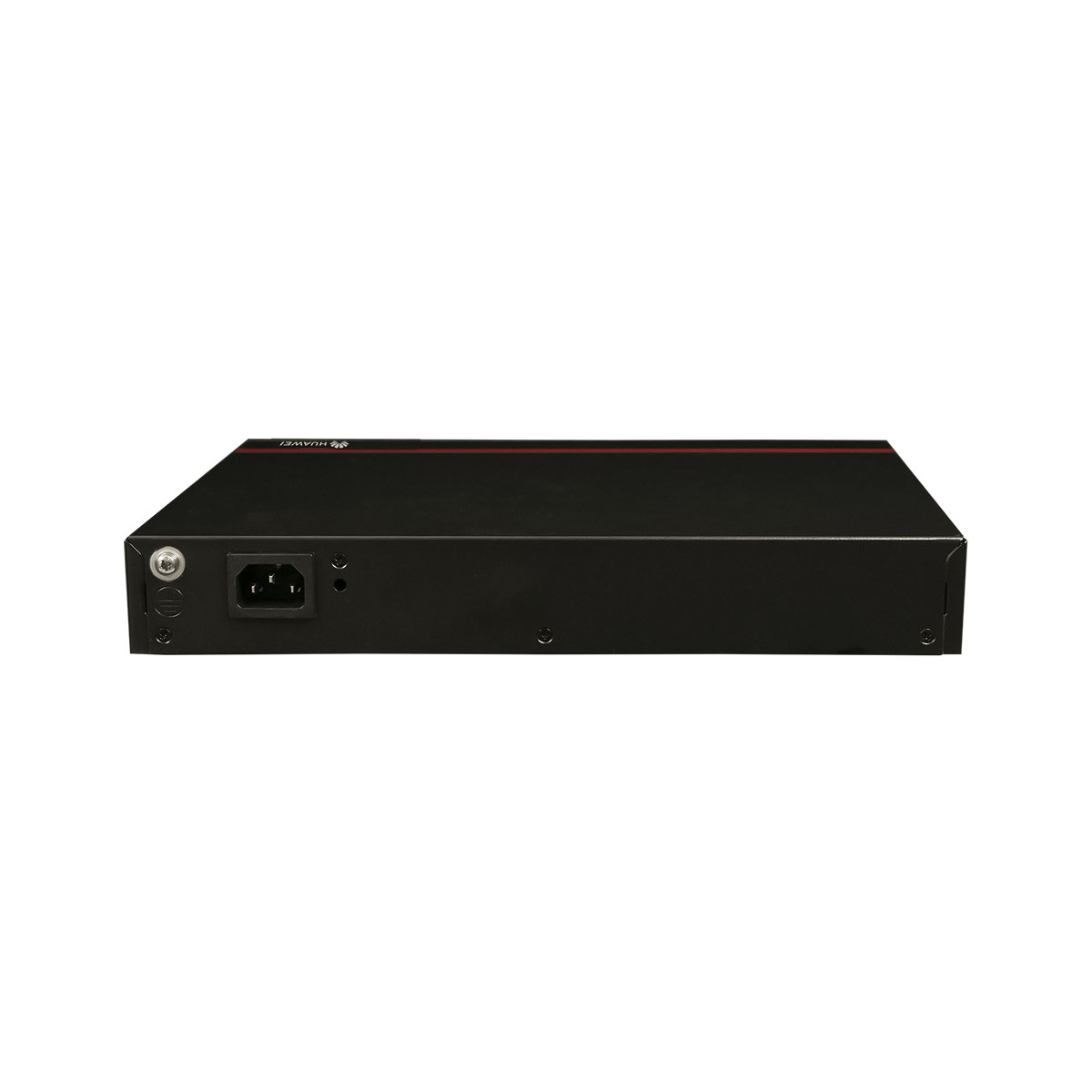

6 Ground screw
7 AC socket
8 Jack for AC power cable locking strap
Item S5735-L8T4X-IA1
Memory 512 MB
Flash memory 512 MB
Console port RJ45
Eth Management port Not supported
USB Supported
RTC Not supported
RPS input Not supported
Service port surge protection [kV] Common mode: ±7 kV
Power supply surge protection [kV] ±6 kV in differential mode, ±6 kV in common mode
Types of fans Built-in
Heat dissipation mode Heat dissipation with fan, intelligent fan speed adjustment
Airflow direction Air intake from left and front, air exhaustion from right
PoE Not supported

S5735-L24P4X-A1 PoE+

S5735-L24P4S-A1 PoE+

Certification EMC certification
Safety certification
Manufacturing certification
Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 300.0 mm x 220.0 mm (1.72 in. x 11.81 in. x 8.66 in.)
Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 300.0 mm x 227.0 mm (1.72 in. x 11.81 in. x 8.94 in.)
Dimensions with packaging (H x W x D) [mm(in.)] 110.0 mm x 435.0 mm x 360.0 mm (4.33 in. x 17.13 in. x 14.17 in.)
Chassis height [U] 1 U
Weight without packaging [kg(lb)] 1.97 kg (4.34 lb)
Weight with packaging [kg(lb)] 2.78 kg (6.13 lb)
Typical power consumption [W] 23.5 W
Typical heat dissipation [BTU/hour] 80.18 BTU/hour
Maximum power consumption [W] 30 W
Maximum heat dissipation [BTU/hour] 102.36 BTU/hour
MTBF [year] 67.07 year
MTtr [hour] 2 hour
Availability >0.99999
Noise at normal temperature (acoustic power) [dB(A)] 43 dB(A)
Noise at normal temperature (acoustic pressure) [dB(A)] 31.5 dB(A)
Number of card slots 0
Number of power slots 0
Number of fans modules 1
Redundant power supply Not supported
Long-term operating temperature [°C(°F)] –40°C to +65°C (–40°F to +149°F) at an altitude of 0–1800 m (0–5906 ft.)
Short-term operating temperature [°C(°F)] –40°C to +70°C (–40°F to +158°F) at an altitude of 0-1800 m (0-5906 ft.)
Restriction on the operating temperature variation rate [°C(°F)] When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:
The operating temperature can exceed 65°C (149°F) for a maximum of 96 consecutive hours in a year.
The total time when the operating temperature exceeds 65°C (149°F) in a year is less than or equal to 360 hours.
The number of times the operating temperature exceeds 65°C (149°F) is less than or equal to 15 in one year.
If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.
The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)] –40°C to +75°C (–40°F to +167°F)
Long-term operating relative humidity [RH] 5% to 95%, noncondensing
Long-term operating altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)] 0-5000 m (0-16404 ft.)
Power supply mode AC built-in
Rated input voltage [V] AC input: 100 V AC to 240 V AC, 50/60 Hz
Input voltage range [V] AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz
Maximum input current [A] 2 A
