S9703

Huawei S9703 Switch AC bundle including assembly chassis EH1BS9703E00 2xMCUA Main Board 2x800WAC power module

Huawei

3-5 days

Shenzhen Warehouse

SKU: 02113547 Category: Tag:

Description

S9703 overview

Huawei S9703 switch is one of the S9700 series switches, which comes with 3 service card slots.

The S9700 series core routing switches (S9700 for short) are high-end switches designed for service integration in next-generation campus networks and data centers. Based on Huawei Versatile Routing Platform (VRP), the S9700 switches provide high-performance L2/L3 switching and integrate a range of services, such as MPLS VPN, hardware IPv6, desktop cloud, video conferencing, and wireless access. They also provide a variety of reliability technologies including hardware OAM/BFD and ring network protection. These improve the network efficiency and maximize the normal operation time, thereby reducing the total cost of ownership (TCO).

The S9700 comes in the following models: S9703, S9706, and S9712. These models support a maximum of 3, 6, and 12 line processing units (LPUs), respectively.

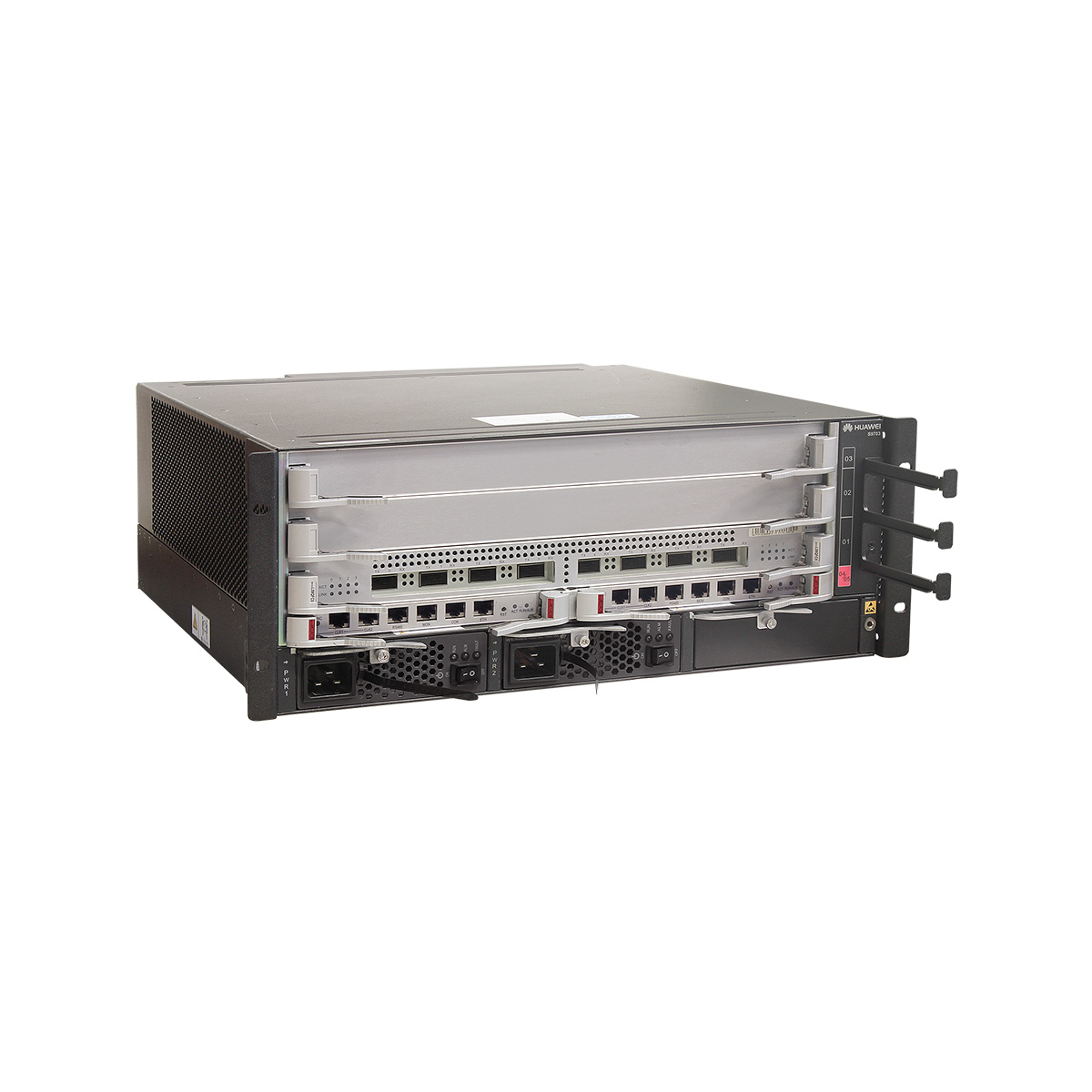

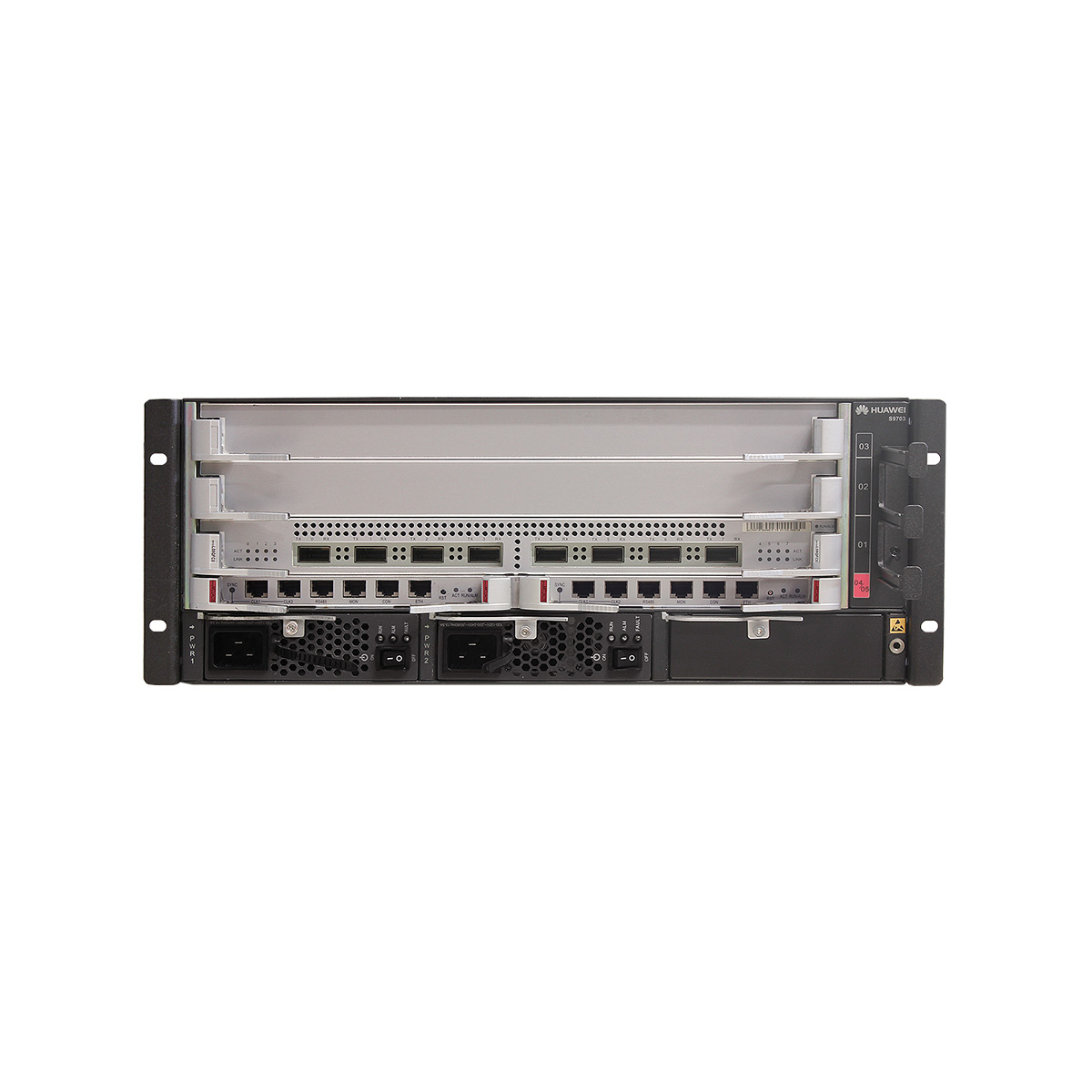

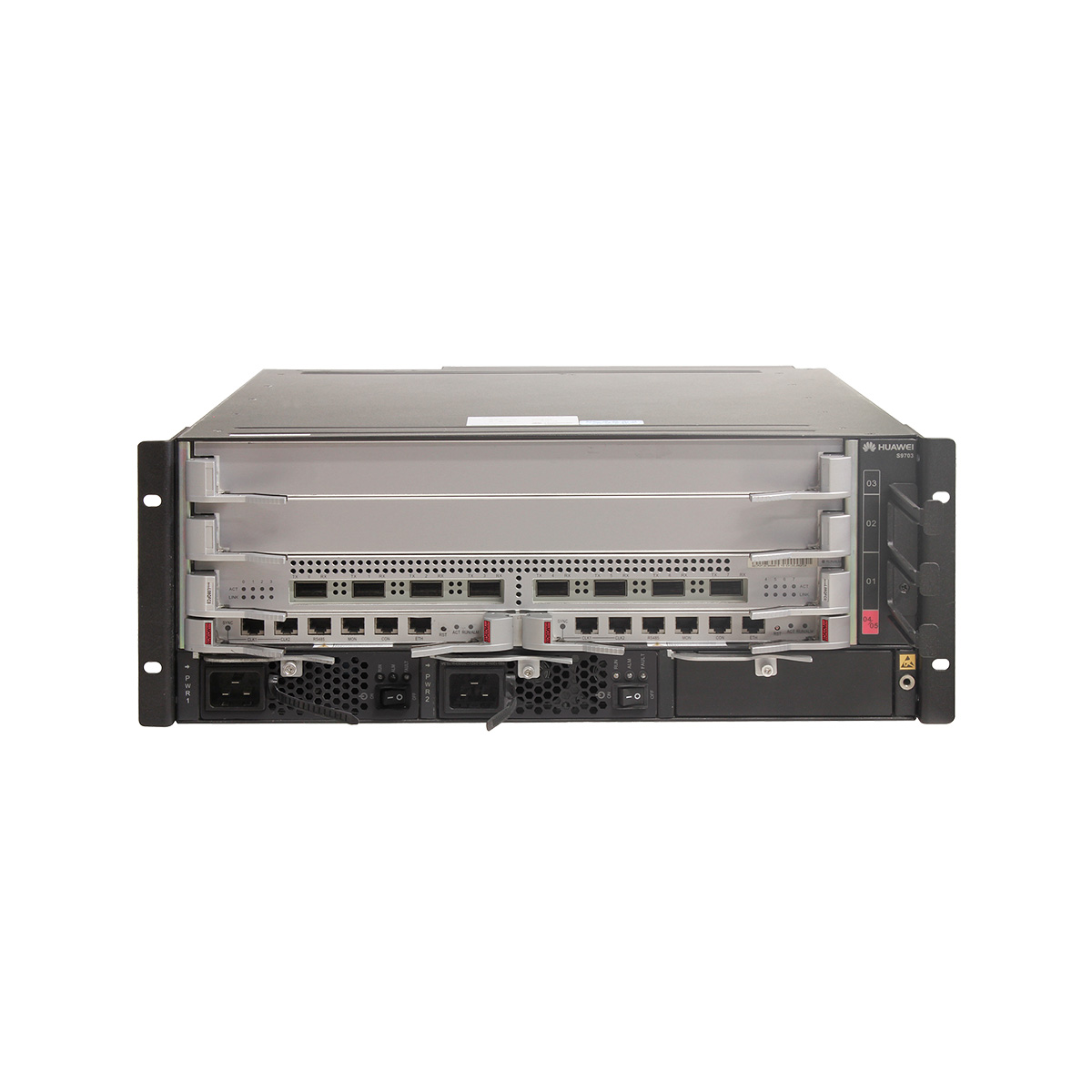

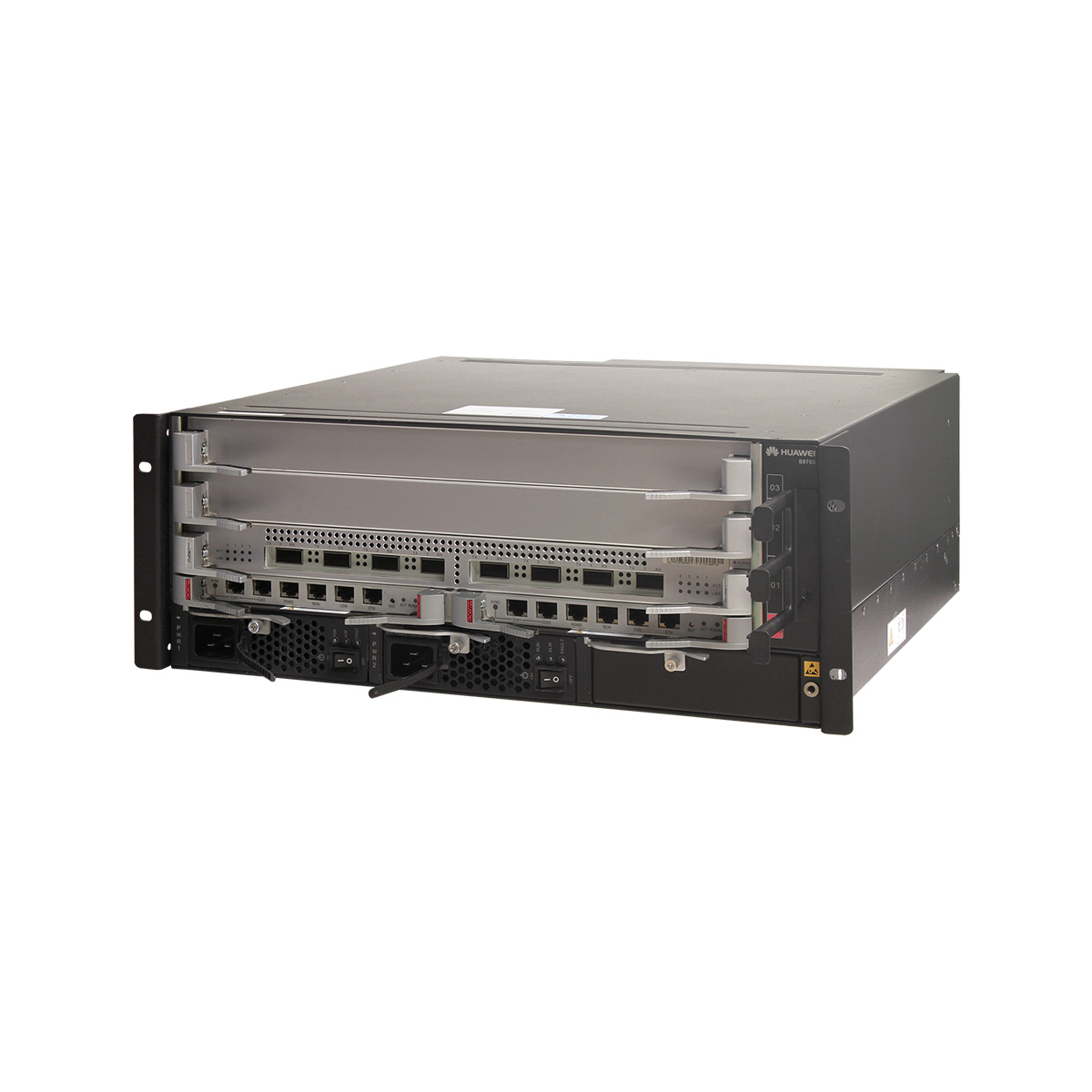

S9703 appearance



1. Three of the following service cards can be installed:

2. Two MPUs 3. A pair of mounting brackets
4. Two power modules 5. Reserved slot 6. Front ESD jack
7. Cable management frames



Item S9703
Switching capacity 2.88/5.76 Tbit/s
Packet forwarding
rate
2160 Mpps
Service slots 3
Wireless network
management
Native AC
AP access control, AP region management, and AP profile management
Radio profile management, uniform static configuration, and centralized dynamic
management
Basic WLAN services, QoS, security, and user management
User management unified user management
802.1x, MAC address, and Portal authentication
Traffic- and time-based accounting
User authorization based on user groups, domains, and time ranges
iPCA quality awareness Marking real service packets to obtain real-time count of dropped packets and
packet loss ratio
Counting number of dropped packets and packet loss ratio on devices and L2/L3 networks
SVF virtualization Virtualizing access switches (ASs) and APs into one logical device to simplify
management and maintenance
Two layers of ASs allowed in an SVF system
Third-party devices allowed between SVF parent and clients
VLAN Supports adding access, trunk, and hybrid interfaces to VLANs
Supports the default VLAN
Supports VLAN switching
Supports QinQ and selective QinQ
Supports MAC address-based VLAN assignment
MAC address Supports automatic learning and aging of MAC addresses
Supports static, dynamic, and blackhole MAC address entries
Supports packet filtering based on source MAC addresses
Supports MAC address limiting based on ports and VLANs
STP/ERPS Supports STP (IEEE 802.1d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s)
Supports BPDU protection, root protection, and loop protection
Supports BPDU tunnel
ERPS (G.8032)
IP routing Supports IPv4 routing protocols, such as RIP, OSPF, BGP, and IS-IS
Supports IPv6 dynamic routing protocols, such as, RIPng, OSPFv3, ISISv6, and
BGP4+
Multicast Supports IGMP v1/v2/v3, IGMPv1/v2/v3 snooping
Supports PIM-SM, PIM-DM, PIM-SSM
Supports MSDP, MBGP
Supports prompt leave
Supports multicast traffic control
Supports multicast querier
Supports suppression on multicast packets
Supports multicast CAC, ACL
MPLS Supports basic MPLS functions
Supports MPLS OAM
Supports MPLS OAM
Supports MPLS VPN/VLL/VPLS
Reliability Supports LACP and E-Trunk
Supports VRRP and BFD for VRRP
Supports BFD for BGP/IS-IS/OSPF/static route
Supports NSF, and GR for BGP/IS-IS/OSPF/LDP
Supports TE FRR and IP FRR
Supports Ethernet OAM (IEEE 802.3ah and 802.1ag) (Hardware level)
Supports ITU-Y.1731
Supports DLDP
Supports In-Service Software Upgrade (ISSU)
QoS Supports traffic classification based on Layer 2 headers, Layer 3 protocols, Layer 4 protocols, and 802.1p priority
Supports actions of ACL, CAR, re-mark, and schedule
Supports queue scheduling algorithms, such as SP, WRR, DRR, SP+WRR, and
SP+DRR
Supports congestion avoidance mechanisms, such as WRED and tail drop
Supports H-QoS
Supports traffic shaping
Configuration and maintenance Supports console, telnet, and SSH terminals
Supports the network management protocols, such as SNMP v1/v2c/v3
Supports file uploading and downloading using FTP and TFTP
Supports BootROM upgrade and remote upgrade
Supports hot patches
Supports user operation logs
Security and management Supports 802.1x authentication and Portal authentication
Supports NAC
Supports RADIUS and HWTACACS authentication for login users
Supports command line authority control based on user levels, preventing
unauthorized users from using commands
Supports defense against DoS attacks, TCP SYN Flood attacks, UDP Flood attacks, broadcast storms, and heavy traffic attacks
Supports 1K CPU queues
Supports ping and traceroute functions based on ICMP packets
Supports remote network monitoring
Value-added services Supports firewall
Supports NAT
Supports NetStream
Supports IPSec
Supports load balancing
Supports wireless AC
Supports IPS
Interoperability Supports VBST (Compatible with PVST/PVST+/RPVST)
Supports LNP (Similar to DTP)
Supports VCMP (Similar to VTP)
Energy saving Supports IEEE 802.3az: Energy Efficient Ethernet (EEE)
Dimensions(W x D x H) 442 mm × 476 mm × 175 mm
Chassis weight(empty) < 15 kg
Operating voltage DC: –38.4 V to –72 V
AC: 90 V to 290V
Power supply
capability of the equipment
2200W

Additional information

Weight 26.0000 kg
Dimensions 1234554321.1 × 1234554321.2 × 1234554321.5 cm
Chassis Model Description
S9703 Supports two Main Control Units (MCUs), three Line Processing Units (LPUs), and AC or DC power modules in N+N/N+1/N+0 (no redundancy) backup mode.
S9706 Supports two Switching and Routing Units (SRUs), six LPUs, and AC or DC power modules in N+N/N+1/N+0 (no redundancy) backup mode.
S9712 Supports two SRUs, twelve LPUs, and AC or DC power modules in N+N/N+1/N+0 (no redundancy) backup mode.

Note: S9700 chassis include FCC-certified chassis and common chassis.
