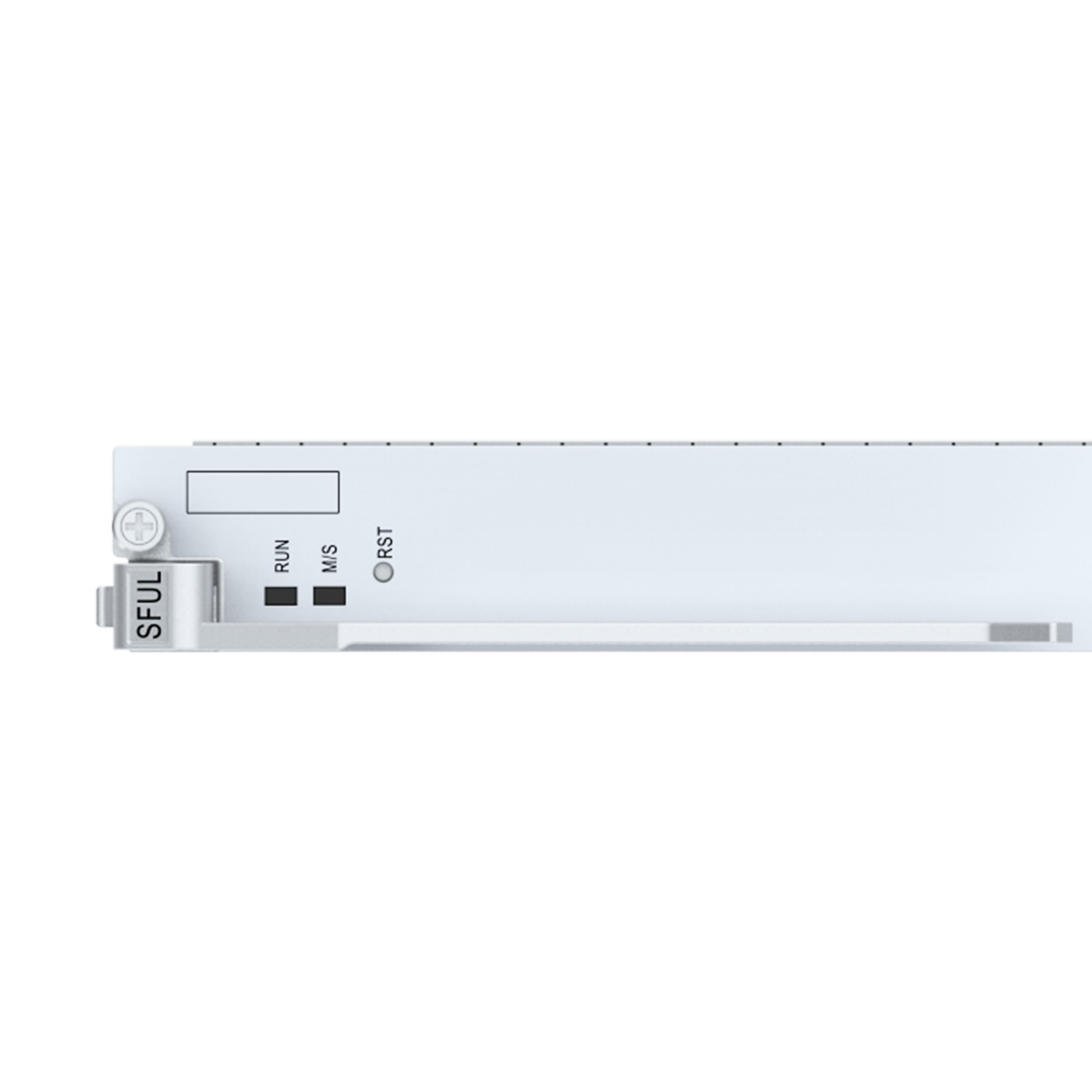

Switching and control card SFUL, apply to ZXA10 C600/C650

SKU: 10509 Category:


Switching and control card SFUL apply to ZXA10 C600/C650.

As the service data switching center and management and control center of the ZXA10 C600/C650, the switching and control card SFUL/SFULV/SFUH/SFUHV provides the system control and management functions and implements non-blocking data switching between cards.
Card Name Type-L switching and control card

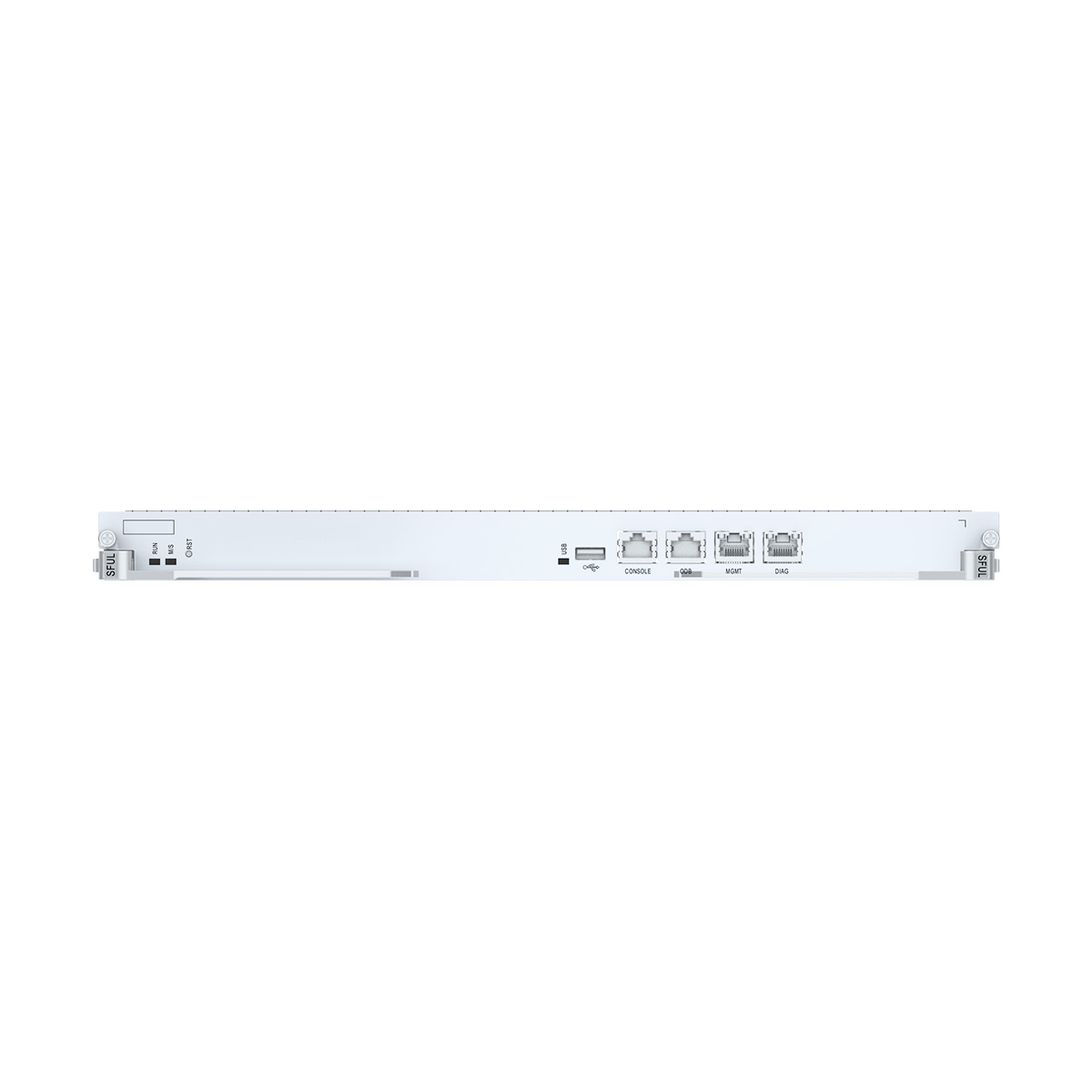

Functions Provides the following interfaces:

1 out-of-band management port (MGMT)

1 maintenance serial port (CONSOLE)

1 USB interface 1 mirror diagnosis network port (DIAG)

1 debugging port (ODB)

Supports load sharing mode.
Supports hot swapping
Supports 4 OLT slices.
Dimensions (mm) 393.1 mm × 30.5 mm × 214 mm
Weight(kg) 2.43 kg

Additional information

Weight 3.0000 kg

4 reviews for SFUL

  1. 5 out of 5


    It’s my second purchase at telecomate.com, good device.

  2. 5 out of 5


    A good partner, and I’ve used several of their models without problems.

  3. 5 out of 5


    The SFUL main control board comes without uplink ports, you need to buy uplink board separately.

  4. 5 out of 5


    The equipment is brand new and well packaged, and it works well at present.
