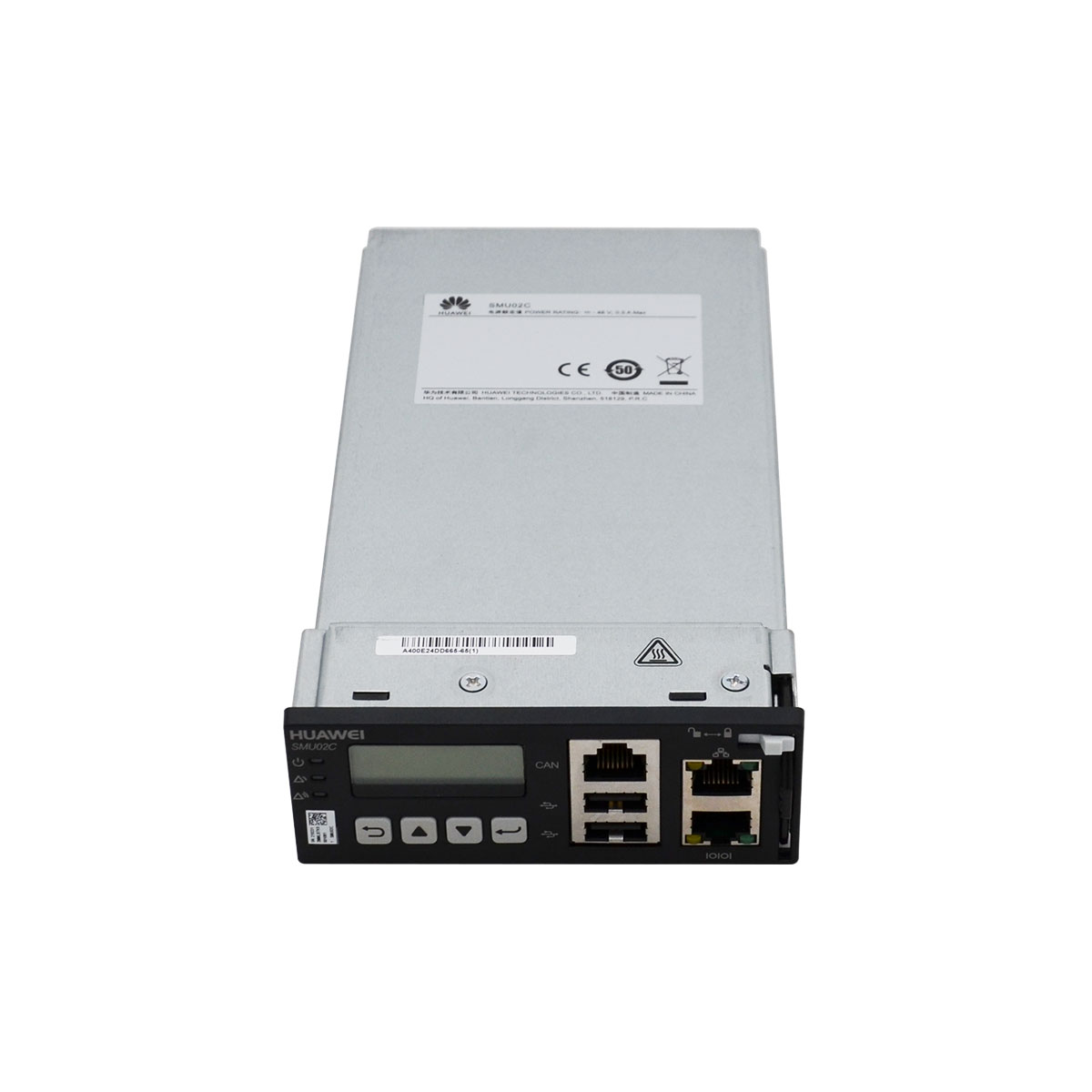

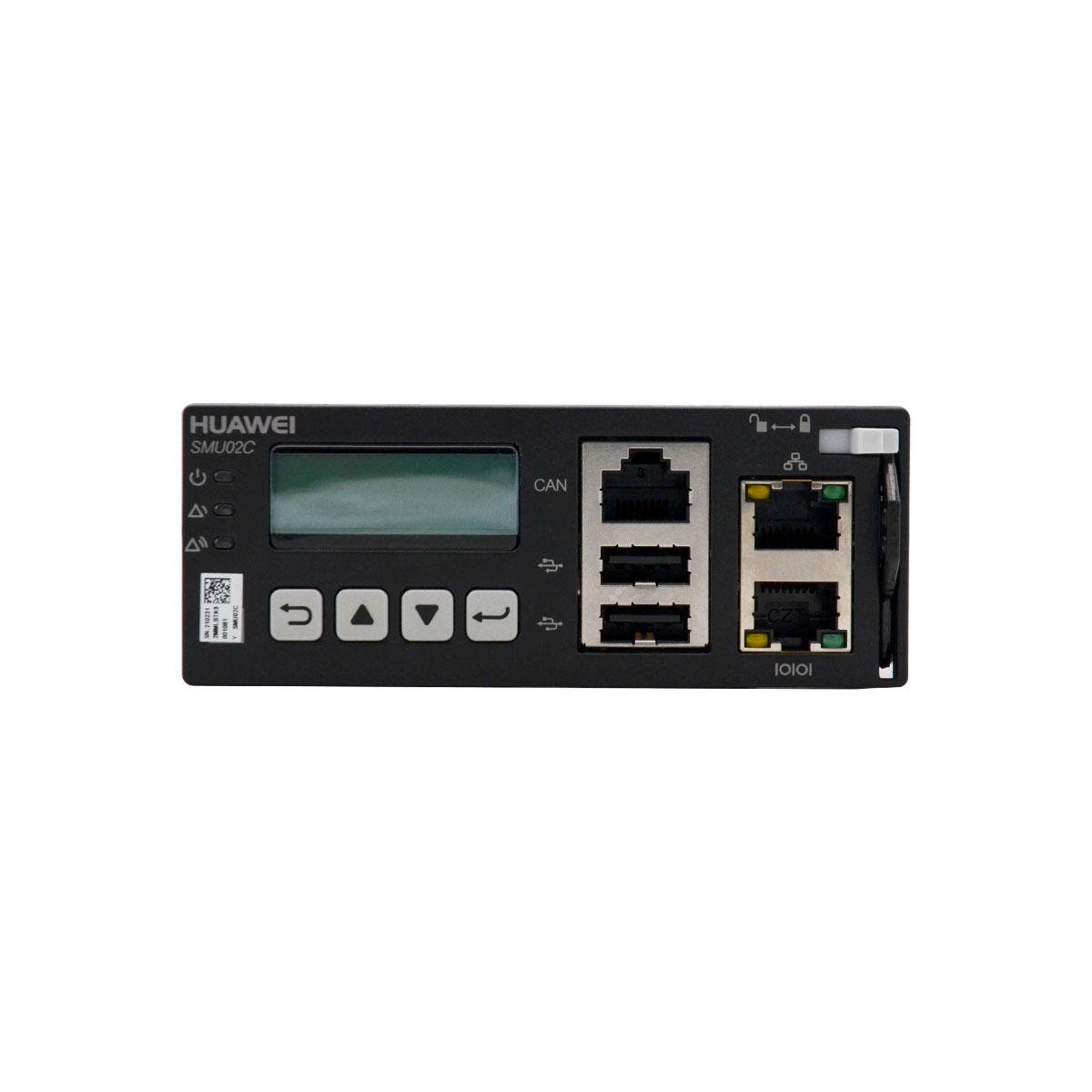

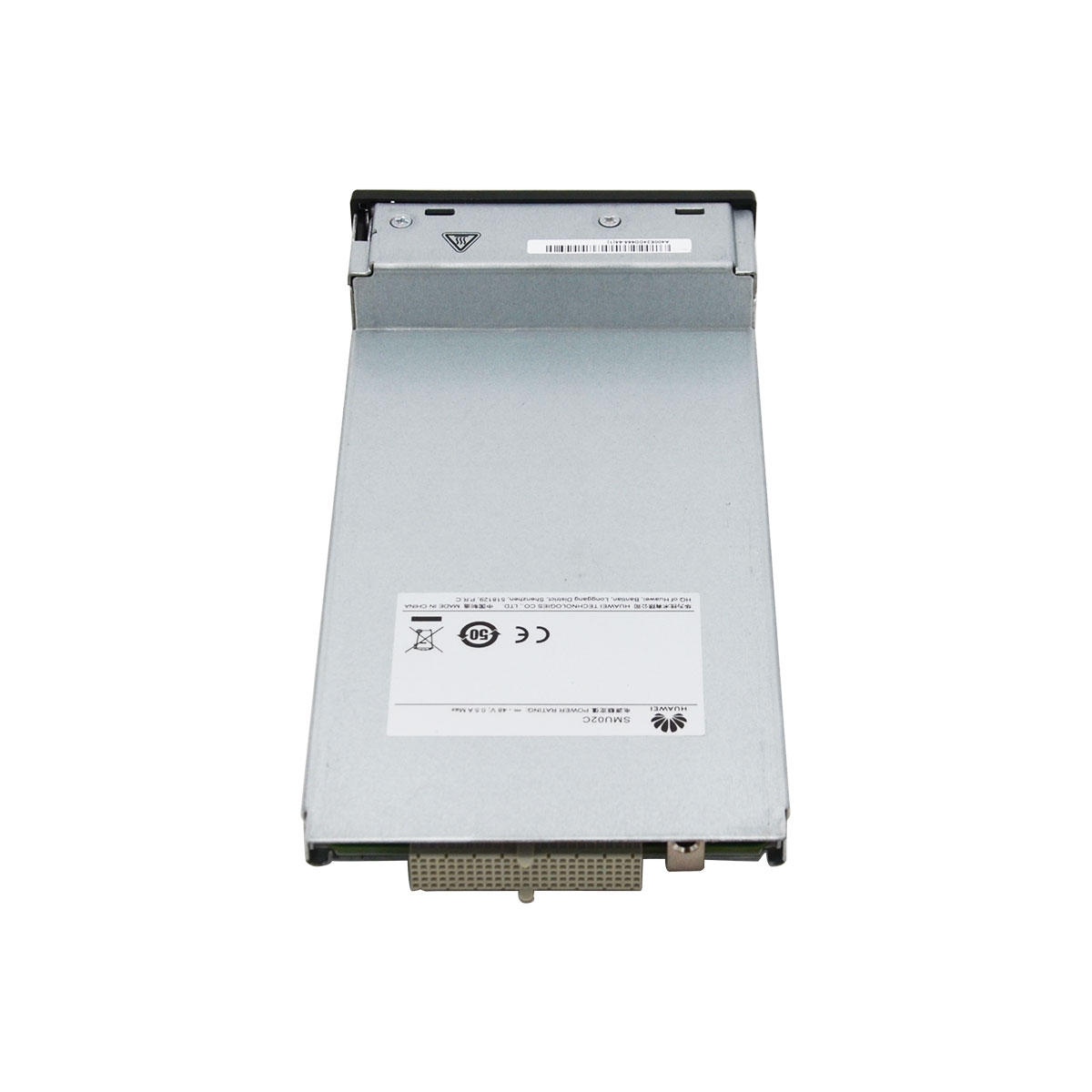

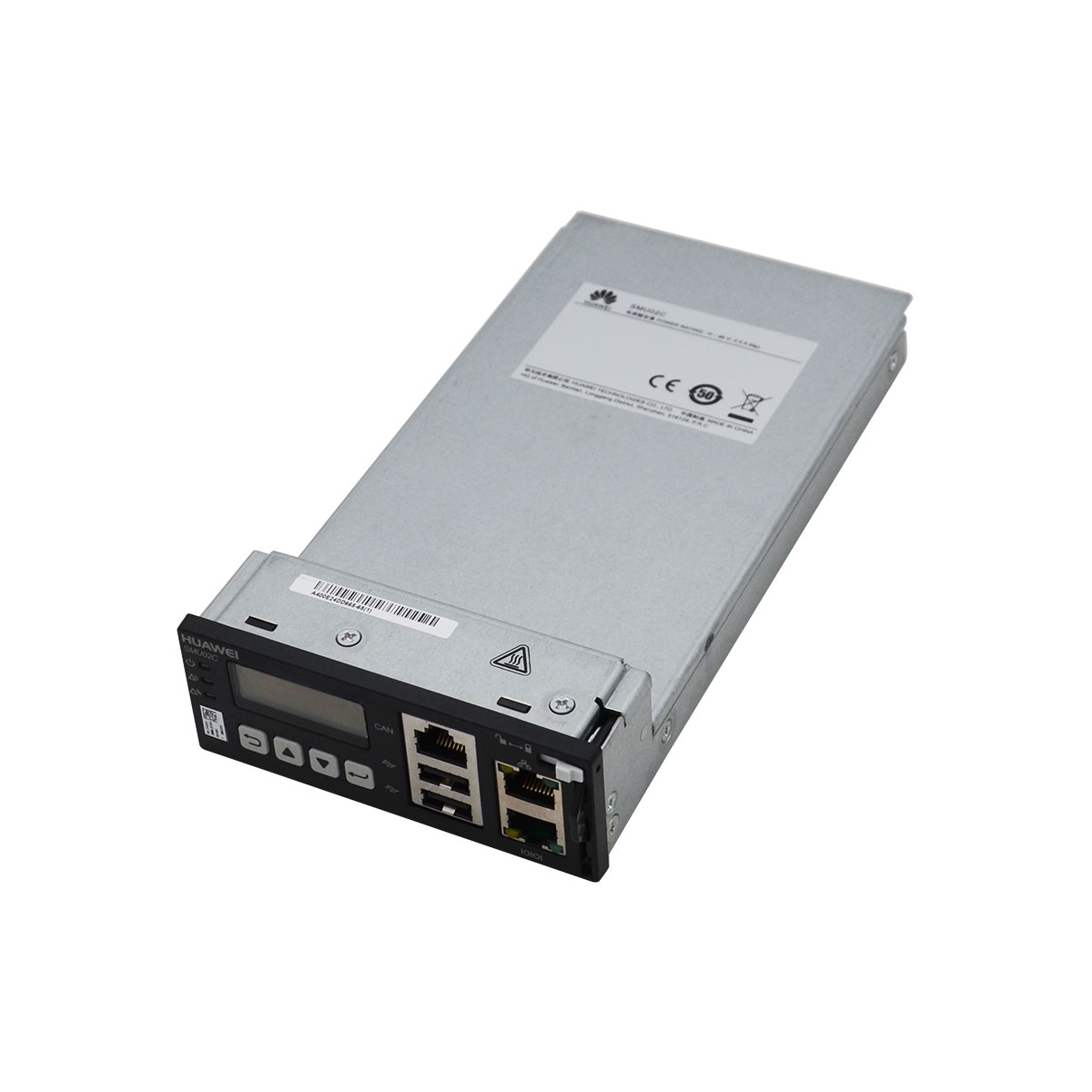

SMU02C is Huawei ETP48200-C2A1, ETP48400-C4A1 power converter monitor unit
The SMU02C (SMU for short) is a compact high-end monitoring module that monitors and manages Huawei’s box-type and cabinet-type power systems.
The SMU can manage a site power system through the liquid crystal display (LCD), web user interface (WebUI) and Huawei NetEco.
| Item | SMU02C | |
|
Environmental conditions |
Operating temperature |
–40°C to +70°C |
|
Transportation temperature |
–40°C to +70°C |
|
|
Storage temperature |
–40°C to +70°C |
|
|
Operating humidity |
5%–95% RH (non-condensing) |
|
|
Storage humidity |
5%–95% RH (non-condensing) |
|
|
Altitude |
0–4000 m When the altitude ranges from 3000 m to 4000 m, the operating temperature decreases by 1ºC for each additional 200 m. |
|
|
Power supply |
Input voltage range |
36–72 V DC |
|
Maximum current |
0.5 A DC |
|
|
Structure |
Dimensions (H x W x D) |
41.5mm×106.5mm×209mm |
|
Weight |
≤ 1.5 kg |
|
|
MTBF (mean time between failures) |
≥ 250,000 hours |
|
| Weight | 3.0000 kg |
|---|---|
| Dimensions | 34.0000 × 16.0000 × 9.0000 cm |
| Brand | Huawei |
| Lead Time | 3-5 days |
| Ship From | Shenzhen Warehouse |
