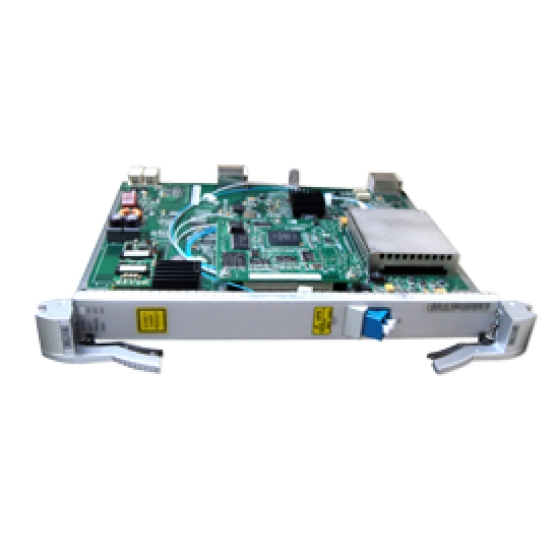

Huawei SSN1SF16 1 STM-16 Optical Interface Board with 1 Ue-16.2 210km SFP module, apply to OSN 7500 series

Huawei

3-5 days

Shenzhen Warehouse

SKU: 4217 PN: 03030BFK Category:

Description

SSN1SF16 overview

The SF16 is a line board. The SF16 can be used on the OptiX OSN equipment series to transmit and receive STM-16 optical signals. The SF16 converts the received optical signals into electrical signals and sends the electrical signals to the cross-connect side. In addition, the SF16 converts the electrical signals sent from the cross-connect side into optical signals and transmits the optical signals.

Valid Slots

The slots valid for the SF16 vary with the cross-connect capacity of the subrack.

The slots valid for the SF16 are as follows:

  • When the cross-connect capacity is 360 Gbit/s, the SF16 can be installed in slots 1–8, 11–18, and 26–31.
Relationship between the feature code of the SF16 and the type of optical interface
Board Feature Code Type of Optical Interface
SSN1SF1600 00 Colored optical interface
SSN1SF1601 01 Ue-16.2c/Ue-16.2d/Ue-16.2f
SSN1SF1603 03 Ue-16.2c/Ue-16.2d/Ue-16.2f
Specifications of the ports
Port type Description
Ue-16.2c Ue-16.2c two-fiber bidrectional optical interfaces
Ue-16.2d Ue-16.2d two-fiber bidrectional optical interfaces
Ue-16.2f Ue-16.2f two-fiber bidrectional optical interfaces
640 km DWDM 640 km DWDM STM-16 optical interfaces (FEC)
Function and Feature
SSN1SF16
Basic functions
  • Receives and transmits 1xSTM-16 optical signals (2.666 Gbit/s with the out-band FEC function).
  • Supports the enabling or disabling of the FEC function.
Specifications of the optical interface
  • Supports different types of standard optical interfaces, namely, the Ue-16.2c, Ue-16.2d, and Ue-16.2f. The characteristics of the optical interfaces comply with the standards defined by Huawei.
  • Supports the output of the standard wavelengths that comply with ITU-T G.692 and can be directly connected to the DWDM equipment.
  • Supports the DWDM colored optical interfaces. The optical interface uses the LC connector. The DWDM optical interface supports the transmission distance of 640 km.
Specifications of the optical module
  • Supports the detection and query of the information about the optical module.
  • Provides the ALS function. The optical interface supports the setting of the on/off state of a laser.
Service processing
  • Supports the VC-12 services, VC-3 services, VC-4 services, VC-4-4c concatenation services, VC-4-8c concatenation services, and VC-4-16c concatenation services.
  • Encapsulates and encodes the signals with the FEC function, and processes overhead bytes, which comply with ITU-T G.709.
Overhead processing
  • Processes the section overheads of the STM-16 signals.
  • Supports the transparent transmission and termination of the path overheads.
  • Supports the setting and query of the J0, J1, and C2 bytes.
  • Supports one channel of ECC communication.
Alarms and performance events Reports various alarms and performance events.
Specifications of the REG Does not support the REG.
Protection schemes
  • Supports the Two-fiber ring MSP, Four-fiber ring MSP, Linear MSP, SNCP, SNCTP, and SNCMP.
  • Supports the fiber-shared MSP and SNCP and processes two sets of K bytes. One SF16 supports a maximum of two MSP protection rings.
Maintenance features
  • Supports inloops and outloops at optical interfaces.
  • Supports inloops on VC-4 paths.
  • Supports warm resets and cold resets. The warm reset does not affect services.
  • Supports the query of the manufacturing information of the board.
  • Supports the in-service loading of the FPGA.
  • Supports the upgrade of the board software without affecting services.
  • Supports the press-to-collect function in fault data collection.

Additional information

Weight 3.0000 kg
Dimensions 37.5000 × 34.0000 × 7.5000 cm
