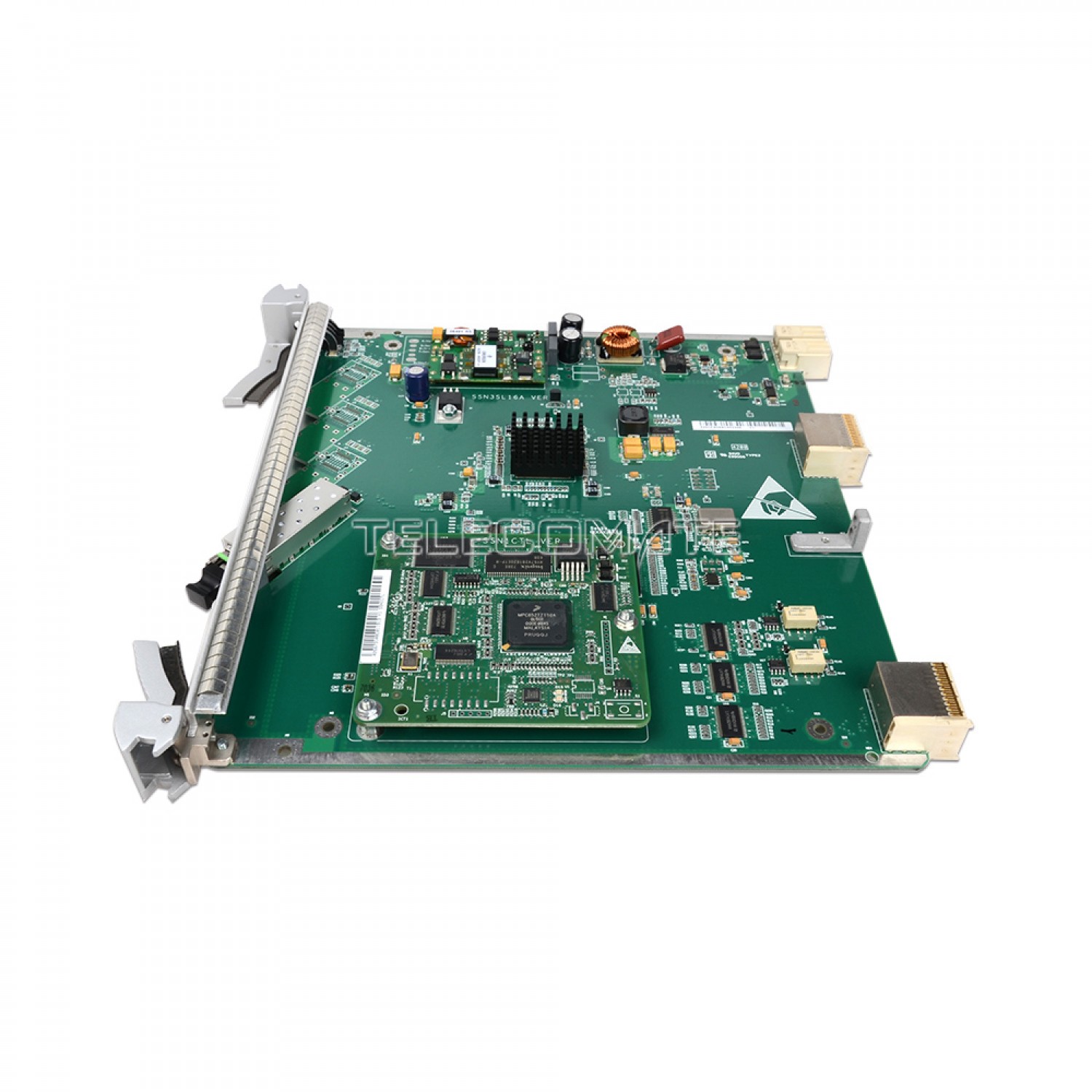

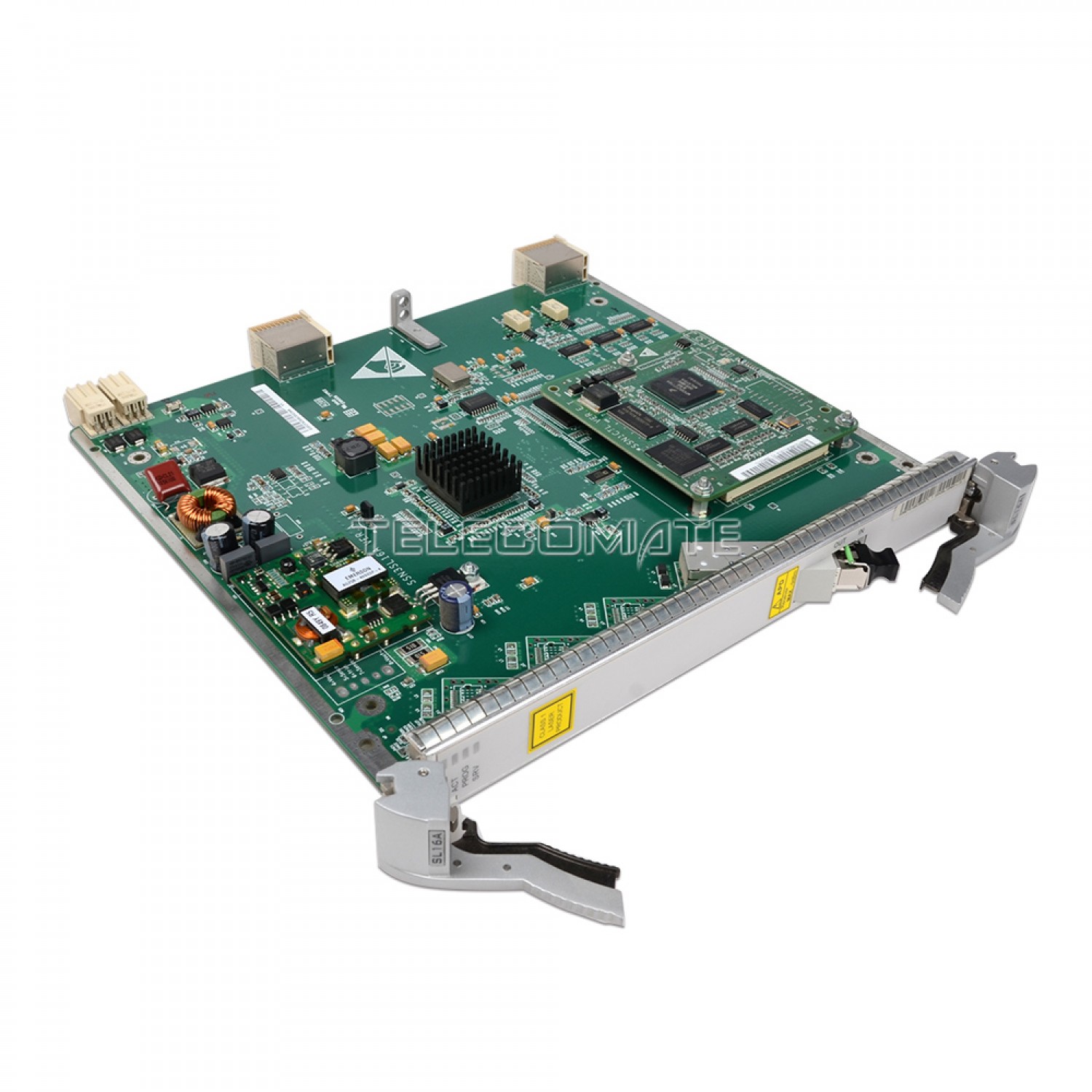

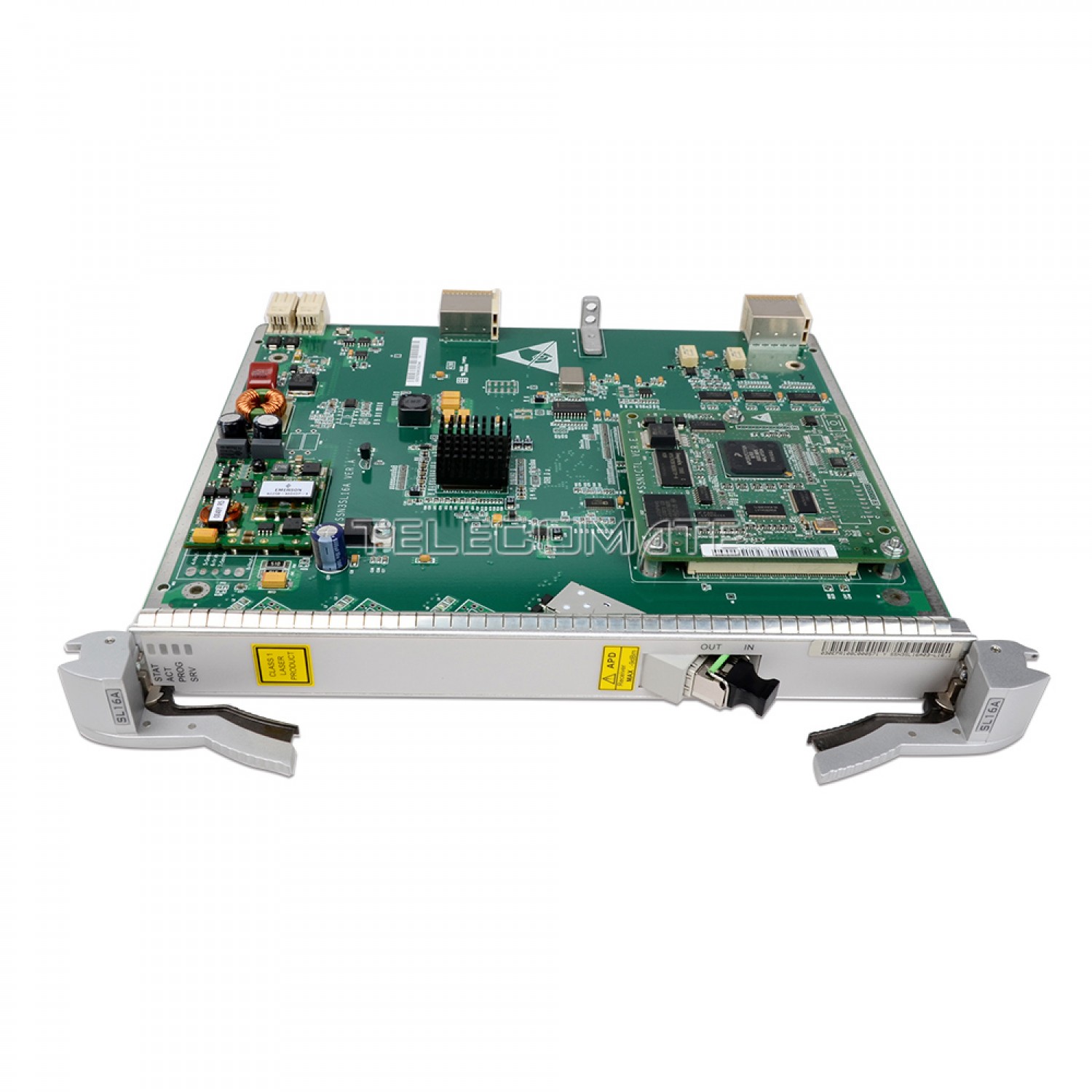

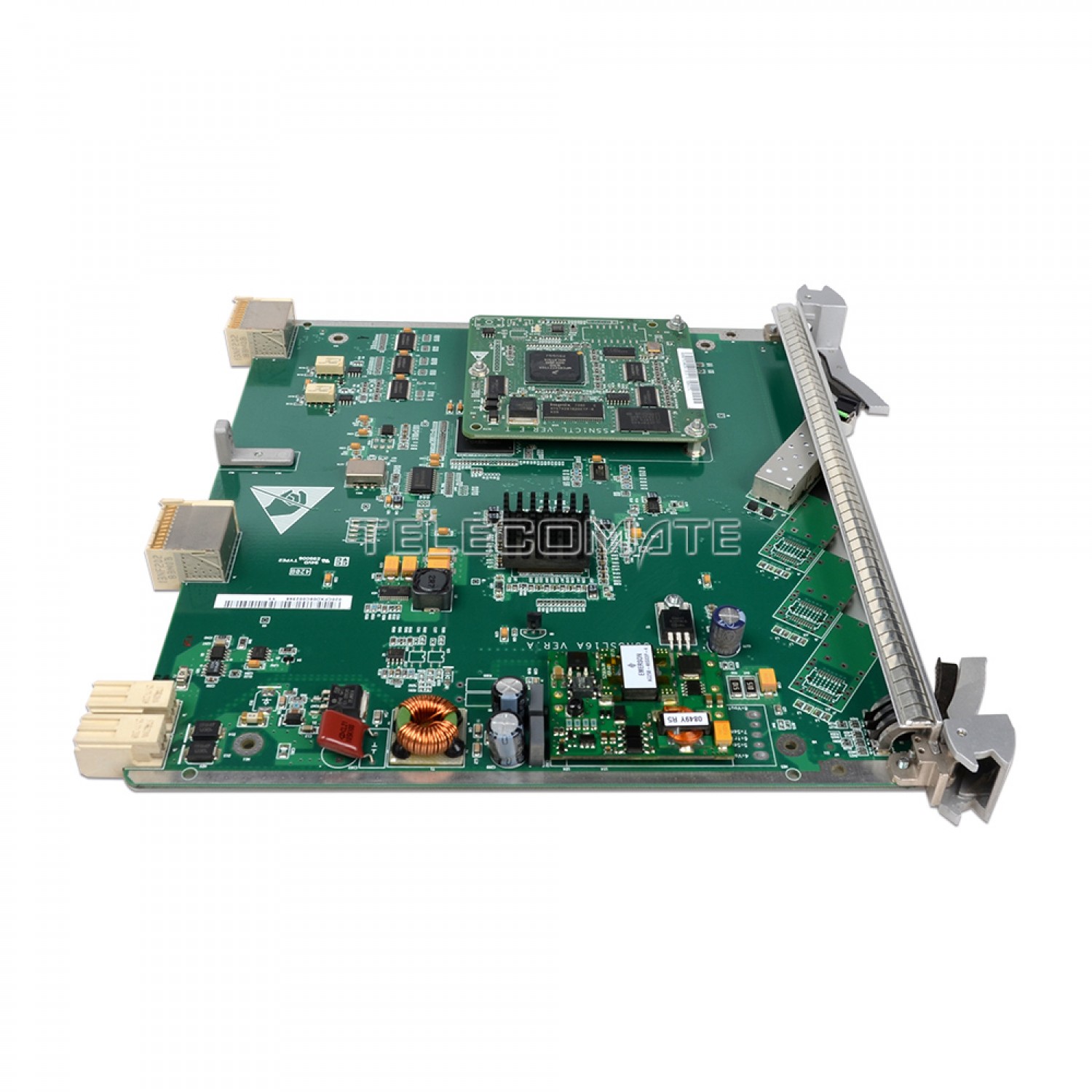

SSN3SL16A11

Huawei OSN2500 3500 7500 series universal service board,  1 STM-16 optical interface board with 1 U-16.2 170km SFP module

SKU: 03053100 Category:

Description

Optical interface parameters
Parameter Value
Nominal bit rate 2488320 kbit/s
Line code pattern NRZ
Application code U-16.2Je (BA+PA)
Transmission distance (km) U-16.2Je (BA+PA)
Type of fiber Single-mode LC
Operating wavelength range (nm) 1550.12
Launched optical power range (dBm) -2 to +3 (without the BA or PA) 15 to 18 (with the BA)
Receiver sensitivity (dBm) -28 (without the PA or BA -32 (with the PA)
Minimum overload (dBm) -9 (without the PA or BA) -10 (with the PA)
Dispersion tolerance (ps/nm) 3400
Minimum side mode suppression ratio (dB) 30
Maximum -20 dB spectral width (nm) 1
Mechanical Specifications
Dimensions (mm) 25.4 (W) x 235.2 (D) x 261.4 (H)
Dimensions (mm) 0.9

Additional information

Weight 3.0000 kg
Dimensions 37.5000 × 34.0000 × 7.5000 cm
