SSND0SLD6401

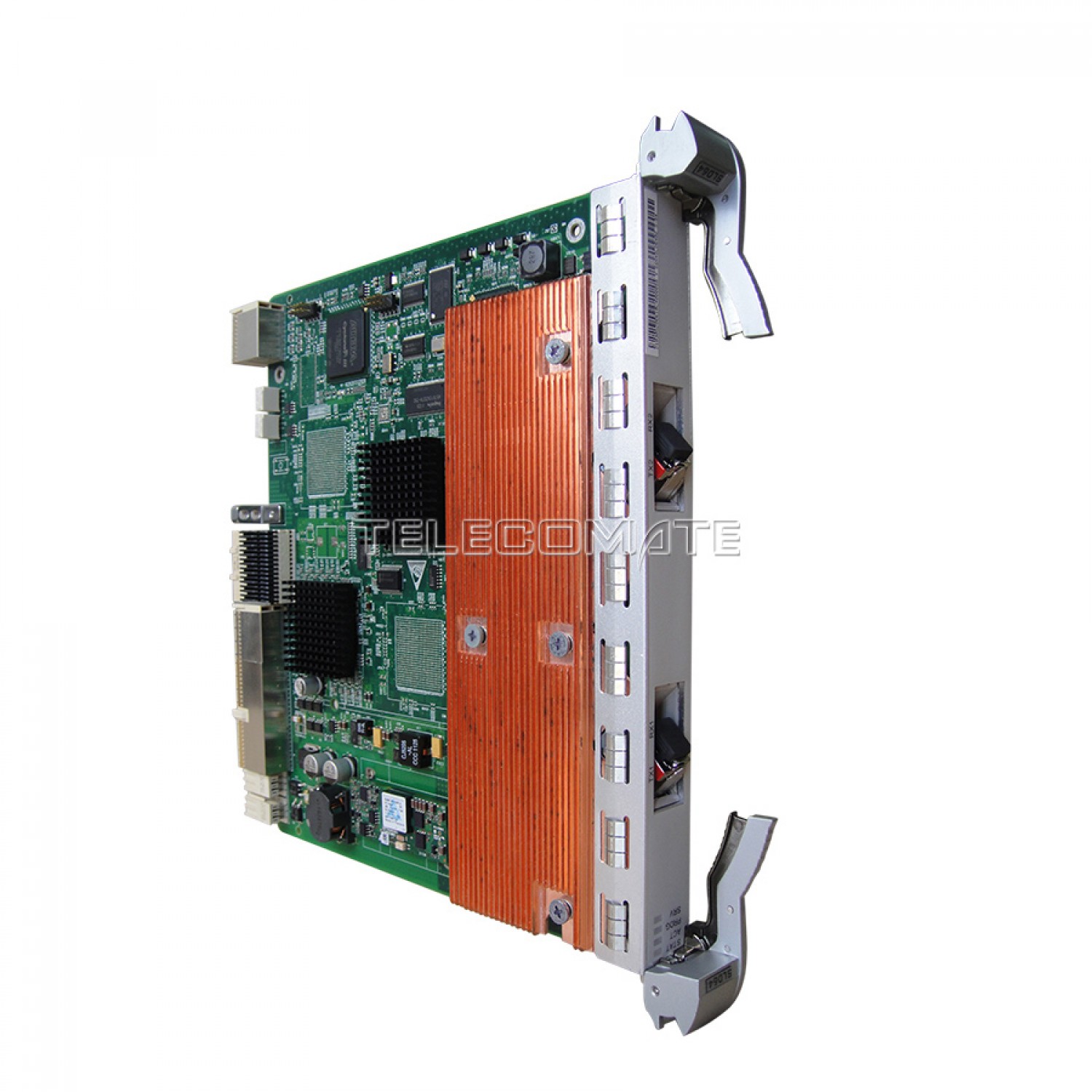

Huawei OSN3500 7500 series universal service board, 2 STM-64 Optical Interface Board SSN4SLD6401 equipped with 2 I-64.1 2km SFP module
- Description

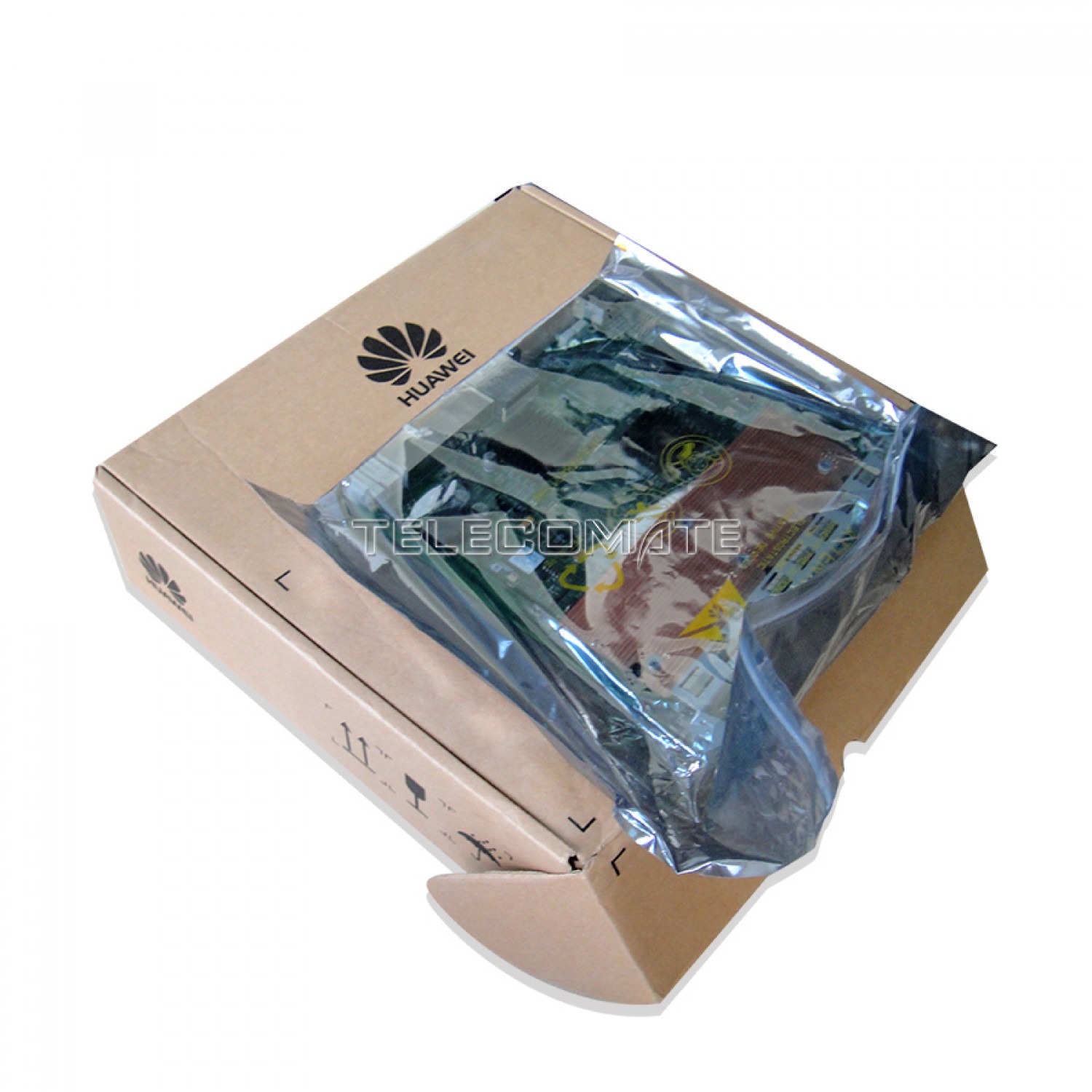

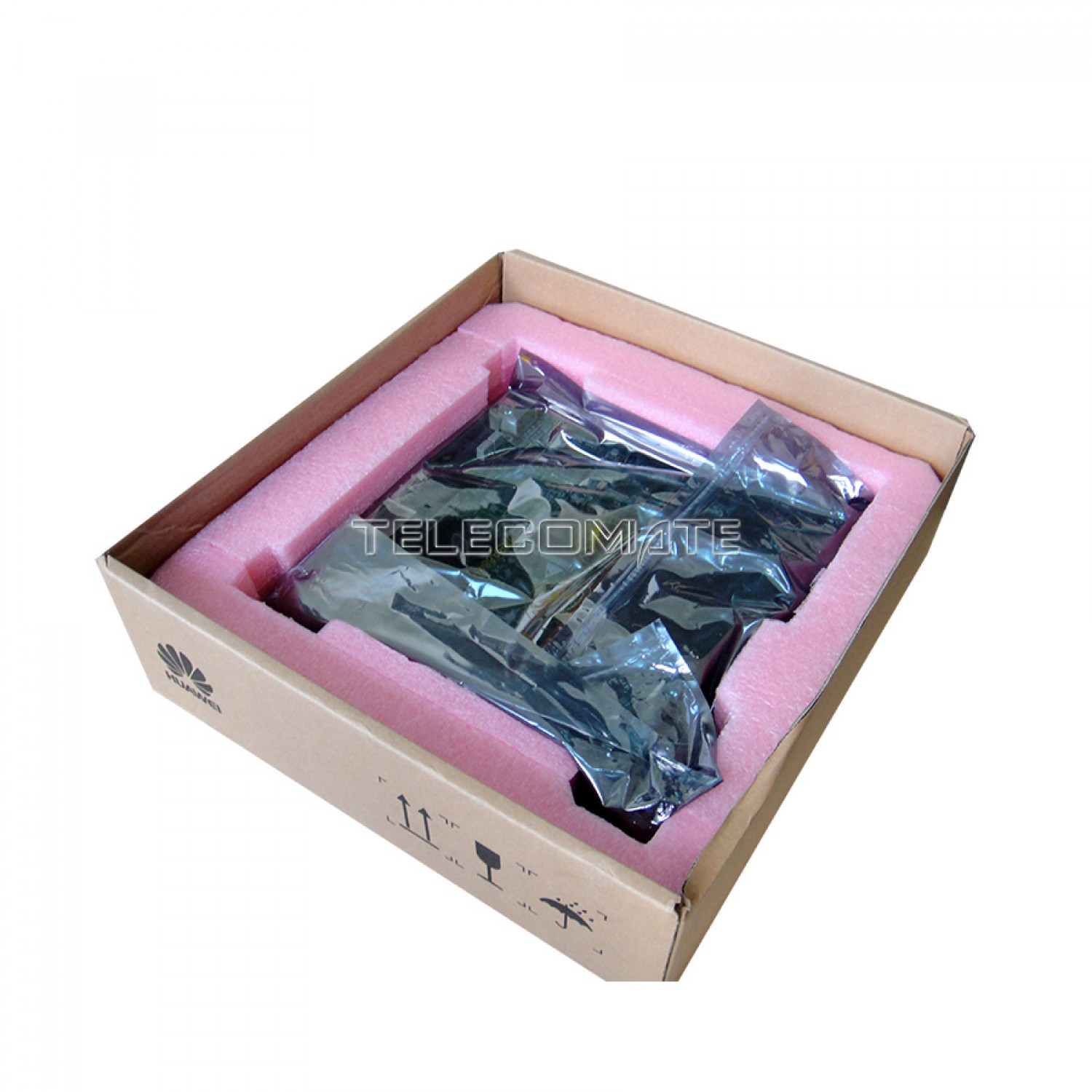

- Packing info
- Reviews (0)
Description
| Optical Interface Parameter | ||
| Parameter | Value | |
| Nominal bit rate | 9953280 kbit/s | |
| Line code pattern | NRZ | |
| Application code | I-64.1 | |
| Transmission distance (km) | 0 to 2 | |
| Type of fiber | Single-mode LC | |
| Operating wavelength range (nm) | 1290 to 1330 | |
| Launched optical power range (dBm) | -6 to -1 | |
| Receiver sensitivity (dBm) | -11 | |
| Minimum overload (dBm) | -1 | |
| Minimum extinction ratio (dB) | 6 | |
| Maximum -20 dB spectral width (nm) | 1 | |
| Minimum side mode suppression ratio (dB) | 30 | |
| Mechanical Specifications | ||
| Dimensions (mm) | 25.4 (W) x 235.2 (D) x 261.4 (H) | |
| Weight (kg) | 1.2 | |
Additional information
| Weight | 3.0000 kg |
|---|---|
| Dimensions | 37.5000 × 34.0000 × 7.5000 cm |
