SSND0SLD6401

PN 03053052

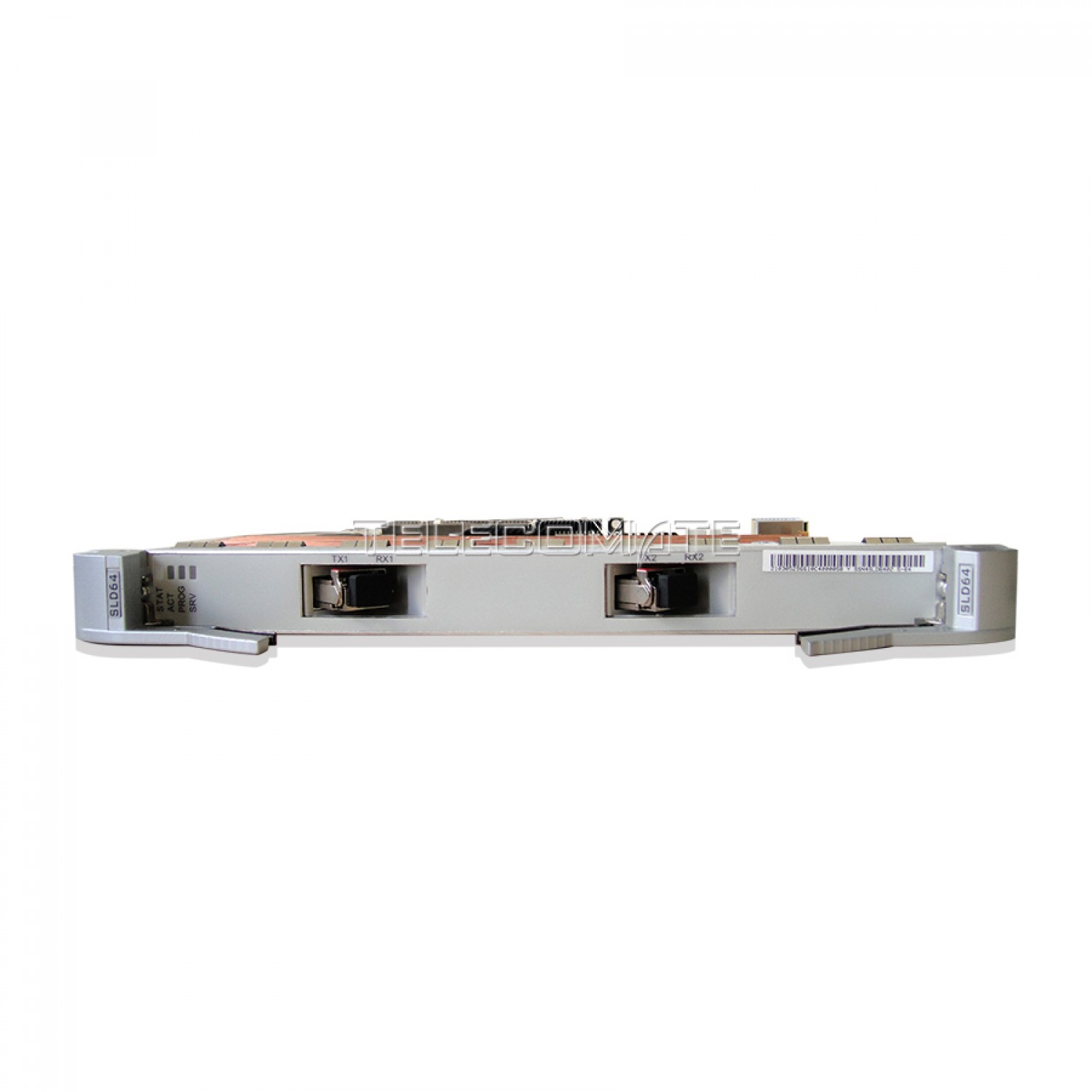

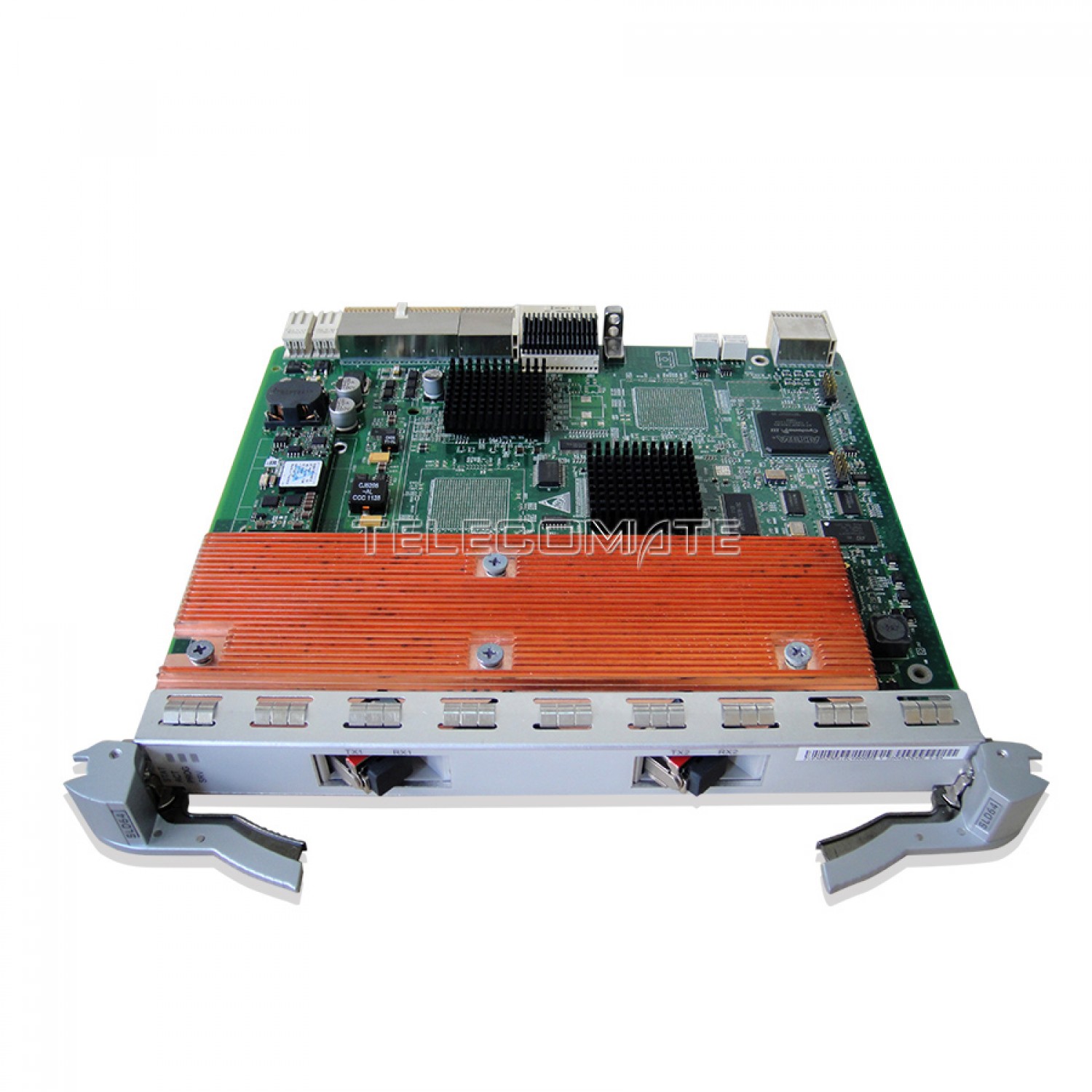

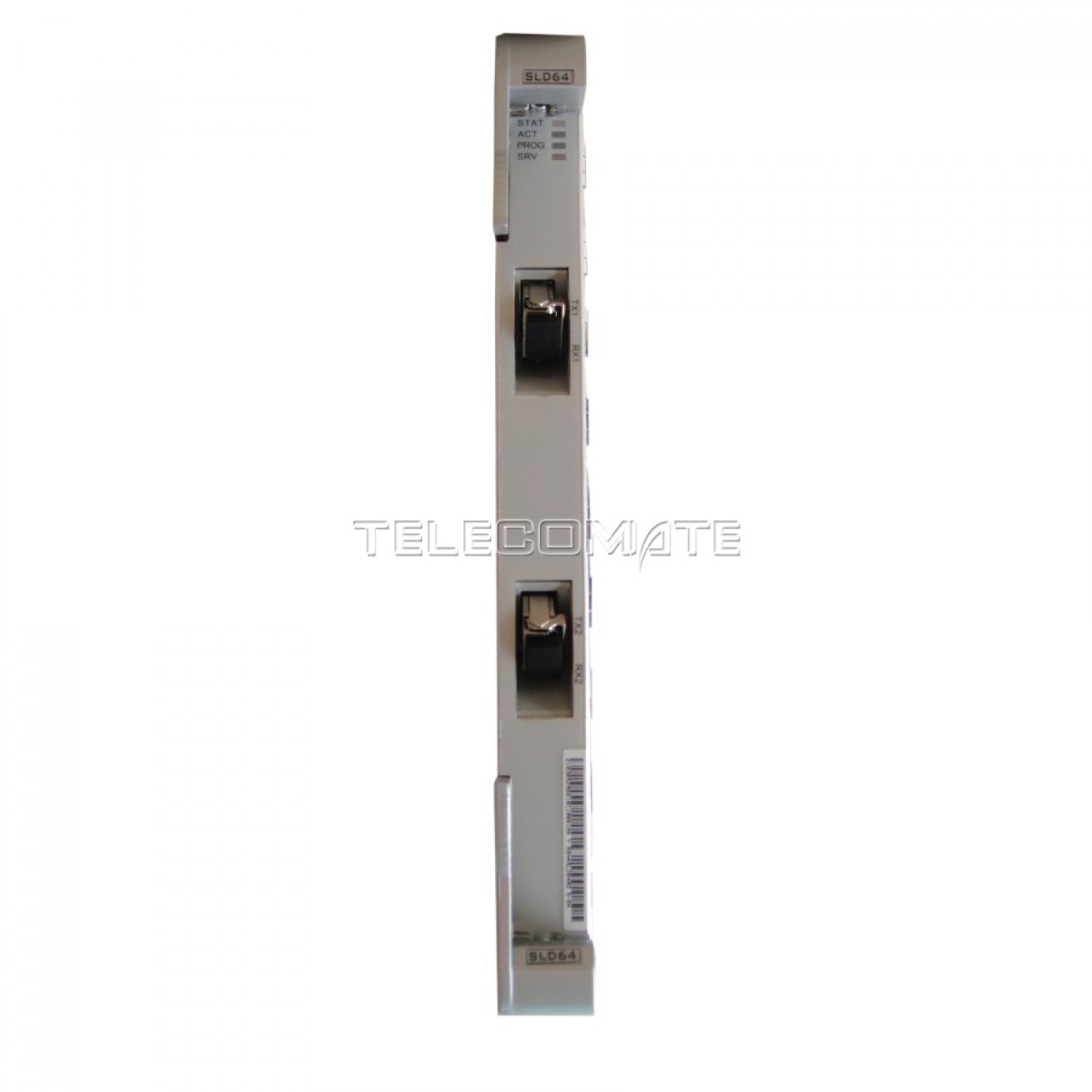

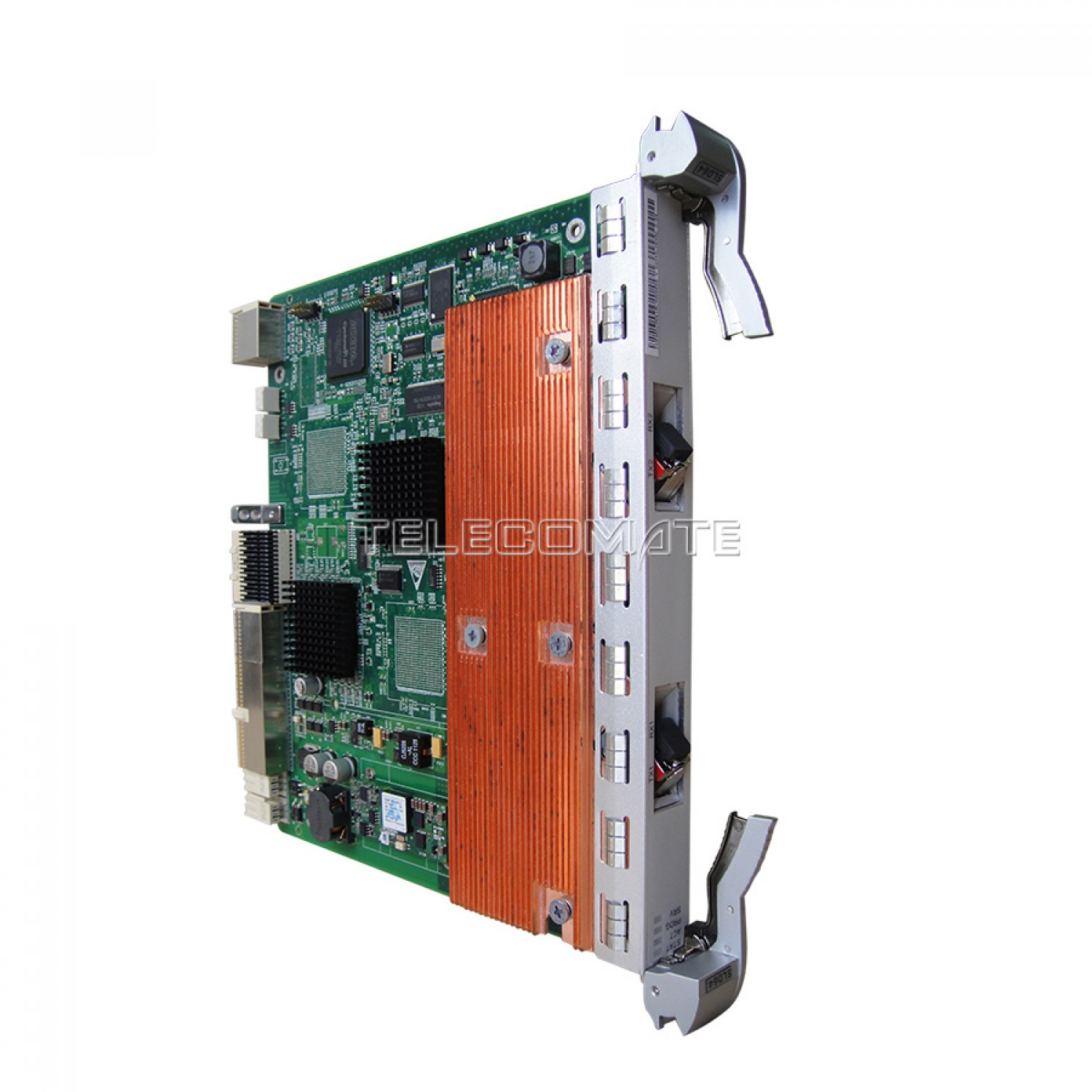

Huawei OSN3500 7500 series universal service board, 2 STM-64 Optical Interface Board SSN4SLD6401 equipped with 2 I-64.1 2km SFP module

Shenzhen Warehouse
lead time 3-5 days
- +
Overview
Optical Interface Parameter
Parameter Value
Nominal bit rate 9953280 kbit/s
Line code pattern NRZ
Application code I-64.1
Transmission distance (km) 0 to 2
Type of fiber Single-mode LC
Operating wavelength range (nm) 1290 to 1330
Launched optical power range (dBm) -6 to -1
Receiver sensitivity (dBm) -11
Minimum overload (dBm) -1
Minimum extinction ratio (dB) 6
Maximum -20 dB spectral width (nm) 1
Minimum side mode suppression ratio (dB) 30
Mechanical Specifications
Dimensions (mm) 25.4 (W) x 235.2 (D) x 261.4 (H)
Weight (kg) 1.2
