The Fiber-Driven Future: Huawei’s Comprehensive Portfolio for Next-Generation Optical Networks

As global fixed broadband subscriptions surpass 1.4 billion and 50% of enterprises adopt passive optical LANs, Huawei’s FTTH (Fiber to the Home) and POL (Passive Optical LAN) solutions emerge as critical infrastructure for the 10G era. This technical analysis explores Huawei’s optical networking ecosystem—from central office to customer premises—revealing how its integrated product suite enables smart cities, Industry 4.0, and hyper-connected enterprises.

​Optical Line Terminal (OLT): The Network Brain

Huawei’s MA5800 series OLTs redefine aggregation layer capabilities:

  • ​1.6Tbps Line Cards: 128x10G PON ports per chassis
  • ​Multi-PON Convergence: GPON/XGS-PON/NG-PON2 coexistence
  • ​vOLT Virtualization: 40% resource utilization improvement via CloudFAN

Singapore’s nationwide broadband network serves 1.3 million subscribers using MA5800-X17 platforms, achieving 99.999% availability through 1+1 control board redundancy.

​Optical Network Unit/Terminal (ONU/ONT): Edge Intelligence

Huawei’s ONT portfolio addresses diverse scenarios:

  1. ​HG8245Q2 (Residential):
    • Wi-Fi 6 (AX3600) with OFDMA
    • 10G EPON & GPON auto-sensing
    • -40°C to 65°C industrial variants
  2. ​AT815SN (Enterprise):
    • 8xGE + 2x10GE Combo ports
    • MEF 3.0 CE 2.0 certification
    • 5ms protection switching
  3. ​AirPON 5G (Wireless):
    • 25G/50G mobile fronthaul
    • 3μs time synchronization
    • 128-QAM modulation

A German automotive plant connects 8,000 IoT devices using AirPON ONUs with 0.01% packet loss.

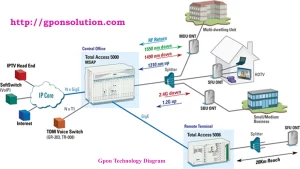

Gpon Diagram

​Optical Distribution Network (ODN): The Silent Enabler

Huawei’s ODN innovations maximize fiber potential:

  • ​Pre-Connectorized Solutions: 0.2dB insertion loss per splice
  • ​SmartODN Management: eID tags enabling 98% resource accuracy
  • ​Bend-Insensitive Fiber: 7mm bend radius for dense cabling

Key components include:

  • ​1:64 PLC Splitters: 17dB average insertion loss
  • ​ODN3600 Closure: IP68-rated for manhole deployment
  • ​iMaster NCE-FAN: AI-driven fiber fault prediction

Shanghai’s FTTH network achieved 30-minute average repair time using SmartODN diagnostics.

​POL Enterprise Solutions: Converging IT/OT

Huawei’s CPE OptiXstar series revolutionizes enterprise networks:

python
def enterprise_pol():
    configure_vlan(voice=100, data=200, iot=300)
    apply_qos(video_conf='EF', file_transfer='AF41')
    enable_ips(level='enterprise')
  • ​B850-8E8P: 8xGE PoE++ with 240W budget
  • ​S895-24P4S: 24×2.5G + 4x25G uplinks
  • ​AirEngine 8760: Wi-Fi 6E tri-band 16-stream

A Dubai smart office complex handles 40Gbps daily traffic through S895 switches with 1:512 split ratios.

​Performance Benchmarks

​Product Throughput Latency Power Efficiency
MA5800-X17 (OLT) 4.8Tbps 5μs 0.8W/Gbps
EG8145X6 (ONT) 10Gbps 1ms 7W @full load
S895-24P4S (Switch) 640Gbps 800ns 0.3W/port
AirPON 5G (mhaul) 25Gbps 3μs 18W

​Deployment Case Studies

  1. ​Urban FTTH (Tokyo, Japan):
    • 2 million homes passed with XGS-PON
    • 98% ONT zero-touch provisioning
    • 150Gbps per OLT sustained load
  2. ​Smart Factory (Shenzhen, China):
    • 8,000 Industrial ONUs with TSN
    • 10μs machine synchronization
    • 0.001% packet error rate
  3. ​Rural Connectivity (Kenya):
    • 500km AirPON coverage
    • 100Mbps per household
    • 60% TCO reduction vs copper

Future Roadmap: Towards 50G PON

Huawei’s innovation pipeline includes:

  • ​50G-PON Prototypes: 2023 trials showing 40km reach
  • ​AI-Powered ODN: 90% fiber fault prediction accuracy
  • ​Quantum Key Distribution: Integrated into OLTs by 2025

Lab tests achieve 800Gbps over single fiber using C+L band amplification.
