TN11NS3T01

PN 03030HVU

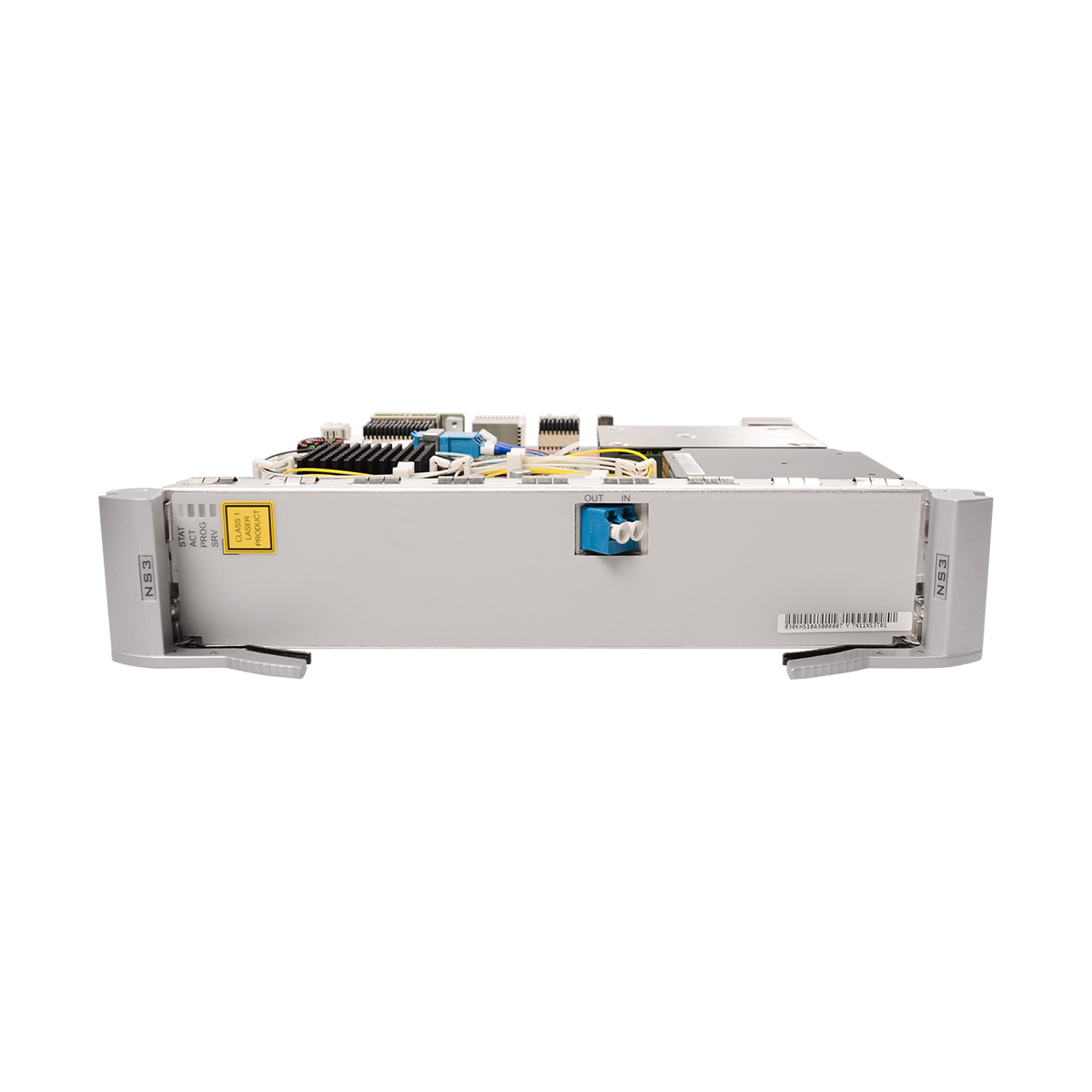

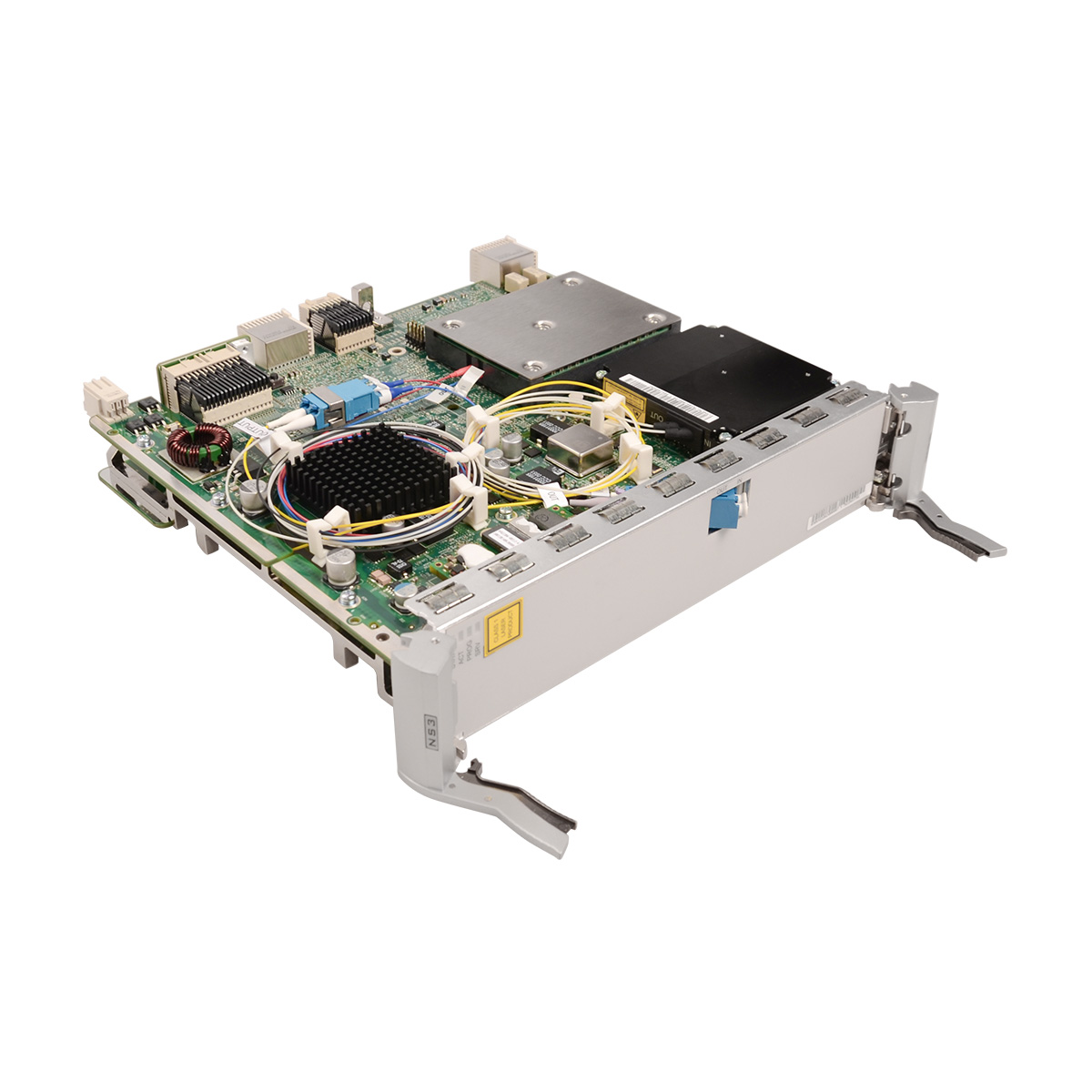

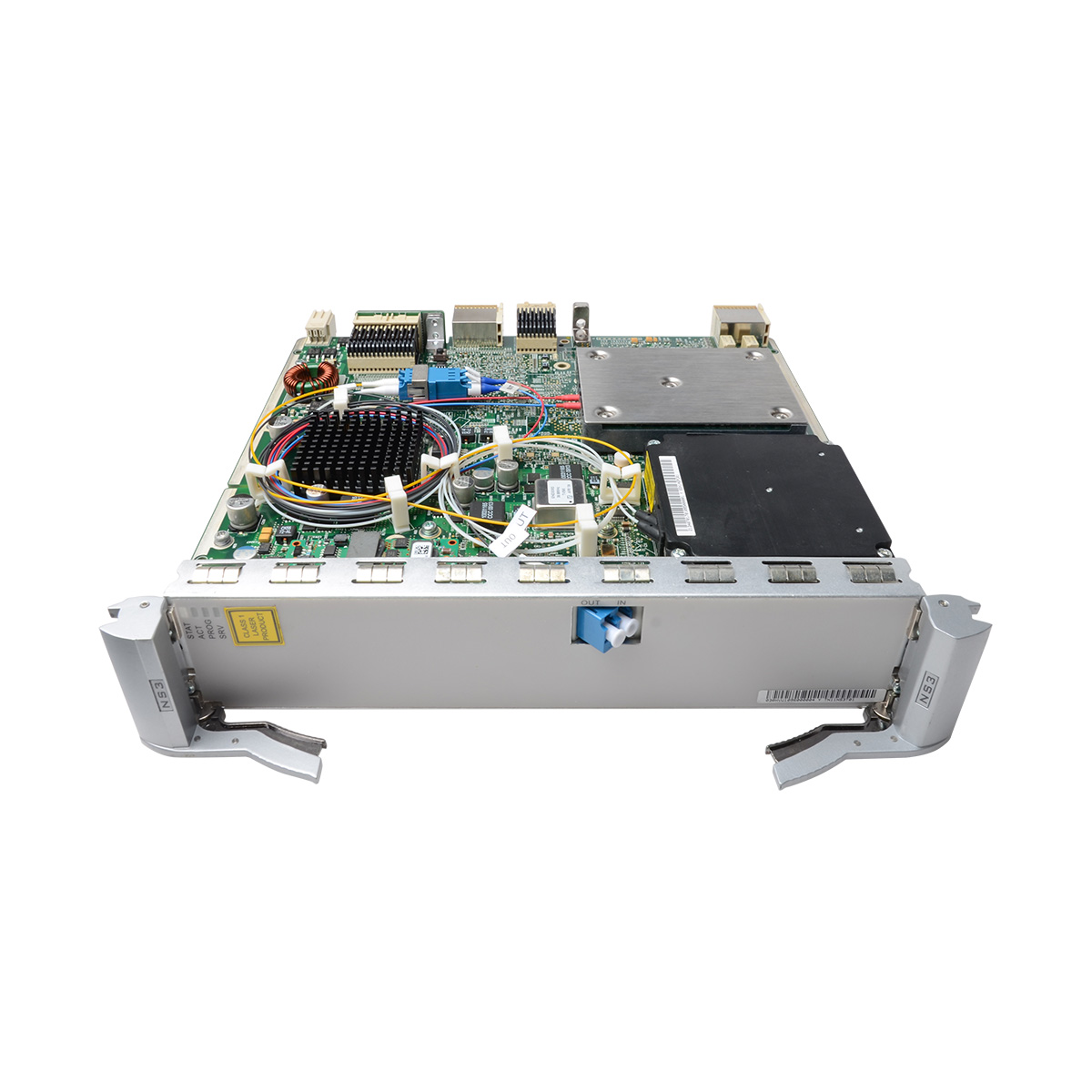

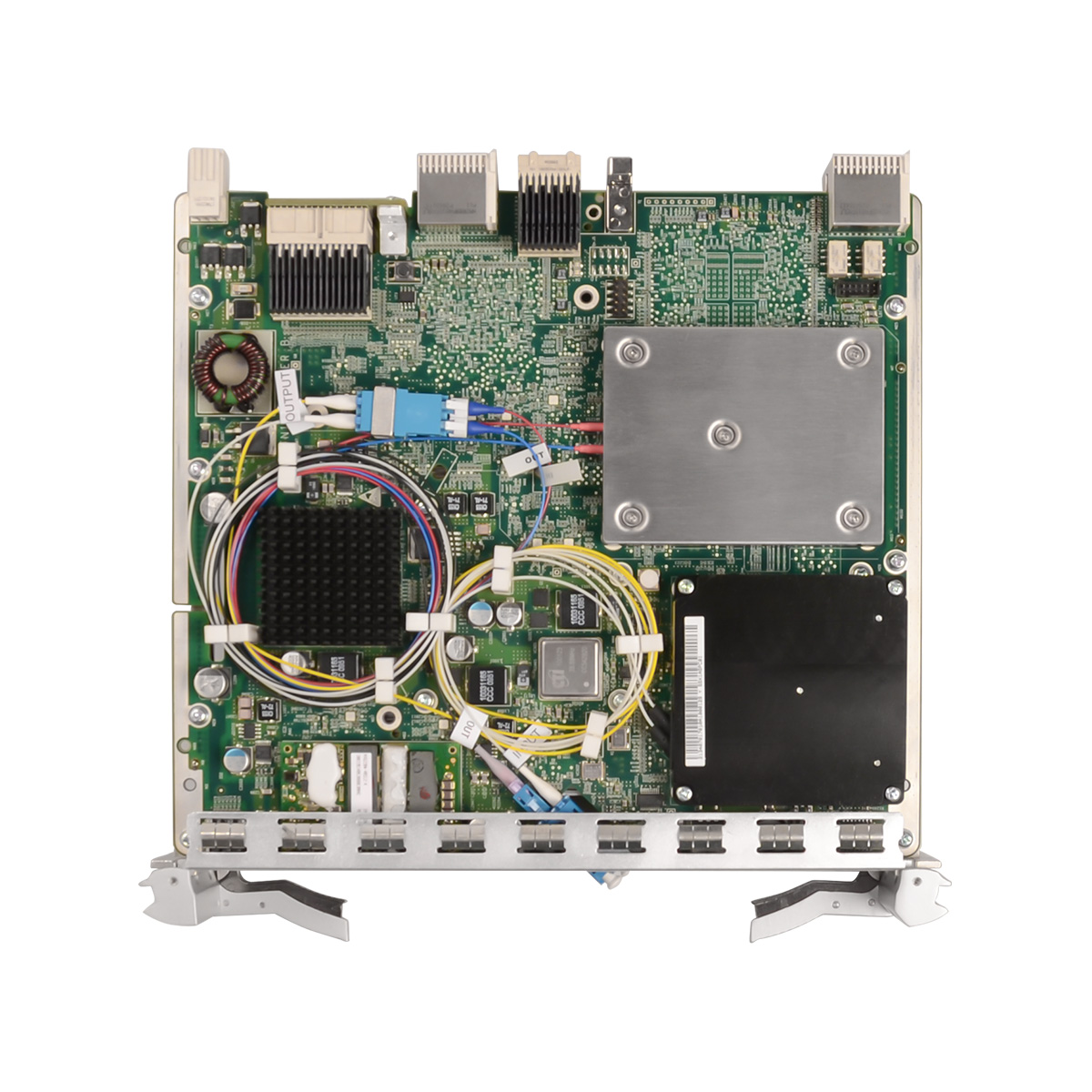

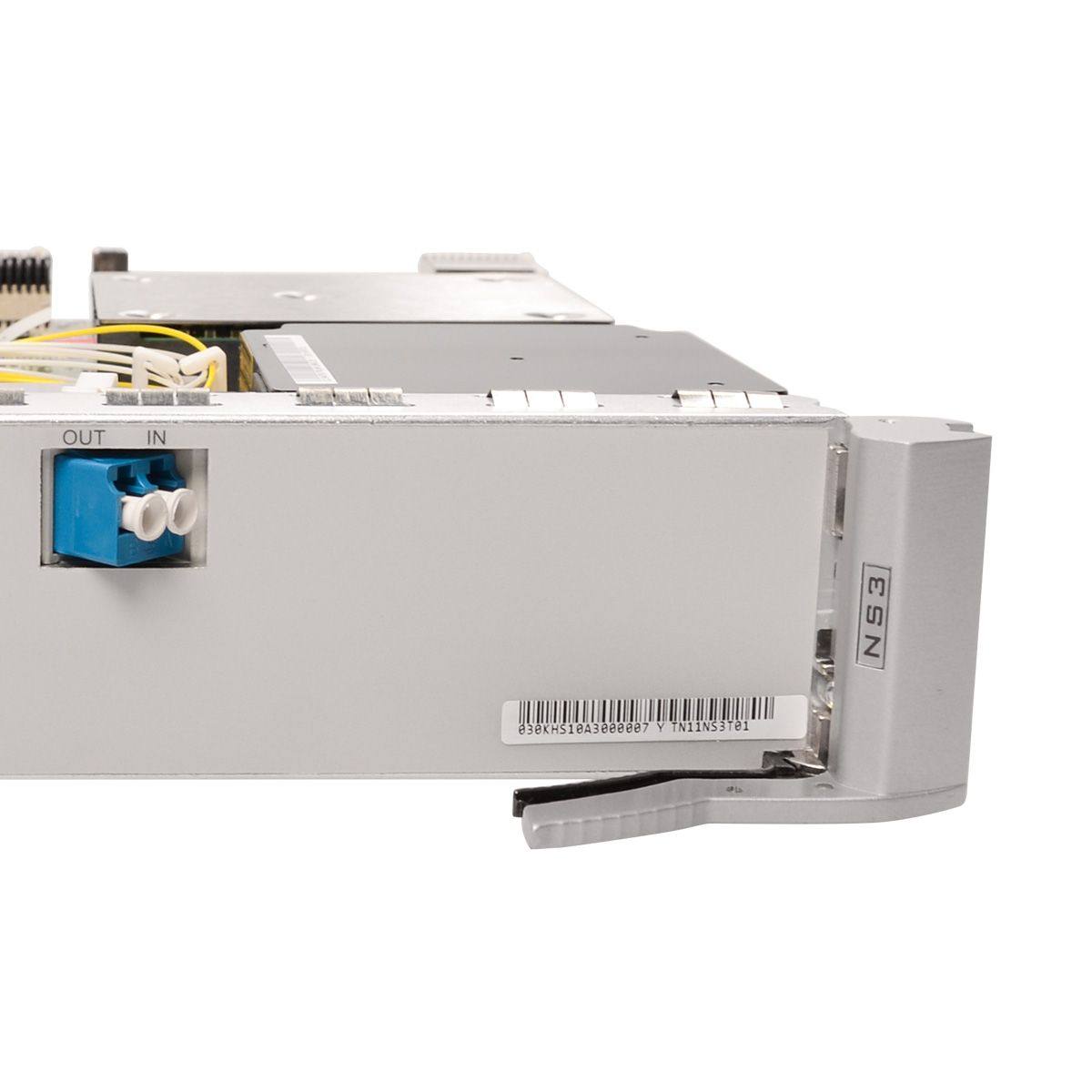

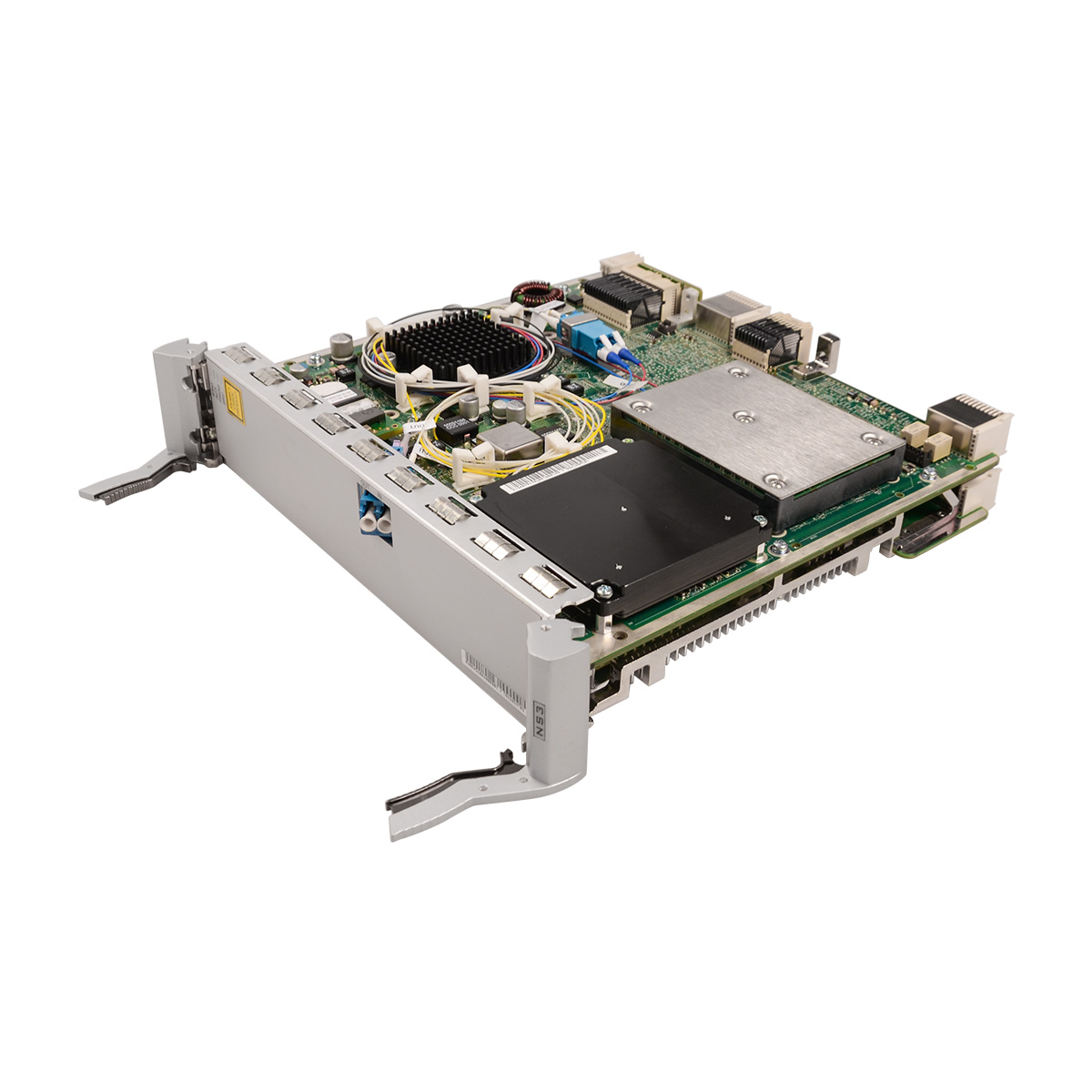

40G Tunable Wavelength WDM Line Service Processing Board
Shenzhen Warehouse
lead time 3-5 days
- +
Overview

Huawei OSN6800 40G Line Service Processing Board(500 ps/nm,AFEC,DQPSK,Tunable), 50GHz(Rx1_PIN,Tx1_-5dBm~0dBm,LC)

Optical Interface Parameter
Parameter Value
Optical Module Type 500 ps/nm-C Band-Tunable Wavelength-DQPSK-PIN
Line code forma DQPSK
Transmitter parameter specifications at point S
Operating frequency range(THz) 192.10 to 196.05
Maximum mean launched power(dBm) 0
Minimum mean launched power(dBm) -5
Minimum extinction ratio(dB) NA
Center frequency deviation(GHz) ±2.5
Maximum - 20 dB spectra width(nm) NA
Maximum -3 dB spectral width(nm) 0.3
Dispersion tolerance(ps/nm) -500 to 500
Receiver parameter specifications at point R
Receiver type PIN
Operating wavelength range(nm) 1529 to 15610
Receiver sensitivity, EOL(FEC on)(dBm) -16
Minimum receiver overload(FEC on) 0
Maximum reflectance(dB) -27
Mechanical Specifications
Dimensions(mm) 264.6(H) x 50.8(W) x 220(D)
Weight(kg) 2.2
