TN11PDU01

OptiX OSN 1800 V DC Power Distribution Unit TN11PDU01, 02120400-001

Huawei

3-5 days

Shenzhen Warehouse

SKU: 2012257 PN: 02120400-001 Category:

Description

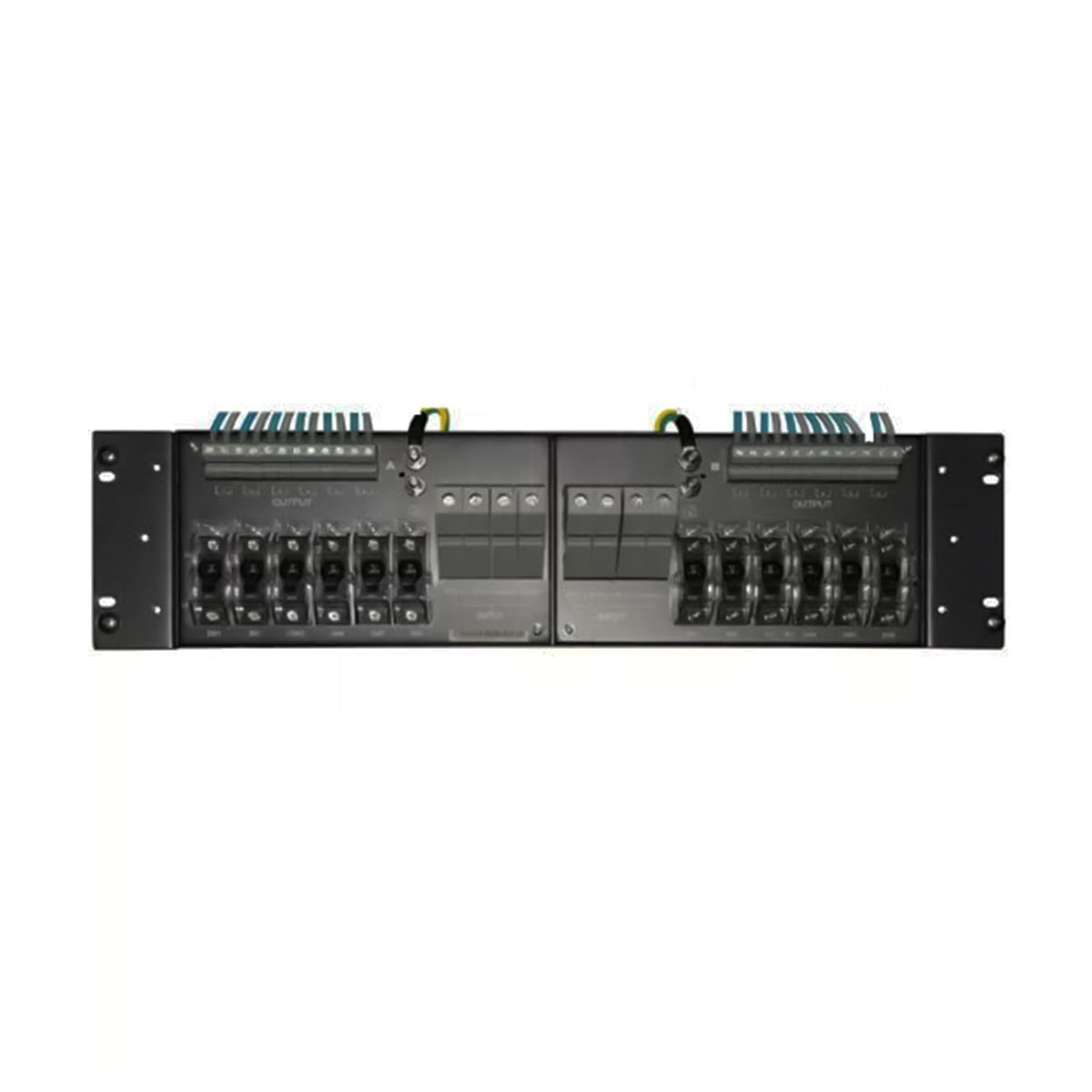

The TN11PDU01 is an OptiX OSN 1800 V DC Power Distribution Unit.

TN11PDU01 supports two power inputs that work in primary/secondary mode. The two power inputs are separately connected to parts A and B.

Therefore, a cable distribution box must be separately installed in parts A and B using a 40 Kgf.cm tightening torque.

When two power inputs that work in primary/secondary mode are configured, the maximum input current of a cable distribution box is 125 A.

TN11PDU01

Item TN11PDU01

Input Current

4 x 80 A
Output Current 8 x 32 A + 4 x 10 A
Circuit Breaker Specifications
  • SW1/SW2/SW4/SW5: 32 A
  • SW3/SW6: 10 A
Copper Fitting Configuration None
