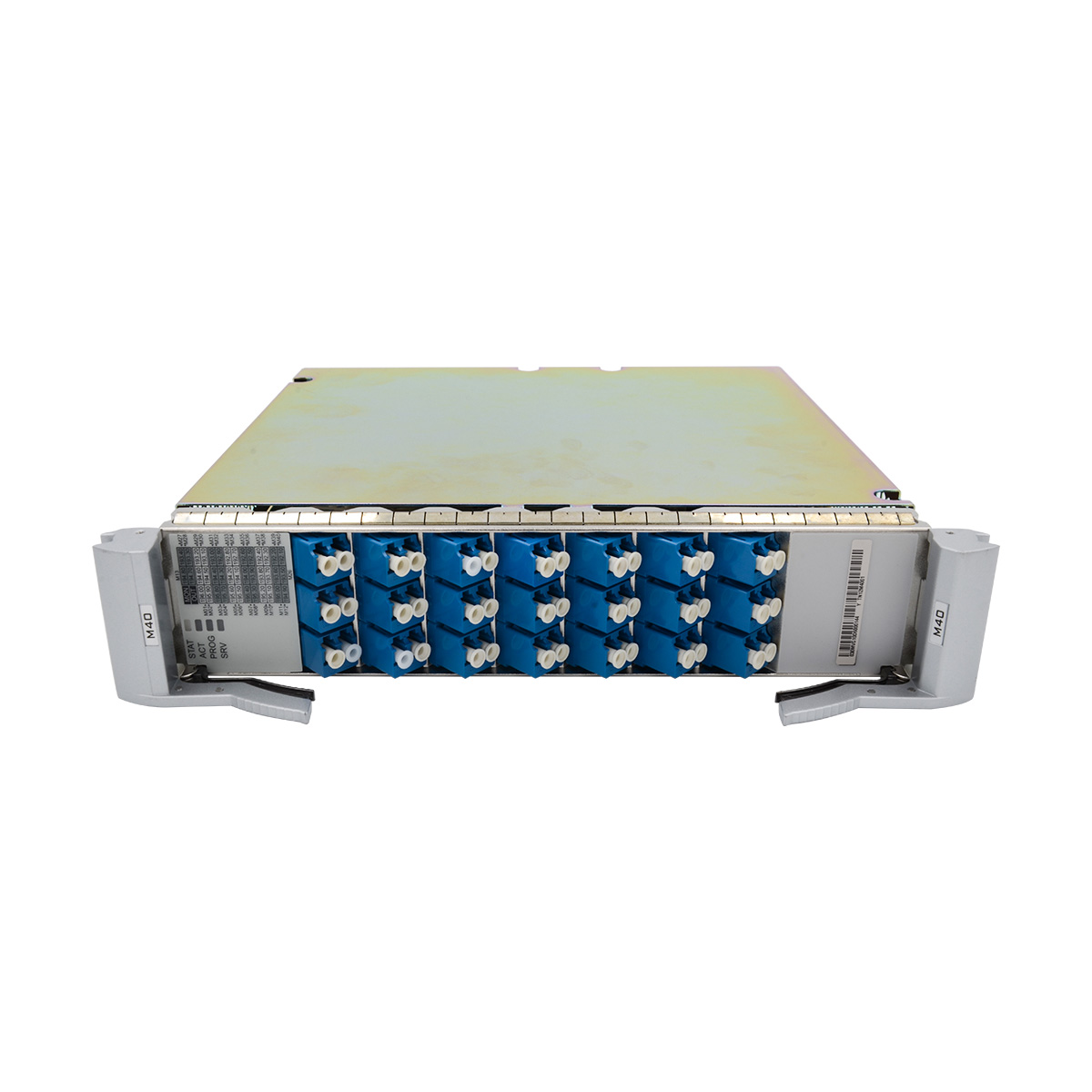

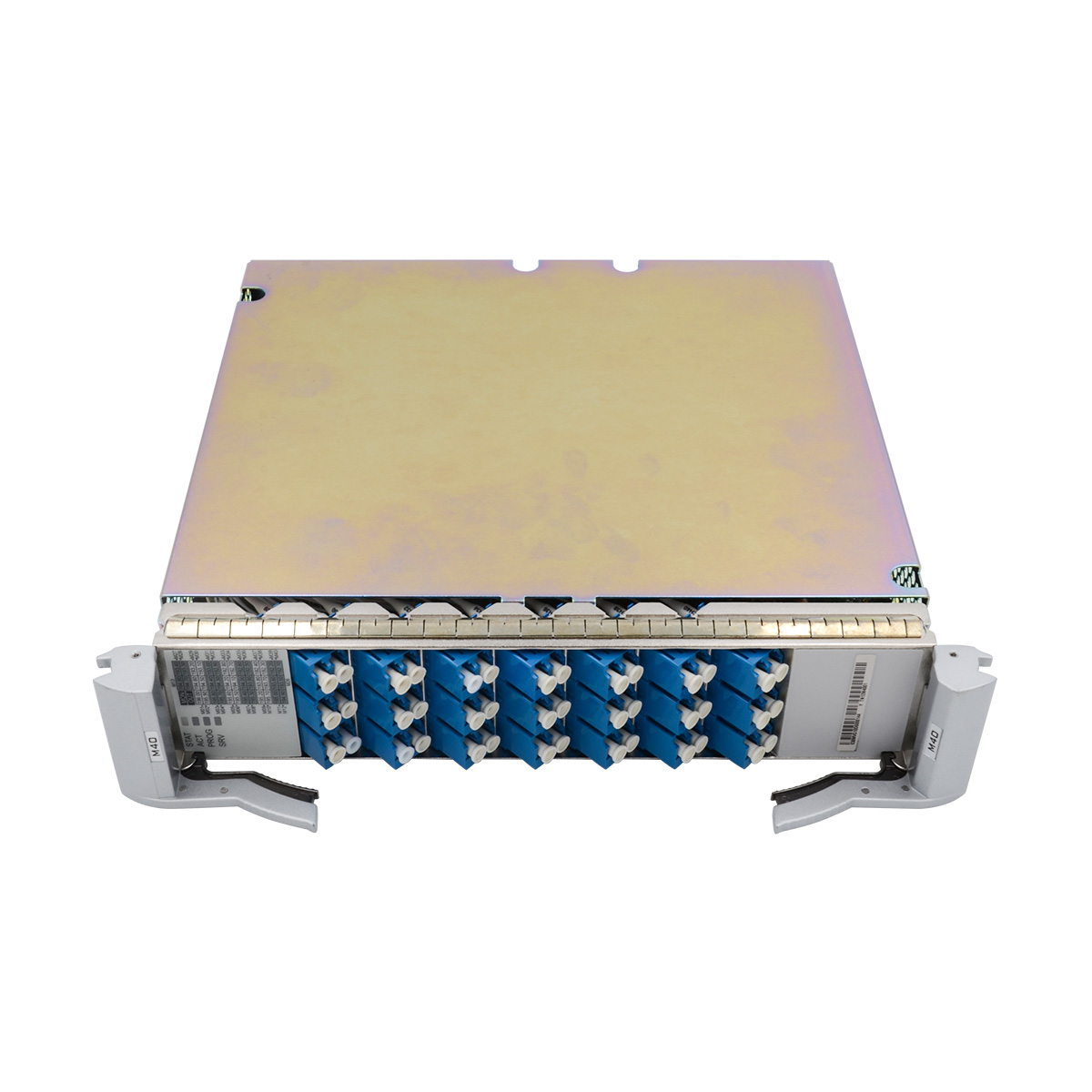

TN12M4002

40-channel Multiplexing Board

Huawei

SKU: 03030NHS Category:

Description

Huawei OSN6800 OSN8800 40-channel Multiplexing Board(C_Odd,196.05THz~192.15THz,100GHz,Thermal AWG,LC)

Optical Interface Parameter
Adjacent channel spacing(GHz) 100
Insertion loss(dB) <= 6.5
Reflectance(dB) < -40
Operating wavelength range(nm) 1529-1561
Adjacent channel isolation(dB) > 22
Non-adjacent channel isolation(dB) > 25
Polarization dependent loss(dB) <= 0.5
Temperature characteristics(nm/°C) < 0.002
Maximum channel insertion loss difference(dB) <= 3
Mechanical Specifications
Dimensions(mm) 50.8(W) x 220(D) x 264.6(H)
Weight(kg) 2.0
