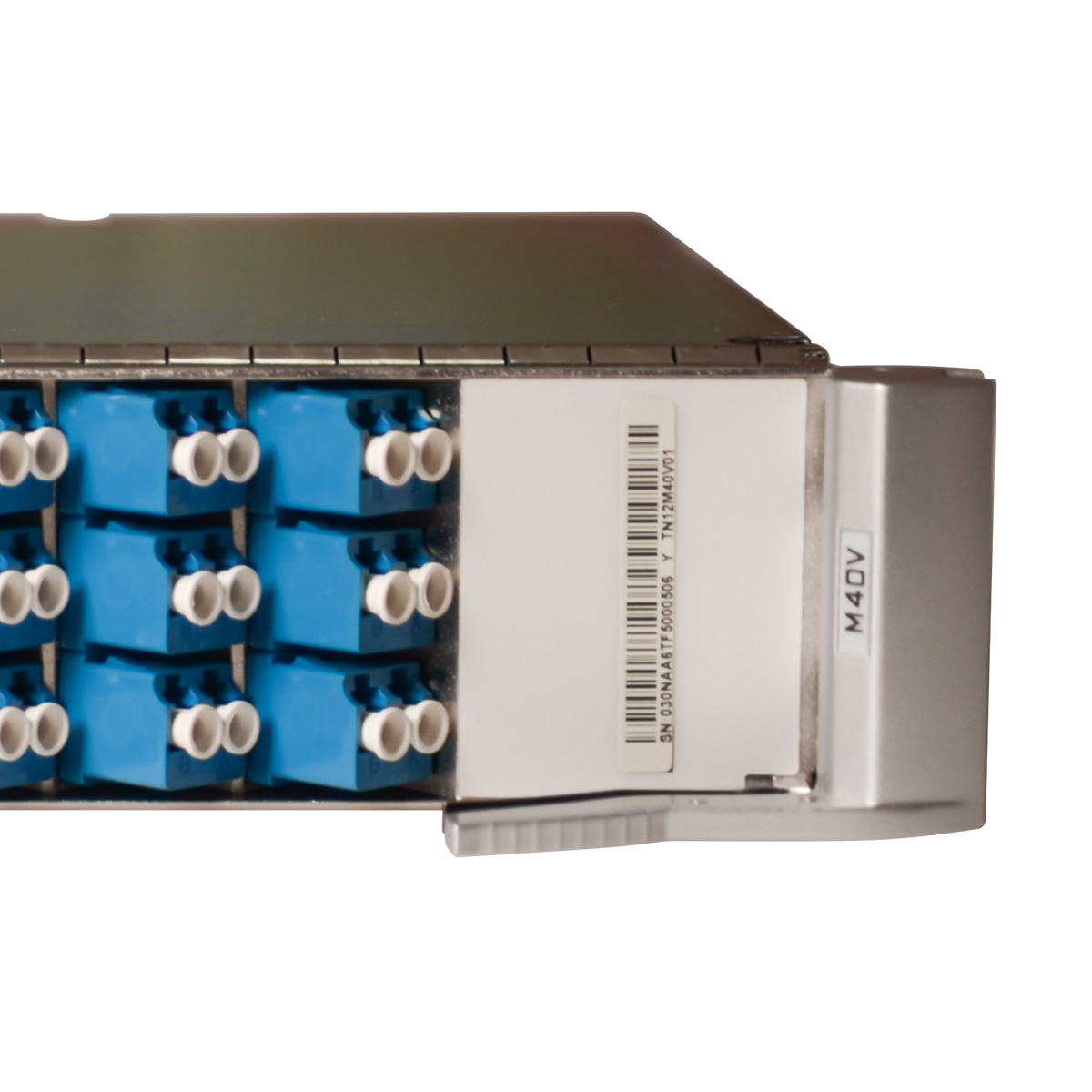

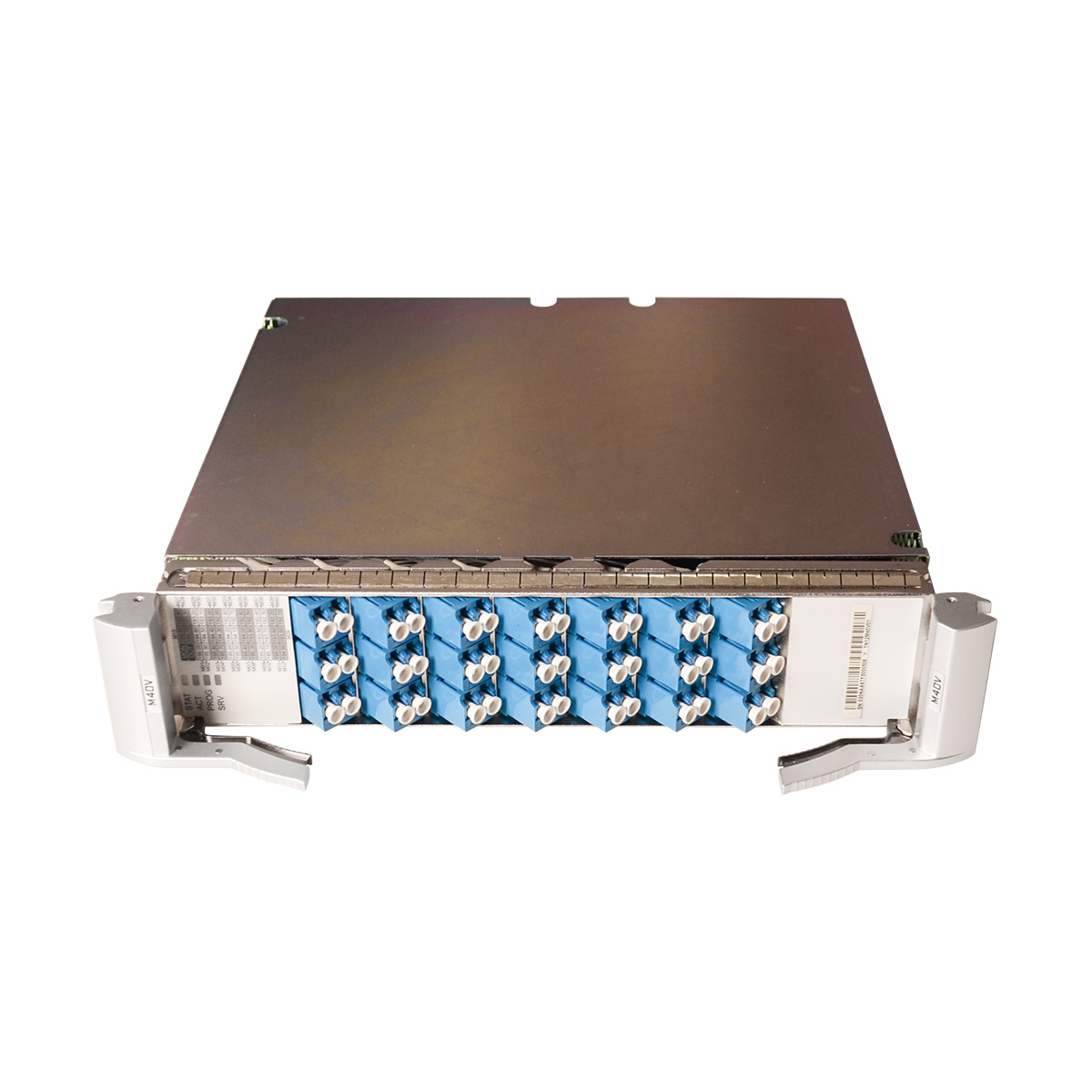

TN12M40V01

40-Channel Multiplexing Board With VOA

Huawei

SKU: 03030NAA Category:

Description

Huawei OSN6800 OSN8800 40-Channel Multiplexing Board With VOA(C_Even,196.00THz~192.10THz,100GHz,LC)

Optical Interface Parameter
Adjacent channel spacing(GHz) 100
Insertion loss(dB) <= 8a
Reflectance(dB) < -40
Operating wavelength range(nm) 1529-1561
Adjacent channel isolation(dB) > 22
Non-adjacent channel isolation(dB) > 25
Attenuation range(dB) 0-15
Loss accuracy(dB) <= 1 (0 to 10)

10)

Polarization dependent loss(dB) <= 0.5
Maximum channel insertion loss difference(dB) <= 3a
Mechanical Specifications
Dimensions(mm) 50.8(W) x 220(D) x 264.6(H)
Weight(kg) 2.3
