302

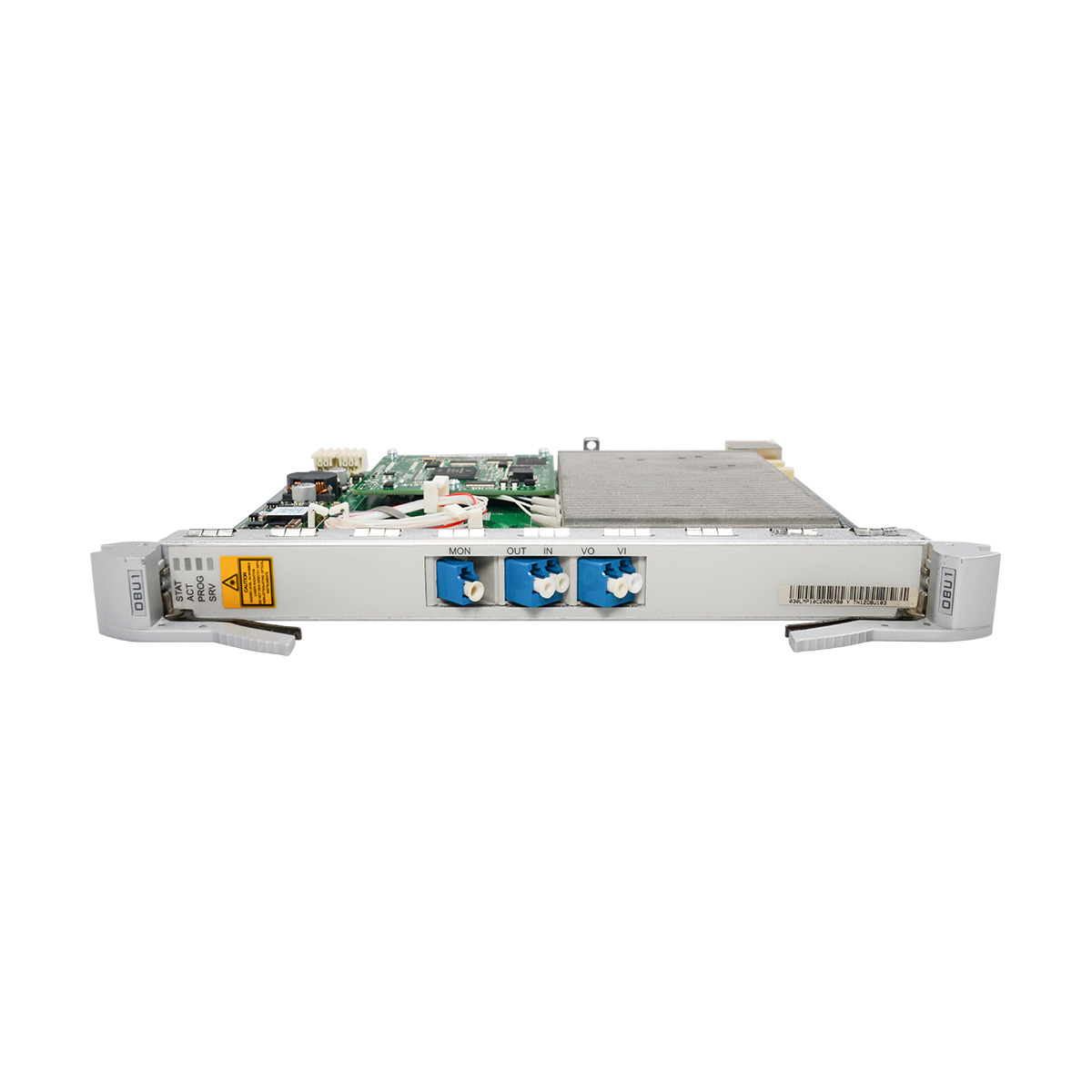

TN12OBU103

PN 03030LMP
$302.00 Bulk Purchase
23dB Optical Booster Unit
Shenzhen Warehouse
lead time 3-5 days
- +
Overview

Huawei OSN6800 OSN8800 C-BAND Optical Booster Unit(MAX -3dBm IN and 20dBm OUT, Gain 23 dB)

Optical Specifications
Item Value
Operating wavelength range(nm) 1529-1561
Nominal input power range(dBm) -32 to -3
Input power range per channel(dBm) 40 channels -32 to -19
  80 channels -32 to -22
Nominal single-wavelength input optical power(dBm) 40 channels  -19
80 channels -22
Nominal single-wavelength output optical power(dBm) 40 channels 4
80 channels 1
Noise figure (NF)a(dB) <= 6.0
Gain response time on adding/dropping of channels(ms) 23
Channel gain(dB) 20±1.5
Gain flatness(dB) <= 2.0
Input reflectance(dB) < -40
Output reflectance(dB) < -40
Pump leakage at input(dBm) < -30
Maximum reflectance tolerance at input(dB) -27
Maximum reflectance tolerance at output(dB) -27
Maximum total output optical power(dBm) 20
Polarization dependent loss(dB) <= 0.5
VI-VOb(dB) Inherent insertion loss <= 1.5
Dynamic attenuation range 20
Adjustment accuracyb(dB) 1
Mechanical Specifications
Dimensions(mm) 264.6(H) x 25.4(W) x 220(D)
Weight(kg) 1.1
