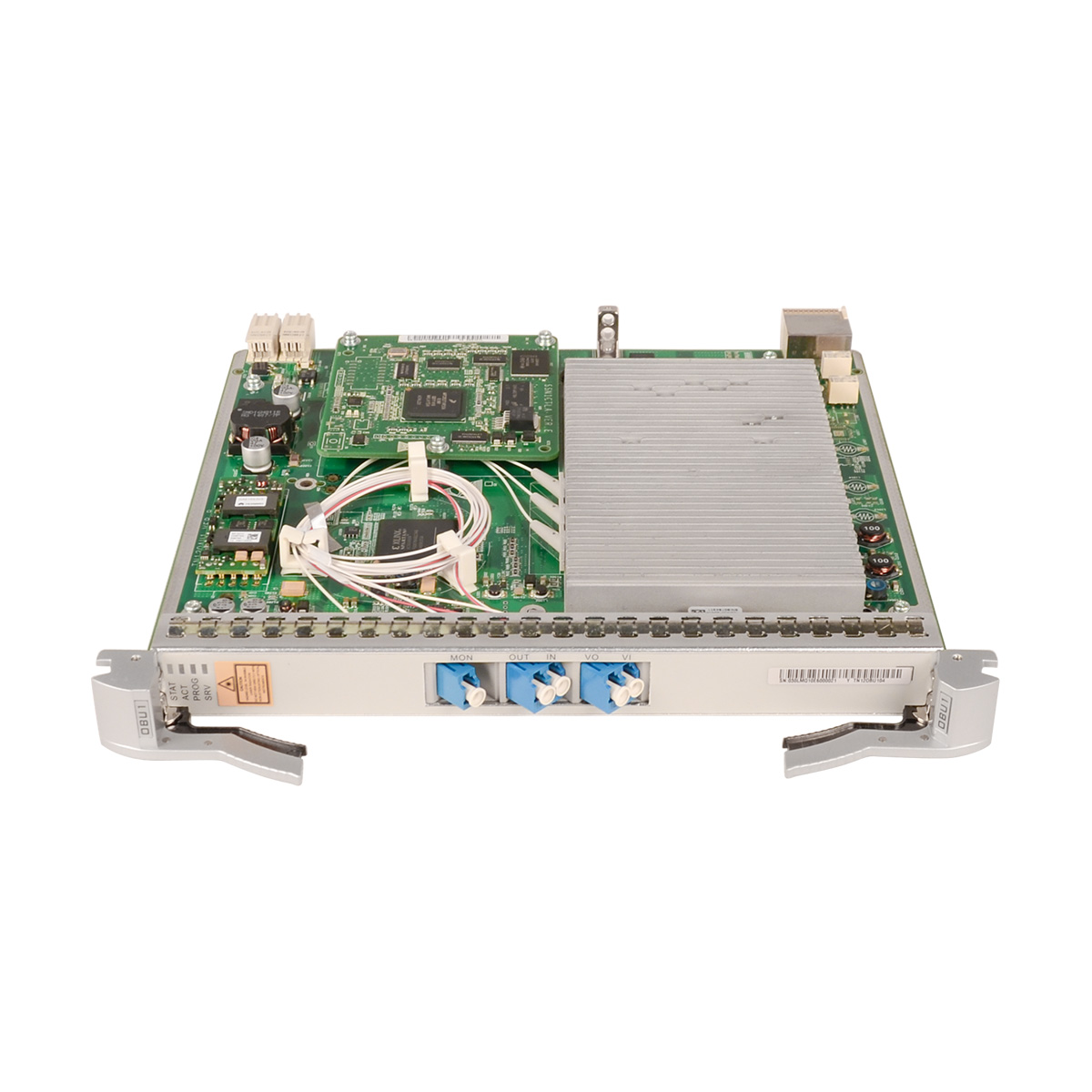

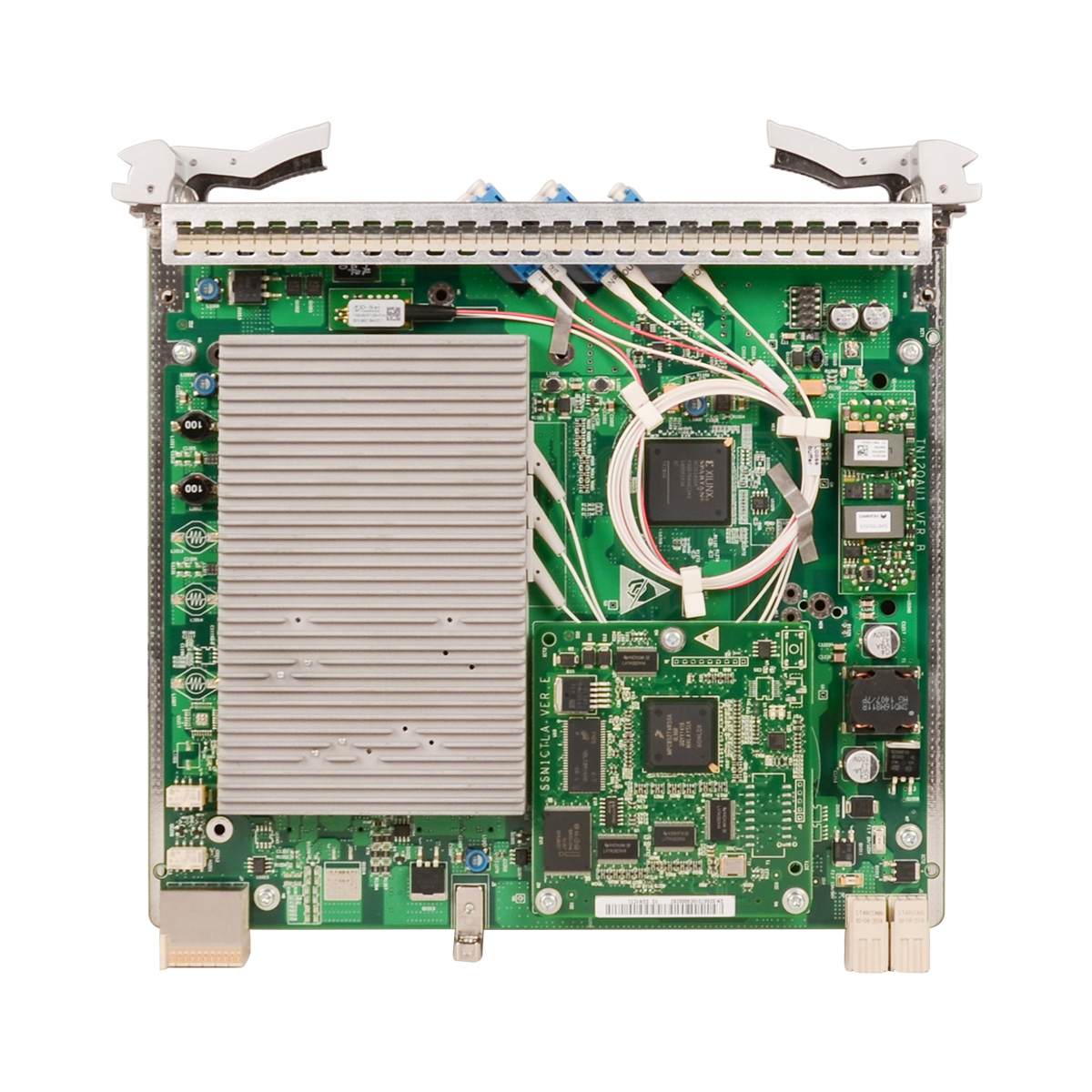

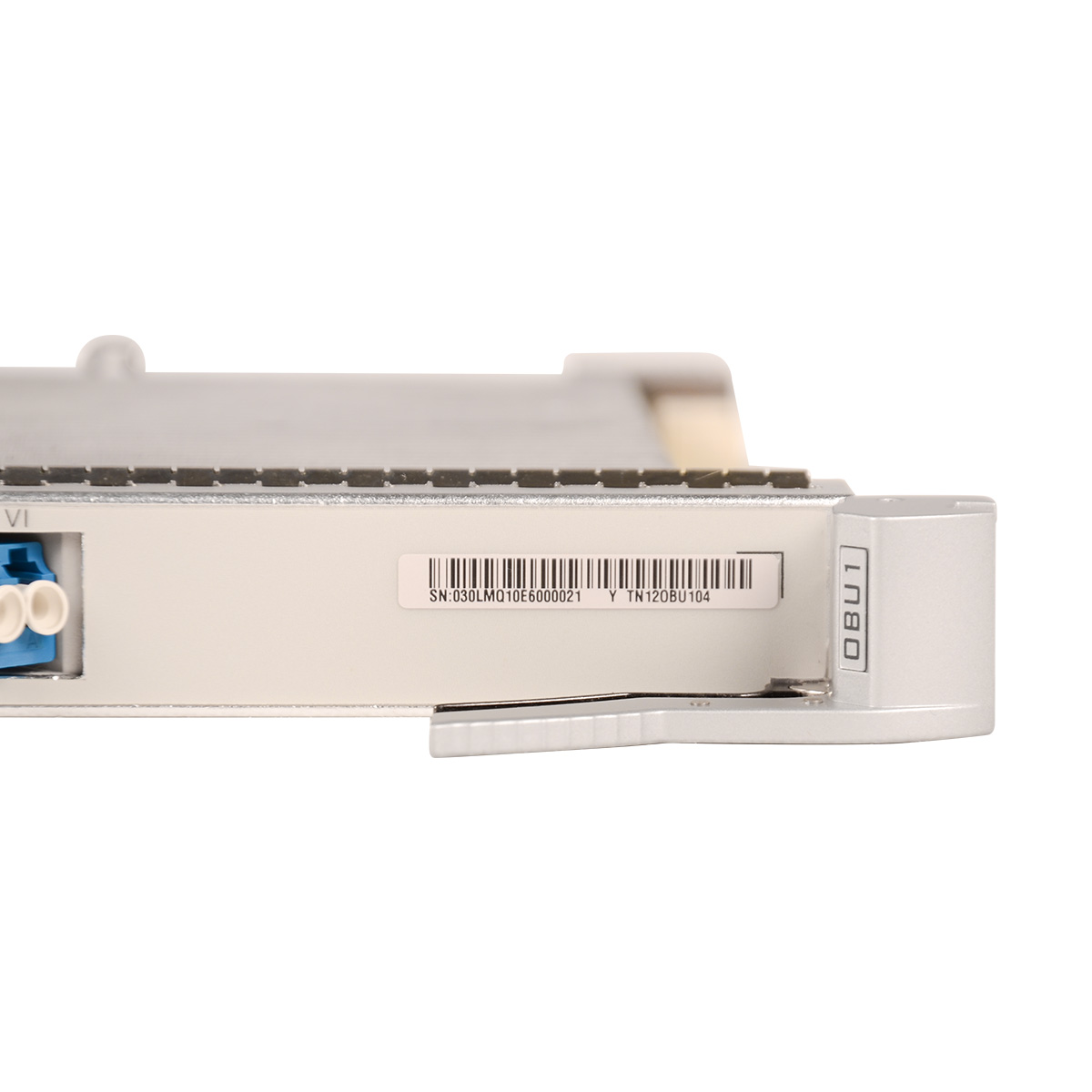

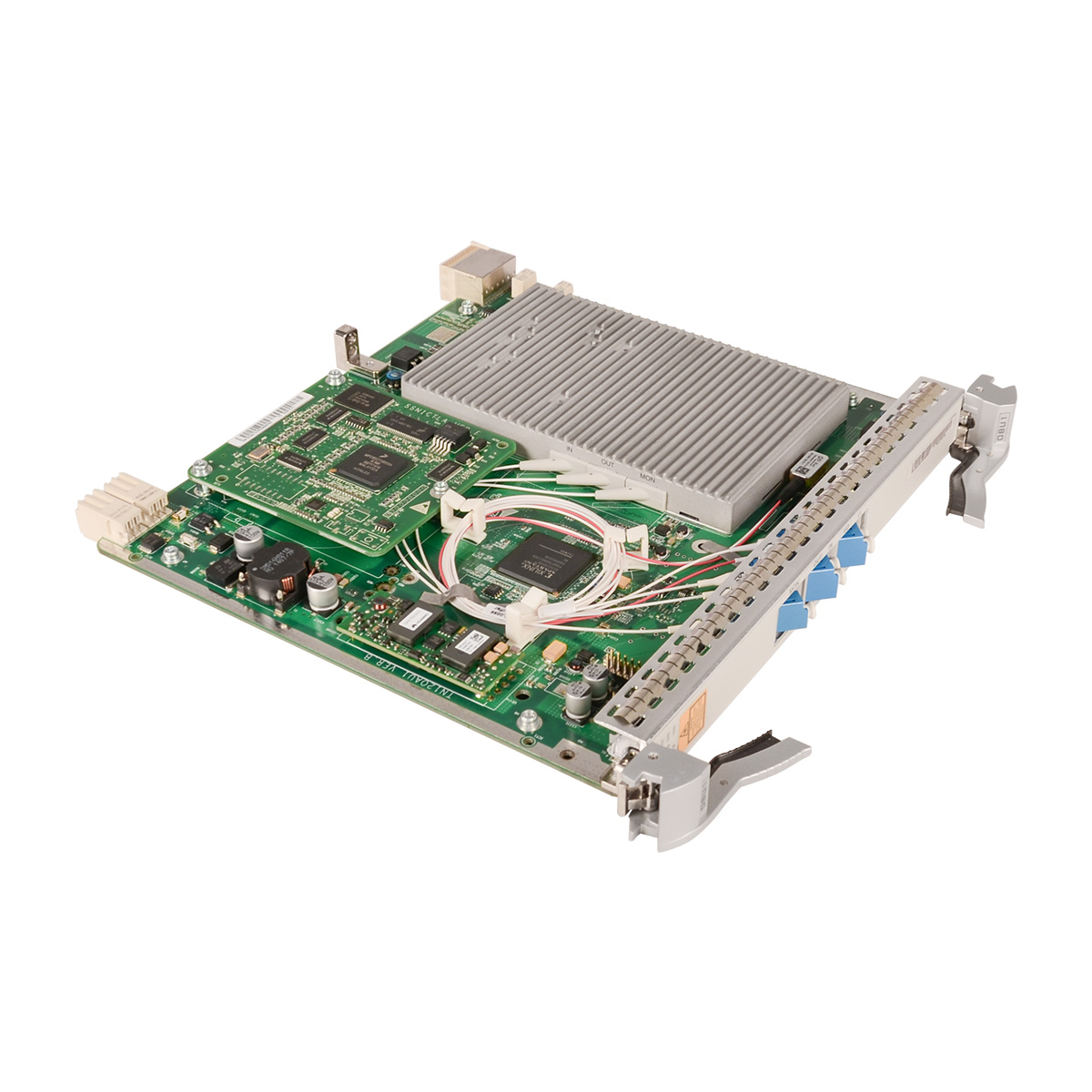

Huawei OSN6800 OSN8800 C-BAND Optical Booster Unit(MAX -1dBm IN and 16dBm OUT, Gain 17dB)
| Optical Specifications | |||
| Item | Value | ||
| Operating wavelength range(nm) | 1529-1561 | ||
| Nominal input power range(dBm) | -32 to -1 | ||
| Input power range per channel(dBm) | 40 channels | -32 to -17 | |
| 80 channels | -32 to -20 | ||
| Nominal single-wavelength input optical power(dBm) | 40 channels | -17 | |
| 80 channels | -20 | ||
| Nominal single-wavelength output optical power(dBm) | 40 channels | 0 | |
| 80 channels | -3 | ||
| Noise figure (NF)a(dB) | <= 5.5 | ||
| Gain response time on adding/dropping of channels(ms) | <10 | ||
| Channel gain(dB) | 17±1.5 | ||
| Gain flatness(dB) | <= 2.0 | ||
| Input reflectance(dB) | < -40 | ||
| Output reflectance(dB) | < -40 | ||
| Pump leakage at input(dBm) | < -30 | ||
| Maximum reflectance tolerance at input(dB) | -27 | ||
| Maximum reflectance tolerance at output(dB) | -27 | ||
| Maximum total output optical power(dBm) | 16 | ||
| Polarization dependent loss(dB) | <= 0.5 | ||
| VI-VOb(dB) | Inherent insertion loss | <= 1.5 | |
| Dynamic attenuation range | 20 | ||
| Adjustment accuracyb(dB) | 1 | ||
| Mechanical Specifications | |||
| Dimensions(mm) | 264.6(H) x 25.4(W) x 220(D) | ||
| Weight(kg) | 1.1 | ||
