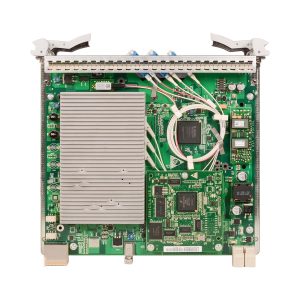

TN12OBU205

23dB Optical Booster Unit

Huawei

SKU: 03030LMR Category:

Description

Huawei OSN6800 OSN8800 C-BAND Optical Booster Unit(MAX 0dBm IN and 23dBm OUT, Gain 23dB)

Optical Specifications
Item Value
Operating wavelength range(nm) 1529-1561
Nominal input power range(dBm) -24 to 0
Input power range per channel(dBm) 40 channels -24 to -16
80 channels -24 to -19
Nominal single-wavelength input optical power(dBm) 40 channels -16
80 channels -19
Nominal single-wavelength output optical power(dBm) 40 channels 7
80 channels 4
Noise figure (NF)a(dB) <7.0
Gain response time on adding/dropping of channels(ms) 23
Channel gain(dB) 23±1.5
Gain flatness(dB) <= 2.0
Input reflectance(dB) < -40
Output reflectance(dB) < -40
Pump leakage at input(dBm) < -30
Maximum reflectance tolerance at input(dB) -27
Maximum reflectance tolerance at output(dB) -27
Maximum total output optical power(dBm) 23
Polarization dependent loss(dB) <= 0.5
VI-VOb(dB) Inherent insertion loss <= 1.5
Dynamic attenuation range 20
Adjustment accuracyb(dB) 1
Mechanical Specifications
Dimensions(mm) 264.6(H) x 50.8(W) x 220(D)
Weight(kg) 1.6
