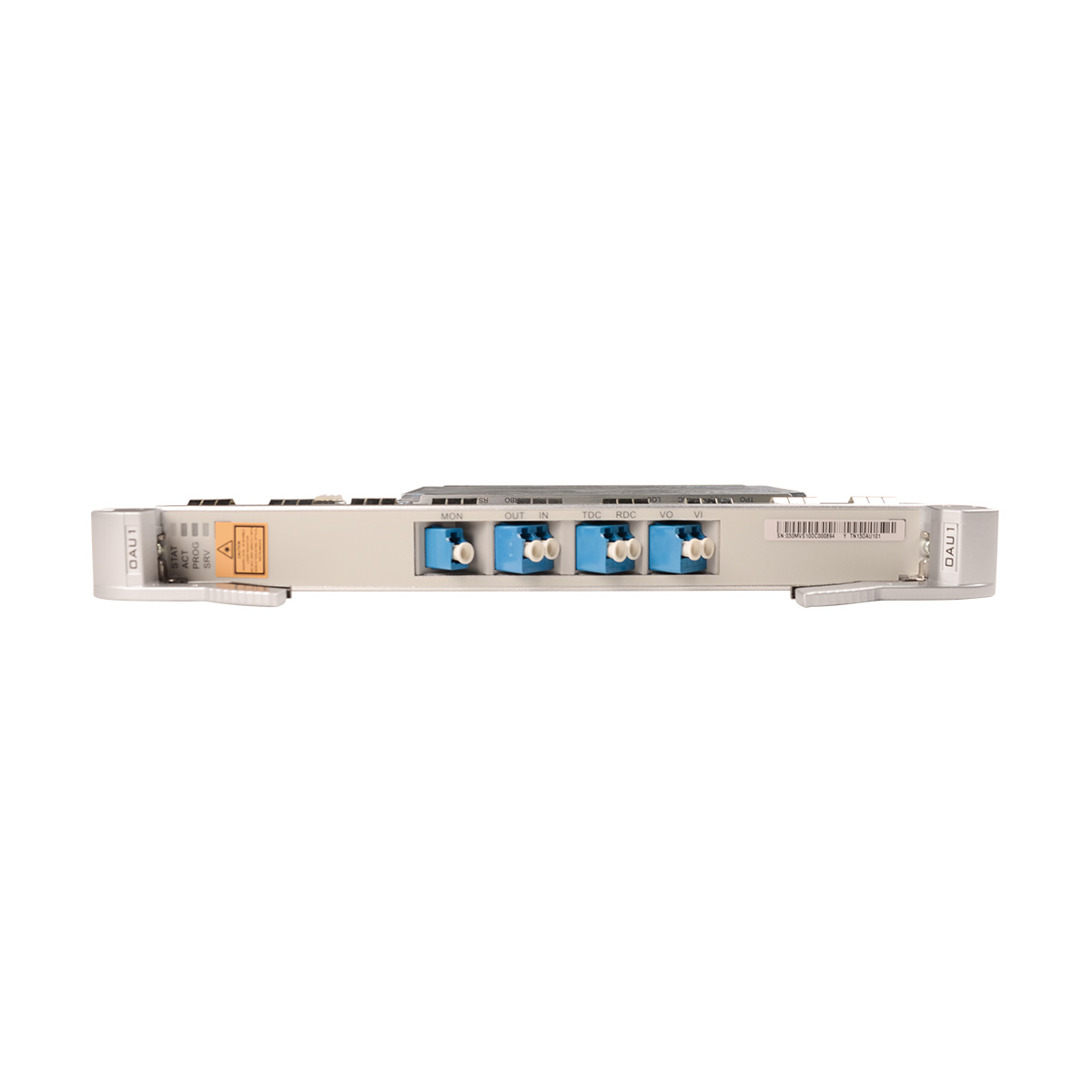

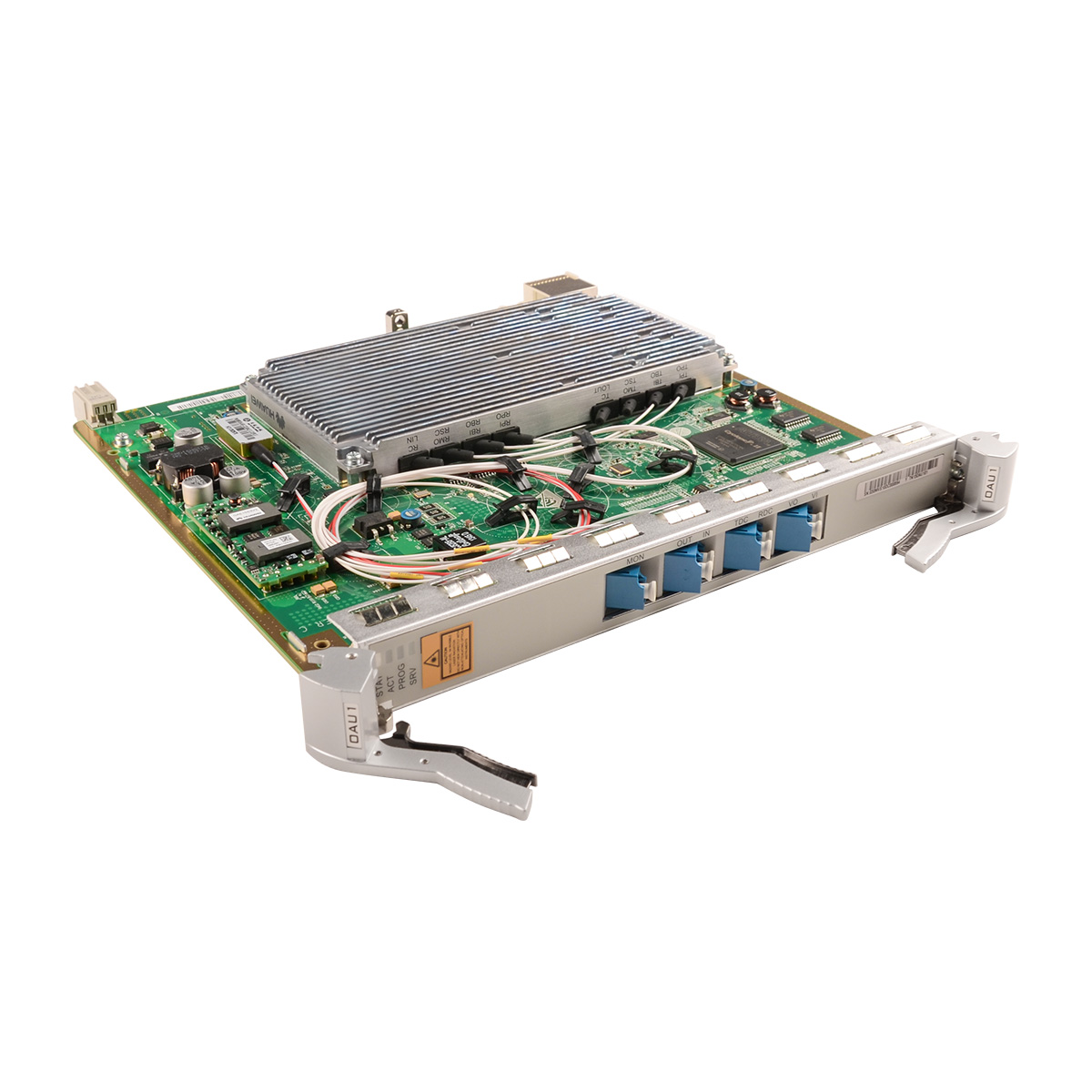

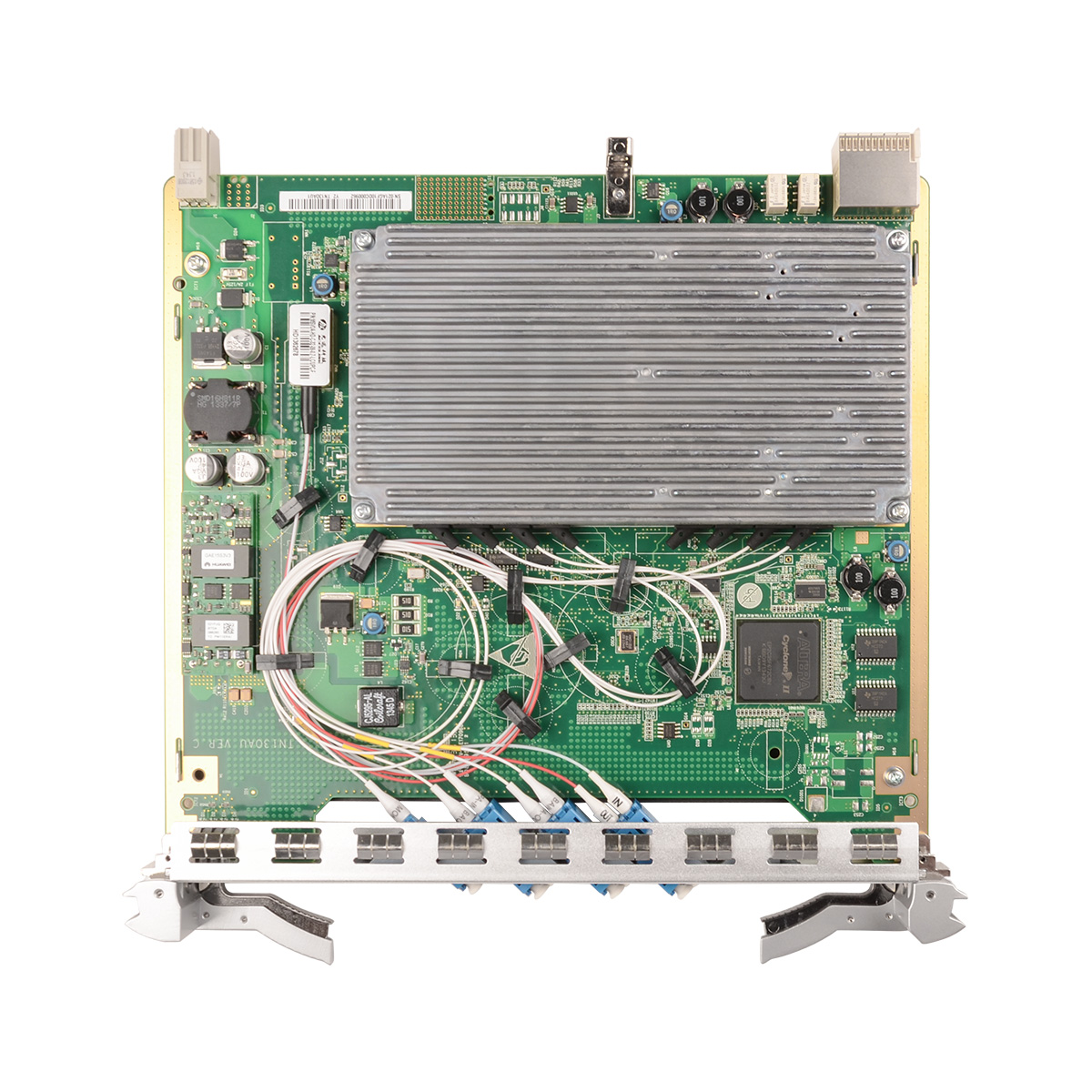

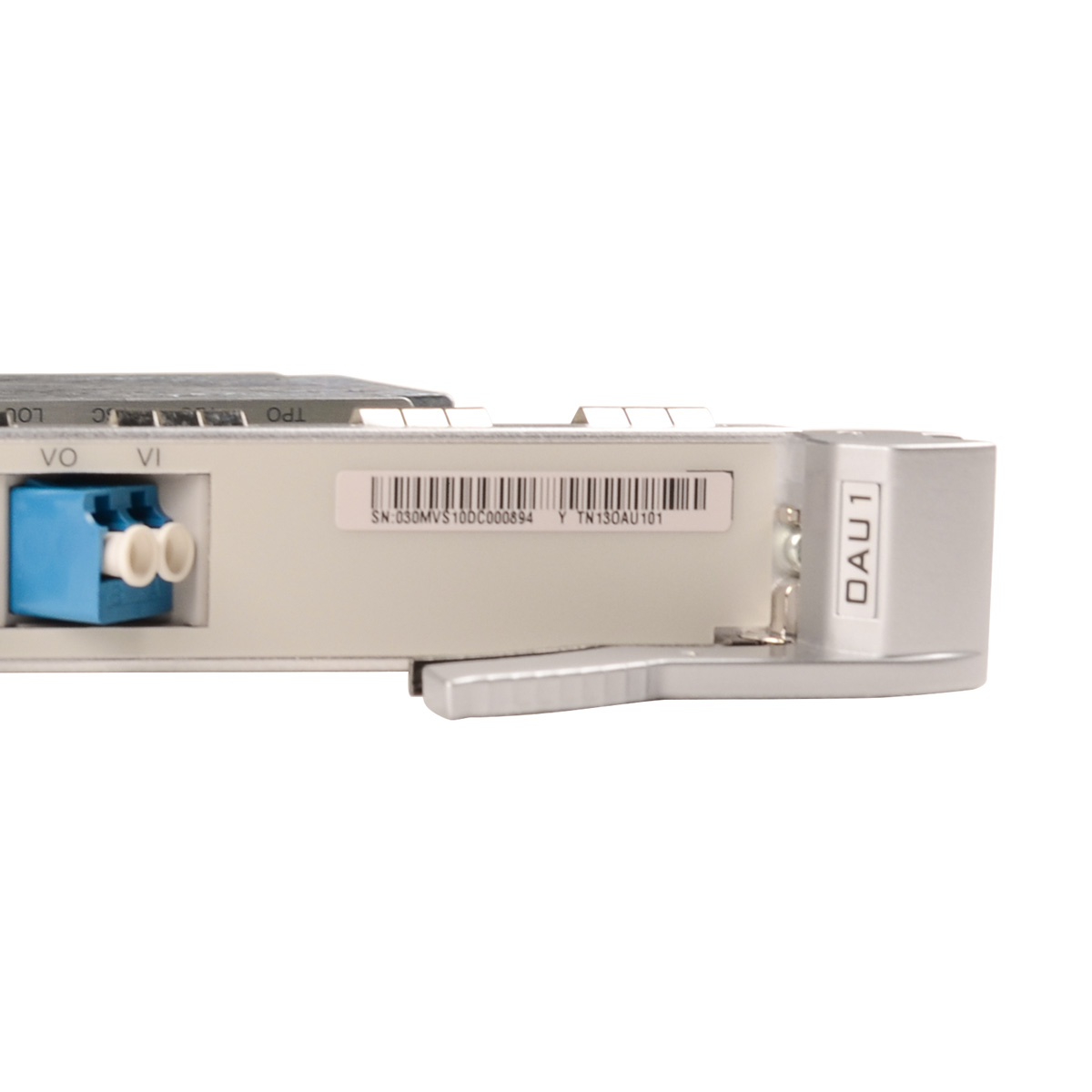

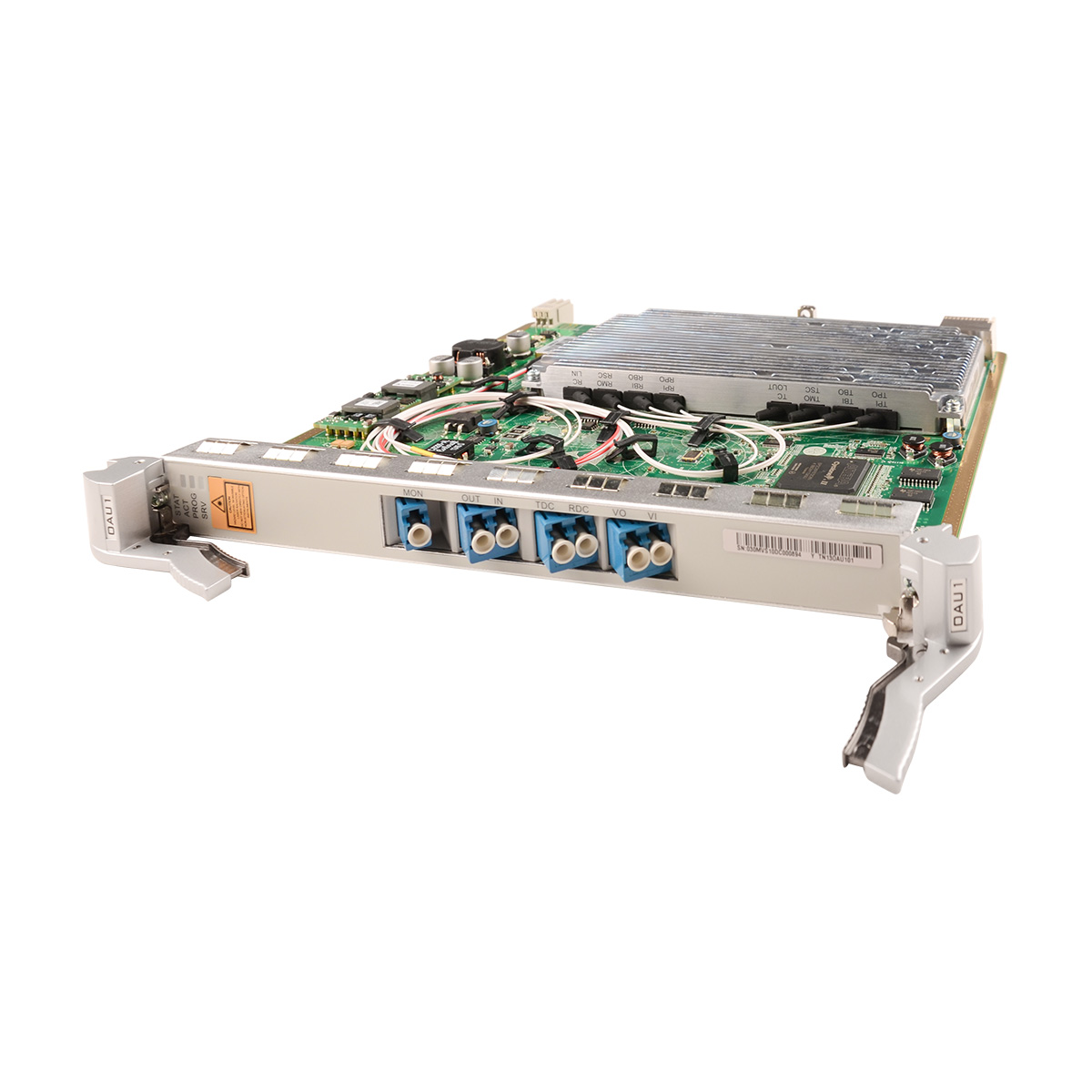

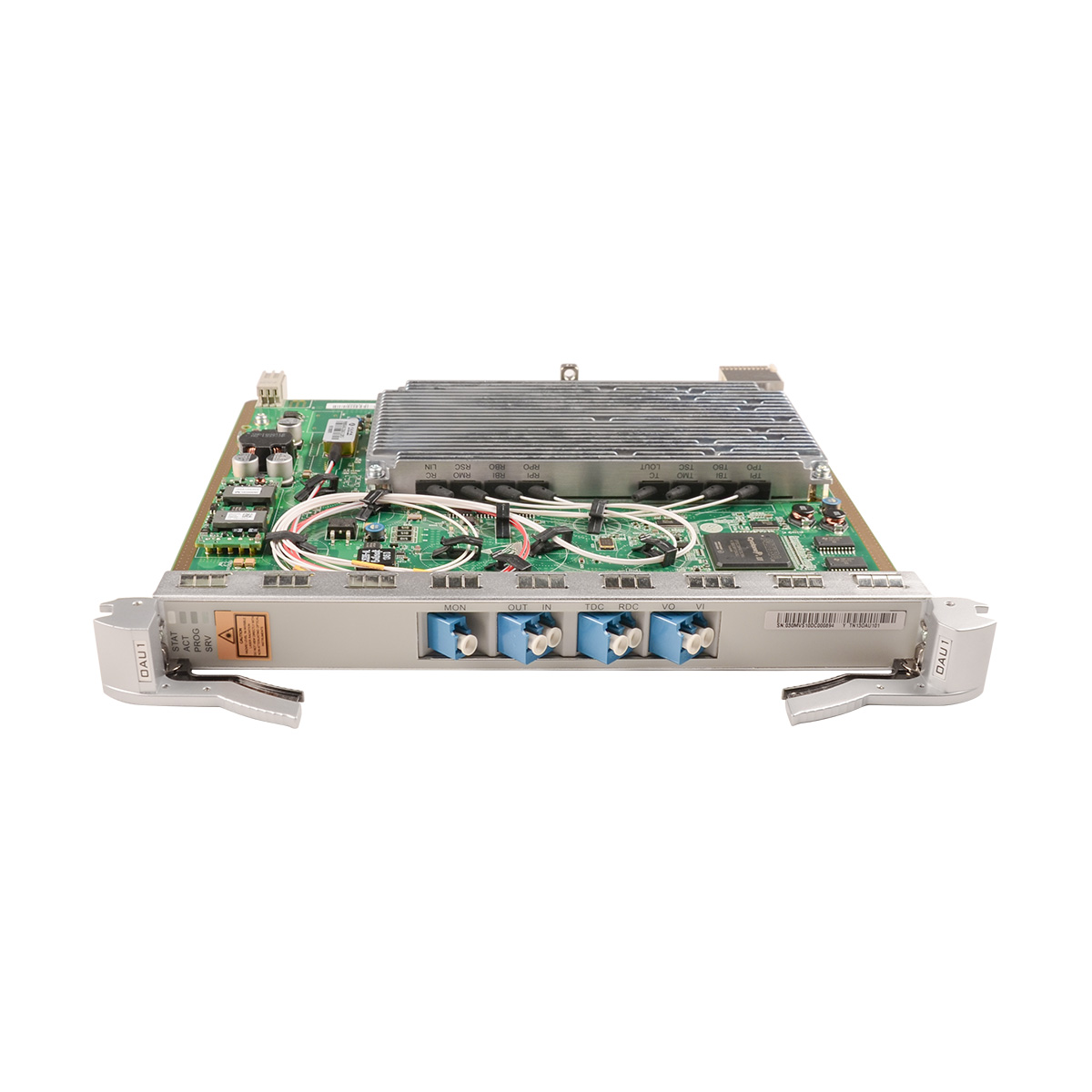

TN13OAU101

20 to 31dB Optical Amplifier Unit

SKU: 4563 PN: 03030MVS Category:

Description

Huawei OSN6800 OSN8800 C-BAND Optical Amplifier Unit(MAX -4dBm IN and 20dBm OUT, Gain 20 to 31 dB)

Optical Specifications
Item Value
Operating wavelength range(nm) 1529-1561 1529-1561 1529-1561
Nominal gain(dB) 20 26 31
Nominal input power range(dBm) -32 to 0 -32 to -6 -32 to -11
Input power range per channel(dBm) 40 channels -32 to -16 -32 to -22 -32 to -27
80 channels -32 to -19 -32 to -25 -32 to -30
Nominal single-wavelength input optical power(dBm) 40 channels -16 -22 -27
80 channels -19 -25 -30
Nominal single-wavelength output optical power(dBm) 40 channels 4 4 4
80 channels 1 1 1
Noise figure (NF)a(dBm) <= 7.5 <= 5.5 <= 5.5
Gain response time on adding/dropping of channels(ms) < 10 < 10 < 10
Channel gain(dB) 20 to 31
Gain flatness(dB) <= 2.0 <= 2.0 <= 2.0
Multi-channel gain slope(dB) <= 2.0 <= 2.0 <= 2.0
Input reflectance(dB) < -40 < -40 < -40
Output reflectance(dB) < -40 < -40 < -40
Pump leakage at input(dBm) < -30 < -30 < -30
Maximum reflectance tolerance at input(dB) -27 -27 -27
Maximum reflectance tolerance at output(dB) -27 -27 -27
Maximum total output optical power(dBm) 20 20 20
Polarization dependent loss(dB) <= 0.5 <= 0.5 <= 0.5
VI-VOb(dB) Inherent insertion loss <= 1.5
Dynamic attenuation range 20
Adjustment accuracyb(dB) 1
Mechanical Specifications
Dimensions(mm) 264.6(H) x 25.4(W) x 220(D)
Weight(kg) 1.6
