TN52TDX01 2x10G 10km

TN52TDX01 2x10G 10km

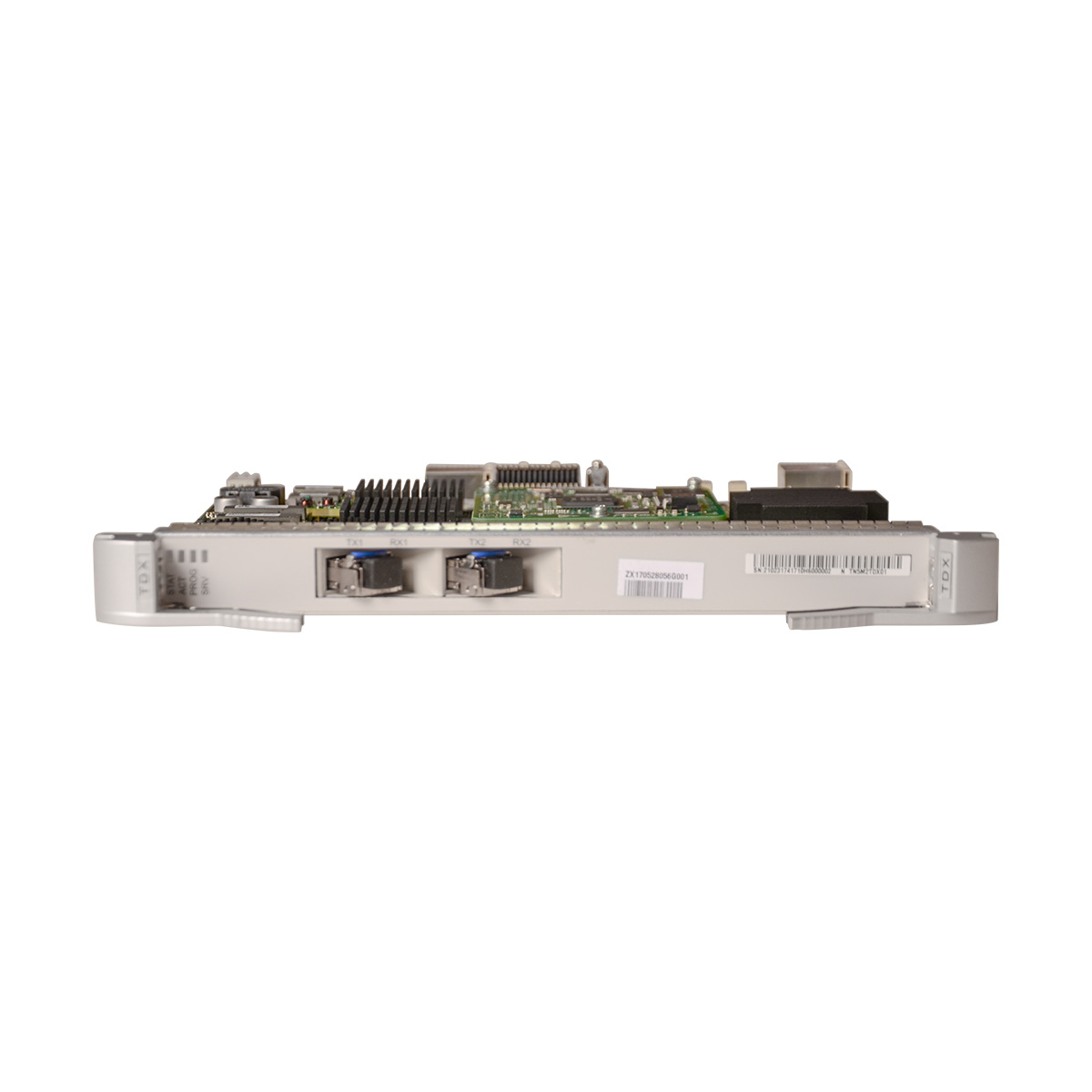

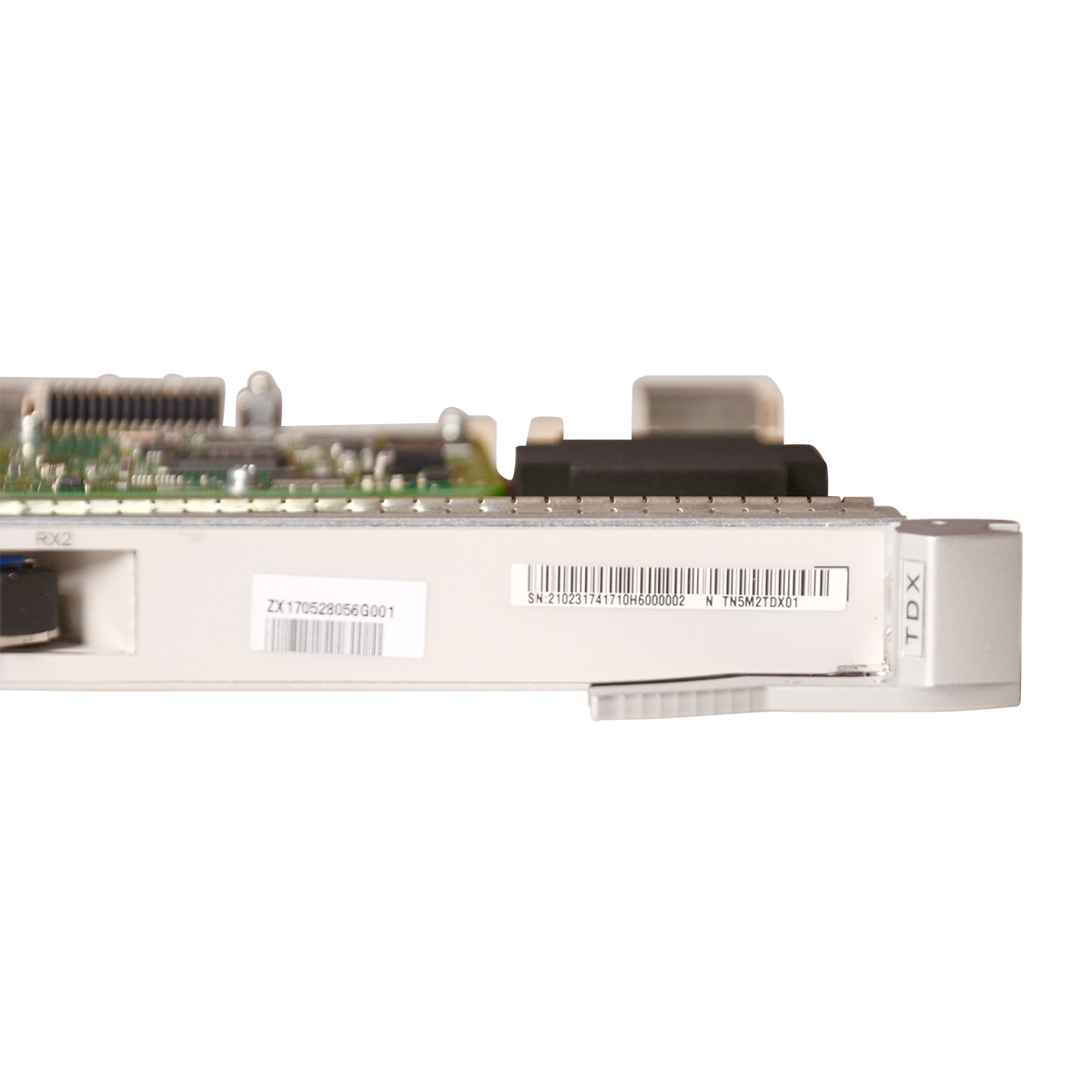

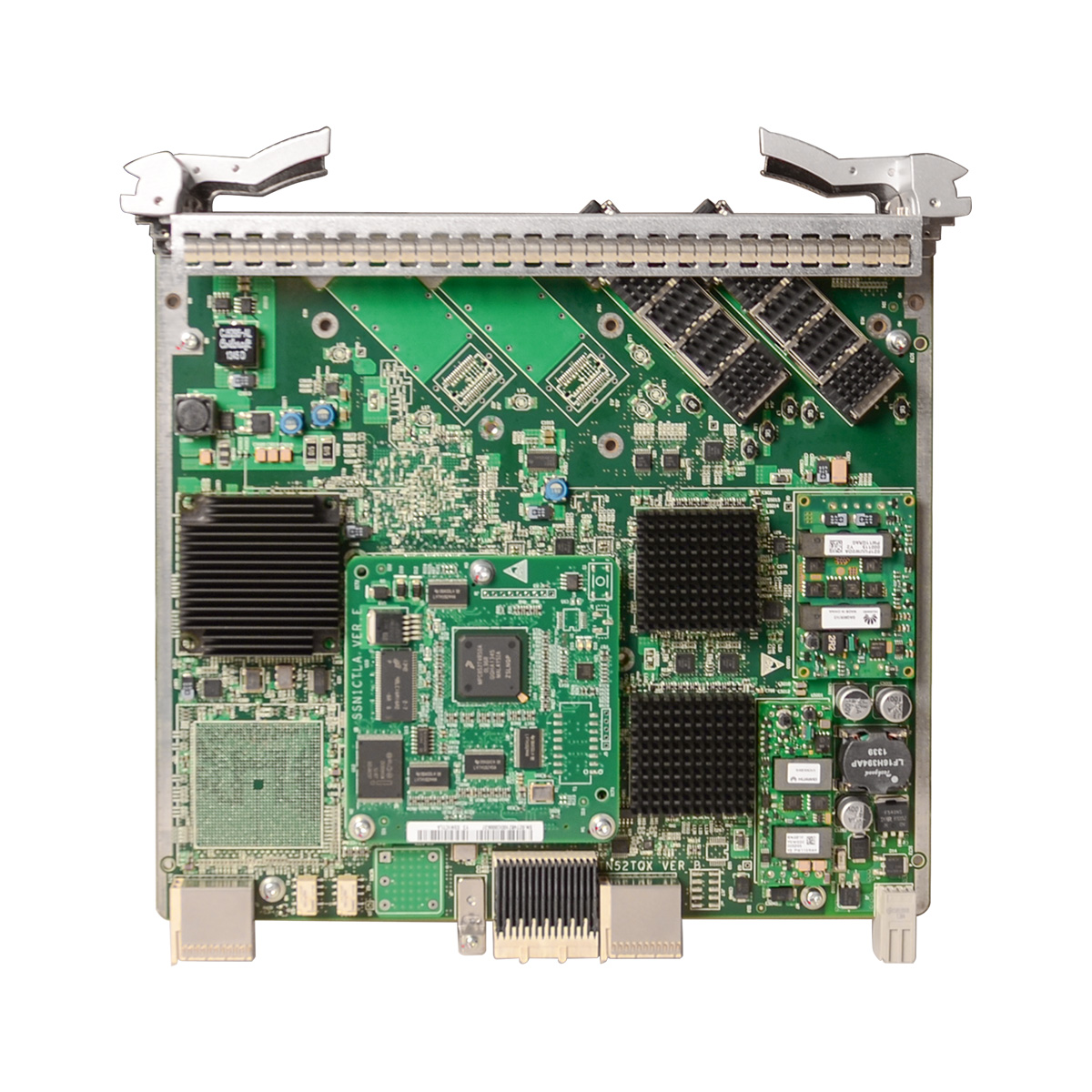

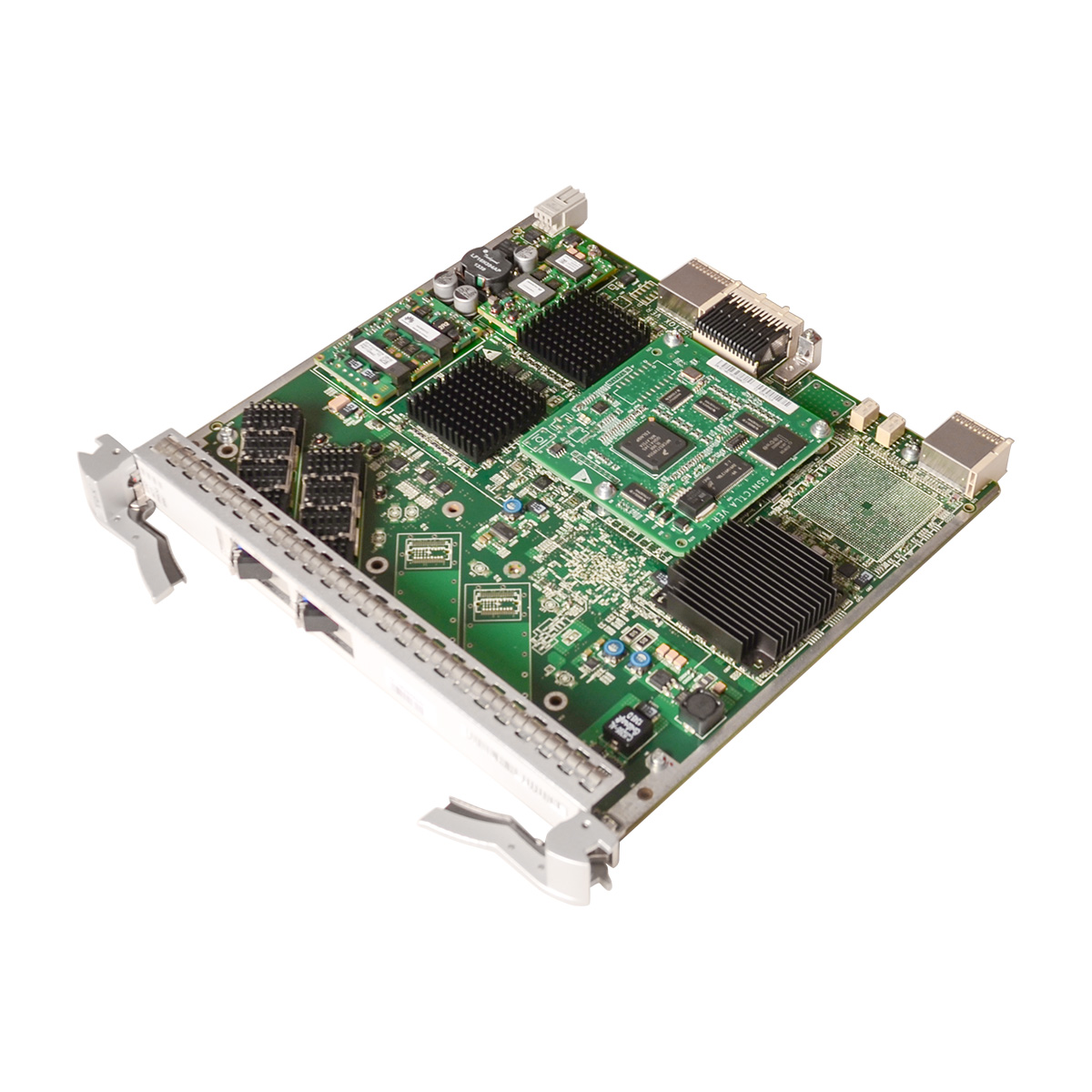

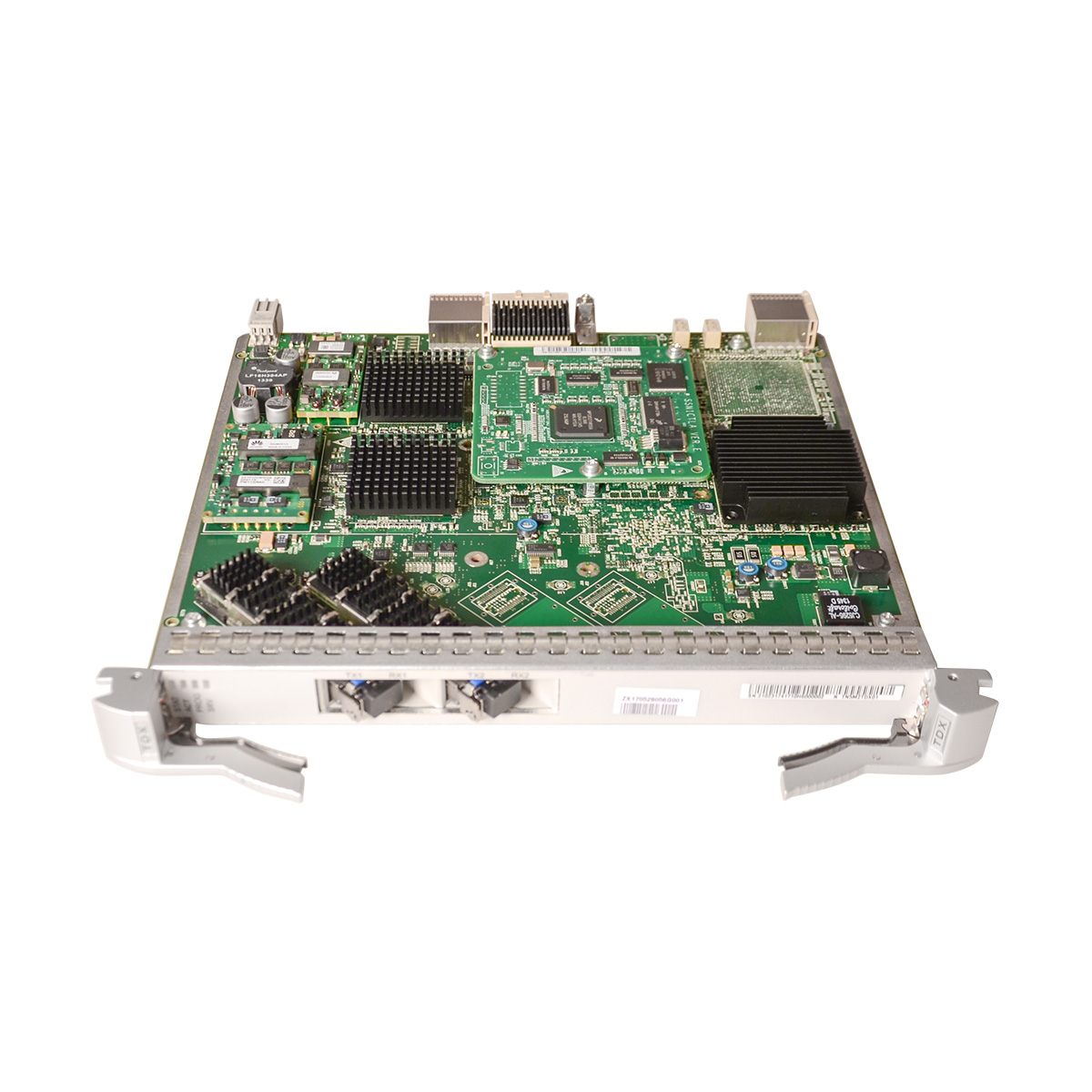

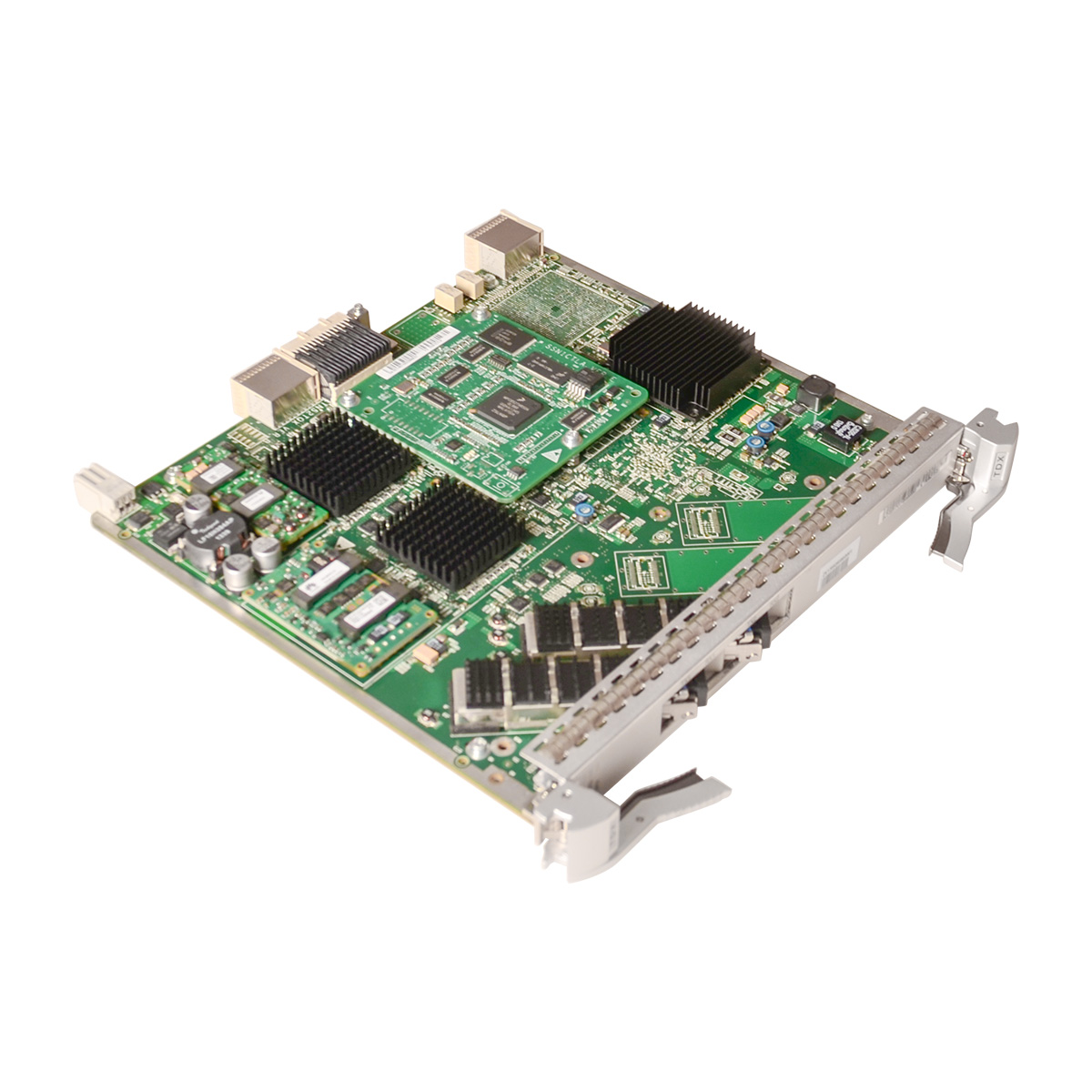

TN52TDX01 Board With 2 10G 10km XFP

SKU: 02317417 Category:

Description

Huawei OSN6800 OSN8800 2x10G Tributary Service Processing Board With 2PCS 10G-10km-XFP Client-Side Pluggable Modules

WDM client-side optical module

10 Gbit/s Multirate-10 km-XFP

10 Gbit/s Multirate-40 km-XFP

10 Gbit/s Multirate-80 km-XFP

10 Gbit/s Single Rate-0.3 km-XFP

WDM client-side equipped optical module
Parameter Value
Optical Module Type 10 Gbit/s Multirate-10km-XFP
Line code format NRZ
Optical source type SLM
Target transmission distance (jkm) 10
Transmitter parameter specifications at point S
Operating wavelength range(nm) 1290 to 1330
Maximum mean launched power(dBm) -1
Minimum mean launched power(dBm) -6
Minimum extinction ratio(dB) 6
Minimum side mode suppression ratio(dB) 30
Eye pattern mask G.691-compliant
Receiver parameter specifications at point R
Receiver type PIN
Operating wavelength range(nm) 1260 to 1565
Receiver sensitivity (multirate)(dBm) -11
Receiver sensitivity (10GE LAN)(dBm) -14.4
Minimum receiver overload(10GE LAN)(dBm) 0.5
Minimum receiver overload (STM-64)(dBm) -1
Maximum reflectance(dB) -27
Mechanical Specifications
Dimensions(mm) 264.6(H) x 25.4(W) x 220(D)
Weight(kg) 1.4
