TN54NS4T01
100G Tunable Wavelength WDM Line Service Processing Board
- Description
- Reviews (1)
Description

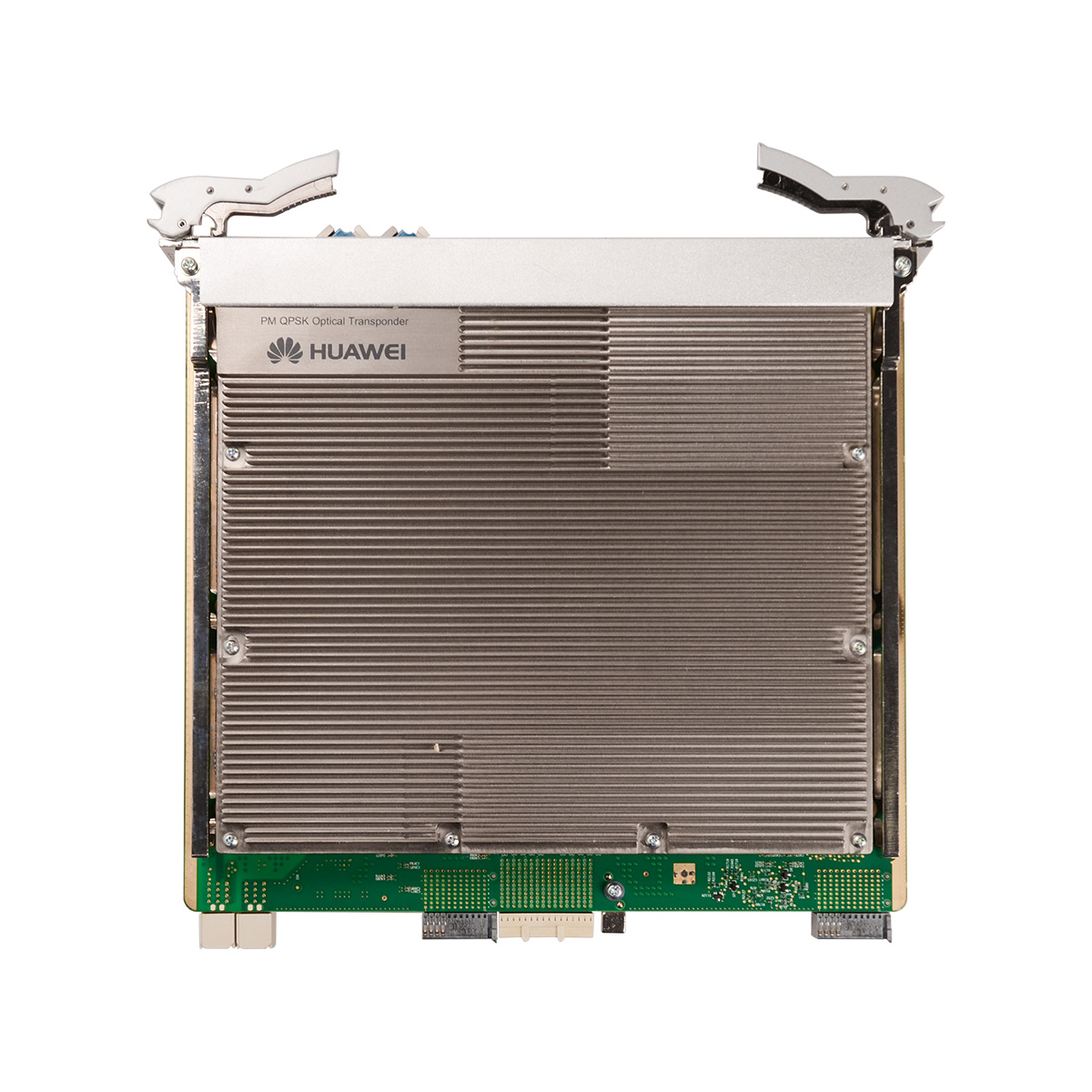

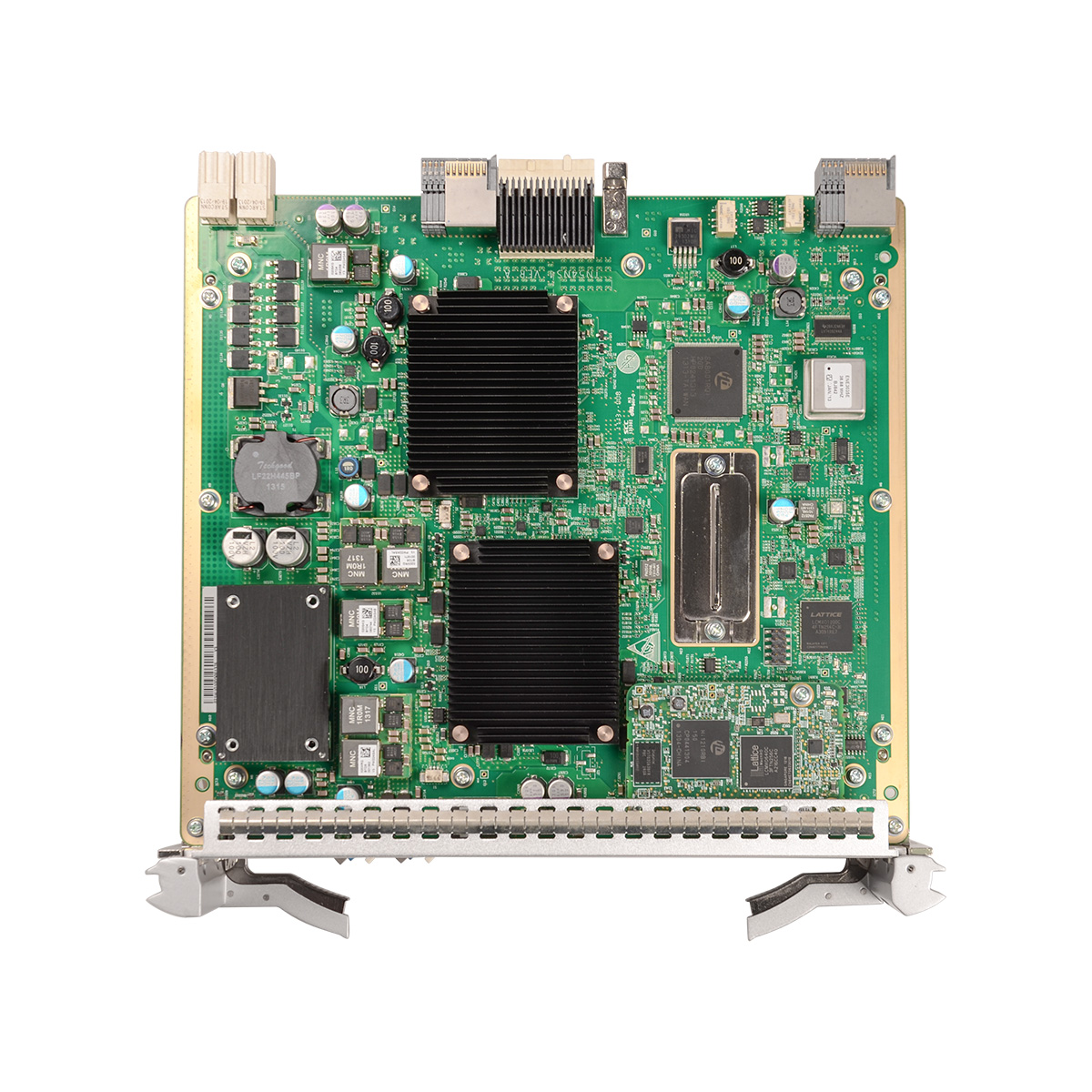

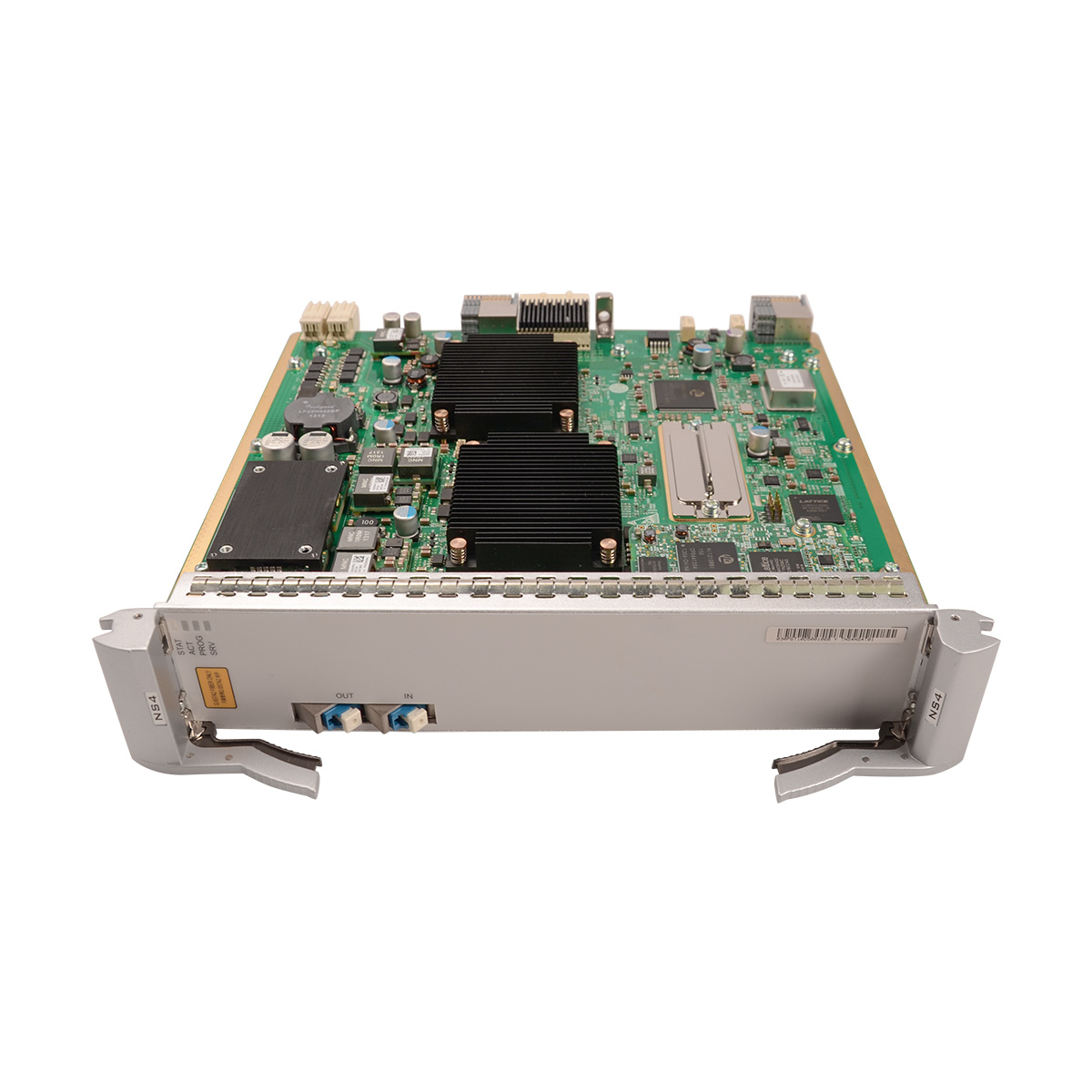

Huawei OSN8800 100G Line Service Processing Board(40000 ps/nm,LH,HFEC,Coherent,Tunable,50GHz,LC)
| Optical Interface Parameter | |
| Parameter | Value |
| Optical Module Type | 40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(HFEC)-PIN |
| Line code format | ePDM-QPSK(HFEC) |
| Transmitter parameter specifications at point S | |
| Center frequency(THz) | 192.1 to 196.05 |
| Maximum mean launched power(dBm) | 0 |
| Minimum mean launched power(dBm) | -5 |
| Center frequency deviation(GHz) | ±2.5 |
| Maximum -3 dB spectral width(nm) | 0.35 |
| Dispersion tolerance (back-to-back)(ps/nm) | 40000 |
| Receiver parameter specifications at point R | |
| Receiver type | PIN |
| Operating wavelength range(nm) | 1529 to 1561 |
| Receiver sensitivity(dBm) | -16 |
| Minimum receiver overload(dBm) | 0 |
| Maximum reflectance(dB) | -27 |
| Mechanical Specifications | |
| Dimensions(mm) | 50.8(W) x 220(D) x 264.6(H) |
| Weight(kg) | 2.5 |
