Description

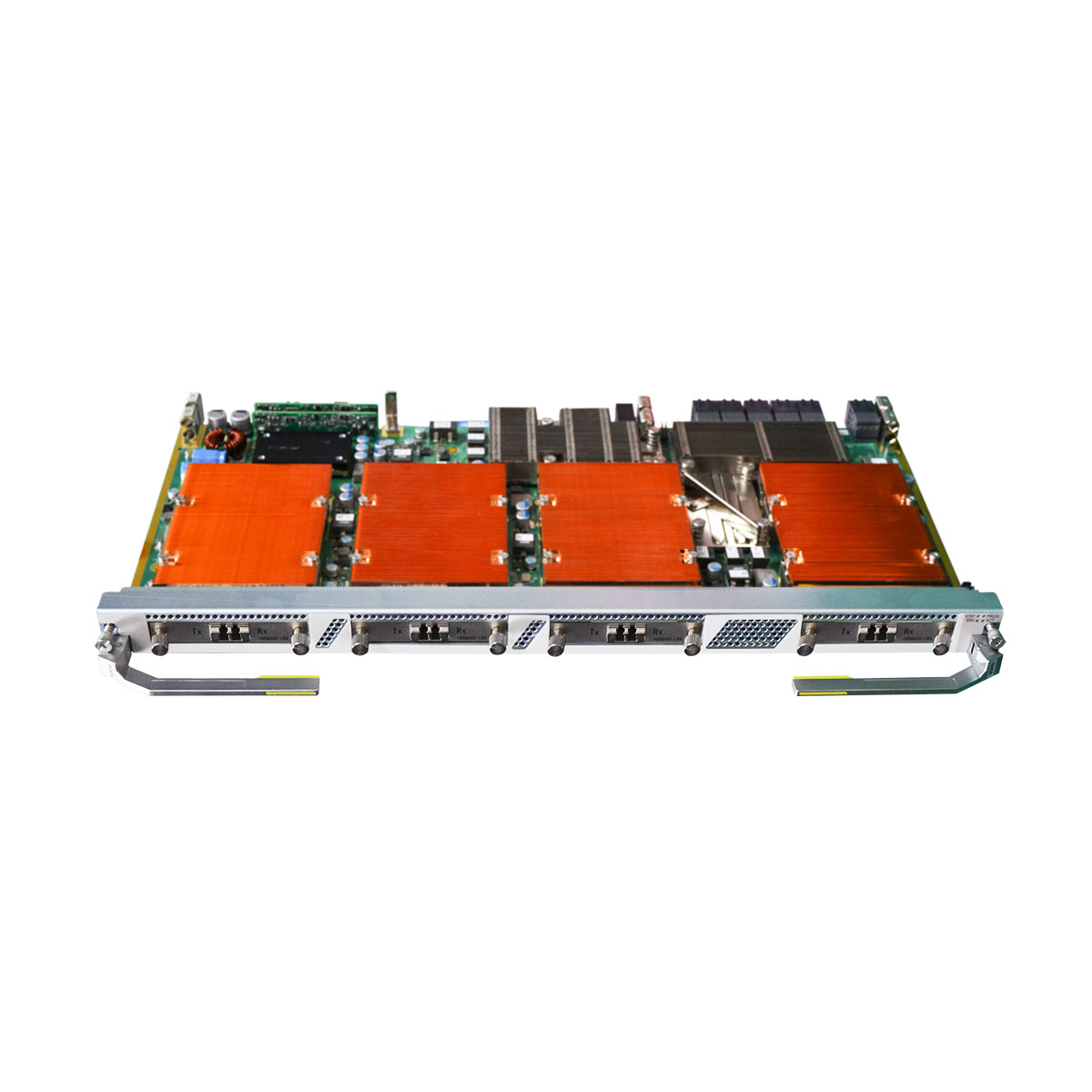

TNU5N404 overview
TNU5N404 4*100 Gbit/s Line Service Processing Board applied to Huawei OptiX OSN 9800 U64/U32/U16/M24.
To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.
Power consumption
| TNU5N404 | WDM-Side Optical Module | Maximum Power Consumptiona (W) | Typical Power Consumption (W) |
| CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP | 160 | 262 | |
| other optical modules | 250 |

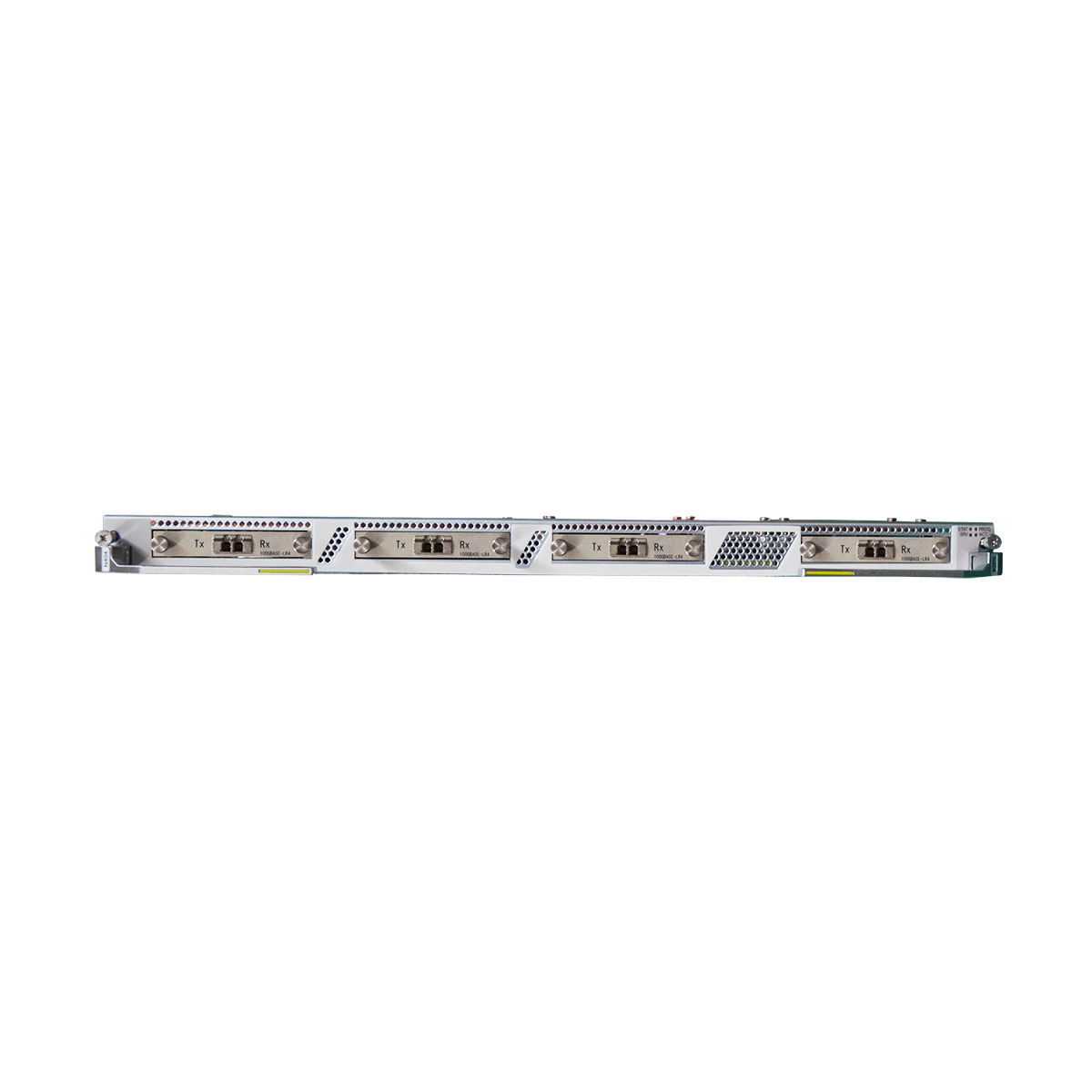

Front panel of the TNU5N404 board
Valid slots for the TNU5N404 board in a U64/U32/U16 subrack
| Product | Valid Slots |
|---|---|
| OptiX OSN 9800 U64 Standard subrack | IU1-IU64 |
| OptiX OSN 9800 U64 Enhanced subrack | IU1-IU64 |
| OptiX OSN 9800 U32 Standard subrack | IU1-IU32 |
| OptiX OSN 9800 U32 Enhanced subrack | IU1-IU32 |
| OptiX OSN 9800 U16 subrack | IU1-IU14 |
Valid slots for the TNU5N404 board in an M24 subrack
| Product | Valid Slots |
|---|---|
| OptiX OSN 9800 M24 subrack | (IU1, IU13), (IU2, IU14), …, (IU11, IU23), (IU12, IU24) |
Specifications for Optical Modules
| TNU5N404 | CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP Specifications | OTU4 | Pluggable Optical Module | WDM-Side |
| TNU5N404 | 40000 ps/nm-Extended C band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, ULH+, T5U)-CFP-PIN | OTU4 | Pluggable Optical Module | WDM-Side |
| TNU5N404 | CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, T65)-SMF | OTU4 | Pluggable Optical Module | WDM-Side |
| TNU5N404 | CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, T62)-SMF Specifications | OTU4 | Pluggable Optical Module | WDM-Side |
| TNU5N404 | CFP-100G-(1529.17nm to 1567.1nm)(DWDM,Tunable, TxA)-SMF Specifications | OTU4 | Pluggable Optical Module | WDM-Side |
| TNU5N404 | 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH, T51)-100G CFP | OTU4 | Pluggable Optical Module | WDM-Side |
| TNU5N404 | 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, ULH, T61)-100G CFP | OTU4 | Pluggable Optical Module | WDM-Side |
| TNU5N404 | 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH+, T50)-100G CFP Specifications | OTU4 | Pluggable Optical Module | WDM-Side |
| TNU5N404 | 55000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, ULH, T52)-100G CFP | OTU4 | Pluggable Optical Module | WDM-Side |
| TNU5N404 | 40000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, LH, T53)-100G CFP | OTU4 | Pluggable Optical Module | WDM-Side |
| TNU5N404 | 16000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2 , wDCM, Metro+, T63)-100G CFP | OTU4 | Pluggable Optical Module | WDM-Side |
| TNU5N404 | 55000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, ULH, High optical power, T52)-CFP | OTU4 | Pluggable Optical Module | WDM-Side |
| TNU5N404 | 40000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK(SDFEC2, LH, High optical power, T53)-CFP | OTU4 | Pluggable Optical Module | WDM-Side |
| TNU5N404 | 16000ps/nm-Extended C Band-Tunable Wavelength-ePDM-100G QPSK wDCM(SDFEC2, Metro+, High optical power, T63)-CFP | OTU4 | Pluggable Optical Module | WDM-Side |
| TNU5N404 | 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, SLH, high optical power, T51)-100G CFP Specifications | OTU4 | Pluggable Optical Module | WDM-Side |
| TNU5N404 | 100000ps/nm-Extended C band-Tunable Wavelength-ePDM-QPSK(SDFEC2, wDCM, ULH, high optical power, T61)-100G CFP Specifications | OTU4 | Pluggable Optical Module | WDM-Side |
| TNU5N404 | 100000ps/nm-Super C band-Tunable wavelength-ePDM-100G QPSK (SDFEC2, SLH, F51)-CFP | OTU4 | Pluggable Optical Module | WDM-Side |
| TNU5N404 | 100000ps/nm-Extended C band-Tunable wavelength-ePDM-100G QPSK(SDFEC2, SLH, A51)-CFP | OTU4 | Pluggable Optical Module | WDM-Side |
| TNU5N404 | 100000ps/nm-Extended C band-Tunable wavelength-ePDM-100G QPSK wDCM(SDFEC2, LH, A62)-CFP | OTU4 | Pluggable Optical Module | WDM-Side |
| TNU5N404 | 100000ps/nm-Super C band-Tunable wavelength-100G QPSK(SDFEC2, SLH, T51)-CFP-PIN | OTU4 | Pluggable Optical Module | WDM-Side |
Functions and features of the TNU5N404 board (line mode)
| Item | TNU5N404 | |||||
| Basic function | Supports the following service conversions: | |||||
| 320 x ODU0/160 x ODU1/40 x ODU2/40 x ODU2e/8 x ODU3/4 x ODU4/320 x ODUflex<->4 x OTU4 | ||||||
| Each port on the board supports a mix of ODU0, ODU1, ODU2, ODU2e, ODU3 and ODUflex signals. | ||||||
| Cross-connect capabilities | Supports backplane cross-connections of 320 ODU0, 160 ODU1, 40 ODU2, 40 ODU2e, 8 ODU3, 4 ODU4, or 320 ODUflex signals from/to the cross-connect board. | |||||
| OTN functions | Supports OTU4 on the WDM side. | |||||
| Supports the OTN frame format and overhead processing defined by ITU-T G.709. | ||||||
| OTU4 layer: supports SM overhead processing. | ||||||
| ODUk (k=0, 1, 2, 2e, 3, 4,flex) layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads. | ||||||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | |||||
| Tunable wavelength function | Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing. | |||||
| The TNU5N404 board聽supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm). | ||||||
| ESC function | Supported | |||||
| PRBS function | Supports the PRBS function on the WDM side. | |||||
| FEC coding | When colored light optical modules are used: SDFEC2,HFEC PLUS | |||||
| When gray light optical modules are used: FEC | ||||||
| Alarms and performance events monitoring | Monitors BIP8 bytes (Bursty mode) to help locate line failures. | |||||
| Monitors parameters such as the bias current, temperature, and optical power of the laser. | ||||||
| Monitors OTN alarms and performance events. | ||||||
| Latency measurement | The TNU5N404 board supports latency measurement in the WDM-side optical port direction (upstream direction). When higher-order ODU4 cross-connections are created on the line board, TCM section latency measurement is supported for higher-order ODU4 channels. When lower-order ODUk cross-connections are created on the line board, PM/TCM section latency measurement is supported for higher-order ODU4 channels, and TCM section latency measurement is supported for lower-order ODUk channels. | |||||
| Test frame | Not supported | |||||
| IEEE 1588v2 | Not supported | |||||
| Physical clock | TNU5N404: Supported | |||||
| TNU4N404: Not supported | ||||||
| Electrical-layer ASON | Supported | |||||
| Optical-layer ASON | Supported | |||||
| Protection scheme | Supports ODUk SNCP. | |||||
| Supports tributary SNCP protection. | ||||||
| Supports intra-board 1+1 protection (when working with the OLP/DCP/QCP board). | ||||||
| Loopback | WDM Side Loopback | ODU3 Channel Loopback | ODU2 Channel Loopback | ODU1 Channel Loopback | ODU0 Channel Loopback | ODUflex Channel Loopback |
| Supported | Supported | Supported | Supported | Supported | Supported | |
Functions and features of the TNU5N404 board (relay mode)
| Item | TNU5N404 | ||
| Basic function | Electrically regenerates optical signals at an electrical REG station. | ||
| Supported service rate | OTU4: OTN service at a rate of 111.81 Gbit/s | ||
| OTN functions | Supports OTU4 on the WDM side. | ||
| Supports the OTN frame format and overhead processing defined by ITU-T G.709. | |||
| OTU4 layer: supports SM overhead processing. | |||
| ODU4 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads. | |||
| WDM specification | Supports ITU-T G.694.1-compliant DWDM specifications. | ||
| Tunable wavelength function | Supports tunable wavelength optical modules that provide for 80 wavelengths tunable in the C band with 50 GHz channel spacing. | ||
| The TNU5N404 board supports tunable wavelengths of WDM-side optical signals in Super C band (1524 nm to 1573 nm). | |||
| ESC function | Supported | ||
| PRBS function | Not supported | ||
| FEC coding | When colored light optical modules are used: SDFEC2,HFEC PLUS | ||
| Alarms and performance events monitoring | Monitors BIP8 bytes (Bursty mode) to help locate line failures. | ||
| Monitors parameters such as the bias current, temperature, and optical power of the laser. | |||
| Monitors OTN alarms and performance events. | |||
| Test frame | Not supported | ||
| IEEE 1588v2 | Not supported | ||
| Physical clock | Not supported | ||
| Electrical-layer ASON | Not supported | ||
| Optical-layer ASON | Supported | ||
| Protection scheme | Not supported | ||
| Loopback | Not supported | ||
| Weight | 4.53 kg (9.98 lb.) |
