TNV3T230 overview

TNV3T230 10 Gbit/s tributary service processing board applied to Huawei OptiX OSN 9800 U64/U32/U16/M24.

To meet ultra-large cross-connect capacity and bandwidth requirements, Huawei presents the OptiX OSN 9800 product series. The OptiX OSN 9800 product series include the OptiX OSN 9800 U64, U32, P18 and universal platform subracks. Applied at the electrical layer, the OptiX OSN 9800 U64 and U32 subracks share boards by using unified software and hardware platforms, and can work with the OptiX OSN 9800 universal platform subrack and P18 subrack, OptiX OSN 8800 platform subrack and T16 subrack, and OptiX OSN 6800 optical subracks in WDM and OTN systems.

TNV3T230 also comes with TNV6T230 board version.

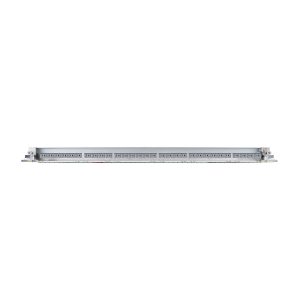

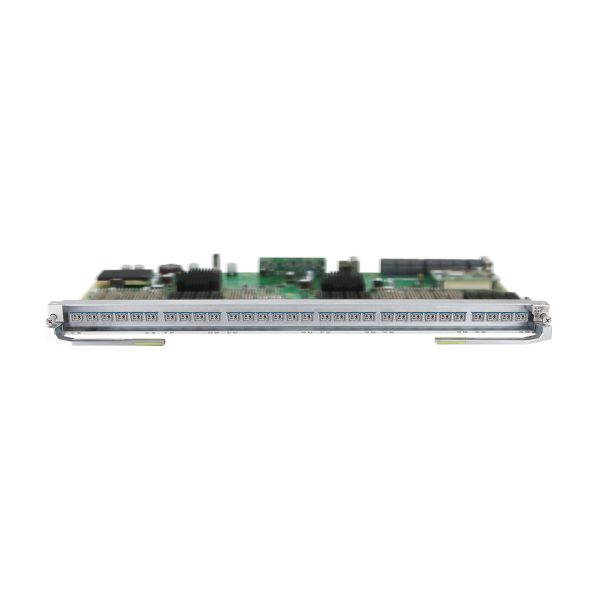

Front panel of the TNV3T230 board

Valid slots for the TNV3T230 board in a U64/U32/U16 subrack

Product	Valid Slots
OptiX OSN 9800 U64 Standard subrack	IU1-IU64
OptiX OSN 9800 U64 Enhanced subrack	IU1-IU64
OptiX OSN 9800 U32 Standard subrack	IU1-IU32
OptiX OSN 9800 U32 Enhanced subrack	IU1-IU32
OptiX OSN 9800 U16 subrack	IU1-IU14

Valid slots for the TNV3T230 board in an M24 subrack

Product	Valid Slots
OptiX OSN 9800 M24 subrack	(IU1, IU13), (IU2, IU14), …… , (IU11, IU23), (IU12, IU24)

Items	TNV3T230
Basic function	Supports the following service conversions:
	ODU0 non-convergence mode (Any->ODU0)
	n x (125 Mbit/s to 1.25 Gbit/s signals) <-> n x ODU0.
	ODU1 non-convergence mode (Any->ODU1)
	n x (1.49 Gbit/s to 2.67 Gbit/s signals) <-> n x ODU1.
	ODU2 non-convergence mode (OTU2/Any->ODU2)
	n x 10GE LAN(GFP-F)/10GE WAN/STM-64/OC-192/OTU2/FC800/FICON8G<-> n x ODU2
	n x 10GE LAN(BMP)/OTU2e/FC1200<-> n x ODU2e
	ODUflex non-convergence mode (Any->ODUflex)
	n x聽3G-SDI/3G-SDIRBR/FC400/FICON4G/FC800/FICON8G/10GE LAN(GFP-F)<-> n x ODUflex
	TNV3T210:2 x FC1600<->2 x ODUflex
	TNV3T220:4 x FC1600<->4 x ODUflex
	TNV3T230:8 x FC1600<->8 x ODUflex
	ODU1_ODU0 mode (OTU1->ODU1->ODU0)
	n x OTU1<-> 2n x ODU0
	ODU1 convergence mode (n*Any->ODU1)
	n x (125 Mbit/s to 2.5 Gbit/s signals) <-> ODU1
Service encryption	Supports setting the encryption function by port.
Client-side service type	SDH/SONET service:
	STM-1/OC-3: SDH/SONET service at a rate of 155.52 Mbit/s
	STM-4/OC-12: SDH/SONET service at a rate of 622.08 Mbit/s
	STM-16/OC-48: SDH/SONET service at a rate of 2488.32 Mbit/s
	STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s
	Ethernet service:
	FE: Ethernet service at a rate of 125 Mbit/s
	GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals.
	10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
	10GE WAN: Ethernet service at a rate of 9.95 Gbit/s
	OTN service:
	OTU1: OTN service at a rate of 2.67 Gbit/s
	OTU2: OTN service at a rate of 10.71 Gbit/s
	OTU2e: OTN service at a rate of 11.1 Gbit/s
	SAN service:
	FC100: SAN service at a rate of 1.06 Gbit/s
	FC200: SAN service at a rate of 2.12 Gbit/s
	FC400: SAN service at a rate of 4.25 Gbit/s
	FICON: SAN service at a rate of 1.06 Gbit/s
	FICON Express: SAN service at a rate of 2.12 Gbit/s
	FICON4G: SAN service at a rate of 4.25 Gbit/s
	FC800: SAN service at a rate of 8.5 Gbit/s
	FICON8G: SAN service at a rate of 8.5 Gbit/s
	FC1200: SAN service at a rate of 10.51 Gbit/s
	FC1600: SAN service at a rate of 14.025 Gbit/s
	ESCON: SAN service at a rate of 200 Mbit/s
	FDDI: SAN service at a rate of 125 Mbit/s
	Video service:
	SDI: Serial digital interface at a rate of 270 Mbit/s
	HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s
	HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s
	3G-SDI: Video service at a rate of 2.97 Gbit/s
	3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s
	DVB-ASI: Video service at a rate of 270 Mbit/s
Cross-connect capabilities	T210: Supports backplane cross-connections of 10 ODU0/ODU1/ODU2/ODU2e/ODUflex signals from/to the cross-connect board.
	T220: Supports backplane cross-connections of 20 ODU0/ODU1/ODU2/ODU2e/ODUflex signals from/to the cross-connect board.
	T230: Supports backplane cross-connections of 30 ODU0/ODU1/ODU2/ODU2e/ODUflex signals from/to the cross-connect board.
OTN function	Supports the OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041, ITU-T G.709 and G.Sup43.
	ODUflex layer: supports PM overhead processing.
	ODU0/ODU1/ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
	OTU1/OTU2 layer: supports SM overhead processing.
ESC function	Supported when the client-side service type is OTU1/OTU2/OTU2e.
PRBS test function	Supported.
LPT function	Supported when the client-side service type is FE, GE or 10GE LAN.
FEC coding	Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU1 or OTU2(e).
Alarms and performance events monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures.
	Monitors B1 bytes to help locate faults.
	Monitors OTN alarms and performance events.
	Monitors parameters such as the bias current, temperature, and optical power of the laser.
	Supports the remote monitoring (RMON) of Ethernet services.
ALS function	Supports the ALS function on the client side when client services are non-OTN services.
Test frame	Supported
Electrical-layer ASON	Supported
Latency measurement	When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction). When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
IEEE 1588v2	Supports TC mode, TC+OC mode, BC mode and OC mode.
ITU-T G.8275.1	Supports BC mode
ITU-T G.8273.2	Only the board of an OptiX OSN 9800 M24 subrack supports ITU-T G.8273.2.
Physical clock	GE(TTT-GMP): Supports synchronous Ethernet transparent transmission
	10GE LAN, Bit transparent Mapping (11.1 G): Supports synchronous Ethernet transparent transmission
	GE(GFP-T): Supports synchronous Ethernet processing
	10GE LAN, MAC transparent Mapping (10.7 G): Supports synchronous Ethernet processing
Protection scheme	Supports client 1+1 protection.
	Supports ODUk SNCP.
	Supports tributary SNCP protection.
Port MTU	The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes.
Ethernet service mapping mode	GE: GE(TTT-GMP), GE(GFP-T)
	10GE LAN: Bit transparent Mapping (11.1G), MAC transparent Mapping (10.7G)
Dimensions of the front panel (H x W x D)	477.3 mm (18.8 in.) x 30.5 mm (1.2 in.) x 220.0 mm (8.7 in.)
Weight	1.5 kg (3.3 lb.)
Power Consumption (W)	133-146

Specifications for Optical Modules

Board	Optical Modules	Service type	Service type	Position
TNV3T230	eSFP-2.125G-850nm-MMF-0.5km-I	FC200, GE, FC100, FDDI, FICON, FICON Express, FE	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-2.5G-1310nm-SMF-40km Specifications	OTU1, STM-16, OC-48, FC200, FC100, FDDI, FICON, FICON Express, GE, STM-4, OC-12, ESCON, STM-1, OC-3, DVB-ASI	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-1.25G-1310nm-SMF-40km Specifications	GE, FC100, STM-4, OC-12, ESCON, STM-1, OC-3, FDDI, FICON, FE, DVB-ASI	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-1.25G-1550nm-SMF-80km-01 Specifications	GE, FC100, STM-4, OC-12, ESCON, STM-1, OC-3, FDDI, FICON, FE, DVB-ASI	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-4.25G-850nm-MMF-0.3km-I Specifications	FC400, FICON4G	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-2.5G-(1529.17nm to 1560.61nm)(DWDM,100GHz)-SMF-120km Specifications	OTU1, STM-16, OC-48, FC200, FC100, FDDI, FICON, FICON Express, GE, STM-4, OC-12, ESCON, STM-1, OC-3, DVB-ASI, FE	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-2.5G-(1471nm to 1611nm)(CWDM)-SMF-40km Specifications	GE, FC100, STM-4, OC-12, ESCON, STM-1, OC-3, FDDI, FICON, FE, DVB-ASI	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-1.25G-TX1310/RX1490nm(BIDI)-SMF-10km Specifications	GE	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-4.25G-1310nm-SMF-10km Specifications	FC400, FICON4G	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-1.25G-1310nm-SMF-10km	GE, FC100, STM-4, OC-12, ESCON, STM-1, OC-3, FDDI, FICON, FE, DVB-ASI	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-1.25G-TX1490/RX1310nm(BIDI)-SMF-10km Specifications	GE	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-2.5G-(1471nm to 1611nm)(CWDM)-SMF-80km Specifications	OTU1, STM-16, OC-48, FC200, FC100, FDDI, FICON, FICON Express, GE, STM-4, OC-12, ESCON, STM-1, OC-3, DVB-ASI, FE	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-2.5G-1310nm-SMF-2km Specifications	OTU1, STM-16, OC-48, FC200, FC100, FDDI, FICON, FICON Express, GE, STM-4, OC-12, ESCON, STM-1, OC-3, DVB-ASI	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-2.5G-1310nm-SMF-15km Specifications	OTU1, STM-16, OC-48, FC200, FC100, FDDI, FICON, FICON Express, GE, FE, STM-4, OC-12, ESCON, STM-1, OC-3, DVB-ASI	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-2.5G-1550nm-SMF-80km Specifications	OTU1, STM-16, OC-48, FC200, FC100, FDDI, FICON, FICON Express, GE, STM-4, OC-12, ESCON, STM-1, OC-3, DVB-ASI	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-1.25G-TX1310/RX1490nm(BIDI)-SMF-40km Specifications	GE	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-1.25G-TX1490/RX1310nm(BIDI)-SMF-40km Specifications	GE	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-3G-1310nm-SMF-10km Specifications	DVB-ASI, SDI, HD-SDI, HD–SDIRBR, 3G-SDI, 3G-SDIRBR	Pluggable Optical Module	Client-Side
TNV3T230	SFP-1000Base-T-autonegotiation-100 m-RJ45	GE	Pluggable Optical Module	Client-Side
TNV3T230	SFP28-28.05G-1310nm-SMF-10km Specifications	FC800, FICON8G, FC1600	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -14G-850nm-MMF-0.1km	FC400, FC800, FICON8G, FC1600	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -8.5G to 10.5G-850nm-MMF-0.3km Specifications	10GE WAN, 10GE LAN, FC800, FICON8G, FC1200	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -10G(10GE,LR/LW)-1310nm-SMF-10km	10GE WAN, 10GE LAN, FC800, FICON8G, FC1200	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -10G-1550nm-SMF-40km Specifications	10GE WAN, 10GE LAN, FC800, FICON8G, FC1200	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -10G(10GE,ZR/ZW)-1550nm-SMF-80km	10GE WAN, 10GE LAN	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -10G(with CDR)-1310nm-SMF-10km	10GE WAN, 10GE LAN, STM-64, OTU2(e), FC1200	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -10G(with CDR)-1550nm-SMF-40km Specifications	10GE WAN, 10GE LAN, STM-64, OTU2(e), FC1200	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -10G(with CDR)-1550nm-SMF-80km Specifications	10GE WAN, 10GE LAN, STM-64, OTU2(e), FC1200	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -2.5G to 11.3G-TX1270/RX1330nm(BIDI)-SMF-10km-I Specifications	10GE WAN, 10GE LAN, FC800, FICON8G, FC1200	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -2.5G to 11.3G-TX1330/RX1270nm(BIDI)-SMF-10km-I Specifications	10GE WAN, 10GE LAN, FC800, FICON8G, FC1200	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-2.5G-TX1310/RX1490nm(BIDI)-SMF-15km-I Specifications	OTU1, STM1, STM4, STM16, FC200, FC100, GE, ESCON, DVB-ASI, FE, FICON, FICON EXPRESS	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-2.5G-TX1490/RX1310nm(BIDI)-SMF-15km-I Specifications	OTU1, STM1, STM4, STM16, FC200, FC100, GE, ESCON, DVB-ASI, FE, FICON, FICON EXPRESS	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -GE(LX)/10GE(LR/LW)-1310nm-SMF-10km	GE, 10GE WAN, 10GE LAN	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -0.125G to 11.3G-1310nm-SMF-10km Specifications	STM-1, STM-4, STM-16, STM-64, OC-3, OC-12, OC-48, FE, GE, 10GE LAN, 10GE WAN, OTU1, OTU2, OTU2e, FC100, FC200, FC400, FICON, FICON Express, FICON4G, FC800, FICON8G, FC1200, ESCON, FDDI, DVB-ASI	Pluggable Optical Module	Client-Side

Items	TNV3T230
Basic function	Supports the following service conversions:
	ODU0 non-convergence mode (Any->ODU0)
	n x (125 Mbit/s to 1.25 Gbit/s signals) <-> n x ODU0.
	ODU1 non-convergence mode (Any->ODU1)
	n x (1.49 Gbit/s to 2.67 Gbit/s signals) <-> n x ODU1.
	ODU2 non-convergence mode (OTU2/Any->ODU2)
	n x 10GE LAN(GFP-F)/10GE WAN/STM-64/OC-192/OTU2/FC800/FICON8G<-> n x ODU2
	n x 10GE LAN(BMP)/OTU2e/FC1200<-> n x ODU2e
	ODUflex non-convergence mode (Any->ODUflex)
	n x聽3G-SDI/3G-SDIRBR/FC400/FICON4G/FC800/FICON8G/10GE LAN(GFP-F)<-> n x ODUflex
	TNV3T210:2 x FC1600<->2 x ODUflex
	TNV3T220:4 x FC1600<->4 x ODUflex
	TNV3T230:8 x FC1600<->8 x ODUflex
	ODU1_ODU0 mode (OTU1->ODU1->ODU0)
	n x OTU1<-> 2n x ODU0
	ODU1 convergence mode (n*Any->ODU1)
	n x (125 Mbit/s to 2.5 Gbit/s signals) <-> ODU1
Service encryption	Supports setting the encryption function by port.
Client-side service type	SDH/SONET service:
	STM-1/OC-3: SDH/SONET service at a rate of 155.52 Mbit/s
	STM-4/OC-12: SDH/SONET service at a rate of 622.08 Mbit/s
	STM-16/OC-48: SDH/SONET service at a rate of 2488.32 Mbit/s
	STM-64/OC-192: SDH/SONET service at a rate of 9.95 Gbit/s
	Ethernet service:
	FE: Ethernet service at a rate of 125 Mbit/s
	GE: Ethernet service at a rate of 1.25 Gbit/s. Supports GE optical signals and GE electrical signals.
	10GE LAN: Ethernet service at a rate of 10.31 Gbit/s
	10GE WAN: Ethernet service at a rate of 9.95 Gbit/s
	OTN service:
	OTU1: OTN service at a rate of 2.67 Gbit/s
	OTU2: OTN service at a rate of 10.71 Gbit/s
	OTU2e: OTN service at a rate of 11.1 Gbit/s
	SAN service:
	FC100: SAN service at a rate of 1.06 Gbit/s
	FC200: SAN service at a rate of 2.12 Gbit/s
	FC400: SAN service at a rate of 4.25 Gbit/s
	FICON: SAN service at a rate of 1.06 Gbit/s
	FICON Express: SAN service at a rate of 2.12 Gbit/s
	FICON4G: SAN service at a rate of 4.25 Gbit/s
	FC800: SAN service at a rate of 8.5 Gbit/s
	FICON8G: SAN service at a rate of 8.5 Gbit/s
	FC1200: SAN service at a rate of 10.51 Gbit/s
	FC1600: SAN service at a rate of 14.025 Gbit/s
	ESCON: SAN service at a rate of 200 Mbit/s
	FDDI: SAN service at a rate of 125 Mbit/s
	Video service:
	SDI: Serial digital interface at a rate of 270 Mbit/s
	HD-SDI: Bit-serial digital interface for high-definition television systems at a rate of 1.49 Gbit/s
	HD-SDIRBR: Bit-serial digital interface for high-definition television systems at a rate of 1.49/1.001 Gbit/s
	3G-SDI: Video service at a rate of 2.97 Gbit/s
	3G-SDIRBR: Video service at a rate of 2.97/1.001 Gbit/s
	DVB-ASI: Video service at a rate of 270 Mbit/s
Cross-connect capabilities	T210: Supports backplane cross-connections of 10 ODU0/ODU1/ODU2/ODU2e/ODUflex signals from/to the cross-connect board.
	T220: Supports backplane cross-connections of 20 ODU0/ODU1/ODU2/ODU2e/ODUflex signals from/to the cross-connect board.
	T230: Supports backplane cross-connections of 30 ODU0/ODU1/ODU2/ODU2e/ODUflex signals from/to the cross-connect board.
OTN function	Supports the OTN frame format and overhead processing defined by ITU-T G.709. The mapping process complies with ITU-T G.7041, ITU-T G.709 and G.Sup43.
	ODUflex layer: supports PM overhead processing.
	ODU0/ODU1/ODU2 layer: supports PM and TCM overhead processing, and non-intrusive monitoring of PM and TCM overheads.
	OTU1/OTU2 layer: supports SM overhead processing.
ESC function	Supported when the client-side service type is OTU1/OTU2/OTU2e.
PRBS test function	Supported.
LPT function	Supported when the client-side service type is FE, GE or 10GE LAN.
FEC coding	Supports ITU-T G.709-compliant forward error correction (FEC) on the client side when the client-side service type is OTU1 or OTU2(e).
Alarms and performance events monitoring	Monitors BIP8 bytes (Bursty mode) to help locate line failures.
	Monitors B1 bytes to help locate faults.
	Monitors OTN alarms and performance events.
	Monitors parameters such as the bias current, temperature, and optical power of the laser.
	Supports the remote monitoring (RMON) of Ethernet services.
ALS function	Supports the ALS function on the client side when client services are non-OTN services.
Test frame	Supported
Electrical-layer ASON	Supported
Latency measurement	When non-OTN services are received on the client side of the board, the PM section latency measurement is supported in the backplane direction (upstream direction). When OTN services are received on the client side of the board, the TCM section latency measurement is supported in the optical port direction (downstream direction).
IEEE 1588v2	Supports TC mode, TC+OC mode, BC mode and OC mode.
ITU-T G.8275.1	Supports BC mode
ITU-T G.8273.2	Only the board of an OptiX OSN 9800 M24 subrack supports ITU-T G.8273.2.
Physical clock	GE(TTT-GMP): Supports synchronous Ethernet transparent transmission
	10GE LAN, Bit transparent Mapping (11.1 G): Supports synchronous Ethernet transparent transmission
	GE(GFP-T): Supports synchronous Ethernet processing
	10GE LAN, MAC transparent Mapping (10.7 G): Supports synchronous Ethernet processing
Protection scheme	Supports client 1+1 protection.
	Supports ODUk SNCP.
	Supports tributary SNCP protection.
Port MTU	The value ranges from 1518 to 9600, in bytes. That is, the maximum size of the supported Jumbo frame is 9600 bytes.
Ethernet service mapping mode	GE: GE(TTT-GMP), GE(GFP-T)
	10GE LAN: Bit transparent Mapping (11.1G), MAC transparent Mapping (10.7G)
Dimensions of the front panel (H x W x D)	477.3 mm (18.8 in.) x 30.5 mm (1.2 in.) x 220.0 mm (8.7 in.)
Weight	1.5 kg (3.3 lb.)
Power Consumption (W)	133-146

Specifications for Optical Modules

Board	Optical Modules	Service type	Service type	Position
TNV3T230	eSFP-2.125G-850nm-MMF-0.5km-I	FC200, GE, FC100, FDDI, FICON, FICON Express, FE	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-2.5G-1310nm-SMF-40km Specifications	OTU1, STM-16, OC-48, FC200, FC100, FDDI, FICON, FICON Express, GE, STM-4, OC-12, ESCON, STM-1, OC-3, DVB-ASI	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-1.25G-1310nm-SMF-40km Specifications	GE, FC100, STM-4, OC-12, ESCON, STM-1, OC-3, FDDI, FICON, FE, DVB-ASI	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-1.25G-1550nm-SMF-80km-01 Specifications	GE, FC100, STM-4, OC-12, ESCON, STM-1, OC-3, FDDI, FICON, FE, DVB-ASI	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-4.25G-850nm-MMF-0.3km-I Specifications	FC400, FICON4G	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-2.5G-(1529.17nm to 1560.61nm)(DWDM,100GHz)-SMF-120km Specifications	OTU1, STM-16, OC-48, FC200, FC100, FDDI, FICON, FICON Express, GE, STM-4, OC-12, ESCON, STM-1, OC-3, DVB-ASI, FE	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-2.5G-(1471nm to 1611nm)(CWDM)-SMF-40km Specifications	GE, FC100, STM-4, OC-12, ESCON, STM-1, OC-3, FDDI, FICON, FE, DVB-ASI	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-1.25G-TX1310/RX1490nm(BIDI)-SMF-10km Specifications	GE	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-4.25G-1310nm-SMF-10km Specifications	FC400, FICON4G	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-1.25G-1310nm-SMF-10km	GE, FC100, STM-4, OC-12, ESCON, STM-1, OC-3, FDDI, FICON, FE, DVB-ASI	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-1.25G-TX1490/RX1310nm(BIDI)-SMF-10km Specifications	GE	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-2.5G-(1471nm to 1611nm)(CWDM)-SMF-80km Specifications	OTU1, STM-16, OC-48, FC200, FC100, FDDI, FICON, FICON Express, GE, STM-4, OC-12, ESCON, STM-1, OC-3, DVB-ASI, FE	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-2.5G-1310nm-SMF-2km Specifications	OTU1, STM-16, OC-48, FC200, FC100, FDDI, FICON, FICON Express, GE, STM-4, OC-12, ESCON, STM-1, OC-3, DVB-ASI	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-2.5G-1310nm-SMF-15km Specifications	OTU1, STM-16, OC-48, FC200, FC100, FDDI, FICON, FICON Express, GE, FE, STM-4, OC-12, ESCON, STM-1, OC-3, DVB-ASI	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-2.5G-1550nm-SMF-80km Specifications	OTU1, STM-16, OC-48, FC200, FC100, FDDI, FICON, FICON Express, GE, STM-4, OC-12, ESCON, STM-1, OC-3, DVB-ASI	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-1.25G-TX1310/RX1490nm(BIDI)-SMF-40km Specifications	GE	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-1.25G-TX1490/RX1310nm(BIDI)-SMF-40km Specifications	GE	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-3G-1310nm-SMF-10km Specifications	DVB-ASI, SDI, HD-SDI, HD–SDIRBR, 3G-SDI, 3G-SDIRBR	Pluggable Optical Module	Client-Side
TNV3T230	SFP-1000Base-T-autonegotiation-100 m-RJ45	GE	Pluggable Optical Module	Client-Side
TNV3T230	SFP28-28.05G-1310nm-SMF-10km Specifications	FC800, FICON8G, FC1600	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -14G-850nm-MMF-0.1km	FC400, FC800, FICON8G, FC1600	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -8.5G to 10.5G-850nm-MMF-0.3km Specifications	10GE WAN, 10GE LAN, FC800, FICON8G, FC1200	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -10G(10GE,LR/LW)-1310nm-SMF-10km	10GE WAN, 10GE LAN, FC800, FICON8G, FC1200	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -10G-1550nm-SMF-40km Specifications	10GE WAN, 10GE LAN, FC800, FICON8G, FC1200	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -10G(10GE,ZR/ZW)-1550nm-SMF-80km	10GE WAN, 10GE LAN	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -10G(with CDR)-1310nm-SMF-10km	10GE WAN, 10GE LAN, STM-64, OTU2(e), FC1200	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -10G(with CDR)-1550nm-SMF-40km Specifications	10GE WAN, 10GE LAN, STM-64, OTU2(e), FC1200	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -10G(with CDR)-1550nm-SMF-80km Specifications	10GE WAN, 10GE LAN, STM-64, OTU2(e), FC1200	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -2.5G to 11.3G-TX1270/RX1330nm(BIDI)-SMF-10km-I Specifications	10GE WAN, 10GE LAN, FC800, FICON8G, FC1200	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -2.5G to 11.3G-TX1330/RX1270nm(BIDI)-SMF-10km-I Specifications	10GE WAN, 10GE LAN, FC800, FICON8G, FC1200	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-2.5G-TX1310/RX1490nm(BIDI)-SMF-15km-I Specifications	OTU1, STM1, STM4, STM16, FC200, FC100, GE, ESCON, DVB-ASI, FE, FICON, FICON EXPRESS	Pluggable Optical Module	Client-Side
TNV3T230	eSFP-2.5G-TX1490/RX1310nm(BIDI)-SMF-15km-I Specifications	OTU1, STM1, STM4, STM16, FC200, FC100, GE, ESCON, DVB-ASI, FE, FICON, FICON EXPRESS	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -GE(LX)/10GE(LR/LW)-1310nm-SMF-10km	GE, 10GE WAN, 10GE LAN	Pluggable Optical Module	Client-Side
TNV3T230	SFP+ -0.125G to 11.3G-1310nm-SMF-10km Specifications	STM-1, STM-4, STM-16, STM-64, OC-3, OC-12, OC-48, FE, GE, 10GE LAN, 10GE WAN, OTU1, OTU2, OTU2e, FC100, FC200, FC400, FICON, FICON Express, FICON4G, FC800, FICON8G, FC1200, ESCON, FDDI, DVB-ASI	Pluggable Optical Module	Client-Side
