Description

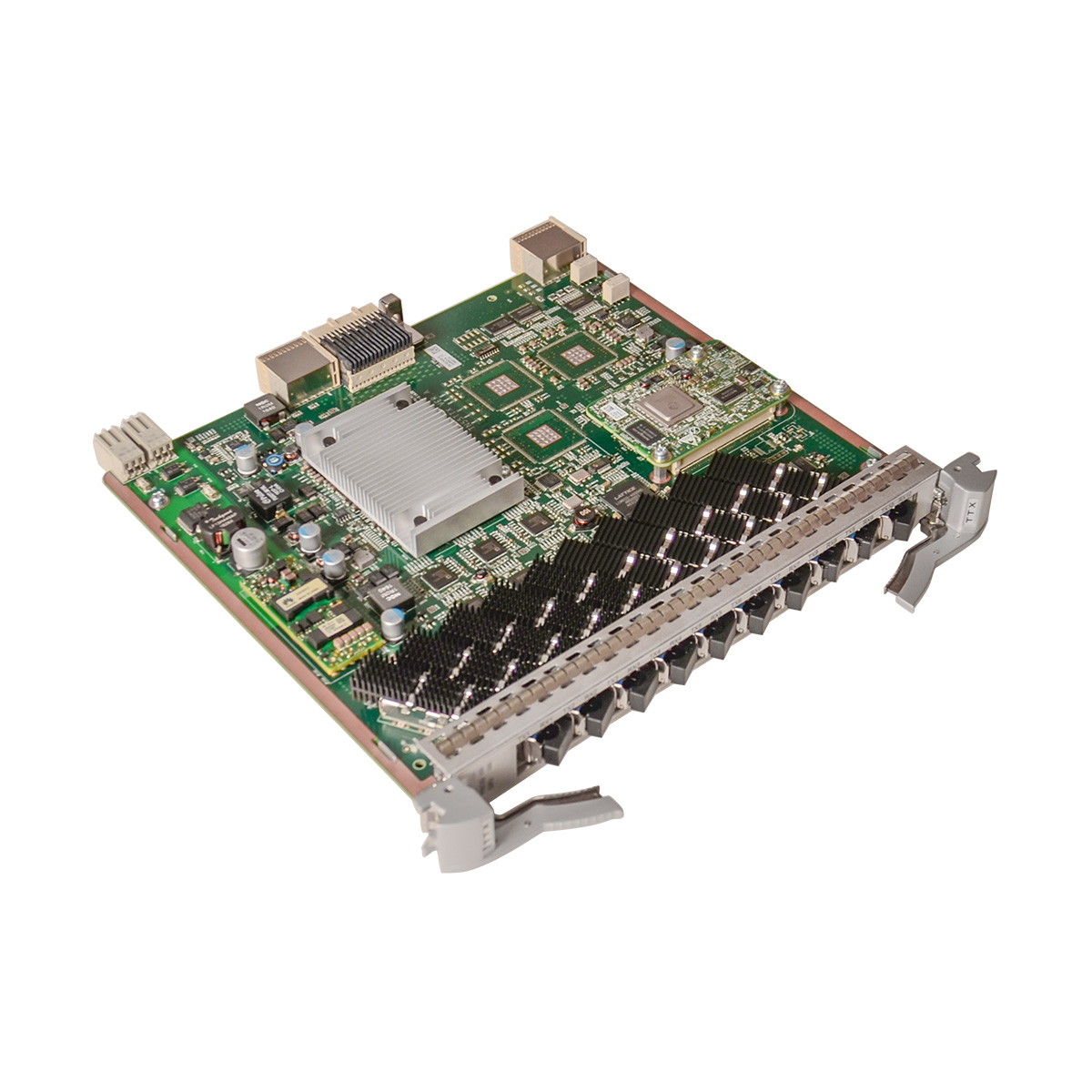

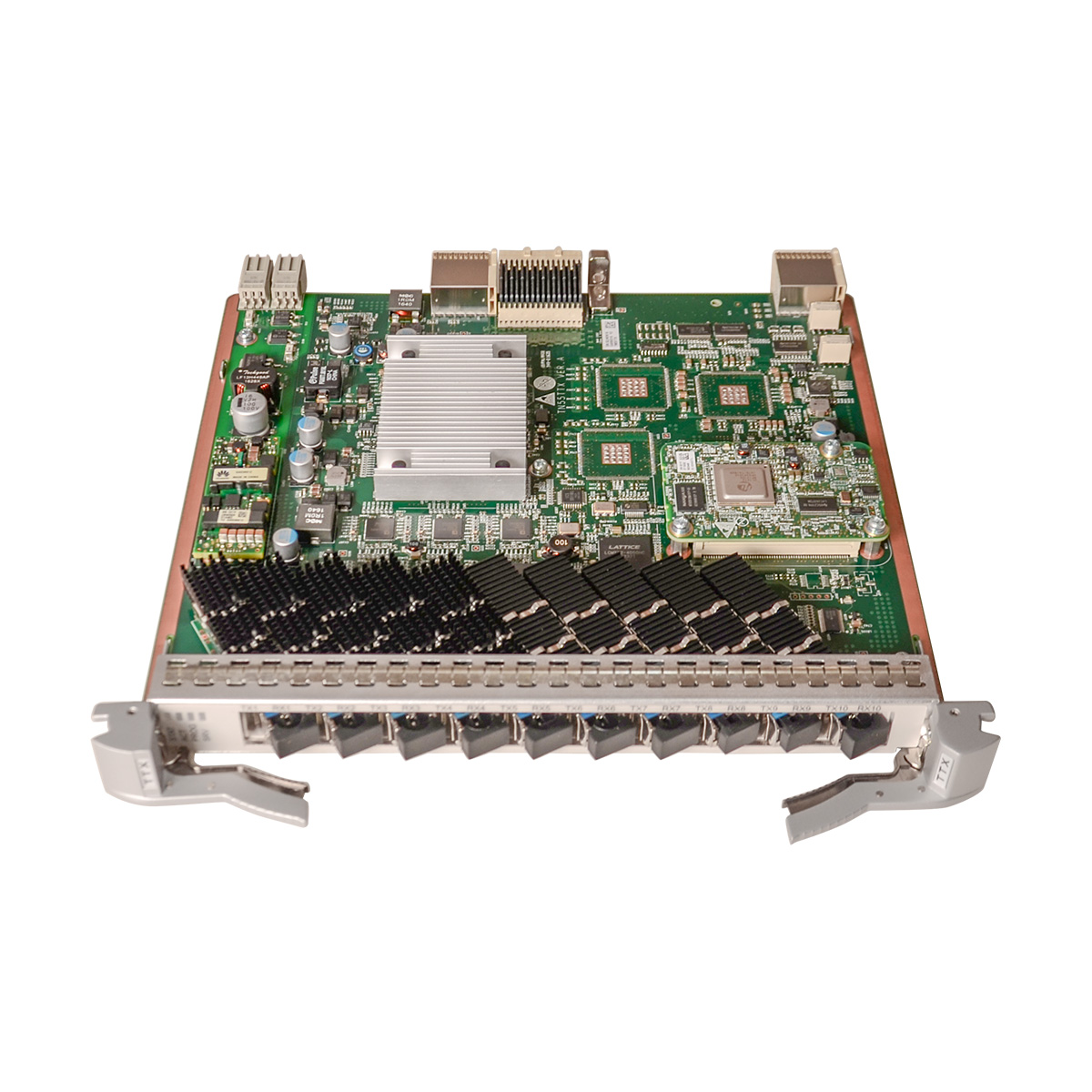

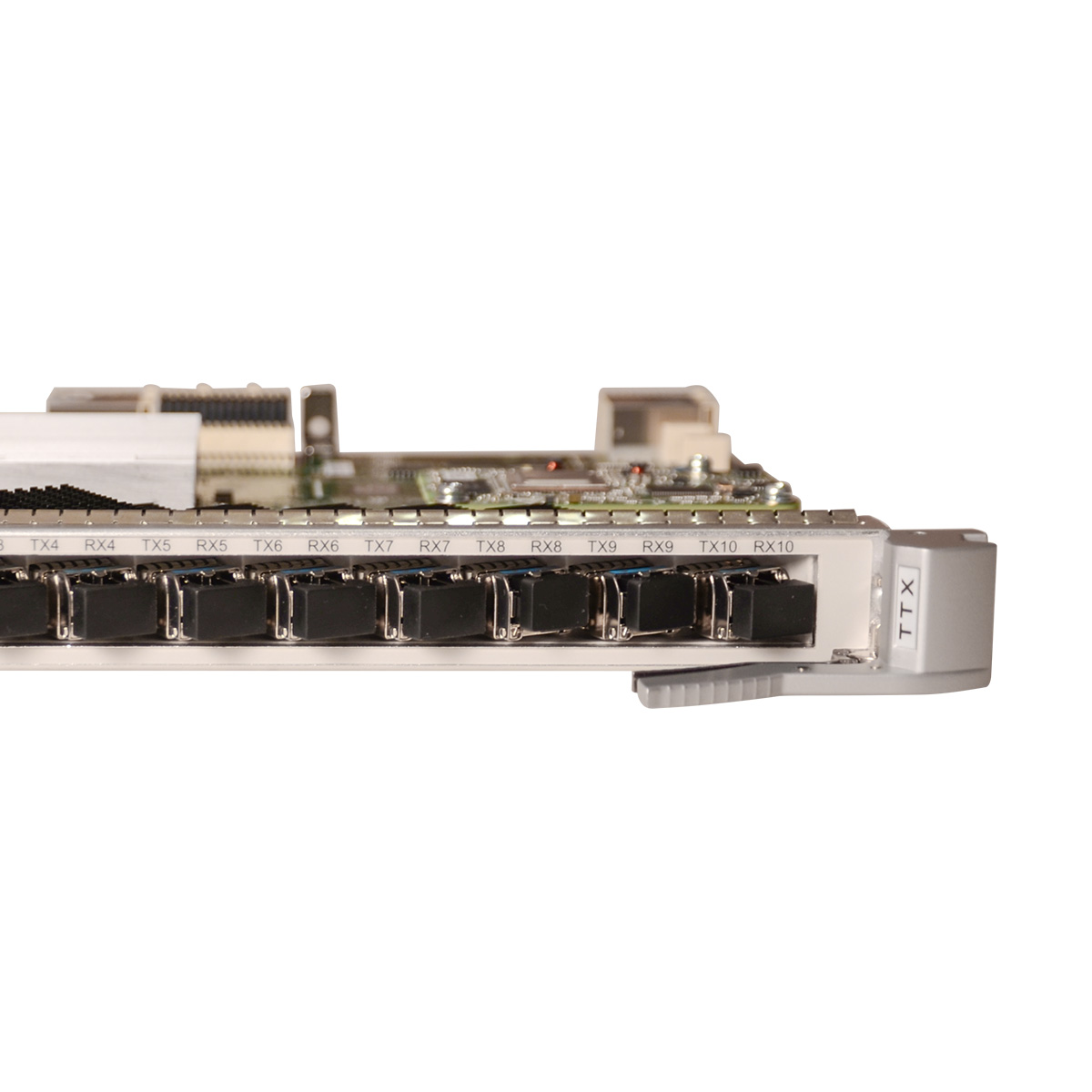

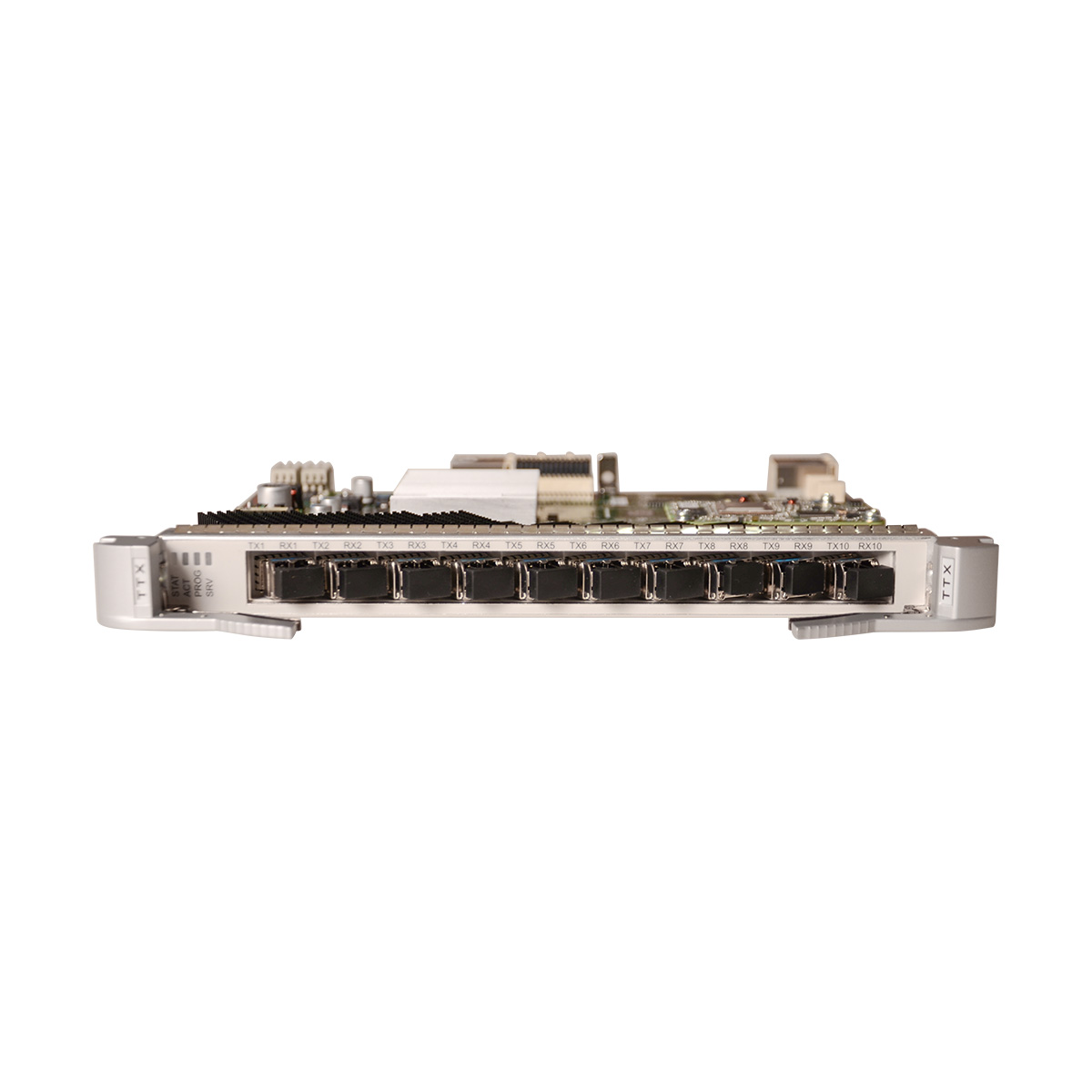

Huawei OSN8800 10x10G Tributary Service Processing Board With 10PCS 10G-10km-SFP+ Client-Side Pluggable Modules
| WDM client-side optical module | ||
| 10 Gbit/s Multirate-10 km-SFP+
10 Gbit/s Multirate-40 km-SFP+ 10 Gbit/s Multirate-80 km-SFP+ 10GBASE-ZR-80km-SFP+ 10GBASE-ER/EW-40km-SFP+ 10GBASE-SR-0.3km-SFP+ 10GBASE-LR-10km-SFP+ 11.3 Gbit/s Multirate-TX1270/RX1330nm-10km-SFP+ 11.3 Gbit/s Multirate-TX1330/RX1270nm-10km-SFP+ |
||
| WDM client-side equipped optical module | ||
| Parameter | Value | |
| Optical Module Type | 10G BASE-LR-10km-SFP+ | |
| Optical interface service rate | 10.3125 | |
| Optical source type | SLM | |
| Line code format | NRZ | |
| Target transmission distance(km) | 10 | |
| Transmitter parameter specifications at point S | ||
| Operating wavelength range(nm) | 1260 to 1355 | |
| Maximum mean launched power(dBm) | 0.5 | |
| Minimum mean launched power(dBm) | -8.2 | |
| Minimum extinction ratio(dB) | 3.5 | |
| Output optical power in case of laser shutdown(dBm) | ≤-30 | |
| Eye pattern mask | IEEE802.3z –compliant | |
| Receiver parameter specifications at point R | ||
| Receiver type | PIN | |
| Operating wavelength range(nm) | 1260 to 1355 | |
| Receiver sensitivity(dBm) | -12.6(OMA) | |
| Minimum receiver overload(dBm) | 0.5 | |
| Maximum reflectance(dB) | -12 | |
| Mechanical Specifications | ||
| Dimensions(mm) | 25.4(W) x 220(D) x 264.6(H) | |
| Weight(kg) | 1.2 | |
