03025XMG

What is the BOM number and main function of this board?

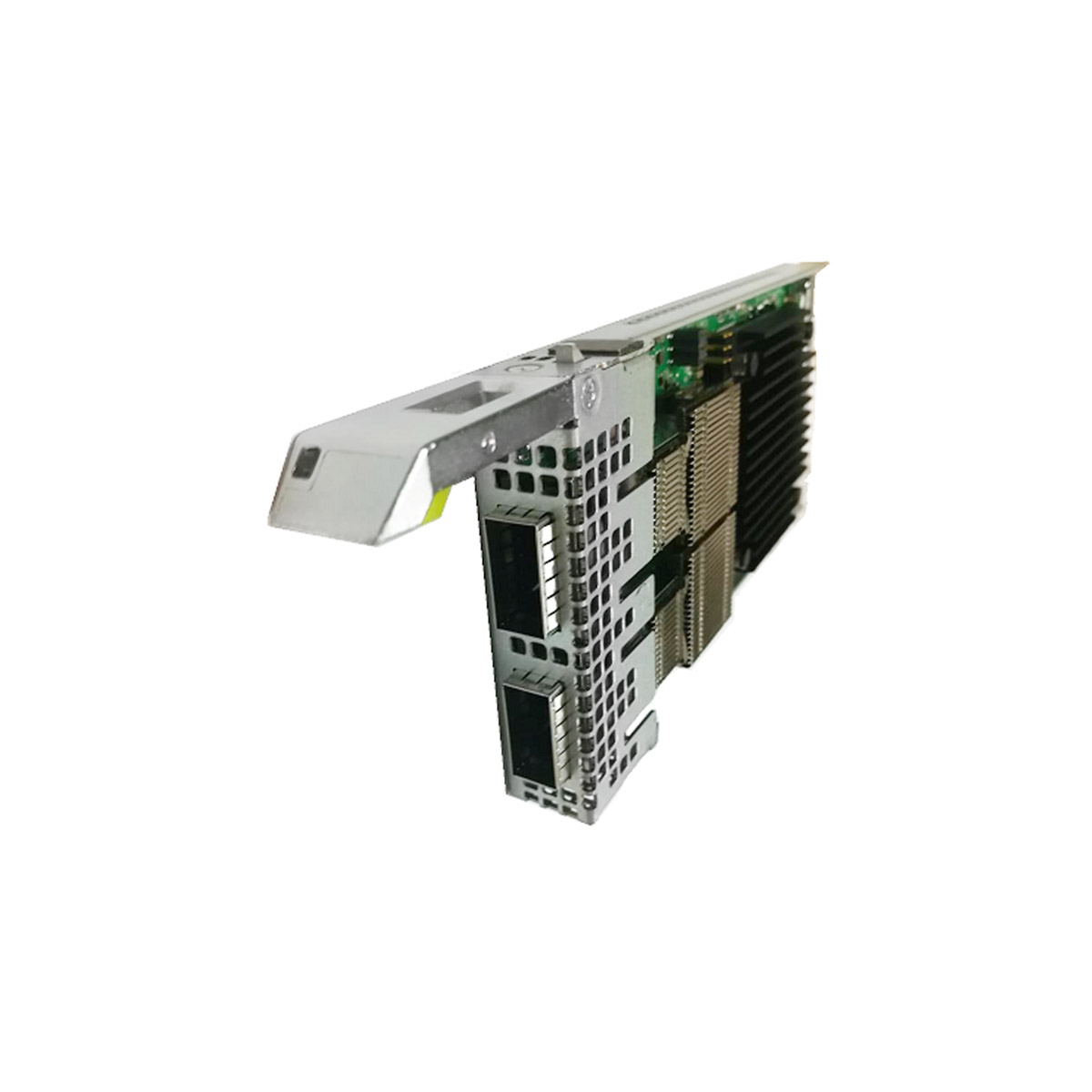

The BOM number is 03025XMG. This is a Manufactured Board, specifically a PANGEA STL6IEC2A I/O Module, designed to provide two 100Gbps Ethernet ports for high-speed data transmission in enterprise and data center environments.

What are the key interface specifications?

This I/O module features:

• Two 100Gbps Ethernet ports using optical QSFP28 form factors
• Host interface via Hi1822 PCIe 3.0 x16 for high-bandwidth connectivity to the system
• Designated as part of the STL6IEC2A variant

What type of system is this module compatible with?

As a PANGEA series board with a Hi1822 controller and PCIe 3.0 x16 interface, this module is designed for integration into high-performance servers and networking equipment requiring dense, high-speed I/O capabilities. For specific chassis or system compatibility, please consult the hardware guide for the PANGEA platform.

What is the physical form factor and optical interface type?

The module is a manufactured board with a form factor supporting two QSFP28 cages. It uses optical transceivers for the 100Gbps Ethernet links, making it suitable for fiber optic cabling over longer distances within a data center or core network infrastructure.
