03025XMG
Categories:

03025XMG

0 Reviews Write a review
SKU2039185
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

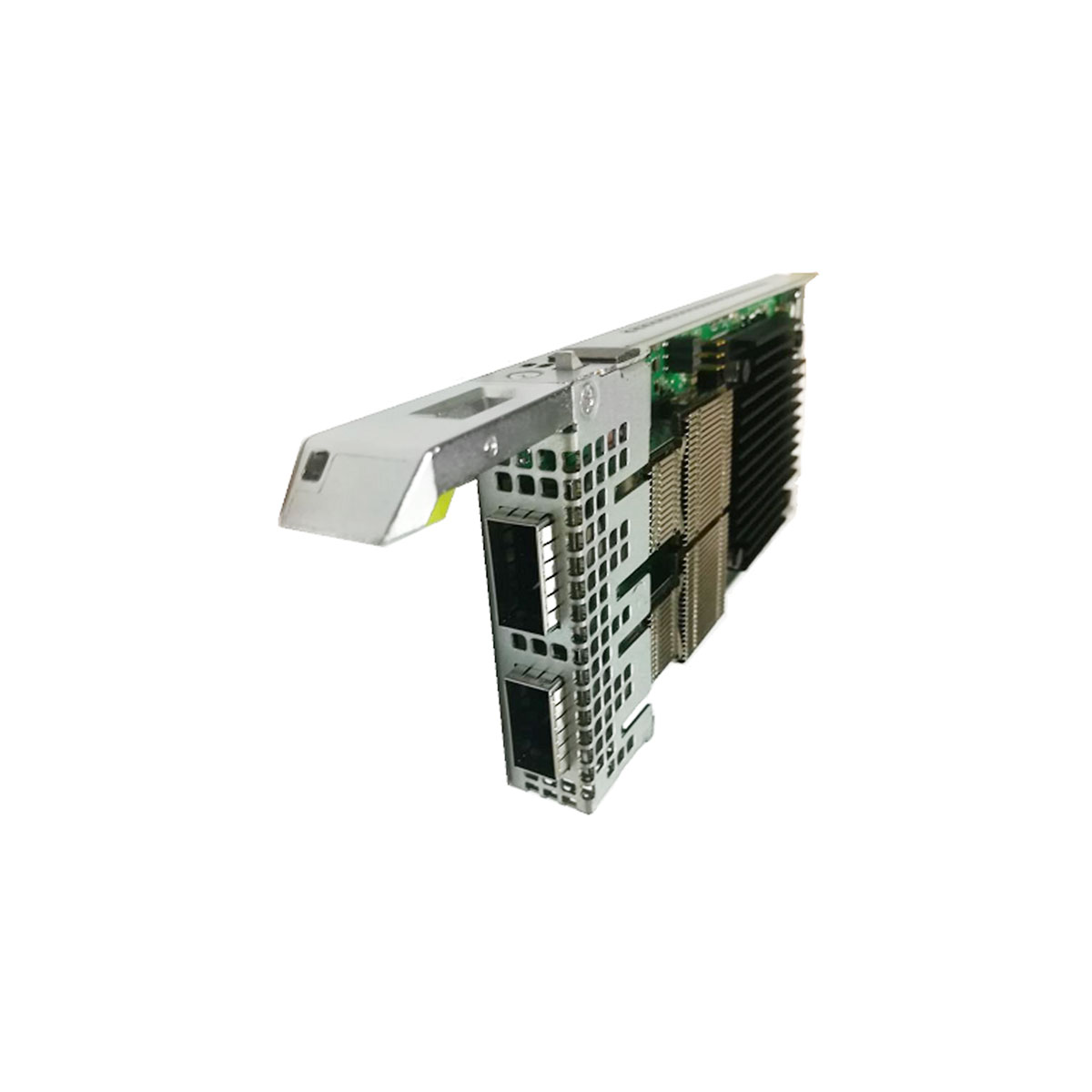

Manufactured Board,PANGEA,STL6IEC2A,2*100Gbps ETH I/O Module(optical QSFP28/Hi1822-PCIE3.0 x16/V6),1*1

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Overview



BOM Number 03025XMG
Description Manufactured Board,PANGEA,STL6IEC2A,2*100Gbps ETH I/O Module(optical QSFP28/Hi1822-PCIE3.0 x16/V6),1*1
Category Interface Module
Substitute Part 03059069
Substitute Part Description Finished Board Unit,PANGEA,STLM6IEC2A12,2 ports 100Gb ETH I/O module(QSFP28)
Substitution Relationship Unidirectional Substitution
Compatibility Complete Substitution
Applicable Product OceanStor 5500F V5 Kunpeng |OceanStor 5300F V5 Kunpeng |OceanStor 5600F V5 Kunpeng |OceanStor 5300 V5 Kunpeng Matching Dedicated |OceanStor 5600 V5 Kunpeng |OceanStor 5800 V5 Kunpeng |OceanStor 5800F V5 Kunpeng |OceanStor 5300 V5 Kunpeng |OceanStor 5500 V5 Kunpeng |OceanStor 5300 V5 Kunpeng ODM |OceanStor Dorado 3000 V6 |OceanStor Dorado 18000 V6 |OceanStor Dorado 5000 V6 |OceanStor Dorado 6000 V6 |OceanStor Dorado 8000 V6

Only for Controller of C Version,Not for Cplus Version



What are the main interfaces on the 03025XMG board?

The board provides 2x 100Gbps Ethernet I/O ports using optical QSFP28 cages, plus a PCIe 3.0 x16 host interface via the Hi1822 controller.



Which BOM number should I use to order this Telecomate board?

The official BOM number is 03025XMG. Please always reference this number when placing orders or requesting technical support.



What is the chipset and form factor of this module?

It integrates the Hi1822 smart NIC controller with PCIe 3.0 x16. The physical format is a manufactured board under the PANGEA series, STL6IEC2A variant, designed as a 1-slot I/O module.



Is the 03025XMG compatible with standard QSFP28 optics?

Yes, the dual 100Gbps ports accept standard QSFP28 optical transceivers. Telecomate recommends using validated optics for full link stability and performance.
