Home/OceanStor Dorado V6 Series/03025XMG
03025XMG
Categories:

03025XMG

0 Reviews Write a review
SKU2039721
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

Manufactured Board,PANGEA,STL6IEC2A,2*100Gbps ETH I/O Module(optical QSFP28/Hi1822-PCIE3.0 x16/V6),1*1

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Overview



BOM Number 03025XMG

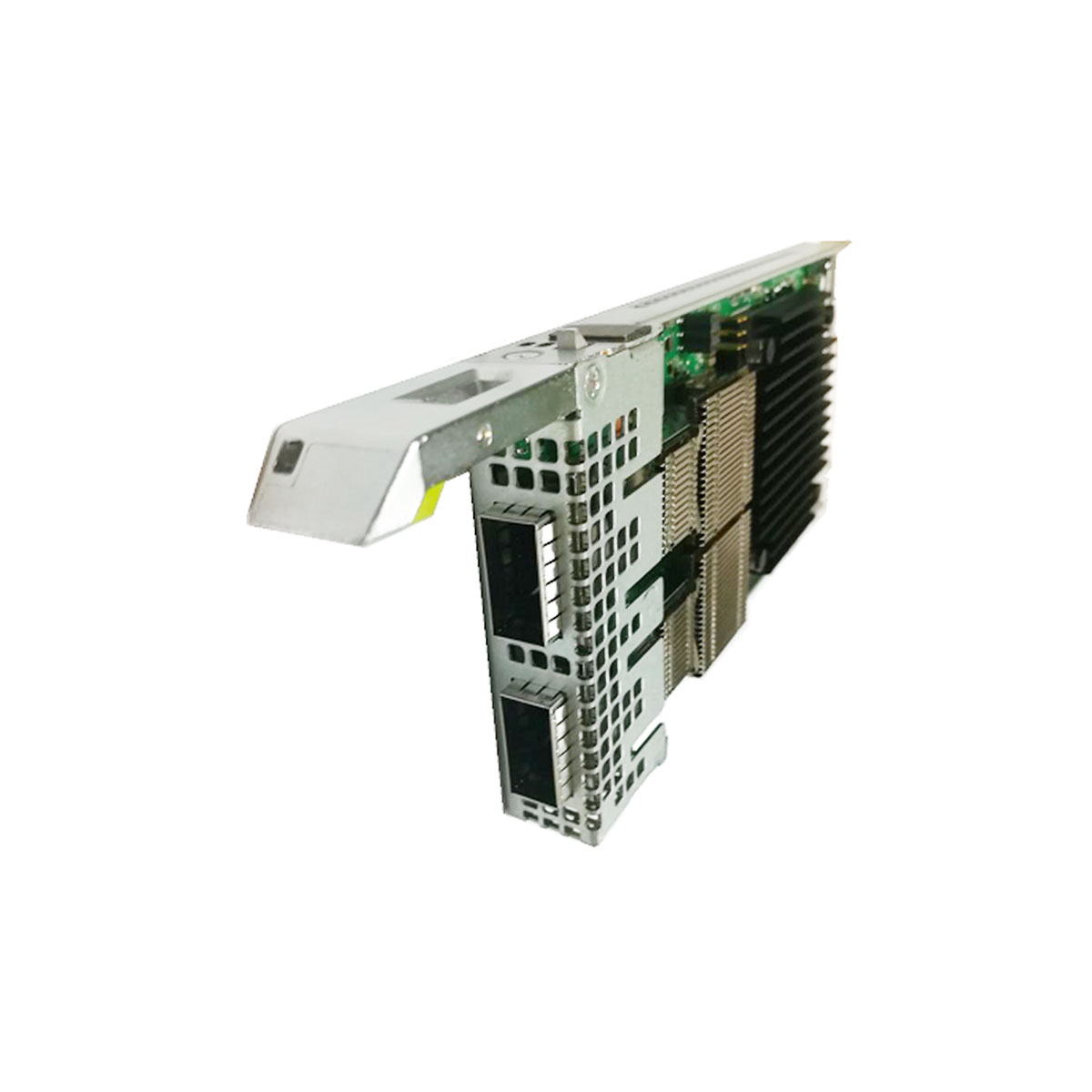

Description Manufactured Board,PANGEA,STL6IEC2A,2*100Gbps ETH I/O Module(optical QSFP28/Hi1822-PCIE3.0 x16/V6),1*1
Category Interface Module
Substitute Part 03059069
Substitute Part Description Finished Board Unit,PANGEA,STLM6IEC2A12,2 ports 100Gb ETH I/O module(QSFP28)
Substitution Relationship Unidirectional Substitution
Compatibility Complete Substitution
Applicable Product OceanStor 5500F V5 Kunpeng |OceanStor 5300F V5 Kunpeng |OceanStor 5600F V5 Kunpeng |OceanStor 5300 V5 Kunpeng Matching Dedicated |OceanStor 5600 V5 Kunpeng |OceanStor 5800 V5 Kunpeng |OceanStor 5800F V5 Kunpeng |OceanStor 5300 V5 Kunpeng |OceanStor 5500 V5 Kunpeng |OceanStor 5300 V5 Kunpeng ODM |OceanStor Dorado 3000 V6 |OceanStor Dorado 18000 V6 |OceanStor Dorado 5000 V6 |OceanStor Dorado 6000 V6 |OceanStor Dorado 8000 V6

Only for Controller of C Version,Not for Cplus Version



What is the BOM number and product family of this module?

The BOM number is 03025XMG, and it belongs to the PANGEA series manufactured board, specifically the STL6IEC2A model.



What are the interface and bandwidth specifications?

This I/O module provides 2 ports of 100Gbps Ethernet connectivity using optical QSFP28 interfaces, delivering a total of 200Gbps aggregate bandwidth.



Which host interface and controller does it use?

It utilizes a PCIe 3.0 x16 host interface and integrates the Hi1822 controller. Key features include:

  • PCIe 3.0 x16 bus bandwidth
  • Hi1822 Smart NIC offloading capabilities
  • Optical QSFP28 for 100Gbps per port



What is the physical configuration of this board?

The board is a Manufactured Board with a 1*1 form factor configuration, designed for enterprise-grade ETH I/O module applications in Telecomate infrastructure.
