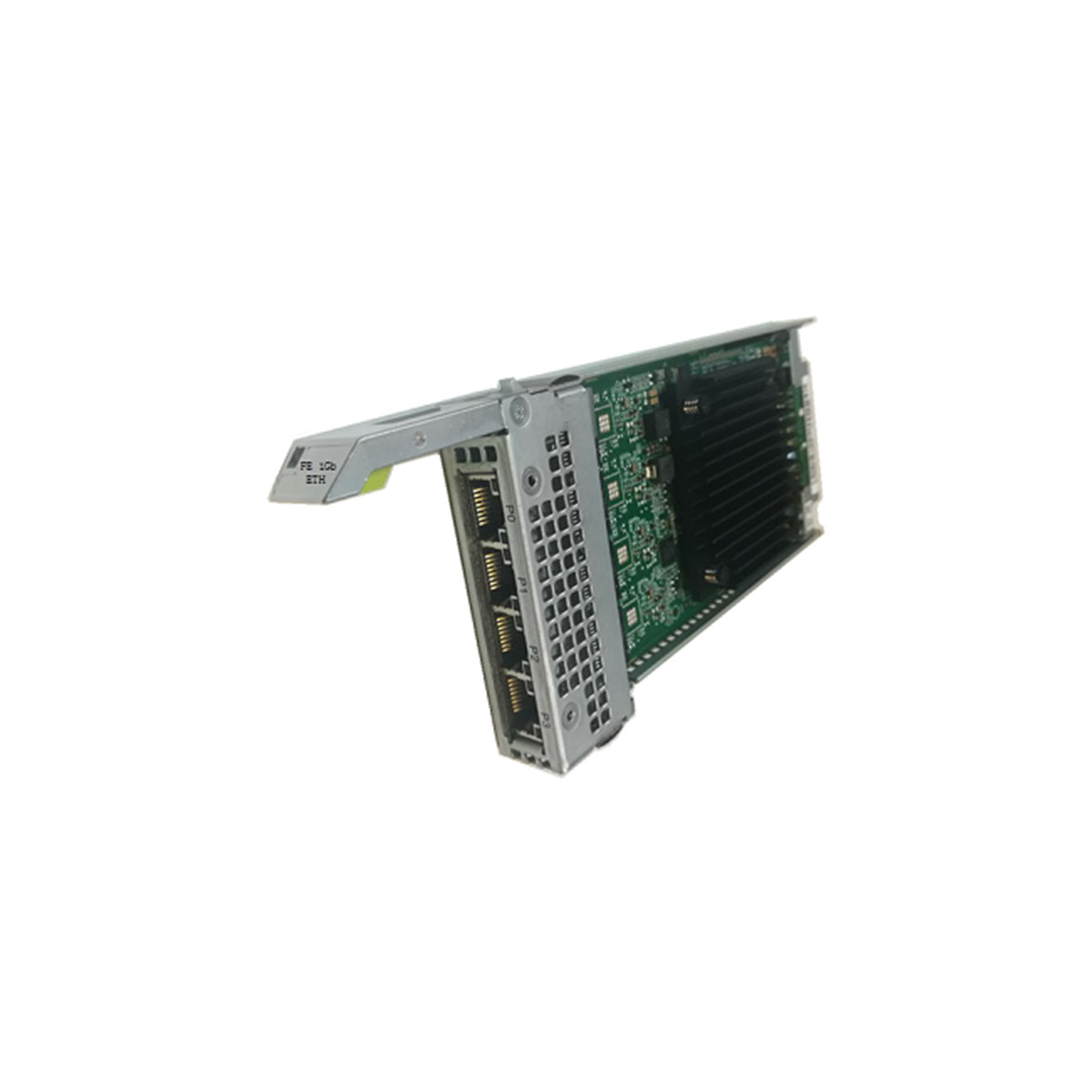

03050ADE

Which storage systems are compatible with the 03050ADE module?

This I/O module is designed for Huawei OceanStor 6810, OceanStor 18x10 V5, Dorado 8000, and Dorado 18x00 V6 storage systems.

What are the key interface and chip specifications of this board?

The 03050ADE offers:

• 4 ports of 1Gb Ethernet using RJ45 connectors
• Hi1822 controller chip
• PCIe 3.0 x16 host interface

Is this a finished board unit ready for direct installation?

Yes, the 03050ADE is a finished board unit (FBU), fully assembled and tested for plug-and-play deployment in compatible expansion chassis or storage controllers.

What is the purpose of this module in a storage array?

This module provides 1Gb Ethernet connectivity for management or front-end client access. It uses the Hi1822 PCIe 3.0 x16 adapter to offload network I/O from the main CPU.
