03058987

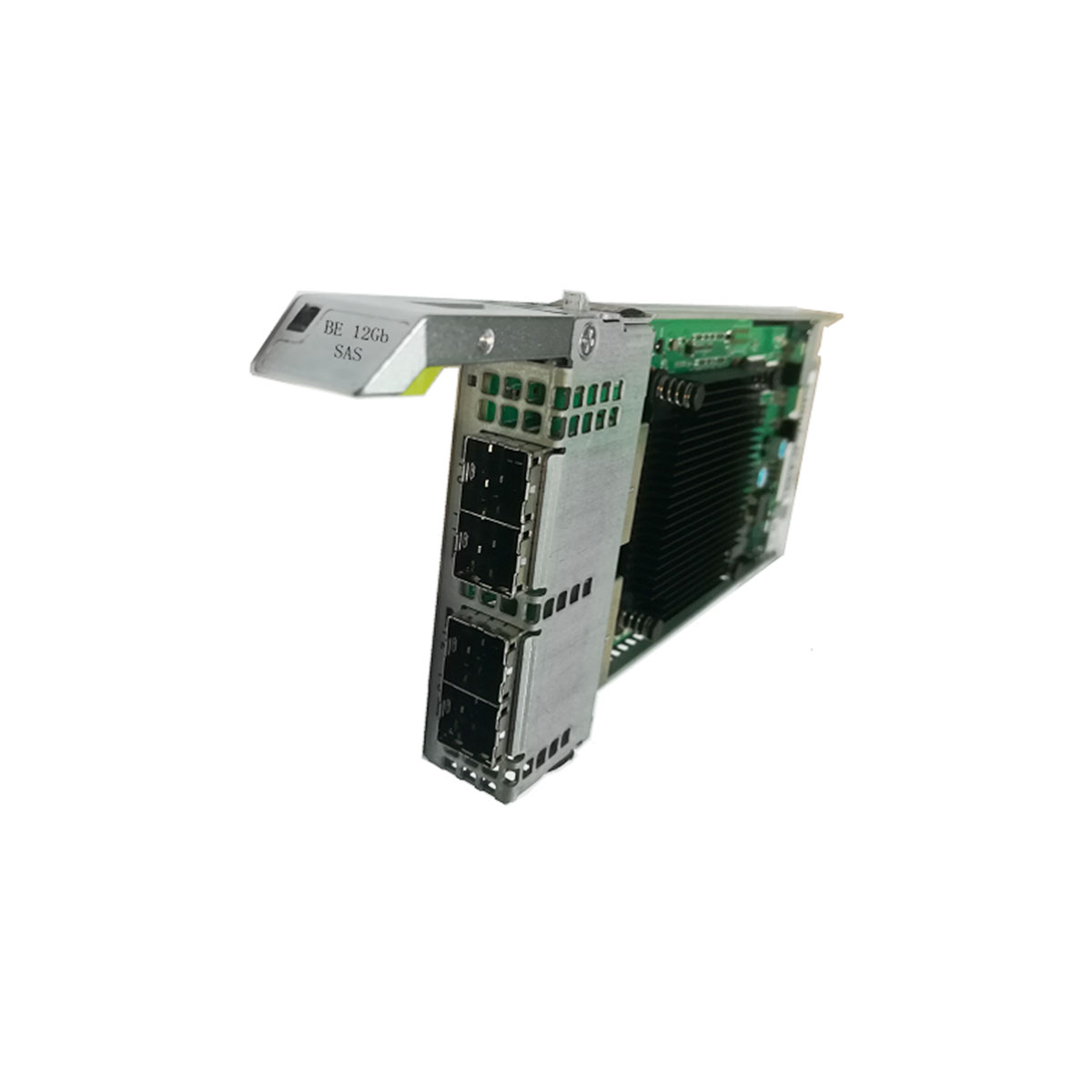

Which OceanStor models support the 03058987 SAS I/O module?

This Finished Board Unit is compatible with the following Huawei OceanStor V5 series storage systems:

• OceanStor 5310 V5
• OceanStor 5510 V5
• OceanStor 5610 V5
• OceanStor 5810 V5

What is the port configuration of BOM 03058987?

The module features 4 high-speed ports, each operating at 12Gb/s, utilizing the MiniSAS HD connector type. The total interface is defined as 4*12Gb SAS I/O module, providing reliable connectivity for enterprise storage expansion.

What is the exact part number and description of this Telecomate module?

The complete Telecomate part number is STLM6IS124A02. It is a Finished Board Unit designed specifically for OceanStor 5310/5510/5610/5810 V5 systems, functioning as a 4-port 4*12Gb SAS I/O module with MiniSAS HD interface.

What type of connector does the 03058987 SAS module use?

This I/O module is equipped with MiniSAS HD connectors. These high-density connectors are designed for 12Gb SAS applications, ensuring secure and high-bandwidth connections between the storage controller and external SAS expansion enclosures.
