03059054

Which storage systems are compatible with the 03059054 I/O module?

This I/O module is designed for Huawei OceanStor and Dorado enterprise storage arrays. Compatible models include:

• OceanStor 6810 V5
• OceanStor 18510 V5
• Dorado 8000 V6
• Dorado 18000 V6

Teleamate confirms full compatibility with these platforms.

What are the technical specifications of the 03059054 Finished Board Unit?

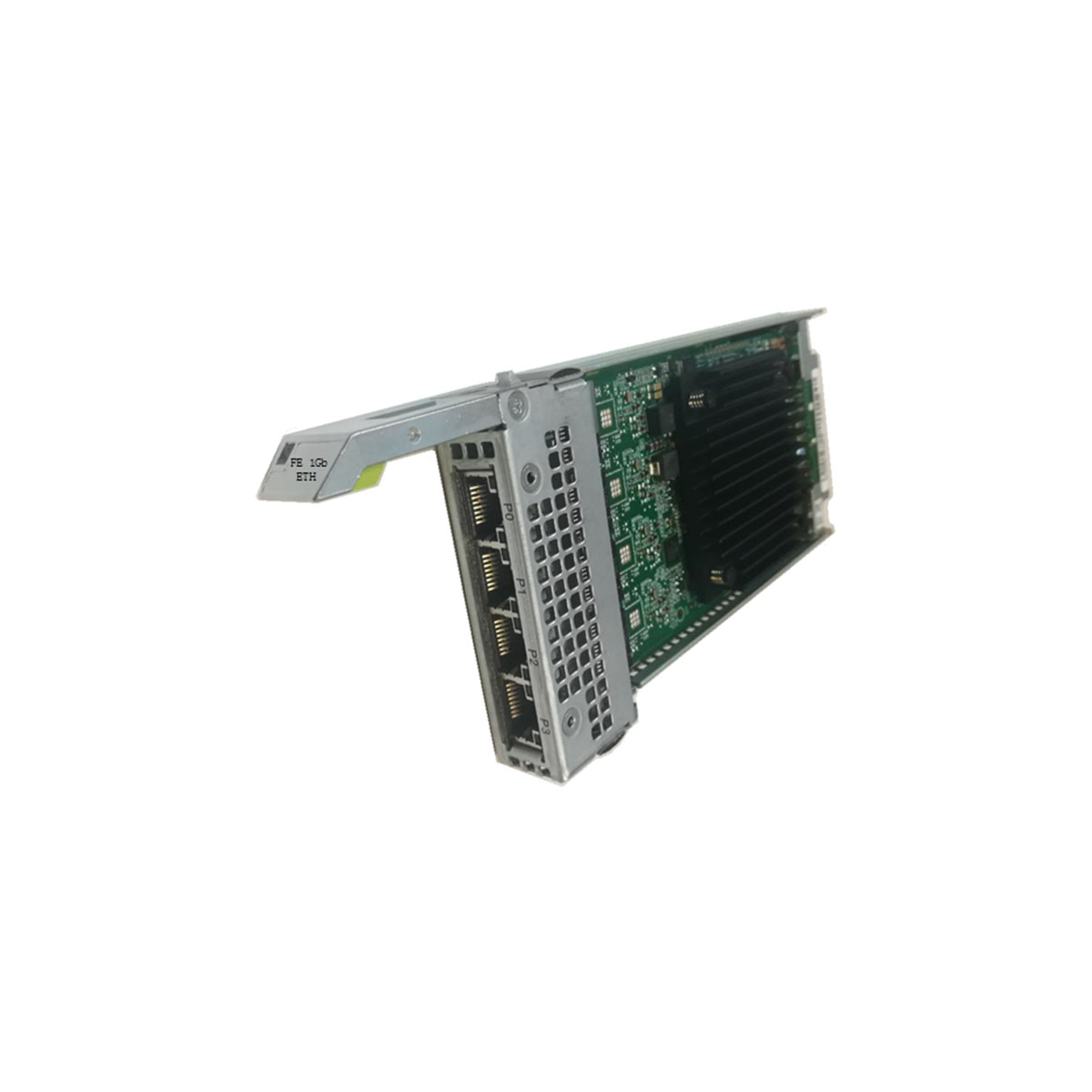

The 03059054 module features 4 ports of 1Gb Ethernet over RJ45 connectors. It utilizes the Hi1822 controller and operates on a PCIe 3.0 x16 host interface. Telecomate provides this high-performance networking component for storage connectivity.

What is the controller model and interface type used on this I/O module?

This module integrates the Hi1822 controller chip. The host bus interface is PCIe 3.0 x16, while the network side offers 4 individual 1GbE ports using standard RJ45 connectors. Telecomate recommends verifying slot compatibility before installation.

Can the 03059054 module be used to add more Ethernet ports to my OceanStor Dorado V6 array?

Yes, this 4-port 1GbE ETH I/O module is specifically designed as a field-replaceable unit (FRU) to expand network connectivity. It increases the available 1GbE RJ45 port count on compatible OceanStor 6810/18510 V5 and Dorado 8000/18000 V6 systems. Contact Telecomate for deployment guidance.
