5128E-FI

5128E-FI

ZTE 5128E-FI switch supports 24*GE SFP optical ports, 2*AC/DC power supply modules

ZTE

3-5 days

Shenzhen Warehouse

SKU: 2009045 Category:

Description

overview

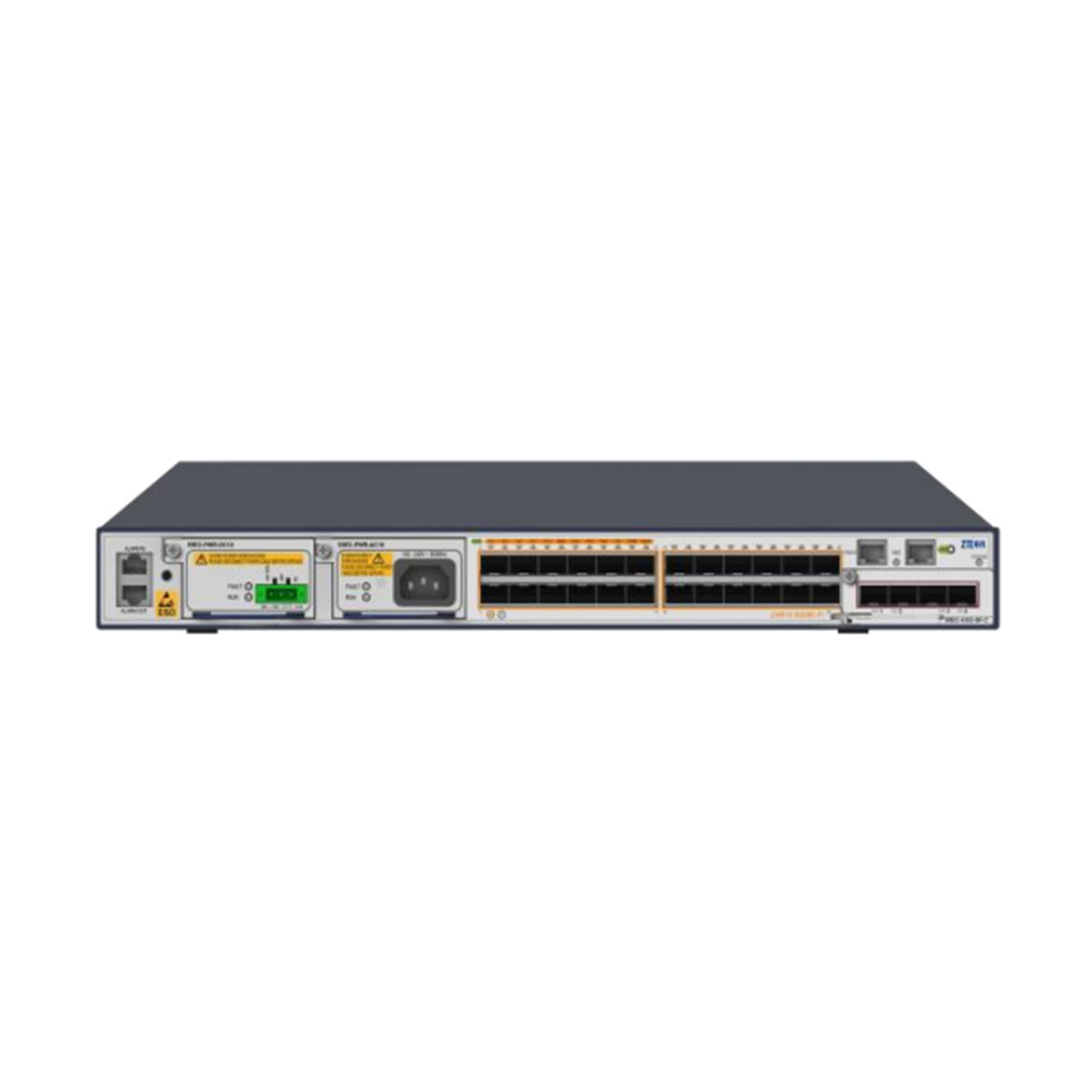

ZTE 5128E-FI switch supports 24*GE SFP optical ports, 2*AC/DC power supply modules.

ZXR10 5100E is a type of GE L3 device developed by ZTE. It meets the access requirements and focuses on full service IP bearer network application.

ZXR10 5100E applies unified platform to bear data, voice, video and mobile services and has software and hardware structure with high reliability, excellent switch capacity and performance and simple maintenance and management tool, which is easy to build sustainable carrier-class bearer network.

ZXR10 5100E applies advanced dedicated core chip, excellent service extensible and value-added abilities. It extends the service life of device and protects asset investment returns.
The design idea of green environmental protection enables the consumption of the product to keep lower level in the industry. ZXR10 5100E applies compact structure.

Its running cost is low. Module double-power ensures high reliability, which reduces operation cost largely and realizes the maximum of running profit.

ZXR10 5100E includes the following three types:

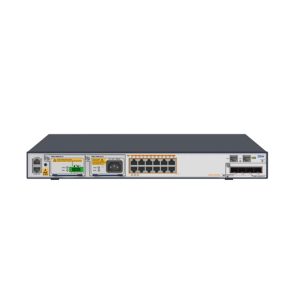

  • ZXR10 5116E
  • ZXR10 5128E
  • ZXR10 5128E-FI
Features
  • Transcendent performance and capacity, which improves client network update and deployment efficiency.
  • Improve video service experience and ensure user high-quality video service feeling.
  • Rich service platform, ideal platform of network convergence.
  • Carrier-class high reliability which improves disaster recovery ability.
  • Excellent operation management design which reduces operation and maintenance cost.
  • Green environmental protection, which reduces the requirement for environment deployment.
Function and Parameters  5116E 5128E 5128E-FI
Expansion Card Type 4*GE SFP card

4*10GE SFP+ card

Weight <3.8kg <4.8kg <4.8kg
Management Port 1 GE MNG, 1RJ45 Console, 1 Mini USB Console
DC Power Supply -40V ~ -72V -40V ~ -72V -40V ~ -72V
AC Power Supply Rated voltages: 100V~240V,50Hz~60Hz
Maximum voltages: 90V~286V,45Hz~66Hz
Maximum Power Consumption <45W <63W <64W
Typical Power Consumption 38W 43W 35W
Power Redundancy Pattern Two independent and swappable power supply module, support AC 1+1, DC 1+1,
Heat Dissipation Pattern Fan cooling, support multilevel speed regulation
Heat Dissipation 190 BTU/h 213 BTU/h 180 BTU/h
Working Temperature Long term working temperature: -10 oC ~ +50 oC
Short term working temperature: -10 oC ~ +55 oC
Humidity 5%~95%
Working Altitude <3000 meters
Dimensions (H*W*D) 43.6mm*442mm*220mm
