5250-52TS-L
Categories:

5250-52TS-L

1 Review Write a review
SKU2009122
Brands
AvailabilityIn Stock
WarrantyUp to 36 months i
×
Warranty Policy
We provide a comprehensive warranty policy.
Refer to the table for more details.

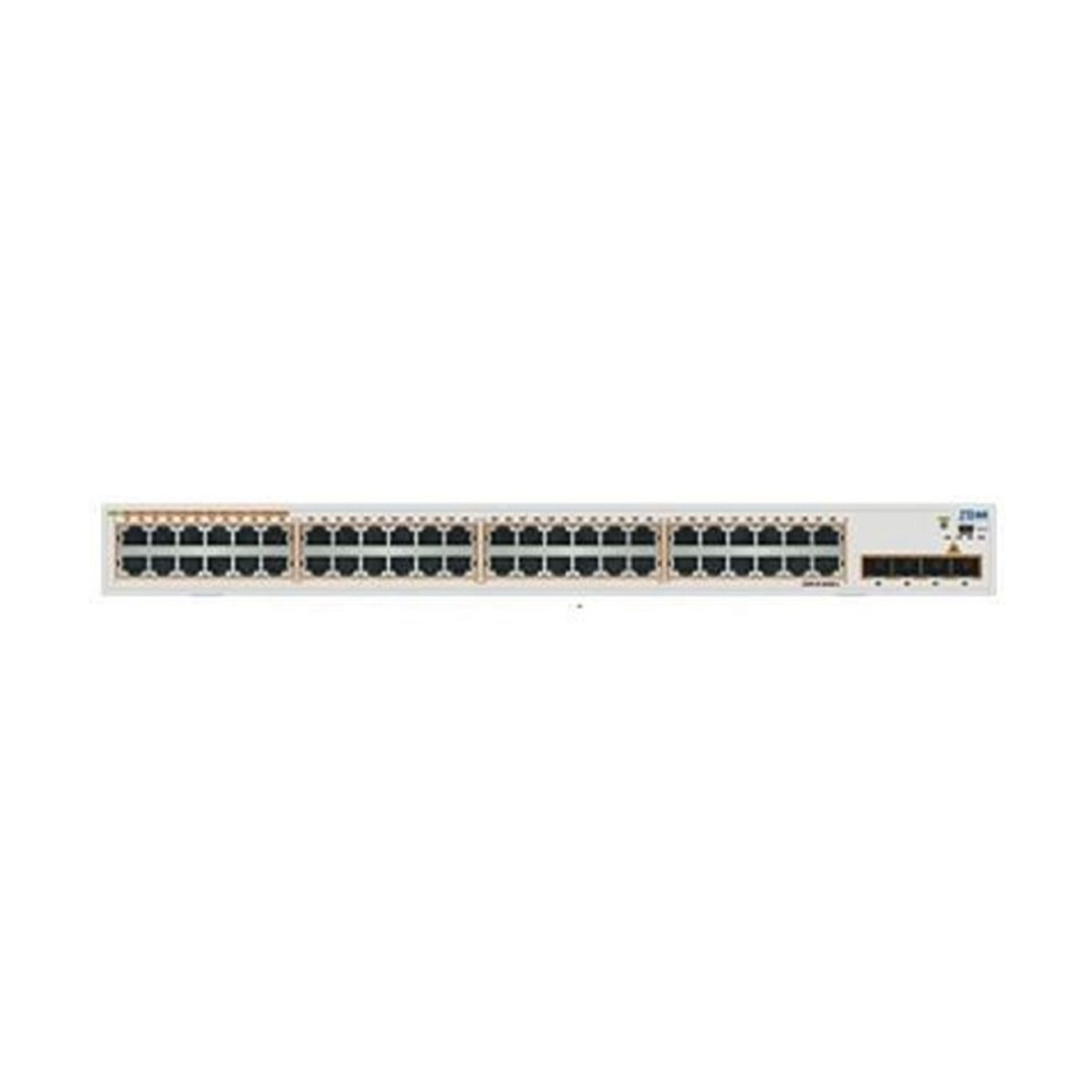

ZTE 5250-52TS-L switch supports 48*10/100/1000Base-T Ethernet port, and 4*1000Base-FX ports.

    Tech Support
    Service Commitment
    Steps Shipping
    Customer Satisfacition

Description

Overview

ZTE 5250-52TS-L switch supports 48*10/100/1000Base-T Ethernet port, and 4*1000Base-FX ports.

The ZXR10 5250-L series switches are all-gigabit intelligent switch developed by ZTE Corporation.

It provides gigabit access and support the Access Control List (ACL) function for ingress.

The ZXR10 5250-L series switches are used in the access layers of educational networks, enterprise networks, political service networks, and carrier networks.

Depending on the slot quantity and capacity, the ZXR10 5250-L series switches are divided into the following types:

  • ZXR10 5250-28TS-L
  • ZXR10 5250-52TS-L
  • ZXR10 5250-28TM-L
Features

The ZXR10 5250-L series switches are environment-friendly and highly-reliable products, which are easy to maintain and bring satisfactory experience to customers.

  • Environment-friendly and energy-saving design
  • Advanced lightning-protection technology
  • Powerful security platform
  • Abundant maintenance methods
Functions

The ZXR10 5250-L series switches have the following functions:

  • Support the port duplex, speed, auto-negotiation, jumbo frame, and line order
  • identification configuration.
  • Support port-based VLANs
  • Support PVLAN, QinQ.
  • Support MAC line rate learning, port address quantity limit, port address fixing, and manual MAC management.
Show More Show Less
Item ZXR10 5250-28TS-L ZXR10 5250-52TS-L ZXR10 5250-28TM-L
Power supply Support AC, and DC RPS power supply. AC power supply Rated voltage range: 100 V–240 V AC, 50 Hz/60Hz DC RPS Rated voltage :+12V DC Support AC and DC power supply. AC power supply Rated voltage range: 100 V–240 V AC, 50 Hz/60 Hz DC power supply Rated voltage: -48 V DC
Power consumption < 27 W < 53 W < 51 W
Ambient temperature Ambient temperature For long-term operations: -5 ℃ to +50 ℃ For short-term operations: -5 ℃ to +55 ℃ Storage temperature: -40 ℃ to +70 ℃
Humidity Relative humidity: 5%–95%, non-condensation
Memory size 128 MB
Port switch capacity 56 Gbps 104 Gbps 128 Gbps
Packet forwarding rate 42 Mpps 78 Mpps 96 Mpps
Capacity of MAC address table 16K
Dimensions (Height × Width × Depth) 1.72 in. × 17.41 in. × 8.67 in. (43.6 mm × 442 mm × 220 mm)   1.72 in. × 17.41 in. × 8.67 in. (43.6 mm ×442 mm ×220 mm) 1.72 in. × 17.41 in. × 17.34 in. (43.6 mm ×442 mm ×440 mm)
Weight < 6.39 lb (< 2.9 kg) < 6.61 lb (< 3kg) < 14.11 lb (< 6.4 kg)

Additional information

Brand

ZTE
Ship From

Shenzhen Warehouse
Item ZXR10 5250-28TS-L ZXR10 5250-52TS-L ZXR10 5250-28TM-L
Power supply Support AC, and DC RPS power supply. AC power supply Rated voltage range: 100 V–240 V AC, 50 Hz/60Hz DC RPS Rated voltage :+12V DC Support AC and DC power supply. AC power supply Rated voltage range: 100 V–240 V AC, 50 Hz/60 Hz DC power supply Rated voltage: -48 V DC
Power consumption < 27 W < 53 W < 51 W
Ambient temperature Ambient temperature For long-term operations: -5 ℃ to +50 ℃ For short-term operations: -5 ℃ to +55 ℃ Storage temperature: -40 ℃ to +70 ℃
Humidity Relative humidity: 5%–95%, non-condensation
Memory size 128 MB
Port switch capacity 56 Gbps 104 Gbps 128 Gbps
Packet forwarding rate 42 Mpps 78 Mpps 96 Mpps
Capacity of MAC address table 16K
Dimensions (Height × Width × Depth) 1.72 in. × 17.41 in. × 8.67 in. (43.6 mm × 442 mm × 220 mm)   1.72 in. × 17.41 in. × 8.67 in. (43.6 mm ×442 mm ×220 mm) 1.72 in. × 17.41 in. × 17.34 in. (43.6 mm ×442 mm ×440 mm)
Weight < 6.39 lb (< 2.9 kg) < 6.61 lb (< 3kg) < 14.11 lb (< 6.4 kg)
