5950-28SD-L

5950-28SD-L

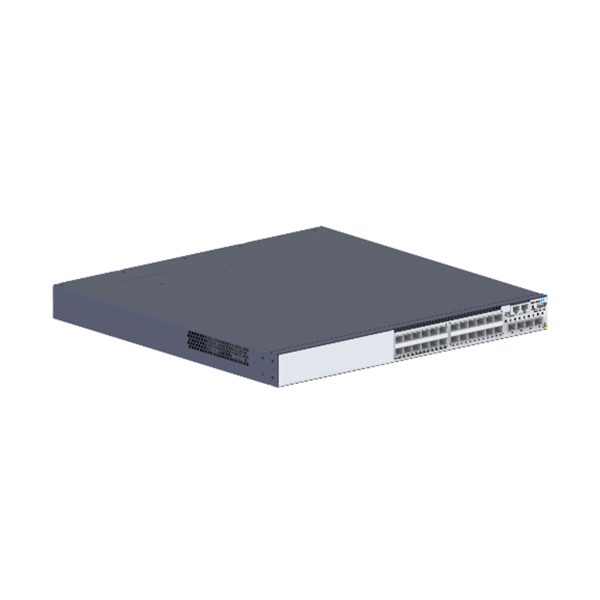

ZTE ZXR10 5950-28SD-L provides 24 optical interfaces, 4 10G interfaces, 2 power slots

ZTE

3-5 days

Shenzhen Warehouse

SKU: 2009233 Category:

Description

ZXR10 5950-28SD-L provides 24 optical interfaces. The optical interfaces support 1000 Base-X and 100 Base-FX. The optical interfaces are SFP interfaces, 4 10G interfaces, and supports optical modules with the 10G SFP+ interface and modules with the 1G SFP interface.



Name Quantity Description
1 G optical interface 24 The optical interfaces support 1000Base-X and 100Base-FX. The optical interfaces are SFP interfaces.
10G optical interface 4 Fixed Ethernet optical interface, supporting optical modules with the 10G SFP+ interface and modules with the 1G SFP interface. The 100M optical module is not supported.
Console interface 2 One MiniUSB interface or RJ45 interface for service configuration management. Only either of the two interfaces can be used.
10/100/1000 Base-T management interface. 1 It is used to boot devices and download version files.
USB interface 1 The A-USB interface reads and writes a USB disk to access data.
Item ZXR10 5950-28TD-L ZXR10 5950-52TD-LC ZXR10 5950-28TD-L ZXR10 5950-52TD-L ZXR10 5950-28SD-L ZXR10 5950-28PD-L ZXR10 5950-52PD-L
Dimensions (H × W × D) 43.6 mm×442 mm×440 mm
Weight ≤6.5 kg ≤6.9 kg ≤6.5 kg ≤6.9 kg ≤7.7 kg ≤7.8 kg ≤8.1 kg
Power Supply AC: 100 V to 240 V, 50 Hz to 60 Hz AC: 100 V to 240 V, 50 Hz to 60 Hz
DC : -38 V to -57 V DC : -52 V to -57 V
Power consumption Typical power consumption: 30 W Typical power consumption: 39 W Typical power consumption: 30 W Typical power consumption: 39 W Typical power consumption: 38 W Typical power consumption: 42 W Typical power consumption: 49 W
Maximum power consumption: 60 W Maximum power consumption: 74 W Maximum power consumption: 60 W Maximum power consumption: 74 W Maximum power consumption: 66 W Maximum power consumption: 790 W (Output voltage: 53.5 V, maximum output power of PoE: 720 W, and system power consumption: 70 W) Maximum power consumption: 1040 W (Output voltage: 53.5 V, maximum output power of PoE: 960 W, and system power consumption: 80 W)
Ambient temperature Long term: -5°C to +50°C
Storage temperature: -40°C to +70°C
Relative humidity 5% to 95% (non-condensing)
Switching capacity 128 Gbps 176 Gbps 128 Gbps 176 Gbps 128 Gbps 128 Gbps 176 Gbps
Packet forwarding rate 96 Mpps 132 Mpps 96 Mpps 132 Mpps 96 Mpps 96 Mpps 132 Mpps
Memory 2 GB
Environmental specification Reduction of Hazardous Substances (RoHS)
Reliability MTBF: > 400000 hours
MTTR: < 30 minutes
EMC:
FCC Part 15 (CFR 47) Class A
EN 55022 Class A
ETSI EN 300 386
EN55024
ICES-003 Class A
IEC 61000-3-2
IEC 61000-3-3
CISPR22 Class A
CISPR24
ICES-003 Class A
AS/NZS CISPR22 Class A
IEC61000-4-2
ITU-T K 20
ITU-T K 21
ITU-T K 44
Safety:
UL 60950 3rd Edition
CSA C22.2 No. 60950 3rd Edition
IEC 60950
EN 60950
EN60825-1
EN60825-2
IEC60825-1
IEC60825-2
