5950-36TM-H

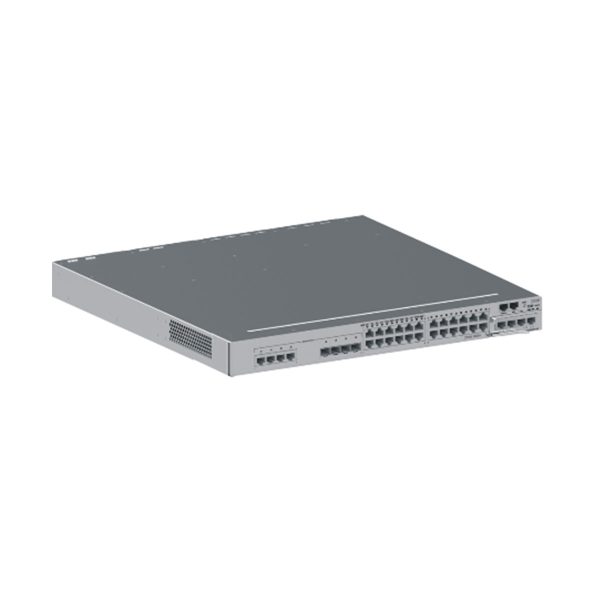

ZTE ZXR10 5950-36TM-H supports 24 GE electrical interfaces (RJ45) , 4 Combo interfaces that can be RJ45 interfaces or SFP interfaces.
ZTE
3-5 days
Shenzhen Warehouse
- Description
- DATASHEET
- Reviews (0)
Description
ZXR10 5950-36TM-H supports 24 GE electrical interfaces (RJ45) that support CAT-5 or higher standard twisted pair cables, 4 Combo interfaces that can be RJ45 interfaces or SFP interfaces.
Name | Quantity | Description |
---|---|---|
10/100/1000Base-T Ethernet port | 24 | These Ethernet ports are fixed. |
Combo port | 4 | These ports can be 100/1000Base-T ports or 100Base-FX /1000Base-X ports as required. The Combo ports cannot be SFP optical interfaces or RJ45 electrical interfaces at the same time. |
Console port | 2 | One MiniUSB and one RJ45 interface for service configuration and management. The two ports cannot be used at the same time. |
10/100/1000Base-T management port | 1 | This interface can be used for downloading boot files or version files. |
USB interface | 1 | Type-A USB interface. Implements data read and write in a USB flash drive. |
Expansion daughter card slot at the front panel | 1 | Supports the following daughter cards:
59-4GE-SF 59-4GE-SF-M 59-4GE-RJ-M 59-4XG-SF-M |
Expansion daughter card slot at the rear panel | 1 | Supports the following daughter cards:
59-4GE-SF 59-4GE-SF-M 59-4GE-RJ-M 59-4XG-SF-M 59-2L-SK |
Item | ZXR10 5950-36TM-H | ZXR10 5950-56TM-H | ZXR10 5950-36PM-H | ZXR10 5950-56PM-H |
Dimensions (H × W × D) | 43.6 mm×442 mm×440 mm | |||
Weight | ≤8.3 kg | ≤8.4 kg | ≤9 kg | ≤9.2 kg |
Power supply | AC: 100 V to 240 V, 50 Hz to 60 Hz | AC: 100 V to 240 V, 50 Hz to 60 Hz | ||
DC : -38 V to -57 V | ||||
Power consumption | Typical power consumption: 60.5 W | Typical power consumption: 66.7 W | Typical power consumption: 64.5 W | Typical power consumption: 67.6 W |
Maximum power consumption: 87 W | Maximum power consumption: 92 W | Maximum power consumption: 929 W (Output voltage: 53.35 V, maximum output power of PoE: 840 W, and system power consumption: 89 W) | Maximum power consumption: 1036 W (Output voltage: 53.35 V, maximum output power of PoE: 940 W, and system power consumption: 96 W) | |
Ambient temperature | Operational ambient temperature: | |||
Long term: -5°C to +45°C | ||||
Short term: -5°C to +55°C | ||||
Storage temperature: -40°C to +70°C | ||||
Relative humidity | 10% to 90% (non-condensing) | |||
Switching capacity | 296 Gbps | 336 Gbps | 296 Gbps | 336 Gbps |
Packet forwarding rate | 222 Mpps | 252 Mpps | 222 Mpps | 252 Mpps |
Memory | 2 GB | |||
Environmental specification | Reduction of Hazardous Substances (RoHS) | |||
Reliability | MTBF: > 400000 hours | |||
MTTR: < 30 minutes | ||||
EMC: | ||||
FCC Part 15 (CFR 47) Class A | ||||
EN 55022 Class A ETSI | ||||
EN 300 386 | ||||
EN55024 ICES-003 Class A | ||||
IEC 61000-3-2 | ||||
IEC 61000-3-3 | ||||
CISPR22 Class A | ||||
CISPR24 ICES-003 | ||||
Class A AS/NZS CISPR22 | ||||
Class A IEC61000-4-2 | ||||
ITU-T K 20 | ||||
ITU-T K 21 | ||||
ITU-T K 44 | ||||
Safety: | ||||
UL 60950 3rd Edition | ||||
CSA C22.2 No. 60950 3rd Edition | ||||
IEC 60950 | ||||
EN 60950 | ||||
EN60825-1 | ||||
EN60825-2 | ||||
IEC60825-1 | ||||
IEC60825-2 |
