5960-72DL-H

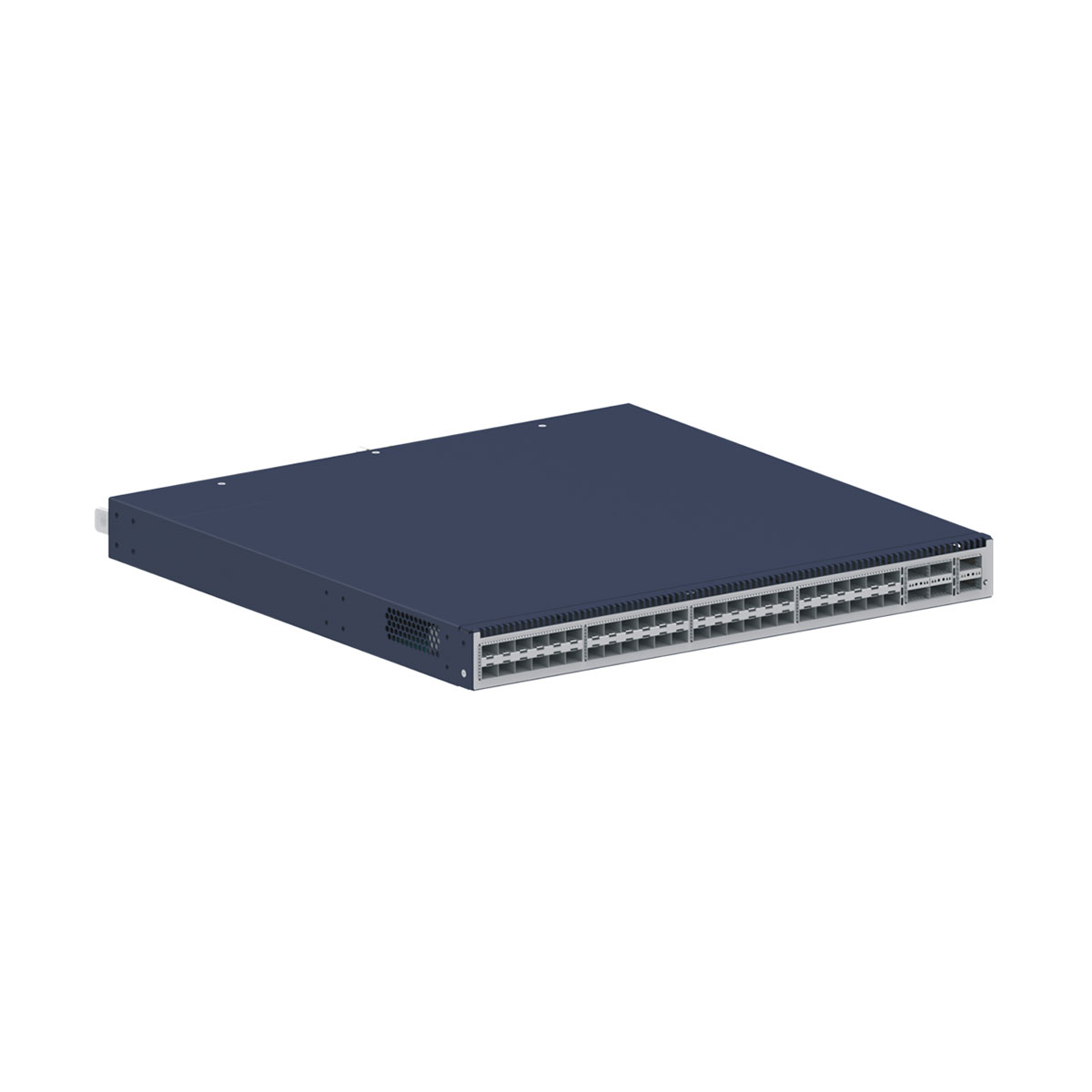

ZTE ZXR10 5960-72DL-H with 48 10GE/1000Base-x, 6 40GE
ZTE
3-5 days
Shenzhen Warehouse
- Description
- DATASHEET
- Reviews (1)
Description
ZXR10 5960-72DL-H with 48 10GE/1000Base-x, 6 40GE
Switching Capacity: 1440Gbps
| Item | ZXR10 5960-4M-S | ZXR10 5960- 72DL-H | ZXR10 5960- 64DL-H |
| Dimensions (H×W×D) | 88.1 mm×444 mm×600 mm | 43.6 mm×442 mm×440 mm | |
| Weight | ≤ 21 kg | ≤ 9 kg | ≤ 9 kg |
| Power Module | AC power supply: 100 V～127 V/200 V～240 V, 50 Hz～60 Hz, support 240 V/336 V high voltage DC input | AC power supply: 100 V to 127 V/200 V to 240 V, 50 Hz～60 Hz, support 240 V high voltage DC input |
|
| DC power supply: -40V to -72V |
DC power supply: -38.4 V to -57.6 V |
||
| Power consumption | Fully configured with 4 M8U daughter cards: Typical power consumption 378 W Maximum power consumption < 542 WFully configured with 4 M24Q2U daughter cards: Typical power consumption 380 W
Fully configured with 4 M24Q daughter cards:
Fully configured with 4 M24N2U daughter cards: |
Typical power consumption 158 W Maximum power consumption < 231 W |
Typical power consumption 148 W Maximum power consumption < 221 W |
| Reliability |
MTBF：> 300000 hours
MTTR：< 30 minutes
|
||
| EMC | ETSI EN 300 386 | ||
| Safety standard |
IEC 60950
EN 60950
EN60825-1
EN60825-2
IEC 60825-1
IEC 60825-2
|
||
| Ambient temperature |
The working temperature is -5 ℃ ~ 45 ℃
Storage temperature: -40 ℃ ~ 70 ℃ |
Working temperature -5 ℃ ~ 45 ℃
Storage temperature: -40 ℃ ~ 70 ℃ |
|
| Switch capacity |
6.4 Tbps
|
1440 Gbps
|
1280 Gbps
|
